ForeverPRO 5303918851 Thermostat Kit for Frigidaire Appliance Instruction Manual

1. Pengenalan

This manual provides essential information for the safe and effective installation, operation, and maintenance of the ForeverPRO 5303918851 Thermostat Kit. This kit is designed as a replacement part for compatible Frigidaire appliances. Please read these instructions thoroughly before beginning any installation or repair work.

2. Maklumat Keselamatan

AMARAN: Before attempting any repair or installation, ensure the appliance is completely disconnected from its power source. Failure to do so can result in electric shock, injury, or death. Always wear appropriate personal protective equipment, such as gloves and eye protection.

• Always disconnect power to the appliance before servicing.
• Jika anda tidak pasti tentang sebarang langkah, rujuk juruteknik bertauliah.
• Kendalikan semua komponen dengan berhati-hati untuk mengelakkan kerosakan.
• Jauhkan kanak-kanak dan haiwan peliharaan dari kawasan kerja.

3. Kandungan Pakej

The ForeverPRO 5303918851 Thermostat Kit package includes:

• 1 x Thermostat Kit (Model: 5303918851)

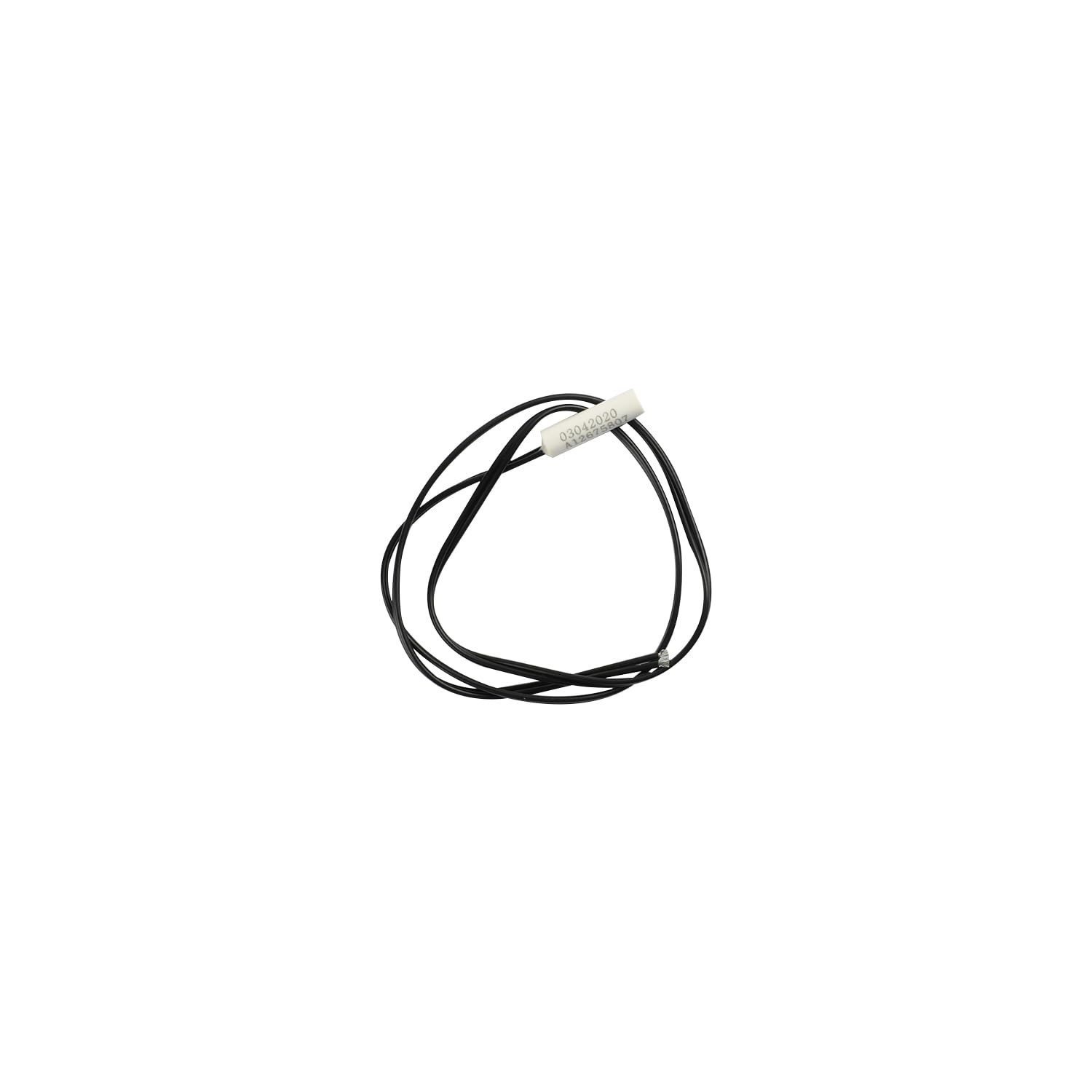

Figure 1: Image of the ForeverPRO 5303918851 Thermostat Kit. This image displays the thermostat kit components and its packaging.

4. Keserasian

This ForeverPRO 5303918851 Thermostat Kit is compatible with various Frigidaire appliances. It is also compatible with certain models from Electrolux, Gibson, Kelvinator, and Westinghouse. Please verify your appliance's model number against the list below to ensure compatibility.

Model Serasi yang Dikenali:

• ERMC2295AS
• FG4H2272UF
• GRMC2273BF
• GRMC2273CD00
• GRMC2273CF00
• GRQC2255AF
• GRQC2255BF0
• PRMC2285AF

Note: This is not an OEM product. The use of manufacturer trade names and logos is for demonstrating and identifying compatibility only.

5. Pemasangan / Persediaan

The installation process for a thermostat kit can vary depending on the specific appliance model. The following steps provide general guidance. Always refer to your appliance's specific service manual for detailed instructions.

1. Putuskan Kuasa: Before starting, ensure the appliance is unplugged from the wall outlet or the circuit breaker is turned off.
2. Akses Termostat: Locate the existing thermostat within your appliance. This may require removing panels or covers. Refer to your appliance's service manual for exact location and access procedures.
3. Sambungan Dokumen: Before disconnecting the old thermostat, take clear photos or make a diagram of all wiring connections. This will assist in proper reassembly.
4. Keluarkan Termostat Lama: Carefully disconnect the wires and mounting hardware securing the old thermostat.
5. Pasang Termostat Baharu: Connect the new ForeverPRO 5303918851 Thermostat Kit using the documented wiring connections. Secure it in place with the appropriate mounting hardware.
6. Pasang semula Perkakas: Replace any panels or covers that were removed to access the thermostat.
7. Pulihkan Kuasa: Plug the appliance back into the wall outlet or turn on the circuit breaker.
8. Kefungsian Ujian: Verify that the appliance is operating correctly and the new thermostat is functioning as expected.

If you encounter any difficulties or are unsure about any step, it is recommended to seek assistance from a qualified appliance repair technician.

6. Prinsip Operasi

The ForeverPRO 5303918851 Thermostat Kit functions as a critical component in your appliance's temperature regulation system. Its primary role is to monitor and control the temperature, activating or deactivating heating or cooling elements as needed to maintain the desired internal conditions. Once installed, the thermostat operates automatically as part of the appliance's design.

7. Penyelenggaraan

The thermostat kit itself generally requires no routine maintenance after proper installation. However, to ensure the longevity and optimal performance of your appliance and its components:

• Pastikan perkakas bersih dan bebas daripada serpihan.
• Pastikan pengudaraan yang betul di sekeliling perkakas.
• Periodically inspect wiring connections for any signs of wear or looseness.

8. Penyelesaian masalah

If your appliance is experiencing issues after replacing the thermostat, consider the following troubleshooting steps:

• Perkakas Tidak Dihidupkan:
  • Periksa sama ada perkakas telah dipasang dengan betul ke soket kuasa yang berfungsi.
  • Sahkan pemutus litar tidak tersandung.
  • Ensure all wiring connections to the thermostat are secure and correct.
• Incorrect Temperature:
  • Confirm the appliance's temperature settings are correct.
  • Inspect the thermostat's sensor (if applicable) for any obstructions or damage.
  • Ensure the thermostat is correctly installed and making proper contact.
• Appliance Running Continuously or Not At All:
  • This could indicate a faulty thermostat or a wiring issue. Re-check all connections.
  • If the issue persists, the thermostat itself may be defective, or there could be another underlying appliance problem.

For complex issues or if troubleshooting does not resolve the problem, it is advisable to contact a professional appliance repair service.

9. Spesifikasi

10. Waranti dan Sokongan

Waranti Pengilang: This product comes with a 90-day manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

Sokongan Pelanggan: For technical assistance, warranty claims, or further inquiries, please contact ForeverPRO customer support. Refer to your purchase documentation for contact details.
