Valuxhome 74-inch Electric Fireplace Instruction Manual

1. Arahan Keselamatan Penting

Sila baca dan fahami keseluruhan manual pemilik ini, termasuk semua maklumat keselamatan, sebelum memasang atau menggunakan produk ini. Kegagalan berbuat demikian boleh mengakibatkan kebakaran, kejutan elektrik atau kecederaan diri yang serius.

• Always disconnect the fireplace from the power supply before cleaning or maintenance.
• Jangan kendalikan pendiang api dengan kord atau palam yang rosak, atau jika pemanas tidak berfungsi atau telah terjatuh atau rosak dalam apa jua cara.
• Simpan bahan mudah terbakar, seperti perabot, bantal, peralatan tempat tidur, kertas, pakaian dan langsir sekurang-kurangnya 3 kaki (0.9 m) dari bahagian hadapan pemanas dan jauhkannya dari sisi dan belakang.
• Jangan masukkan atau biarkan objek asing memasuki sebarang bukaan pengudaraan atau ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pendiang api.
• Perapian ini panas apabila digunakan. Untuk mengelakkan luka terbakar, jangan biarkan kulit terdedah menyentuh permukaan panas.
• Close supervision is necessary when any heater is used by or near children or invalids and whenever the fireplace is left operating and unattended.

2. Produk Lebihview

The Valuxhome 74-inch Electric Fireplace offers both wall-mounted and recessed installation options, featuring an ultra-thin design and a wide range of customizable flame and ember bed colors. It includes multiple control modes and safety features for enhanced user experience.

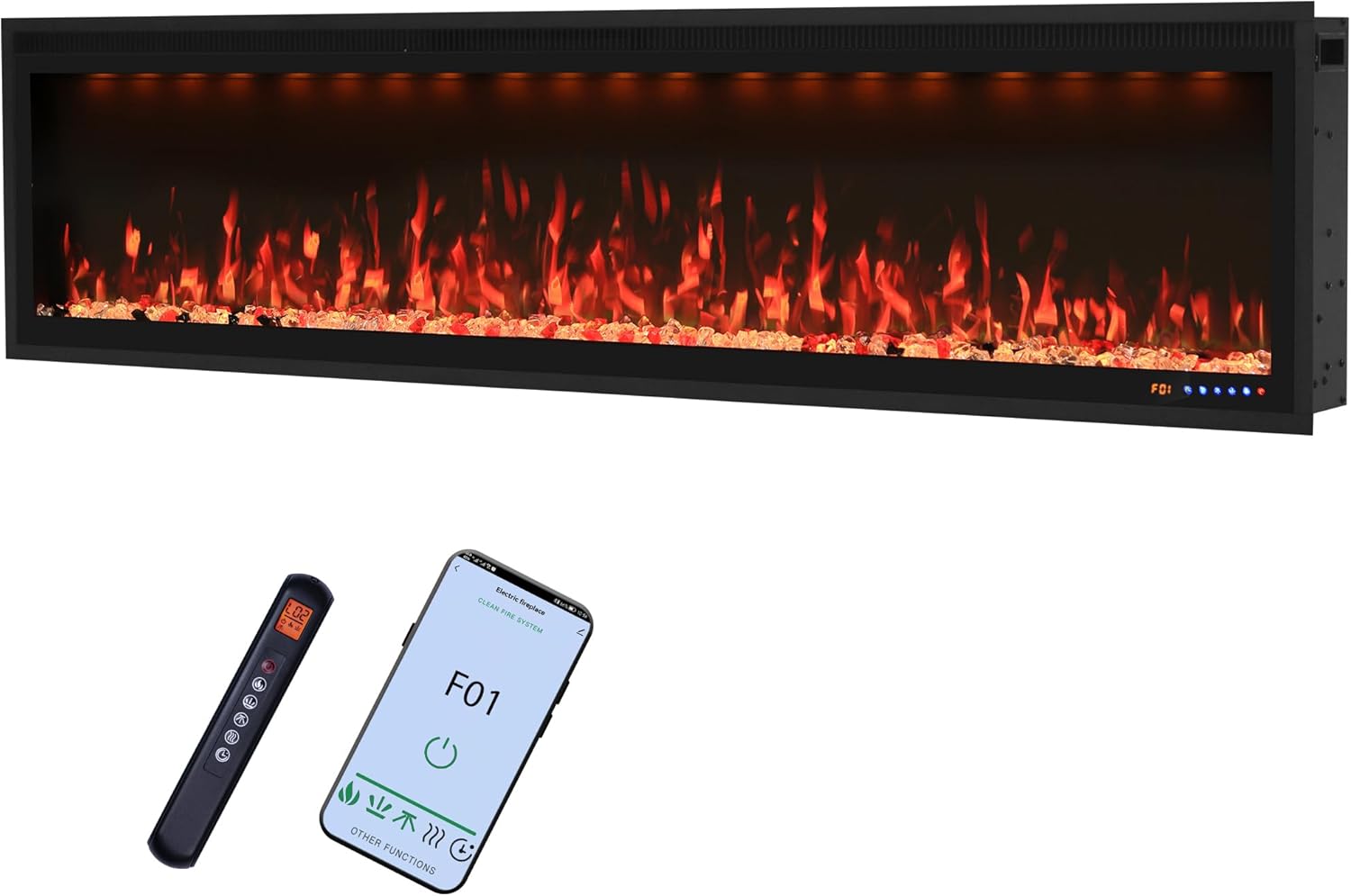

Figure 2.1: Valuxhome 74-inch Electric Fireplace with remote and app control.

Ciri-ciri Utama:

• Dimensi: Front size: 74” (W) x 16.87” (H) x 6.31” (D). Back size: 72.5” (W) x 15.75” (H) x 6.31” (D).
• Estetika Boleh Disesuaikan: 13 flame colors, 13 ember bed colors, and 3 top light colors, offering 507 color combinations.
• Pilihan Katil Bahan Api: Includes both crystal and log decorations.
• Pemanasan: Two heating modes (750W/1500W) capable of heating up to 400 sq ft. Flame and lights can operate independently of heat.
• Kaedah Kawalan: App control, touchscreen panel, and remote control.
• Keselamatan: 1-9 hour timer and overheating protection.

Figure 2.2: Ultra-narrow frame design provides a larger screen and enhanced visual experience.

3. Persediaan dan Pemasangan

3.1 Pemasangan Dipasang di Dinding

For wall-mounted installation, ensure the fireplace is securely attached to a wall stud using the provided mounting bracket. Follow these general steps:

1. Choose a suitable location on a wall, ensuring it is away from combustible materials and has access to a power outlet.
2. Tandakan ketinggian dan aras yang dikehendaki untuk pendakap pelekap.
3. Securely attach the mounting bracket to the wall studs using appropriate hardware.
4. Angkat pendiang api dengan berhati-hati dan sambungkannya pada pendakap pelekap.
5. Ensure the fireplace is stable and level before plugging it in.

3.2 Pemasangan Tersembunyi

For recessed installation, a minimum opening wall size of 72.89” (W) x 16.1” (H) x 6¼” (D) is required. Refer to the detailed dimensions and framing size table below.

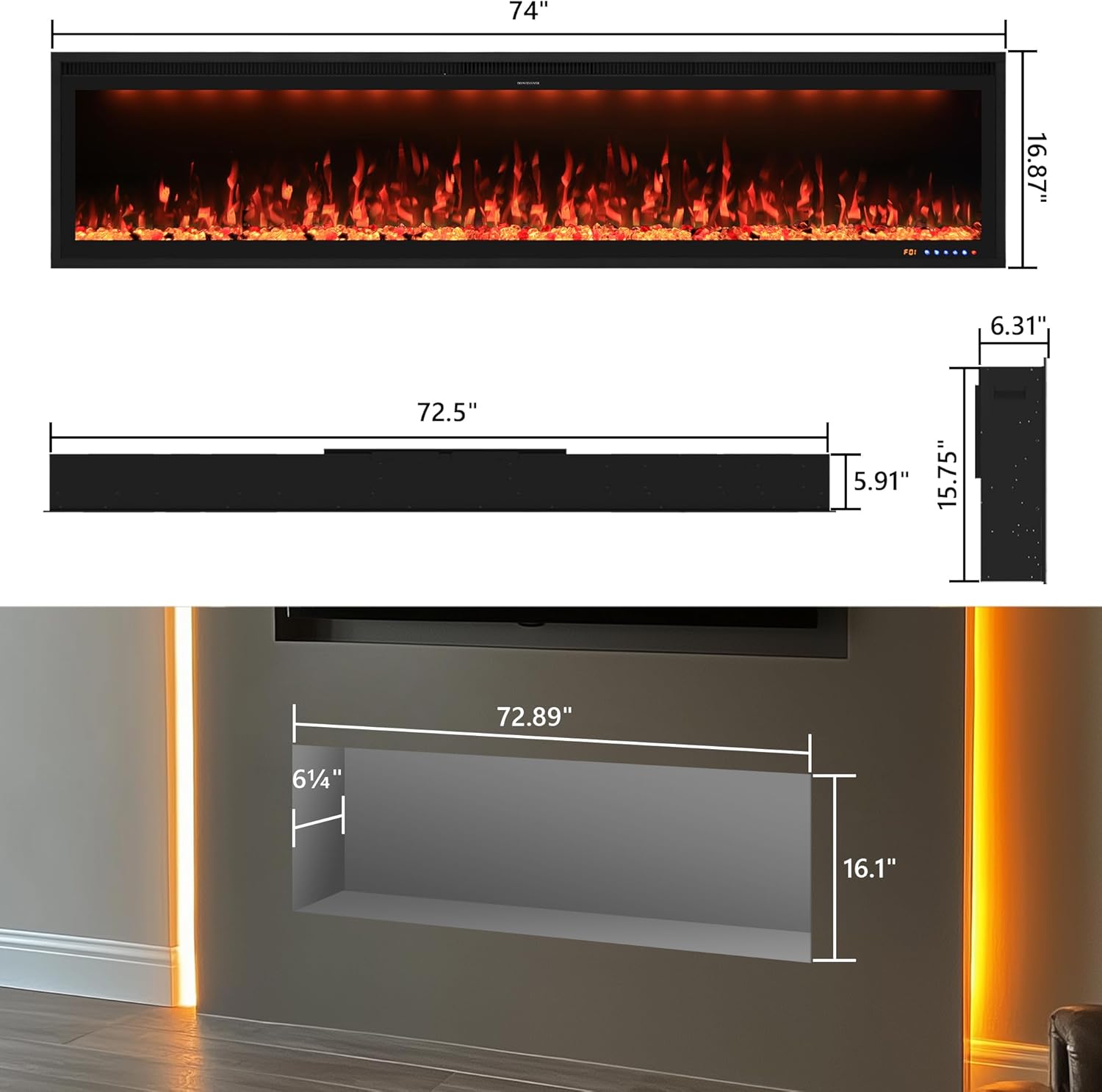

Figure 3.1: Detailed dimensions and recessed opening requirements for the electric fireplace.

Figure 3.2: Recessed installation framing size table for various fireplace models, including the 74-inch model.

Langkah Pemasangan Tersembunyi:

1. Construct a framed opening in the wall according to the specified dimensions.
2. Insert the fireplace into the framed opening.
3. Secure the fireplace to the framing using the provided screws.
4. Ensure proper ventilation around the unit as indicated in the manual.

4. Arahan Operasi

The Valuxhome electric fireplace can be operated using the touchscreen panel, the included remote control, or a dedicated mobile application.

4.1 Panel Kawalan dan Alat Kawalan Jauh

The fireplace features a discreet touchscreen glass panel and comes with a remote control for convenient operation. Both allow control over power, heat settings, flame colors, ember bed colors, and top light colors.

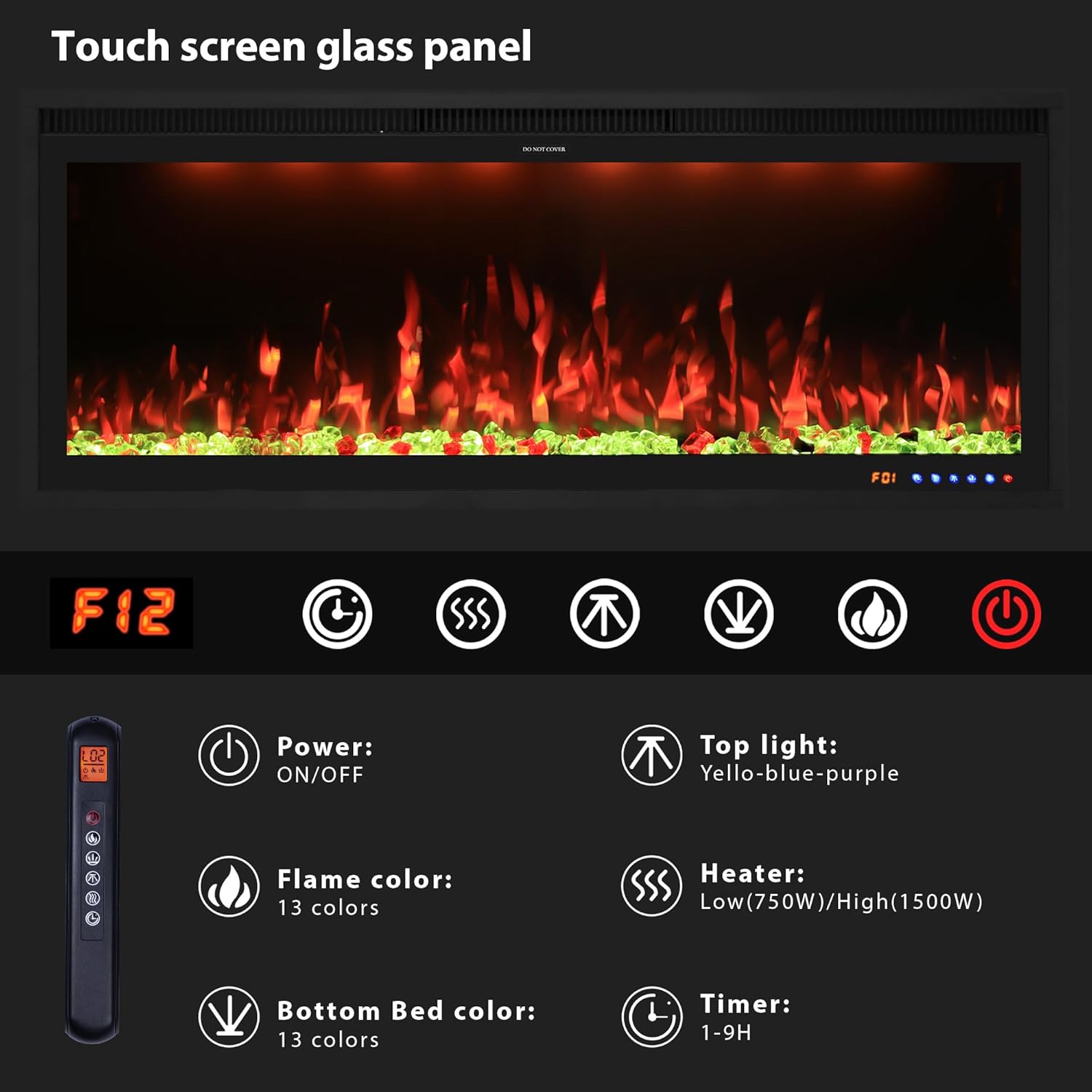

Gambar 4.1: Lebihview of the touchscreen control panel and remote control functions.

4.2 Kawalan Aplikasi Mudah Alih

Download the dedicated mobile application to control your fireplace from your smartphone. The app provides comprehensive control over all features, including flame effects, heating, and timer settings.

Figure 4.2: Control your fireplace conveniently using the mobile application.

4.3 Flame and Light Customization

Choose from 13 flame colors, 13 ember bed colors, and 3 top light colors to create up to 507 unique combinations. The flame and light effects can be displayed without activating the heating function.

Figure 4.3: Explore 507 multi-combination flame effects.

4.4 Heating Modes and Timer

Select between Low (750W) and High (1500W) heating modes. The integrated 1-9 hour timer allows you to set the duration of operation, providing convenience and energy efficiency.

Figure 4.4: Air intake and outlet for efficient heating.

Figure 4.5: Choose between crystal and log fuel bed options to match your aesthetic.

5. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan jangka hayat pendiangan elektrik anda.

• Pembersihan: Sentiasa cabut plag perapian sebelum membersihkan. Gunakan yang lembut, damp kain untuk mengelap permukaan luar. Jangan gunakan pembersih atau semburan yang kasar.
• Panel Kaca: Clean the glass panel with a soft cloth and glass cleaner. Do not use abrasive cleaners.
• Pengudaraan: Ensure the air intake and outlet vents are clear of dust and debris to prevent overheating.
• Mentol lampu: The LED lights are designed for long life and should not require replacement.

6. Penyelesaian masalah

Jika anda mengalami masalah dengan pendiang api anda, rujuk masalah dan penyelesaian biasa berikut:

• Tiada Kuasa: Check if the power cord is securely plugged into a working outlet. Ensure the circuit breaker is not tripped.
• Tiada haba: Verify that the heater function is turned on and the temperature setting is above the ambient room temperature. Check for any obstructions in the air vents.
• Alat Jauh Tidak Berfungsi: Gantikan bateri pada alat kawalan jauh. Pastikan tiada halangan antara alat kawalan jauh dan sensor pendiang api.
• Isu Ketersambungan Apl: Ensure your fireplace is in pairing mode and your mobile device is connected to a 2.4GHz Wi-Fi network. Refer to the app's instructions for detailed pairing steps.
• Bunyi Luar Biasa: A slight fan noise is normal during heating operation. If unusual or loud noises occur, discontinue use and contact customer support.

7. Spesifikasi

8. Maklumat Waranti

This Valuxhome electric fireplace comes with a Waranti Terhad. Please refer to the product packaging or contact customer support for specific terms and conditions of the warranty.

9. Sokongan Pelanggan

For any questions, technical assistance, or warranty claims, please contact Valuxhome customer support. Refer to the contact information provided on the product packaging or the official Valuxhome webtapak.
