Electactic Commercial Ice Maker User Manual

pengenalan

Thank you for choosing the Electactic Commercial Ice Maker. This machine is designed to provide a reliable and efficient supply of ice cubes for commercial environments such as restaurants, bars, cafes, and offices. With a daily ice production capacity of up to 100 pounds and a 33-pound storage bin, it ensures a consistent supply of ice. This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your ice maker.

Figure 1: Electactic Commercial Ice Maker

Arahan Keselamatan

Sila baca semua arahan keselamatan dengan teliti sebelum mengendalikan perkakas untuk mengelakkan kecederaan atau kerosakan. Simpan manual ini untuk rujukan masa hadapan.

• Pastikan bekalan kuasa sepadan dengan spesifikasi yang disenaraikan pada label produk.
• Jangan kendalikan mesin dengan kord kuasa atau palam yang rosak.
• Jauhkan perkakas daripada sumber haba dan cahaya matahari langsung.
• Ensure proper ventilation around the unit. Maintain at least 6 inches of clearance from walls and other objects.
• Do not use flammable liquids near the ice maker.
• Sentiasa putuskan sambungan kuasa sebelum membersihkan atau melakukan penyelenggaraan.
• Perkakas ini bertujuan untuk kegunaan komersial.

Persediaan dan Pemasangan

1. Membongkar

Carefully remove the ice maker from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging materials for future transport or if the unit needs to be returned.

2. penempatan

Place the ice maker on a flat, stable surface capable of supporting its weight when full of ice and water. Ensure the location is well-ventilated and away from direct heat sources. The unit's dimensions are approximately 17.52 inches (D) x 15.87 inches (W) x 31.3 inches (H).

Rajah 2: Dimensi Produk

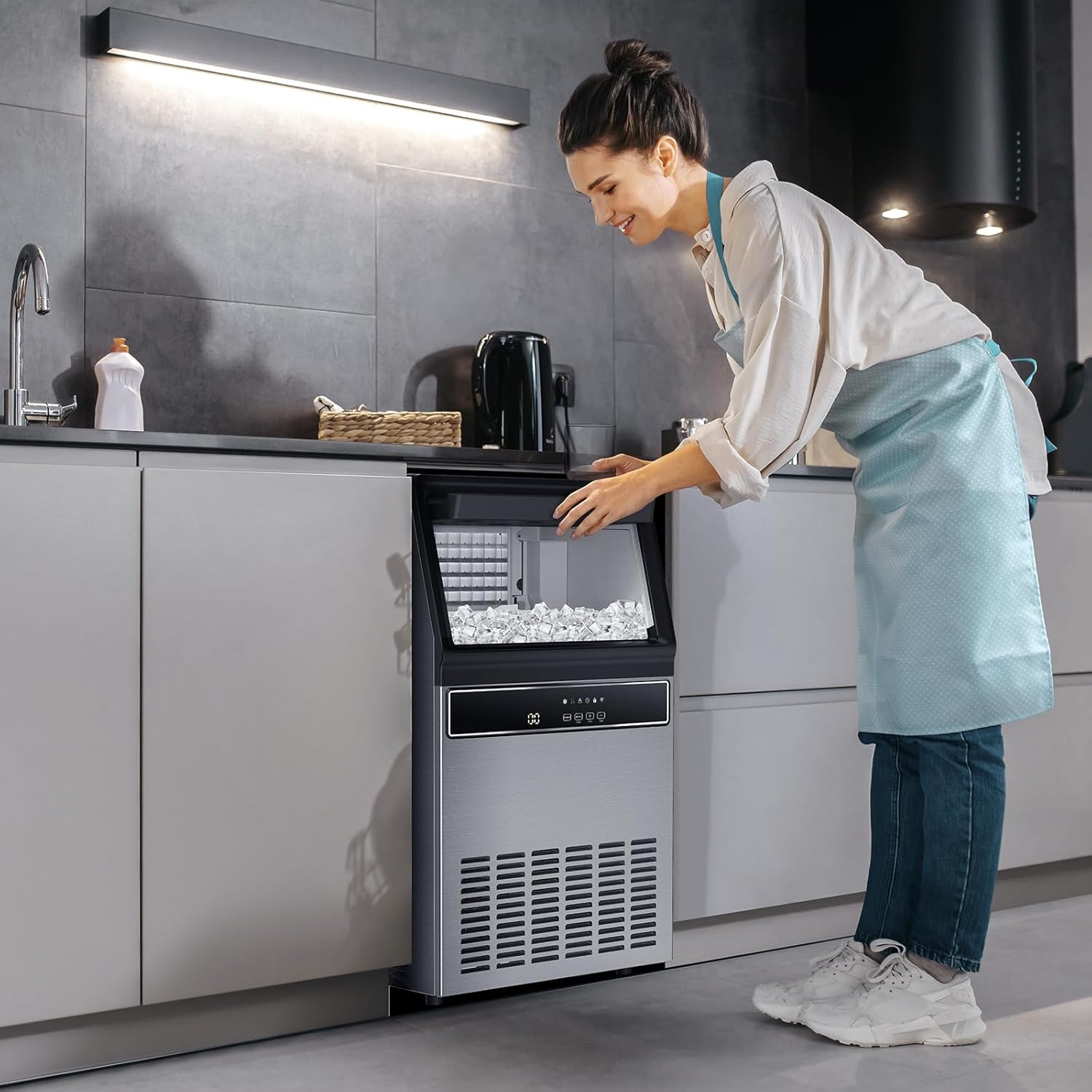

Gambar 3: Cthample Placement in a Kitchen Environment

3. Sambungan Air

The ice maker requires a continuous water supply and a drain. Connect the water inlet pipe to a potable water source and the water outlet pipe to a suitable drain. Ensure all connections are secure to prevent leaks.

Figure 4: Water Inlet and Outlet Connections

4. Sambungan elektrik

Plug the ice maker into a grounded electrical outlet. The unit operates on 120 Volts and consumes 380 watts. Do not use extension cords or adapters.

Arahan Operasi

1. Panel Kawalan Selesaiview

The ice maker features a simple LCD control panel for easy operation. The panel displays status indicators and allows for various settings adjustments.

Rajah 5: Panel Kawalan dan Penunjuk

• Butang kuasa: Menghidupkan atau mematikan unit.
• Butang MOD: Used to select different modes, including cleaning.
• + / - Butang: Adjust ice thickness or set timer.
• Petunjuk: Ice Making, Clean, Timer, Full Ice Alert.

2. Operasi Awal

After connecting water and power, the machine will perform an initial check. Ensure the water supply is open. The unit will begin ice production automatically or after pressing the POWER button.

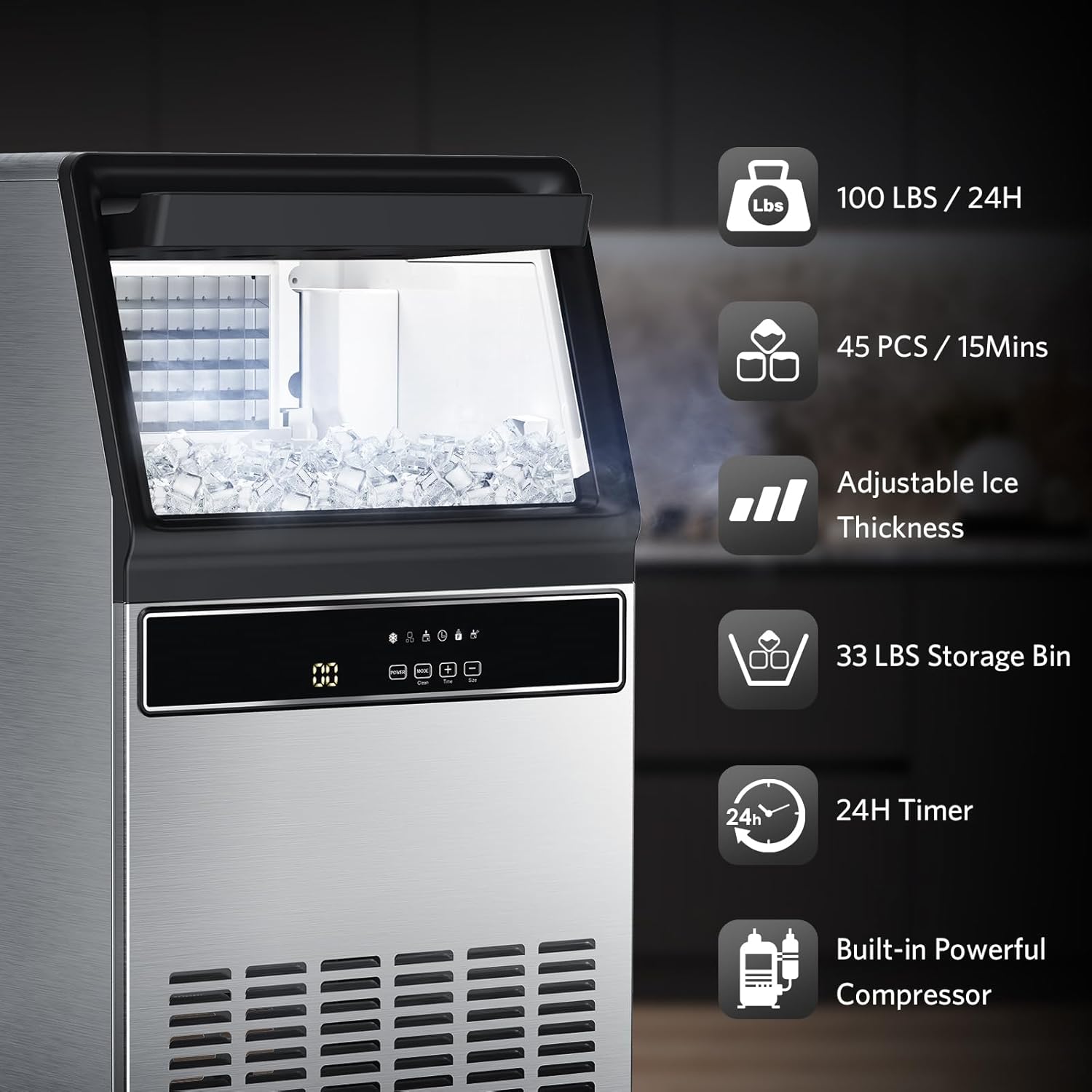

Figure 6: Key Operational Features

3. Melaraskan Ketebalan Ais

The ice maker allows you to adjust the thickness of the ice cubes. Use the + dan - buttons to cycle through the available thickness settings. Thicker ice melts slower, while thinner ice is produced faster.

4. Menggunakan Pemasa 24 Jam

The integrated 24-hour timer allows you to schedule the ice maker's operation. Press the MODE button to access the timer setting, then use the + dan - buttons to set the desired start or stop time. This feature helps in energy saving and ensures ice is ready when needed.

Penyelenggaraan

1. Automatic Self-Cleaning

The ice maker is equipped with an automatic self-cleaning function. To activate:

1. Ensure the inlet and outlet pipes are correctly connected to a water source and drain.
2. Dalam mod siap sedia, tekan dan tahan butang MODE butang selama 3 saat.
3. The cleaning cycle will begin and typically takes about 15 minutes to complete.

2. Pembersihan Berkala

For optimal performance and hygiene, regular manual cleaning is recommended in addition to the self-cleaning function.

• Ice Bin: Periodically clean the ice storage bin with a mild detergent and warm water. Rinse thoroughly and dry before resuming operation.
• Luaran: Lap bahagian luar keluli tahan karat dengan lembut, damp kain. Elakkan pembersih yang kasar.
• Gegelung pemeluwap: The condenser coils, located at the back or side of the unit, should be cleaned regularly to ensure efficient operation. Use a soft brush or vacuum cleaner to remove dust and debris.

Menyelesaikan masalah

This section addresses common issues you might encounter with your ice maker. If the problem persists after attempting these solutions, please contact customer support.

Spesifikasi

Waranti dan Sokongan

Electactic products are manufactured to high-quality standards and are warranted against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact Electactic customer support.

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Electactic customer support through their official webtapak atau maklumat hubungan yang diberikan pada tempat pembelian.
