Plyisty Wireless Music Receiver User Manual

1. Pengenalan

This manual provides detailed instructions for the setup, operation, and maintenance of your Plyisty Wireless Music Receiver. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your listening experience.

The Plyisty Wireless Music Receiver transforms traditional audio systems into smart, wireless, multi-room streaming devices. It allows you to stream high-fidelity audio wirelessly from your smartphone, tablet, or computer to your existing HiFi speakers.

Figure 1: Plyisty Wireless Music Receiver. This image shows the compact, circular design of the device with a dark top surface and a silver-grey base, featuring a 'STEREO' audio output port on the front.

2. Kandungan Pakej

Sila sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda. Jika ada item yang hilang atau rosak, sila hubungi sokongan pelanggan.

• 1 x HiFi Music Receiver
• Kabel Audio 1 x 3.5mm
• 1 x USB Power Cable
• 2 x Manual Pengguna (dokumen ini)

Figure 2: Included accessories. The image displays the Plyisty Wireless Music Receiver alongside the 3.5mm audio cable and the USB power cable, all neatly bundled.

3. Produk Lebihview

The Plyisty Wireless Music Receiver is designed for seamless integration with your home audio system. Key features include:

• Wireless HiFi Music Streaming: Connects to your existing speakers to stream music wirelessly.
• Audio Berbilang Bilik: Synchronously stream music to up to 8 rooms, playing the same song or different songs simultaneously.
• Julat Isyarat Kuat: Offers a robust wireless signal within your network.
• Kawalan Apl: Manage all speakers and music playback via the AudioCast app.
• Keserasian Luas: Supports DLNA for UPnP music playback and various online music services like Spotify, TuneIn Radio, and DEEZER. Compatible with Android 4.0+, iOS 7+, and OS X 10.9+ devices.
• Ciri-ciri tambahan: Includes music alarm and sleep timer functions.

3.1 Komponen Peranti

Rajah 3: Depan view. The front of the device features a 3.5mm audio output port labeled "STEREO".

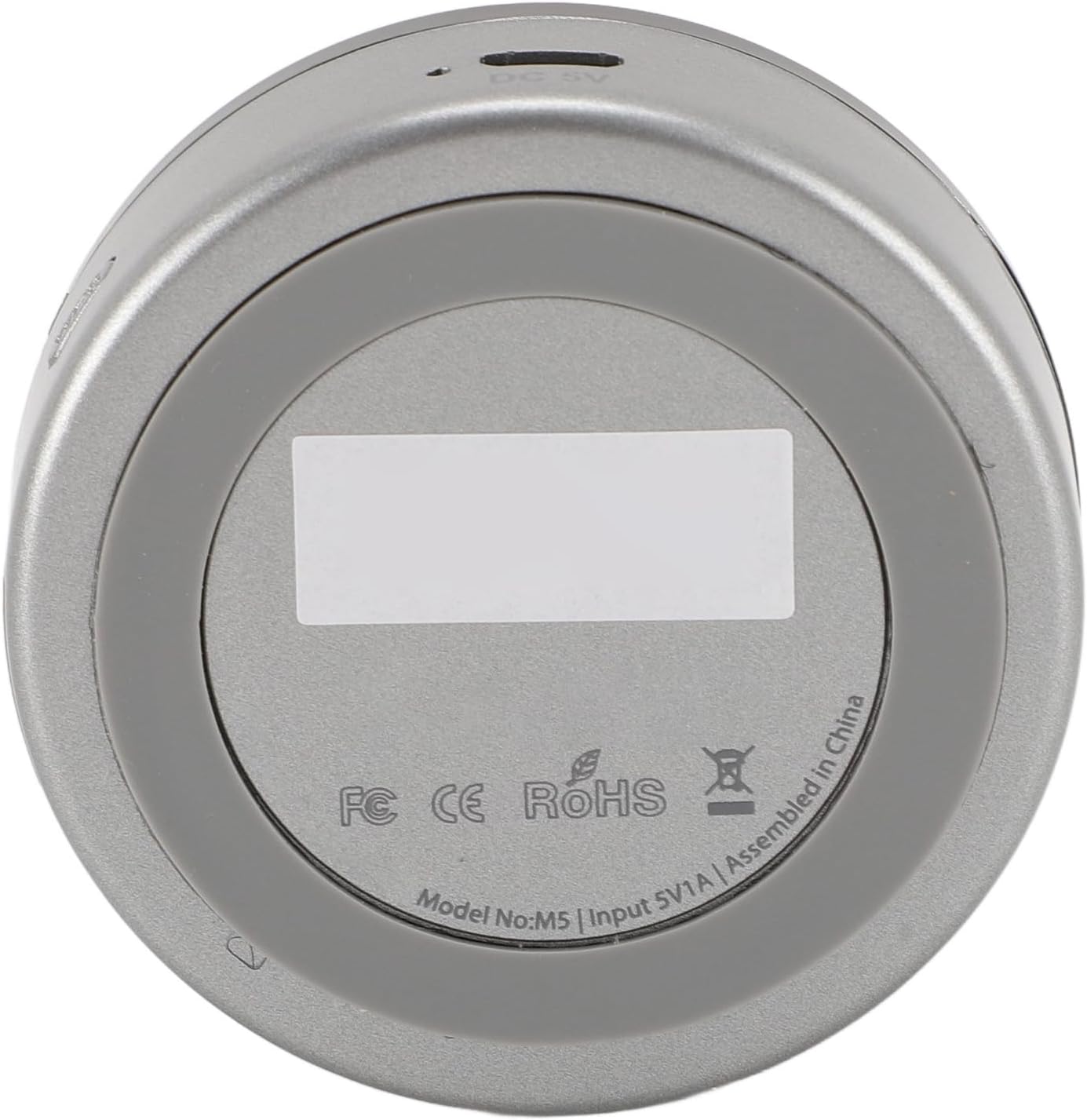

Figure 4: Rear/Bottom view. The rear of the device includes a DC 5V power input port and regulatory compliance markings (FC, CE, RoHS), along with the model number.

4. Persediaan

4.1 Menyambung Peranti

1. Sambungan Kuasa: Connect the supplied USB power cable to the DC 5V port on the receiver and plug the other end into a USB power adapter (not included) or a USB port on your audio system.
2. Output Audio: Connect the 3.5mm audio cable from the receiver's "STEREO" output port to the AUX input of your amplifier, active speakers, or home audio system.

4.2 App Installation and Network Configuration

1. Download the AudioCast App: Cari untuk "AudioCast" in your smartphone's app store (Google Play Store for Android or Apple App Store for iOS) and install it.
2. Sambung ke Wi-Fi:
   • Ensure your smartphone is connected to your home Wi-Fi network.
   • Open the AudioCast app. The app will guide you through connecting the receiver to your home Wi-Fi network. Follow the on-screen instructions.
   • During the initial setup, the receiver may create its own temporary Wi-Fi network. Connect your phone to this network if prompted, then proceed to connect the receiver to your home Wi-Fi.
3. Pengecaman Peranti: Once connected to your home Wi-Fi, the AudioCast app should detect the receiver. You can then name your device (e.g., "Living Room Speaker").

Figure 5: Receiver connected to a speaker. The image shows the compact receiver placed next to a white speaker, illustrating a typical setup.

5. Arahan Operasi

5.1 Main Semula Muzik Asas

1. Open the AudioCast app on your smartphone or tablet.
2. Select the Plyisty Wireless Music Receiver from the device list.
3. Choose your desired music source (e.g., local music, Spotify, TuneIn Radio, DEEZER, or other supported online services).
4. Start playback. You can control volume, skip tracks, and pause directly from the app.

5.2 Multi-Room Streaming

The Plyisty Wireless Music Receiver supports multi-room audio, allowing you to synchronize music across multiple devices (up to 8) in different rooms.

1. Ensure all your Plyisty Wireless Music Receivers are connected to the same Wi-Fi network and configured in the AudioCast app.
2. In the AudioCast app, you can group devices to play the same music simultaneously or select individual devices to play different music.
3. Follow the app's interface to create groups or manage individual playback zones.

5.3 DLNA/UPnP Playback

The device supports DLNA (Digital Living Network Alliance) for playing music from compatible UPnP (Universal Plug and Play) media servers on your network. Access this feature through the AudioCast app's source selection.

5.4 Music Alarm and Sleep Timer

Utilize the AudioCast app to set a music alarm to wake up to your favorite tunes or a sleep timer to automatically turn off music after a set period.

6. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan peranti. Jangan gunakan pembersih cecair atau aerosol.
• Storan: Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Pengendalian: Elakkan daripada menjatuhkan peranti atau terkena impak yang kuat.
• Kemas kini Firmware: Periodically check the AudioCast app for available firmware updates to ensure optimal performance and access to new features.

7. Penyelesaian masalah

8. Spesifikasi

9. Waranti dan Sokongan

Untuk maklumat waranti dan sokongan pelanggan, sila rujuk dokumentasi yang diberikan semasa pembelian atau hubungi peruncit anda. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.

For technical assistance or further inquiries, please visit the official Plyisty webtapak atau hubungi bahagian perkhidmatan pelanggan mereka.
