How do I put the lid on the Mainstays 4L Deep Fryer (Model HD3501) when not using it on the MS8400778514-2?

The provided manual for the Mainstays 4L Deep Fryer (Model MS8400778514-2) mentions a "Stainless Steel Lid with Viewing Window and Charcoal Air Filter" as one of its product components. While the manual instructs to "Place the lid on the deep fryer" during the preheating process, it does not provide specific steps or diagrams for how to attach or secure the lid for storage when not in use. Generally, deep fryer lids are designed to simply rest on top of the main unit, covering the oil pan. Ensure the deep fryer is unplugged and completely cooled before handling the lid for storage.

What type of replacement cord do I need to buy for the Mainstays 4L Deep Fryer (Model MS8400778514-2)?

The Mainstays 4L Deep Fryer (Model MS8400778514-2) uses a detachable magnetic power cord. This is a standard safety feature for many deep fryers designed to disconnect easily if the cord is tripped over, preventing the fryer from tipping over and spilling hot oil.When looking for a replacement, you should search for a "Mainstays Deep Fryer Magnetic Power Cord" or a universal magnetic breakaway cord compatible with 4L deep fryers. To ensure you get the correct fit, check the following:Pin Spacing: Measure the distance between the two metal pins on the fryer's heating element unit where the cord attaches. Common spacings are 1/2 inch (approx. 12.7mm) or 11/16 inch (approx. 17.5mm).Wattage/Amperage: Ensure the replacement cord is rated for at least 1800 Watts (or 15 Amps), as deep fryers are high-draw appliances.For the most accurate replacement, it is recommended to contact Mainstays customer support (often handled through Walmart) or check the rating label on the back of your specific unit to confirm the electrical requirements.

MS8400778514-2

Mainstays 4L Deep Fryer Instruction Manual

Model: MS8400778514-2

1. Pengenalan

Terima kasih kerana membeliasing the Mainstays 4L Deep Fryer. This appliance is designed to make deep frying at home simple and efficient, allowing you to prepare a variety of crispy, delicious foods. Featuring a 4-liter capacity, adjustable temperature control, and a convenient viewing window, this deep fryer is built for ease of use and durability. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.

The Mainstays 4L Deep Fryer includes an enamel-coated oil pan, a cool-touch handle for the frying basket, and a detachable power cord for easy storage. Its immersion heating element ensures quick and even heating of oil for consistently fried results.

2. Arahan Keselamatan Penting

Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa diikuti untuk mengurangkan risiko kebakaran, renjatan elektrik dan kecederaan kepada orang, termasuk yang berikut:

Baca semua arahan sebelum mengendalikan penggoreng dalam.
Jangan sentuh permukaan panas. Gunakan pemegang atau tombol.
Untuk melindungi daripada renjatan elektrik, jangan rendamkan kord, palam atau elemen pemanas ke dalam air atau cecair lain.
Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian, dan sebelum membersihkan perkakas.
Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh menyebabkan kecederaan.
Jangan gunakan di luar rumah.
Jangan biarkan kord tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
Berhati-hati yang melampau mesti digunakan apabila menggerakkan perkakas yang mengandungi minyak panas atau cecair panas lain.
Sentiasa pasangkan plag pada perkakas terlebih dahulu, kemudian pasangkan kord ke dalam salur keluar dinding. Untuk memutuskan sambungan, matikan mana-mana kawalan kepada "mati", kemudian tanggalkan palam dari alur keluar dinding.
Jangan gunakan perkakas untuk kegunaan selain daripada yang dimaksudkan.
Ensure the oil level is between the MIN and MAX marks inside the oil pan. Overfilling or underfilling can be dangerous.
Never mix different types of oil or old and new oil.
Always ensure food is dry before frying to prevent oil splattering.

3. Komponen Produk

Familiarize yourself with the parts of your Mainstays 4L Deep Fryer:

Unit Utama (dengan panel kawalan dan elemen pemanasan)
Removable Enamel-Coated Oil Pan (4L capacity)
Frying Basket with Cool-Touch Handle
Stainless Steel Lid with Viewing Window and Charcoal Air Filter
Kabel Kuasa Boleh Tanggalkan

Disassembled components of the Mainstays 4L Deep Fryer, including the main unit, lid, frying basket, and power cord.

Figure 3.1: Disassembled components of the deep fryer.

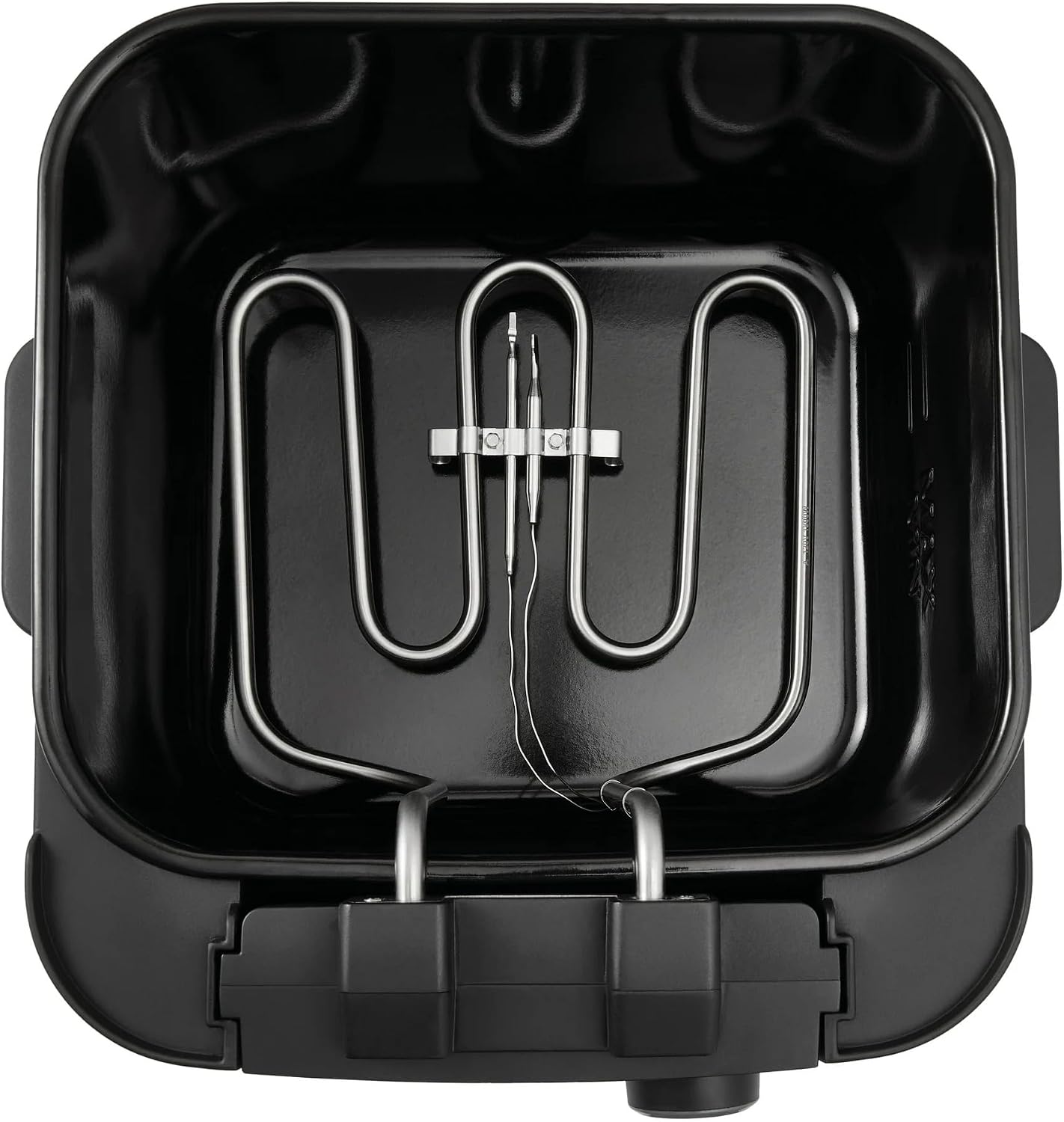

Atas ke bawah view of the Mainstays 4L Deep Fryer's interior, showing the immersion heating element.

Rajah 3.2: View of the immersion heating element within the oil pan.

Detachable power cord for the Mainstays 4L Deep Fryer.

Figure 3.3: Detachable power cord.

4. Persediaan dan Penggunaan Awal

Membongkar: Carefully remove all packaging materials and promotional labels from the deep fryer.
Pembersihan Awal: Before first use, wash the removable oil pan, frying basket, and lid in warm, soapy water. Rinse thoroughly and dry all parts completely. Wipe the exterior of the main unit with a damp kain. Pastikan semua bahagian kering sepenuhnya sebelum dipasang.
Perhimpunan: Place the main unit on a stable, heat-resistant, and dry surface. Insert the clean, dry enamel-coated oil pan into the main unit. Ensure it is seated correctly.
Menambah minyak: Pour cooking oil (suitable for deep frying) into the oil pan. Ensure the oil level is between the MIN and MAX fill lines indicated inside the pan. Do not overfill or underfill.
Sambungkan Kuasa: Attach the detachable power cord securely to the appliance, then plug the other end into a grounded electrical outlet.

Mainstays 4L Deep Fryer with stainless steel lid and control knob.

Figure 4.1: Mainstays 4L Deep Fryer ready for use.

5. Arahan Operasi

5.1. Preheating the Oil

Ensure the oil pan is filled with oil to the appropriate level.
Place the lid on the deep fryer.
Turn the temperature control knob to the desired frying temperature. The
