PURLINE CHE-720 W Electric Stove User Manual

1. Produk Lebihview

PURLINE CHE-720 W Electric Stove combines traditional design with modern heating technology. It features a classic wood stove aesthetic, complete with an LED flame effect and artificial logs, visible through three glass panels for a panoramic fire view. Its white finish is designed to complement various interior decors.

This electric stove offers intelligent control via WiFi and an included remote control, allowing users to manage thermostat settings and program operating schedules. With 1800 W of power, it provides consistent and comfortable heat for medium to large living spaces, utilizing quiet convection technology. An integrated lower compartment offers practical storage space, enhancing its functionality.

Designed for safety and ease of use, the CHE-720 W includes overheating protection. Its manageable dimensions (44 x 35 x 75 cm) make it portable and simple to install, providing an essential heating solution for colder periods.

Figure 1: PURLINE CHE-720 W Electric Stove in a modern living room setting, showcasing its design and flame effect.

2. Maklumat Keselamatan

Please read all safety warnings and instructions carefully before using this electric stove to prevent fire, electric shock, injury, or property damage. Keep this manual for future reference.

• Pastikan bekalan kuasa voltage sepadan dengan label penilaian pada perkakas.
• Do not operate the stove with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Pastikan bahan mudah terbakar seperti perabot, bantal, cadar, kertas, pakaian dan langsir berada sekurang-kurangnya 1 meter (3 kaki) dari bahagian hadapan pemanas dan jauh dari sisi dan belakang.
• Jangan masukkan atau benarkan objek asing memasuki mana-mana pengudaraan atau bukaan ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pemanas.
• Do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• Pemanas ini panas apabila digunakan. Untuk mengelakkan luka terbakar, jangan biarkan kulit terdedah menyentuh permukaan panas.
• Sentiasa cabut plag pemanas apabila tidak digunakan.
• Jangan gunakan di luar rumah. Pemanas ini bertujuan untuk kegunaan dalaman sahaja.
• Jangan gunakan tali di bawah permaidani. Jangan tutup tali dengan permaidani lempar, pelari, atau penutup yang serupa. Susun kord jauh dari kawasan lalu lintas dan di mana ia tidak akan tersandung.
• Kanak-kanak harus diawasi untuk memastikan bahawa mereka tidak bermain dengan perkakas.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.

3. Kandungan Pakej

Selepas membongkar, sila pastikan semua item yang disenaraikan di bawah ada dan tidak rosak:

• PURLINE CHE-720 W Electric Stove Unit
• Alat Kawalan Jauh
• Manual Pengguna (dokumen ini)

The integrated lower storage compartment is part of the main unit.

4. Persediaan

1. Membongkar: Carefully remove the electric stove from its packaging. Retain all packaging materials for future storage or transport.
2. penempatan: Place the stove on a firm, level surface. Ensure there is adequate clearance around the unit as specified in the safety information (at least 1 meter from combustible materials). Do not place the stove directly below a fixed socket outlet.
3. Sambungan Kuasa: Plug the power cord into a grounded 220-240V AC, 50Hz electrical outlet. Ensure the outlet is easily accessible.
4. Kuasa Awal Hidup: Locate the main power switch, usually at the back or side of the unit (refer to Figure 2). Switch it to the 'ON' position. The unit will enter standby mode.

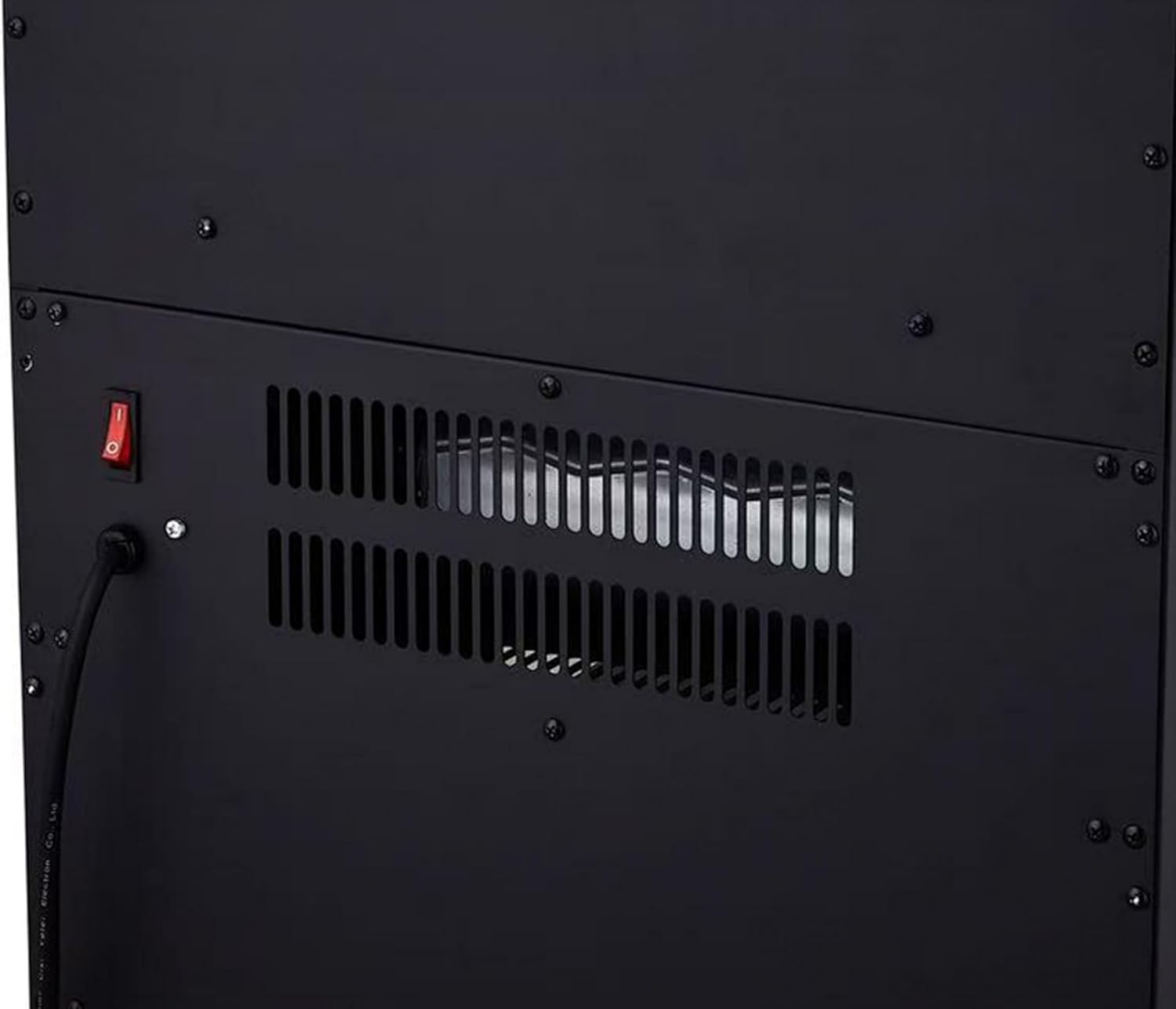

Rajah 2: Belakang view of the electric stove, highlighting the main power switch and ventilation openings.

5. Arahan Operasi

The CHE-720 W can be operated using the control panel on the unit or the included remote control.

5.1 Panel Kawalan

The control panel is typically located on the top or front of the unit, featuring a digital display and various buttons (refer to Figure 3).

Figure 3: Digital display and control buttons for the electric stove.

• Butang kuasa (U): Press to turn the heater ON or OFF from standby mode.
• Heat Setting Button (♨): Adjusts the heat output (e.g., Low, High, or specific wattagdan).
• Temperature Control (☼): Use '+' and '-' buttons (if available) to set the desired room temperature. The stove will automatically maintain this temperature.
• Flame Effect Button (🔥): Toggles the LED flame effect ON/OFF or adjusts its brightness/style.
• Butang Pemasa (⏱): Sets an operating timer for automatic shut-off.
• Butang WiFi (📶): Activates or deactivates WiFi connectivity for app control.

5.2 Alat Kawalan Jauh

The remote control provides convenient access to all functions from a distance. Ensure batteries are correctly installed (not included, typically 2x AAA).

Figure 4: Remote control icon, representing the included remote for convenient operation.

• The buttons on the remote control correspond to the functions on the unit's control panel.
• Point the remote control directly at the front of the electric stove for optimal signal reception.

6. WiFi Control

PURLINE CHE-720 W Electric Stove can be controlled remotely via a mobile application, offering enhanced convenience and scheduling capabilities.

Figure 5: WiFi icon, indicating the stove's smart connectivity feature.

1. Muat turun Apl: Download the official PURLINE smart home application from your smartphone's app store (iOS or Android). Cari untuk "PURLINE Smart" or refer to the QR code in the separate quick start guide if provided.
2. Pendaftaran Akaun: Buka aplikasi dan daftar untuk akaun baharu atau log masuk jika anda sudah memilikinya.
3. Gandingan Peranti:
   • Ensure your electric stove is powered on and the WiFi function is activated (indicated by a WiFi symbol on the display).
   • Dalam aplikasi, pilih "Tambah Peranti" atau ikon '+'.
   • Follow the on-screen instructions to connect the stove to your home WiFi network. This typically involves selecting your network and entering the password.
   • The app will guide you through the pairing process, which may involve a specific button sequence on the stove to enter pairing mode.
4. Kawalan Jauh: Once paired, you can use the app to:
   • Turn the stove ON/OFF.
   • Laraskan tetapan suhu.
   • Control flame effects.
   • Tetapkan jadual pemanasan harian atau mingguan.
   • Monitor the stove's status.

For detailed app-specific instructions, please refer to the in-app help section or the dedicated WiFi setup guide.

7. Penyelenggaraan

Regular maintenance ensures the longevity and efficient operation of your electric stove. Always unplug the appliance and allow it to cool completely before performing any maintenance.

• Membersihkan Bahagian Luar: Lap permukaan luar dengan lembut, damp cloth. Do not use abrasive cleaners, polishes, or chemical solvents as these may damage the finish.
• Membersihkan Lubang Udara: Periodically vacuum the air intake and exhaust vents to remove dust and debris. Blocked vents can lead to overheating and reduced performance.
• Storan: If storing the stove for an extended period, unplug it, clean it thoroughly, and store it in a cool, dry place, preferably in its original packaging.
• Tiada Bahagian Boleh Diservis Pengguna: The internal components of the stove do not require user maintenance. Do not attempt to open or repair the unit yourself. Contact qualified service personnel for any repairs.

8. Penyelesaian masalah

If you encounter issues with your PURLINE CHE-720 W Electric Stove, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact PUR LINE customer support.

9. Spesifikasi

Figure 6: Key dimensions of the PURLINE CHE-720 W Electric Stove.

Note on dimensions: The product specifications list dimensions as 22P x 35l x 46H cm, while feature bullets and the dimension image indicate 44 x 35 x 75 cm. The dimensions provided in the table (44 x 35 x 75 cm) are consistent with the visual representation and product description.

10. Waranti dan Sokongan

PURLINE CHE-720 W Electric Stove comes with a limited warranty. Please refer to the warranty card included with your product for specific terms and conditions, including coverage duration and what is covered.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact PUR LINE customer service. Contact information can typically be found on the manufacturer's webtapak atau pada pembungkusan produk.

When contacting support, please have your product model number (CHE-720 W) and proof of purchase readily available.
