VESTEL WMI 89341 Washing Machine User Manual - 8 kg Front Load, 1400 rpm, Inverter Motor, Steam, AquaStop

1. Pengenalan

This manual provides essential information for the safe and efficient operation of your new VESTEL WMI 89341 washing machine. Please read these instructions carefully before installation, use, and maintenance. Keep this manual for future reference.

The VESTEL WMI 89341 is an 8 kg front-loading washing machine designed for medium-sized households. It features a 1400 rpm spin speed, an Inverter Motor for quiet and energy-efficient operation, a steam function for wrinkle reduction and hygiene, and an AquaStop system for water damage protection. Its built-in design allows for flexible integration into your home.

2. Maklumat Keselamatan

Keselamatan Umum:

Ensure the washing machine is properly installed and leveled before first use.
Jangan benarkan kanak-kanak bermain atau mengendalikan perkakas.
Jauhkan bahan pembungkus daripada kanak-kanak.
Jangan sentuh palam dengan tangan yang basah.
Cabut plag perkakas sebelum pembersihan atau penyelenggaraan.
Do not open the detergent drawer or door during a wash cycle, especially at high temperatures.
In case of malfunction, switch off the appliance and disconnect it from the power supply. Do not attempt to repair it yourself.

Keselamatan Elektrik:

Sambungkan perkakas ke saluran keluar yang dibumikan dengan voltan yang betultage (220 Volt).
Jangan gunakan kord sambungan atau berbilang penyesuai.
Pastikan kord kuasa tidak terperangkap atau rosak.

Keselamatan Air:

The AquaStop system provides protection against water damage. Regularly check hoses for wear and tear.
Pastikan hos masuk dan saliran air disambungkan dengan kukuh untuk mengelakkan kebocoran.

3. Produk Lebihview

3.1 Dimensi

The VESTEL WMI 89341 washing machine has the following dimensions:

Kedalaman: 55.7 sm
Lebar: 59.7 sm
Ketinggian: 84.5 sm

Vestel WMI 89341 Washing Machine Dimensions — **Rajah 1:** Product dimensions of the Vestel WMI 89341 washing machine, showing a depth of 55.7 cm, width of 59.7 cm, and height of 84.5 cm.

3.2 Ciri-ciri Utama

Kapasiti 8 kg: Ideal for medium-sized households.
Kelajuan Putaran 1400 rpm: Ensures efficient water extraction for shorter drying times.
Motor Penyongsang: Provides energy-efficient, quiet, and durable operation.
Fungsi Stim: Reduces wrinkles and eliminates bacteria for hygienic laundry.
AquaStop System: Integrated safety system to protect against water damage.
Mula Tertunda: Allows scheduling wash cycles up to 23 hours in advance.
Twin Jet System: Improves washing performance through direct water and detergent injection via a circulation system and two nozzles.
Eco Track: Displays energy and water consumption for selected programs.

Vestel WMI 89341 Inverter Motor — **Rajah 2:** Illustration of the quiet BLDC Inverter Motor, which reduces noise levels during washing by up to 5 dB, significantly decreasing sound intensity.

Vestel WMI 89341 Twin Jet System — **Rajah 3:** The Twin Jet System, which enhances washing performance by directly injecting water and detergent through a circulation system and two connected nozzles.

Vestel WMI 89341 Steam Function — **Rajah 4:** The steam technology penetrates deep into fabric fibers, effectively removing stains, odors, and allergens.

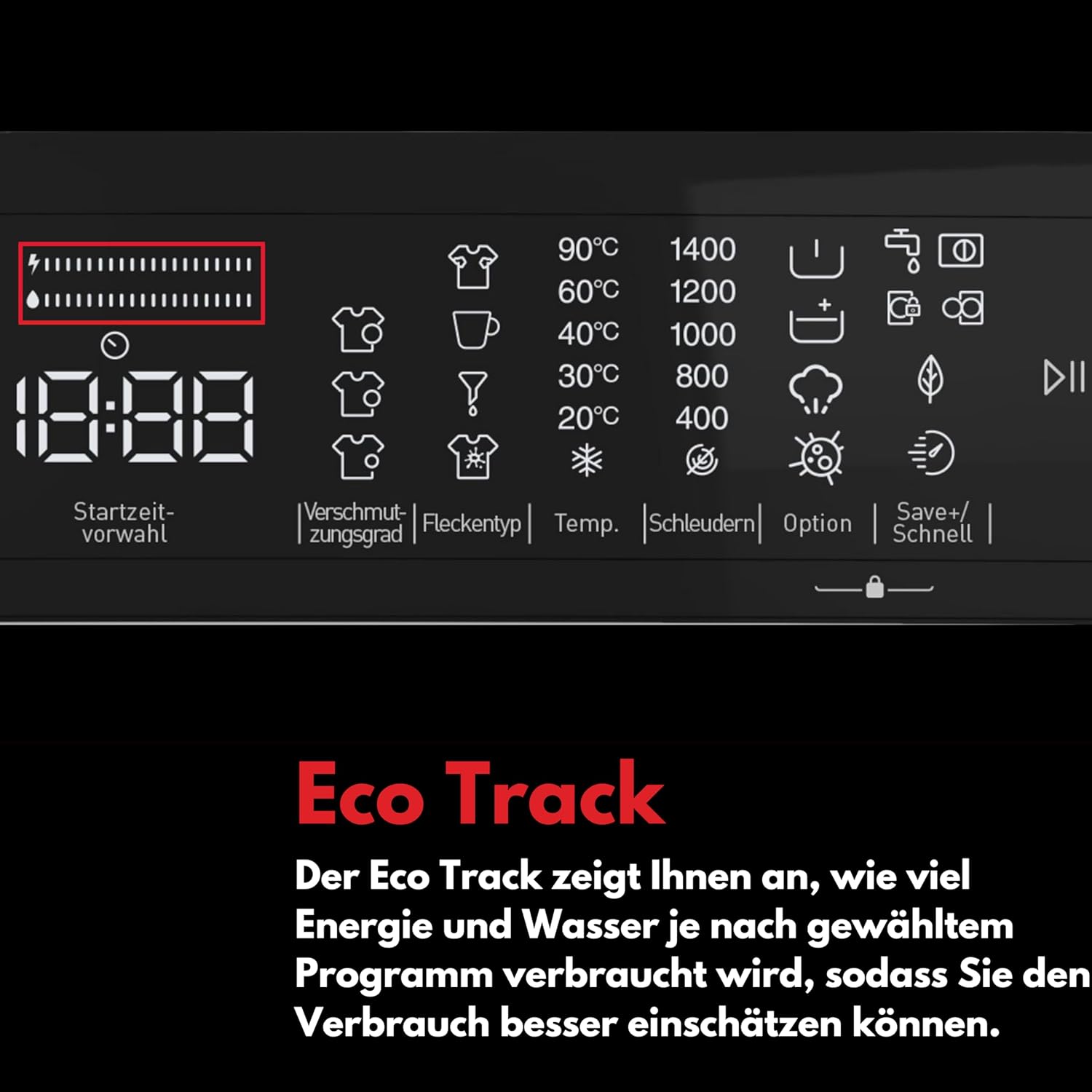

Vestel WMI 89341 Eco Track Display — **Rajah 5:** The Eco Track display, indicating the energy and water consumption for the selected program, allowing for better consumption assessment.

4. Persediaan dan Pemasangan

4.1 Membongkar

Keluarkan semua bahan pembungkusan dengan berhati-hati.
Remove all transport bolts from the rear of the machine. Keep them for future transport.
Check for any damage during transit. If damaged, do not install and contact your retailer.

4.2 Kedudukan

Letakkan mesin basuh di atas permukaan yang kukuh dan rata.
Adjust the leveling feet to ensure the machine is stable and does not wobble. Proper leveling reduces vibration and noise.
Pastikan terdapat ruang yang mencukupi di sekeliling mesin untuk pengudaraan dan penyelenggaraan.
This model is designed for built-in installation. Ensure the dimensions match your cabinet space.

4.3 Sambungan Air

Connect the water inlet hose (AquaStop hose included) to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks.
Place the other end of the inlet hose securely to the water inlet valve at the back of the washing machine.
Connect the drain hose to a standpipe or a sink trap, ensuring it is securely fixed and positioned at an appropriate height (between 60 cm and 100 cm from the floor).

4.4 Sambungan Elektrik

Pasangkan kord kuasa ke soket elektrik yang dibumikan (220V).
Ensure the socket is easily accessible after installation.

5. Arahan Operasi

5.1 Panel Kawalan Selesaiview

The control panel features a program selection dial, a digital display, and various option buttons.

Vestel WMI 89341 Control Panel with Options — **Rajah 6:** Control panel showing additional options for care and comfort, including delayed start, soil level, stain type, temperature, spin, and Eco/Quick functions.

Vestel WMI 89341 Stain Level Selection — **Rajah 7:** Stain Level Selection feature, allowing users to choose between four stain types (oil, sweat, coffee, or mixed stains) for automatic wash cycle adjustment.

5.2 Memuatkan Dobi

Isih pakaian mengikut jenis fabrik, warna dan tahap kekotoran.
Open the door and load the laundry without overfilling the drum. Leave enough space for clothes to move freely.
Tutup pintu dengan kuat.

5.3 Menambah Detergen dan Bahan Tambahan

Tarik keluar laci detergen.
Add detergent to the main wash compartment.
Add fabric softener or other additives to their respective compartments.
Tolak laci detergen ke dalam sepenuhnya.

5.4 Pemilihan Program

Turn the program selection dial to choose one of the 15 available wash programs. The display will show the default settings for the selected program.

Vestel WMI 89341 15 Wash Programs — **Rajah 8:** Berakhirview of the 15 wash programs available on the Vestel WMI 89341, including Cotton, Eco 40-60, Cotton + Prewash, Cotton 20°, Mixed Laundry, Wool, Rinse, Anti-Allergy, Spin, Hand/Delicate Wash, Synthetics, Down, Jeans/Dark Clothes, Quick 60 Min., and Express 12 Min.

Program Tersedia:

Kapas: Untuk barangan kapas tahan lama.
Eko 40-60: Program cekap tenaga untuk cucian kapas biasa yang kotor boleh dibasuh pada 40°C atau 60°C.
Cotton + Prewash: Untuk barangan kapas yang sangat kotor.
Cotton 20°: For lightly soiled cotton items at low temperature.
Mixed Laundry: Untuk bahan campuran kapas dan fabrik sintetik.
bulu: Gentle program for woolens and delicate items.
Bilas: Kitaran bilasan tambahan.
Anti-Allergy: Program designed to remove allergens.
Pusingan: Mengalirkan air dan memutar pakaian.
Hand/Delicate Wash: For very delicate items requiring hand wash care.
Sintetik: Untuk barangan fabrik sintetik atau campuran.
ke bawah: For items filled with down or feathers.
Jeans/Pakaian Gelap: Specific program for jeans and dark-colored garments.
Quick 60 Min.: A fast wash program for lightly soiled items.
Express 12 Min.: Very quick refresh cycle for minimal soiling.

5.5 Program Options

Selepas memilih program, anda boleh menyesuaikannya menggunakan butang pilihan:

Startzeit (Delayed Start): Set a delay for the wash cycle to start from 1 to 23 hours.
Verschmutzungsgrad (Soil Level): Adjust the wash intensity based on the degree of soiling.
Fleckentyp (Stain Type): Select from specific stain types (oil, sweat, coffee, or mixed stains) for optimized cleaning.
Temperatur (Temperature): Adjust the wash temperature. Cold wash is also possible.
Schleudern (Spin): Adjust the spin speed or select no spin.
Optionen (Options): Access additional options like prewash, extra rinse, steam, and anti-allergy for individual care.
Öko/Schnell (Eco/Quick): Choose between an eco-friendly wash (lower water/energy) or a quick wash (higher water/energy).

5.6 Memulakan Kitaran Basuh

After loading laundry, adding detergent, selecting a program, and choosing desired options, press the Start/Pause button to begin the cycle.
Paparan akan menunjukkan masa yang tinggal.

5.7 Ending a Wash Cycle

Once the cycle is complete, the machine will signal with an audible alert (if enabled) and the display will indicate "End".
Buka pintu dan keluarkan pakaian.
Biarkan pintu terbuka sedikit untuk membolehkan dram kering di udara dan mengelakkan bau.

6. Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum mesin basuh anda.

6.1 Membersihkan Laci Detergen

Tarik keluar laci detergen sepenuhnya.
Remove any residue from the compartments under running water.
Bersihkan perumah laci dengan berus.
Masukkan semula laci detergen.

6.2 Membersihkan Dram

Run a maintenance wash cycle (e.g., a hot cotton cycle with no laundry and a descaling agent or washing machine cleaner) periodically to prevent odor and limescale buildup.
Wipe the inside of the door seal with a damp cloth after each wash to remove lint and residue.

6.3 Membersihkan Penapis Pam

The pump filter should be cleaned regularly (e.g., every 3 months) to prevent blockages.
Cari penutup penapis di bahagian bawah hadapan mesin.
Letakkan bekas cetek di bawahnya untuk menangkap sebarang sisa air.
Buka penutup dengan berhati-hati dan buka skru penapis.
Remove any lint, coins, or foreign objects.
Clean the filter under running water and screw it back in securely. Close the cover.

6.4 Membersihkan Bahagian Luar

Lap permukaan luar dengan lembut, damp kain.
Jangan gunakan pembersih atau pelarut yang melelas.

7. Penyelesaian masalah

Sebelum menghubungi perkhidmatan pelanggan, sila semak isu dan penyelesaian biasa berikut:

Masalah	Kemungkinan Punca	Penyelesaian
Mesin tidak bermula.	Kord kuasa tidak dipasang; pintu tidak ditutup dengan betul; program tidak dipilih; Butang Mula/Jeda tidak ditekan.	Periksa sambungan kuasa; pastikan pintu berkunci; pilih program; tekan Mula/Jeda.
Tiada pengambilan air.	Water tap closed; inlet hose kinked or blocked; water pressure too low.	Buka pili air; luruskan hos; periksa bekalan air.
Air tidak mengalir.	Hos longkang bengkok atau tersumbat; penapis pam tersumbat.	Straighten drain hose; clean pump filter (see Maintenance section).
Getaran/bunyi yang berlebihan.	Mesin tidak tahap; bolt pengangkutan tidak dikeluarkan; beban tidak sekata.	Adjust leveling feet; remove transport bolts; redistribute laundry in the drum.
Sisa detergen dalam laci.	Insufficient water pressure; detergent clumping; drawer not cleaned.	Check water pressure; use less detergent or liquid detergent; clean detergent drawer.

If the problem persists after checking these points, please contact Vestel customer service.

8. Spesifikasi

Ciri	Nilai
Jenama	Vestel
Nombor Model	WMI 89341 (10829496)
Kapasiti	8 kg
Kelajuan Putaran Maksimum	1400 rpm
Dimensi (D x W x H)	55.7 cm x 59.7 cm x 84.5 cm
Berat badan	69 kg
warna	putih
Akses Lokasi	Beban Depan
Jenis Kawalan	Tombol
Voltage	220 Volt
Bahan Drum	Keluli Tahan Karat
Ciri Khas	Remaining Time Display, Delayed Start, Steam Function, Inverter Motor, AquaStop System
Komponen yang Disertakan	Aqua-Stop Hose, Drain Hose

Vestel WMI 89341 Product Data Sheet — **Rajah 9:** Excerpt from the product data sheet for the Vestel WMI 89341, detailing technical specifications and energy efficiency information.

Vestel WMI 89341 Energy Label — **Rajah 10:** EU Energy Label for the Vestel WMI 89341, showing energy efficiency class A, 37 kWh/100 cycles, 8.0 kg capacity, 3:38 program duration, 32 L water consumption, and 75 dB noise level during spin.

For detailed energy information, refer to the EU product database: https://eprel.ec.europa.eu/qr/2049336

9. Waranti dan Sokongan

Your VESTEL WMI 89341 washing machine comes with a manufacturer's warranty of 24 bulan dari tarikh pembelian.

This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by improper installation, misuse, neglect, or unauthorized repairs.

For warranty claims, technical support, or spare parts, please contact your retailer or Vestel customer service. Please have your model number (WMI 89341) and proof of purchase ready.

Vestel WMI 89341
