HUABAO Karaoke Machine A105 User Manual

pengenalan

This manual provides detailed instructions for the setup, operation, and maintenance of your HUABAO A105 Karaoke Machine. Please read this guide thoroughly before using the product to ensure optimal performance and longevity. This portable PA system is designed to deliver high-quality audio for various occasions, from karaoke sessions to public speaking events.

Apa yang ada dalam Kotak

• 1 x Pembesar suara
• 2 x Mikrofon Tanpa Wayar
• 1 x Alat Kawalan Jauh
• 1 x Penyesuai Kuasa
• 1 x Kabel AUX
• 1 x Kabel Pengecas Jenis-C

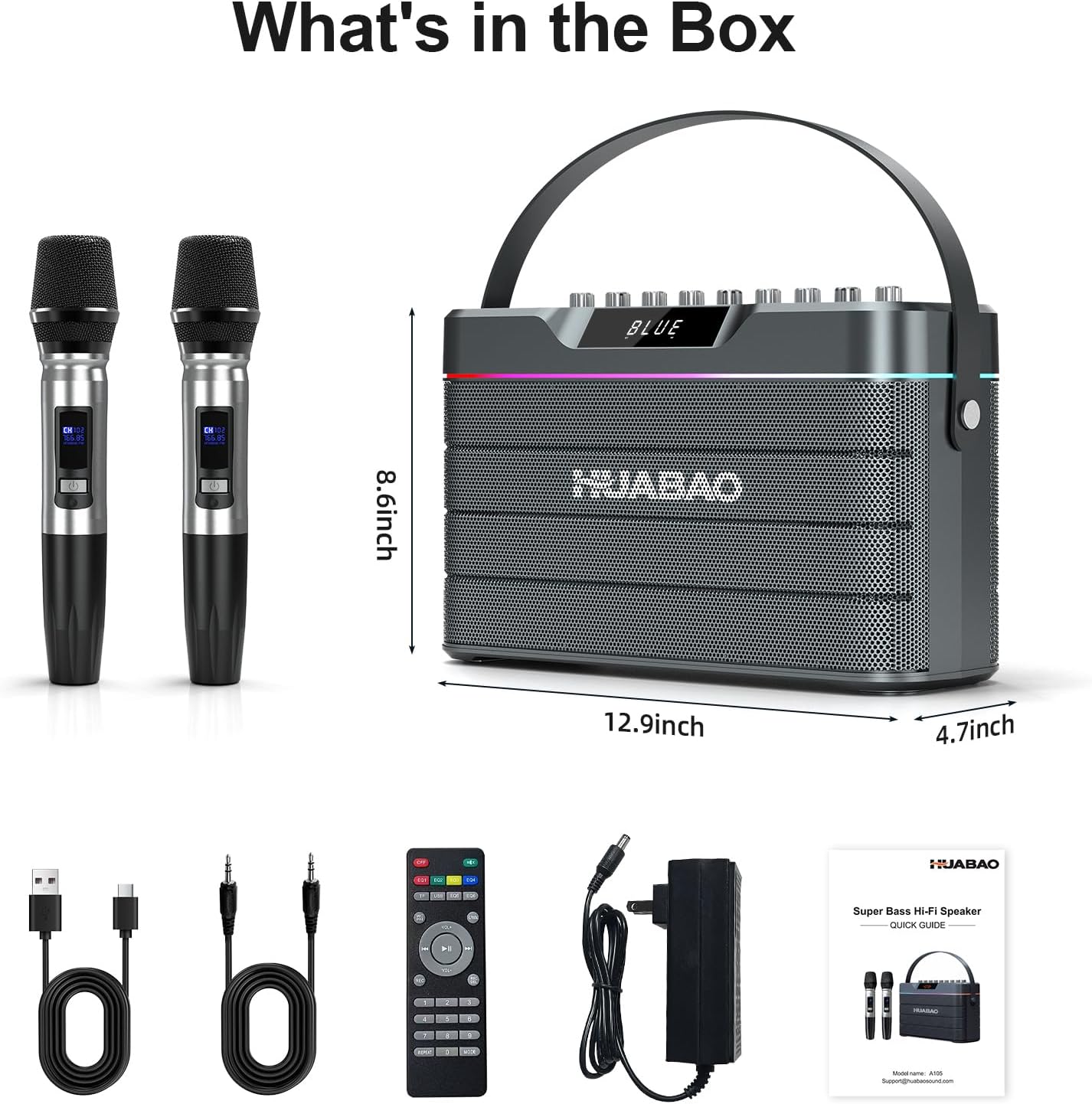

Image: All components included in the HUABAO A105 Karaoke Machine package.

Produk Selesaiview

Sistem Bunyi

The HUABAO A105 features a powerful 100W Bluetooth speaker with six speakers and dual diaphragms, delivering a total of eight sound units for deep bass and crisp, high-definition audio. This configuration ensures a rich and immersive sound experience.

Image: Diagram illustrating the internal speaker components, including subwoofers, tweeters, and diaphragms, for enhanced sound quality.

Mikrofon Tanpa Wayar

Two rechargeable wireless microphones are included, designed for clear vocal delivery. These microphones feature independent controls for echo, treble, and bass directly on the microphone unit, allowing for personalized sound adjustments during performances.

Image: Two wireless microphones with display screens, ready for use with the karaoke machine.

Pilihan Kesambungan

The system supports multiple input methods including Bluetooth 5.0 for stable wireless connections to smartphones, tablets, laptops, desktops, and smart TVs. It also features AUX, USB, and TF card inputs. For wired connections, there are two 6.5mm jacks for microphones or musical instruments, and three 3.5mm jacks for headphones, live cables, or additional AUX input. An OTG jack provides further versatility.

Image: Side panel of the karaoke machine displaying various input and output ports for diverse connectivity.

Image: Visual representation of the machine's wireless connectivity to earphones, smartphones, laptops, and smart TVs.

Dynamic LED Lighting

The integrated music-syncing LED strip provides vibrant, color-changing lights to enhance the atmosphere of any event.

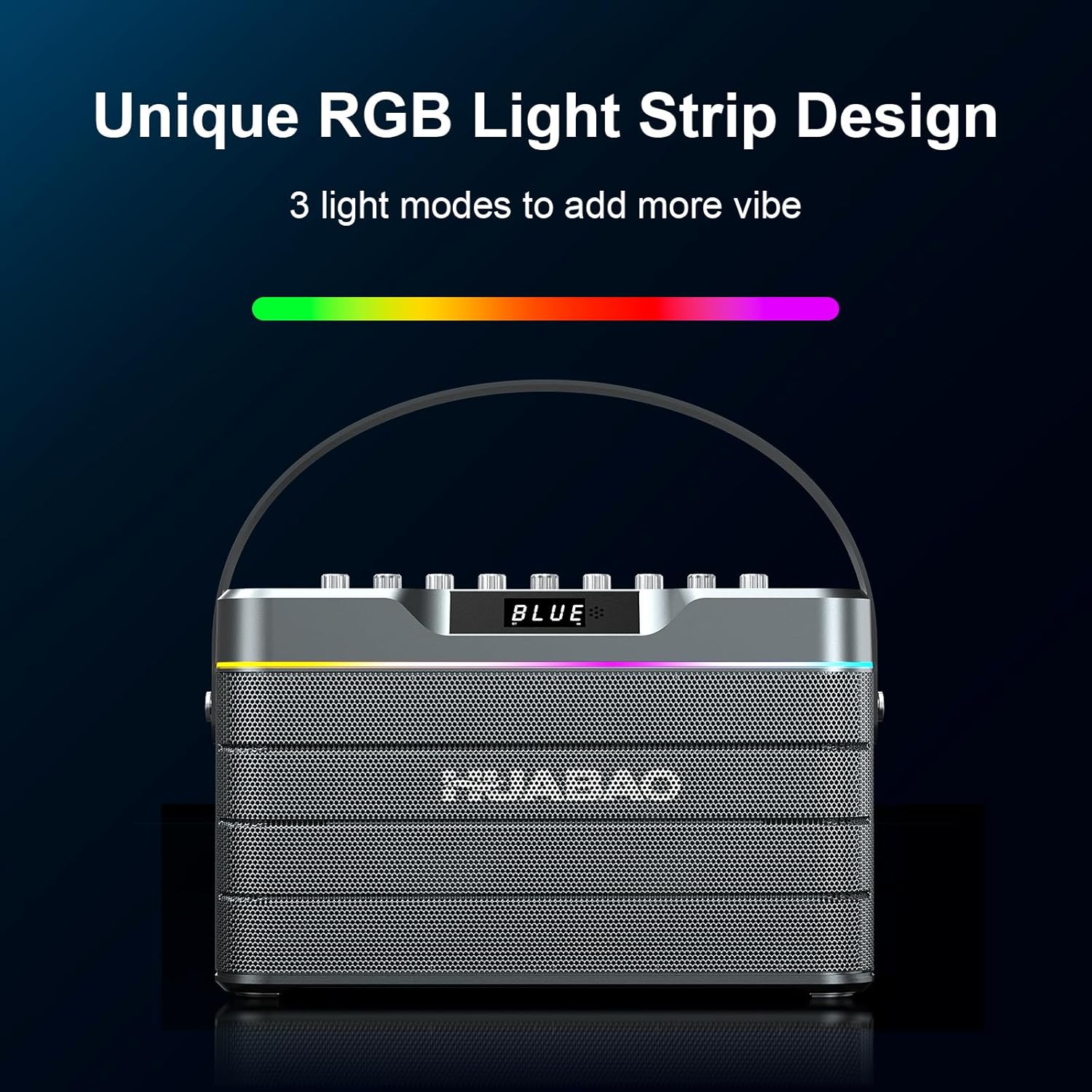

Imej: Depan view of the karaoke machine showcasing its unique RGB light strip design with three light modes.

Bateri Tahan Lama

Equipped with a 9000mAh battery, the speaker offers extended continuous playback, making it suitable for long trips and outdoor use. The portable design, weighing 8.48 lbs, includes a durable carrying strap for easy transport.

Image: Illustration of the 9000mAh large battery capacity, providing 12 hours of playing time and requiring 5 hours for charging.

Pasangan TWS

The True Wireless Stereo (TWS) pairing function allows two HUABAO A105 speakers to be synced for an expanded, full surround sound experience, ideal for larger gatherings.

Persediaan

1. Pengecasan Awal

Before first use, fully charge the karaoke machine and both wireless microphones. Connect the power adapter to the DC 15V input port on the speaker. Use the provided Type-C charging cable to charge the microphones.

2. Menghidupkan/Mematikan

To power on the speaker, press and hold the power button on the control panel until the display illuminates. To power off, press and hold the same button. For microphones, press and hold the power button on each microphone until the indicator light turns green.

3. Berpasangan Bluetooth

1. Turn on the HUABAO A105 speaker.
2. Press the 'Mode' button on the control panel until 'BLUE' appears on the display, indicating Bluetooth pairing mode.
3. On your mobile device (smartphone, tablet, etc.), go to Bluetooth settings and select 'HUABAO A105' from the list of available devices.
4. Once connected, the speaker will emit a confirmation sound.

4. Sambungan Berwayar

For non-Bluetooth devices, use the appropriate cables:

• Input AUX: Connect your device using the provided 3.5mm AUX cable to the AUX port.
• Kad USB/TF: Insert a USB flash drive or TF card into the respective ports to play audio files secara langsung.
• Mikrofon/Instrumen: Use 6.5mm cables to connect wired microphones or musical instruments to the MIC1 or MIC2 jacks.

Arahan Operasi

1. Melaraskan Tahap Audio

Use the dedicated knobs on the control panel to fine-tune your sound:

• Kelantangan Utama: Mengawal kelantangan output keseluruhan pembesar suara.
• Kelantangan mikrofon: Melaraskan kelantangan mikrofon tanpa wayar.
• Gema: Controls the echo effect applied to microphone vocals.
• Treble / Bass: Adjusts the high and low frequencies of the music and microphone output.
• Kelantangan Instrumen: Controls the volume of any connected musical instruments.

Image: Close-up of the control panel with clearly labeled knobs for precise audio adjustments.

2. Microphone Functions

• Penyingkiran Vokal: Press the 'Vocal Removal' button on the control panel to minimize or remove lead vocals from tracks, allowing you to sing along.
• Keutamaan mikrofon: Activate 'Mic Priority' to automatically lower music volume when the microphone is in use, ensuring your voice stands out.

3. Mod Bunyi (EQ)

Press the 'EQ' button on the control panel to switch between different sound equalization modes, such as Indoor and Outdoor, optimizing audio for your environment.

4. TWS Pairing (True Wireless Stereo)

To pair two HUABAO A105 speakers for stereo sound:

1. Ensure both speakers are powered on and in Bluetooth mode, but not yet connected to a mobile device.
2. On one speaker, press and hold the 'TWS' button. It will search for the other speaker.
3. Once connected, the speakers will indicate successful pairing. You can then connect your mobile device to the primary speaker via Bluetooth.

5. Mod Lampu LED

Press the 'Mode/LED' button to cycle through various dynamic LED light modes, creating different ambiance for your event.

6. Alat Kawalan Jauh

The included remote control allows for convenient operation from a distance, including power, volume, track selection, and mode changes.

Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the exterior of the speaker and microphones. Avoid using abrasive cleaners or solvents.
• Storan: Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau apabila tidak digunakan.
• Penjagaan Bateri: Untuk memanjangkan hayat bateri, elakkan daripada menyahcas sepenuhnya bateri dengan kerap. Cas peranti dengan kerap, walaupun tidak digunakan secara aktif.

Menyelesaikan masalah

• Tiada Kuasa: Ensure the device is fully charged or connected to the power adapter. Check the power button for proper activation.
• Tiada Bunyi: Verify that the volume levels on both the speaker and your connected device are turned up. Check all cable connections for wired inputs. Ensure the correct input mode is selected.
• Mikrofon Tidak Berfungsi: Make sure the microphones are charged and powered on. Check microphone volume levels. Ensure they are within range of the speaker.
• Pemutusan sambungan Bluetooth: Ensure your device is within the Bluetooth range (typically 10 meters). Disconnect and re-pair the device if issues persist.
• Kegagalan Berpasangan TWS: Ensure both speakers are in Bluetooth pairing mode and not connected to any other device before attempting TWS pairing.

Spesifikasi

Waranti dan Sokongan

Your HUABAO A105 Karaoke Machine comes with a One-Year Warranty and Lifetime Technical Support. If you have any questions or concerns, please contact us via Amazon or our support email. We are committed to responding within 12 hours and ensuring your complete satisfaction.
