LLIVEKIT 30L Air Fryer Oven XXL Instruction Manual

Arahan Keselamatan Penting

Sila baca manual ini dengan teliti sebelum mengendalikan perkakas ini dan simpannya untuk rujukan pada masa hadapan. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Sentiasa letakkan perkakas di atas permukaan yang stabil, rata dan tahan haba, jauh dari dinding atau perkakas lain untuk membolehkan pengudaraan yang mencukupi.
• Do not immerse the power cord, plug, or the appliance body in water or any other liquid.
• Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage sebelum menyambung.
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
• Cabut plag dari alur keluar apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• The outer surfaces of the appliance may become hot during operation. Use oven mitts or a tray handle when handling hot accessories or food.
• Do not place anything on top of the appliance while it is in operation.
• Jangan gunakan aksesori atau lampiran yang tidak disyorkan oleh pengilang.
• Perkakas ini adalah untuk kegunaan isi rumah sahaja. Jangan gunakan di luar rumah.

Produk Selesaiview

Komponen

Depan view of the LLIVEKIT 30L Air Fryer Oven, showcasing its sleek black design and large transparent door.

Terperinci view of the appliance features, including the LED control panel, double-glazed door, crumb tray, non-slip feet, stainless steel inner walls, and oven light.

Ciri-ciri Utama

• Less Oil & Healthier: Utilizes 360-degree hot air circulation and 1800W power for even and fast cooking, reducing fat content by approximately 90%.
• Kepelbagaian 20-dalam-1: Features 20 preset programs for various dishes. Manual settings allow for time adjustment (1-120 minutes) and temperature control (80-230°C). Includes dual cook and air fry modes.
• Reka Bentuk Mesra Pengguna: Equipped with a sensitive LED touchscreen for easy operation. The double-layered glass door provides safety and a clear view of cooking progress, with a removable inner glass for convenient cleaning.
• Kapasiti 30L yang luas: Offers 4 cooking positions, capable of accommodating a whole chicken or a 13-inch pizza, suitable for preparing meals for 10-12 people.
• Aksesori Komprehensif: Comes with dishwasher-safe stainless steel accessories including a wire rack, mesh tray, baking tray, skewers set, tray handle, suction cup, crumb tray, rotisserie spit, and rotisserie spit handle.

Infographic highlighting the efficiency of the air fryer oven, showing 90% fat reduction, 70% energy savings, and 50% time savings compared to conventional ovens.

Visual representation of the multi-functional capabilities, including Oven, Air Fryer, Toaster, Bread Proofer, Grill, Pizza Maker, Fruit Dryer, and Defroster.

Persediaan

Membongkar

• Tanggalkan semua bahan pembungkusan daripada perkakas dan aksesorinya dengan berhati-hati.
• Pastikan semua aksesori yang disenaraikan ada dan tidak rosak.
• Lap bahagian dalam dan luar ketuhar dengan iklanamp cloth. Wash all accessories with warm, soapy water, rinse thoroughly, and dry completely before first use.

Penempatan

• Place the air fryer oven on a stable, flat, heat-resistant surface.
• Ensure there is at least 10-15 cm of clear space on all sides of the appliance for proper air circulation.
• Jangan letakkan perkakas berhampiran bahan mudah terbakar atau sumber haba.

Operasi

Panel Kawalan Terlaluview

Close-up of the LED touchscreen control panel, displaying various cooking presets and manual control options.

• Butang Kuasa: Menghidupkan/mematikan perkakas.
• Pemilihan Mod: Cycle through various cooking functions (e.g., Air Fry, Bake, Roast, Toast, Dehydrate).
• Program Pratetap: Icons for 20 pre-set cooking functions (e.g., Chips, Wings, Pizza, Steak).
• Kawalan Suhu (+/-): Adjust cooking temperature (80-230°C).
• Kawalan Masa (+/-): Laraskan masa memasak (1-120 minit).
• Butang Mula/Jeda: Memulakan atau menjeda kitaran memasak.
• Oven Light Button: Turns the interior oven light on/off for monitoring.

Using Preset Programs

1. Place food on the appropriate accessory (e.g., mesh tray for chips, baking tray for pizza) and insert into the oven.
2. Tekan butang Kuasa untuk menghidupkan ketuhar.
3. Select the desired preset program by touching its icon on the LED panel. The default time and temperature for that program will display.
4. If desired, adjust the time and temperature using the +/- buttons.
5. Tekan butang Mula/Jeda untuk mula memasak.

Memasak Manual

1. Letakkan makanan di dalam ketuhar.
2. Tekan butang Kuasa.
3. Use the Mode Selection button to choose a general cooking mode (e.g., Air Fry, Bake).
4. Adjust the temperature using the Temperature +/- buttons.
5. Adjust the cooking time using the Time +/- buttons.
6. Tekan butang Mula/Jeda untuk mula memasak.

Fungsi Rotisserie

Official product video demonstrating the various features and cooking capabilities of the LLIVEKIT Air Fryer Oven, including the rotisserie function, toast, and pizza preparation.

Diagram illustrating the 360-degree hot air circulation system within the oven, ensuring even cooking.

• To use the rotisserie function, secure the food (e.g., whole chicken) onto the rotisserie spit.
• Insert the rotisserie spit into the designated slots inside the oven.
• Select the 'Rotisserie' mode on the control panel.
• Use the rotisserie handle to safely insert and remove the hot spit.

Accessories and Their Use

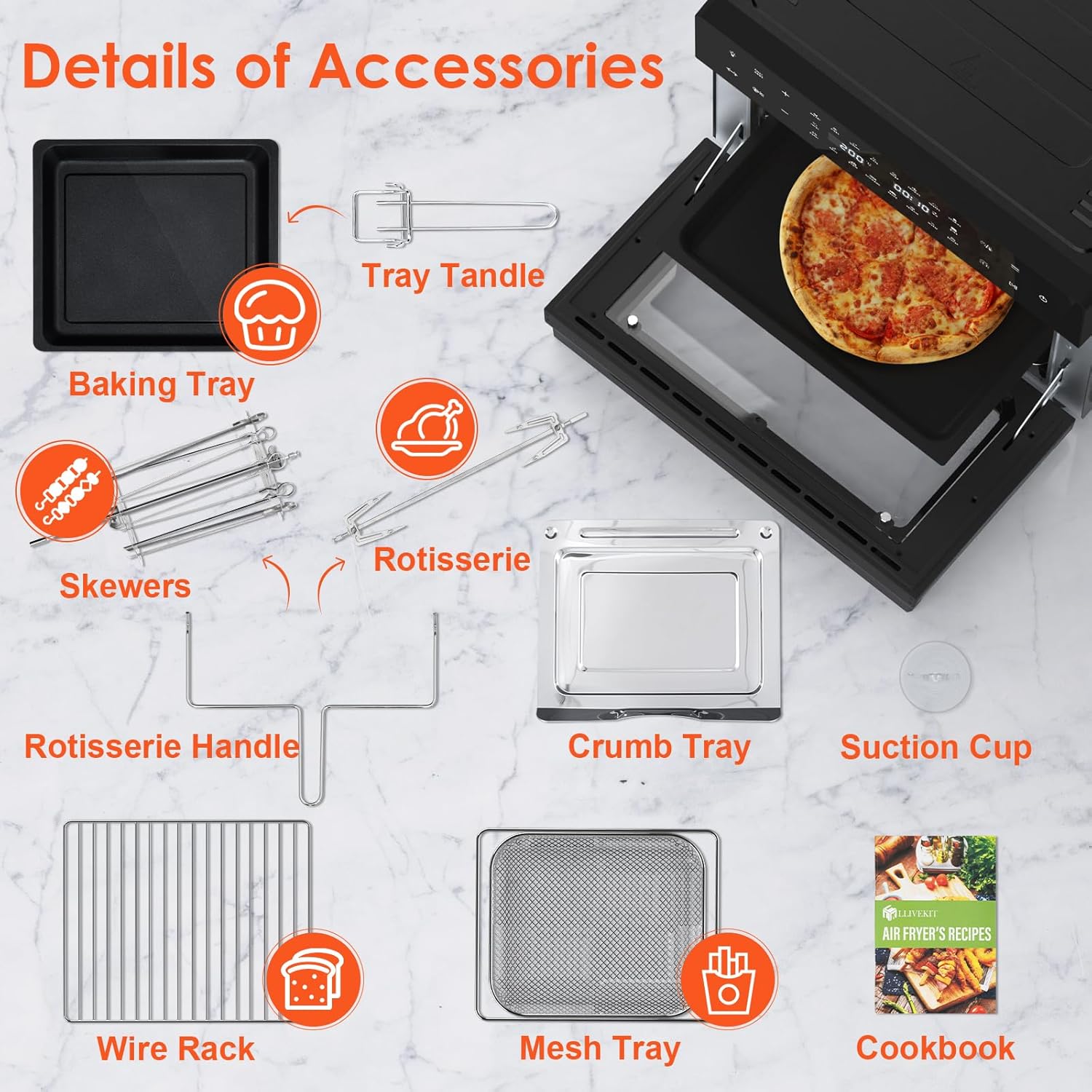

An array of included accessories: baking tray, tray handle, skewers, rotisserie spit, rotisserie handle, crumb tray, suction cup, wire rack, mesh tray, and a recipe cookbook.

• Rak wayar: Ideal for general baking, roasting, or placing dishes that require air circulation from below.
• Dulang Mesh: Specifically designed for air frying foods like chips, chicken wings, or for dehydrating fruits and vegetables, allowing hot air to circulate evenly.
• Dulang pembakar: Used for baking cakes, cookies, or as a drip tray to catch oils and crumbs from food cooked on racks above.
• Skewers Set: For preparing kebabs or other skewered items, ensuring even cooking.
• Pemegang Dulang: A safety tool to easily and securely remove hot trays, racks, and the rotisserie spit from the oven.
• Cawan sedutan: Used to safely remove the inner glass panel of the oven door for thorough cleaning.
• Dulang Kerak: Located at the bottom of the oven, it collects crumbs and food debris, making cleanup easier. Always ensure it is in place during cooking.
• Rotisserie Spit & Handle: The spit is used for roasting whole poultry or large cuts of meat, allowing them to rotate for even browning. The handle aids in safe insertion and removal.

Pembersihan dan Penyelenggaraan

Sebelum Pembersihan

• Sentiasa cabut plag perkakas dari salur keluar kuasa dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.

Pembersihan Dalaman

• Wipe the stainless steel interior walls with a damp kain dan detergen lembut. Untuk kesan degil, gunakan pembersih yang tidak kasar.
• Remove the crumb tray and empty it. Wash it with warm, soapy water or place it in the dishwasher.
• The inner glass door can be removed using the provided suction cup for thorough cleaning. Wash with warm, soapy water and dry completely before reattaching.

Pembersihan Luaran

• Lap bahagian luar perkakas dengan lembut, damp kain. Jangan gunakan pembersih yang melelas atau pad penyental, kerana ia boleh merosakkan kemasan.

Pembersihan Aksesori

• All stainless steel accessories (wire rack, mesh tray, baking tray, skewers, rotisserie spit, tray handle, rotisserie handle) are dishwasher safe. Alternatively, wash them by hand with warm, soapy water.

Menyelesaikan masalah

Spesifikasi Produk

Waranti dan Sokongan

Your LLIVEKIT 30L Air Fryer Oven XXL is covered by a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact LLIVEKIT customer service through the contact information provided in your product documentation or on the official LLIVEKIT webtapak.
