Valuxhome 72-inch Electric Fireplace Instruction Manual

1. Pengenalan

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Valuxhome 72-inch Electric Fireplace. Please read this manual thoroughly before installation and use, and retain it for future reference.

Ciri-ciri Utama:

• 72-inch wide electric fireplace, suitable for recessed or wall-mounted installation.
• Features 13 adjustable flame colors and 13 fuel bed colors.
• Includes realistic log and crystal fuel bed decorations.
• Two heating modes: 750W (Low) and 1500W (High).
• Julat suhu boleh laras dari 62°F hingga 86°F.
• Provides supplemental heat for rooms up to 400 sq.ft.
• Built-in timer for auto-shut off, adjustable from 1 to 9 hours.
• Convenient control via touch screen panel and remote control.
• Equipped with overheating protection for enhanced safety.

2. Maklumat Keselamatan

Sentiasa ikuti langkah berjaga-jaga keselamatan asas apabila menggunakan peralatan elektrik untuk mengurangkan risiko kebakaran, renjatan elektrik dan kecederaan kepada orang.

• Baca semua arahan sebelum menggunakan perapian ini.
• Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
• Jangan gunakan di luar rumah.
• Elakkan meletakkan kord kuasa di bawah permaidani atau menutupnya dengan permaidani lempar, pelari atau penutup yang serupa.
• To disconnect the fireplace, turn controls to off, then remove the plug from the outlet.
• Sentiasa cabut plag perapian apabila tidak digunakan.
• Jangan masukkan atau biarkan objek asing memasuki sebarang bukaan pengudaraan atau ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pendiang api.
• Perapian ini panas apabila digunakan. Untuk mengelakkan luka terbakar, jangan biarkan kulit terdedah menyentuh permukaan panas.
• Simpan bahan mudah terbakar, seperti perabot, bantal, peralatan tempat tidur, kertas, pakaian dan langsir sekurang-kurangnya 3 kaki (0.9 m) dari hadapan pendiangan.
• The heater is equipped with an overheating protection device. If the heater reaches an unsafe temperature (212°F), it will automatically turn off.

3. Kandungan Pakej

Sila pastikan semua komponen ada dan tidak rosak sebelum pemasangan.

• Unit Perapian Elektrik
• Alat Kawalan Jauh
• Media Kristal
• Artificial Log Media
• Perkakasan Pemasangan (skru, kurungan)
• Manual Arahan

4. Pemasangan

This electric fireplace can be installed either recessed into a wall or mounted directly onto a wall surface. Ensure the power supply is disconnected before beginning installation.

Dimensi:

• Front Size: 72" (W) x 17.71" (H) x 5.9" (D)
• Back Size: 67.37" (W) x 16.34" (H) x 5.9" (D)
• Minimum Wall Opening for Recessed Installation: 67.7" (W) x 17.05" (H) x 6" (D)

Rajah 4.1: Dimensi Produk

4.1 Pemasangan Tersembunyi

For recessed installation, prepare a wall opening according to the minimum dimensions provided above. Ensure there is adequate clearance around the unit for ventilation and maintenance. Secure the fireplace unit within the opening using the provided mounting hardware.

Figure 4.2: Recessed Installation Example

4.2 Pemasangan Dipasang di Dinding

For wall-mounted installation, select a suitable wall location away from combustible materials. Attach the wall mounting bracket to the wall using appropriate fasteners for your wall type. Carefully lift and hang the fireplace unit onto the bracket, ensuring it is securely seated.

Figure 4.3: Wall-Mounted Installation Example

Figure 4.4: Installation Methods Overview

4.3 Pemasangan Media

The fireplace comes with both crystal and artificial log media. These can be freely placed into the fuel bed area before securing the front glass panel. Choose the media that best suits your aesthetic preference.

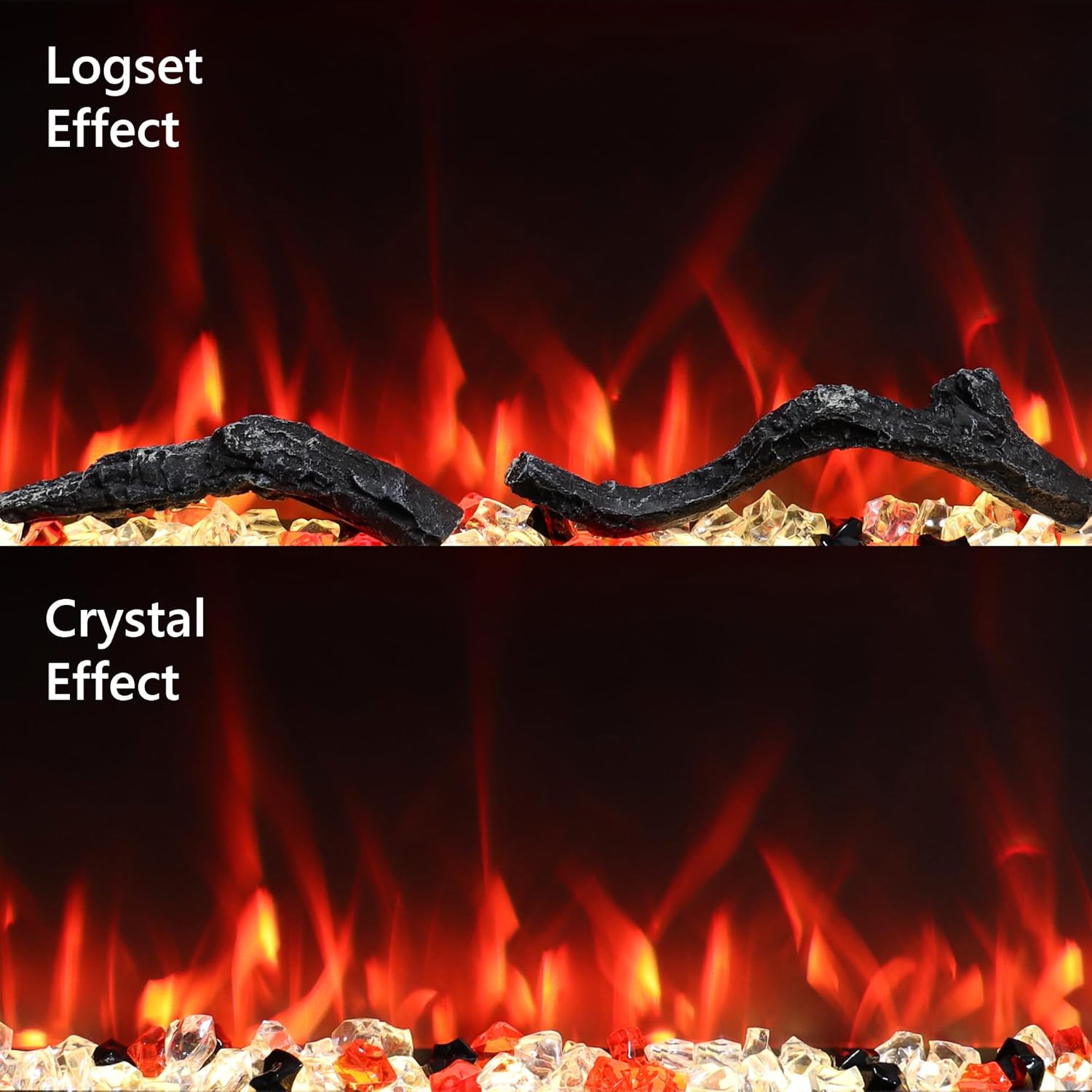

Figure 4.5: Logset and Crystal Fuel Bed Options

4.4 Video Pemasangan

5. Arahan Operasi

Your Valuxhome electric fireplace can be operated using the touch screen panel on the unit or the included remote control.

5.1 Panel Kawalan dan Alat Kawalan Jauh

The control panel is located on the front of the fireplace. The remote control provides convenient access to all functions from a distance.

Figure 5.1: Control Panel and Remote Functions

Rajah 5.2: Terperinci View daripada Kawalan

5.2 Hidupkan/Mati Kuasa

Press the power button on the control panel or remote to turn the fireplace on or off.

5.3 Flame and Fuel Bed Colors

Cycle through 13 different flame colors and 13 fuel bed colors using the dedicated buttons on the control panel or remote. The flame and bed light can be displayed with or without the heating function active.

Figure 5.3: Crystal Fuel Bed with 13 Flame Colors

Figure 5.4: Log Fuel Bed with 13 Flame Colors

5.4 Fungsi Pemanasan

Select between 750W (Low) or 1500W (High) heating modes. The temperature can be adjusted from 62°F to 86°F. For optimal heating, it is recommended to start with a lower temperature and increase it after approximately 30 minutes to allow for more even and rapid temperature rise. The heating function can operate independently of the flame display.

Figure 5.5: Heating Coverage Illustration

5.5 Fungsi Pemasa

Set the built-in timer for automatic shut-off from 1 to 9 hours. This feature helps conserve energy and provides peace of mind.

Figure 5.6: Overheating Protection and Timer

6. Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum perapian elektrik anda.

• Pembersihan: Sentiasa cabut plag perapian sebelum membersihkan. Gunakan yang lembut, damp kain untuk mengelap permukaan luar. Jangan gunakan pembersih atau semburan yang kasar.
• Pengudaraan: Ensure the air vents are clear of dust and debris to prevent overheating.
• Storan: If storing the fireplace for an extended period, ensure it is clean and dry, and store it in a cool, dry place.

7. Penyelesaian masalah

Jika anda mengalami masalah dengan pendiang api anda, rujuk masalah dan penyelesaian biasa berikut:

• Tiada Kuasa: Check if the power cord is securely plugged into a working outlet. Verify the circuit breaker has not tripped.
• Tiada haba: Ensure the heating function is turned on and the temperature setting is above the ambient room temperature. Check if the overheating protection has been activated (unplug, wait 10-15 minutes, then plug back in).
• Alat Kawalan Jauh Tidak Berfungsi: Gantikan bateri pada alat kawalan jauh. Pastikan tiada halangan antara alat kawalan jauh dan sensor pendiang api.
• Bunyi Luar Biasa: A slight fan noise is normal during heating operation. If unusual or loud noises occur, discontinue use and contact customer support.

8. Spesifikasi

9. Waranti dan Sokongan

This Valuxhome electric fireplace comes with a limited warranty. For specific warranty details and to register your product, please refer to the warranty card included in your package or visit the official Valuxhome webtapak.

For technical assistance, troubleshooting not covered in this manual, or to order replacement parts, please contact Valuxhome customer support. Contact information can typically be found on the product packaging or the brand's official webtapak.
