1. Pengenalan
Terima kasih kerana membeliasing the EMB Home PKL5000 Rechargeable PA Speaker. This powerful and versatile speaker system is designed to deliver high-quality audio for various events, including parties, karaoke, and public announcements. Featuring a 15-inch woofer, Bluetooth connectivity, USB/SD card playback, and a wireless microphone, the PKL5000 offers a comprehensive audio solution. Please read this manual thoroughly before operating the device to ensure proper use and to maximize its performance and longevity.
2. Arahan Keselamatan Penting
- Baca semua arahan sebelum menggunakan produk.
- Simpan manual ini untuk rujukan masa hadapan.
- Jangan dedahkan pembesar suara kepada air, kelembapan atau suhu yang melampau.
- Jangan sekat sebarang bukaan pengudaraan.
- Gunakan hanya lampiran/aksesori yang ditentukan oleh pengilang.
- Cabut palam pembesar suara semasa ribut petir atau apabila tidak digunakan untuk tempoh yang lama.
- Rujuk semua servis kepada kakitangan perkhidmatan yang berkelayakan. Jangan cuba membaiki unit sendiri.
- Pastikan sumber kuasa sepadan dengan voltage requirements of the speaker.
- Jauhkan pembesar suara daripada sumber haba seperti radiator, daftar haba, dapur atau peralatan lain yang menghasilkan haba.
3. Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- EMB Home PKL5000 PA Speaker
- Mikrofon Tanpa Wayar UHF
- Tripod Speaker Stand
- Alat Kawalan Jauh
- Penyesuai Kuasa/Kabel Pengecasan
- Manual Pengguna
4. Produk Lebihview: Rear Control Panel
Familiarize yourself with the various controls and ports located on the rear panel of your PKL5000 speaker.
Imej: Terperinci view of the EMB Home PKL5000 speaker's rear control panel, showing inputs, outputs, and adjustment knobs.
- Panel Kawalan: Main interface for settings and adjustments.
- Mic in Vol: Adjusts the volume for microphone inputs.
- Mic in 6.5mm Jack: Input for wired microphones.
- Mic/Guitar 6.5mm Jack: Dual-purpose input for microphones or guitars.
- Mic/Guitar Switch: Toggles between microphone and guitar input modes.
- XLR Cable Connector: Professional audio input for balanced signals.
- DC12V Battery Input: Port for external 12V DC power source.
- Kuasa: Suis kuasa utama untuk unit.
- Kuasa AC: Input for the AC power cable to power and charge the speaker.
- Line in Vol: Adjusts the volume for line-level inputs.
- Gema: Mengawal kesan gema untuk input mikrofon.
- Input AUX: Input tambahan 3.5mm untuk peranti audio luaran.
- Input Talian RCA: Input RCA stereo untuk sumber audio luaran.
- Beratur: Audio output to connect to another speaker or audio system.
5. Panduan Persediaan
5.1 Membongkar dan Meletakkan
- Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
- Place the speaker on a stable, flat surface. For optimal sound projection and stability, use the included tripod stand. Ensure the stand is fully extended and locked before placing the speaker.
5.2 Menghidupkan dan Mengecas
The PKL5000 speaker can operate on AC power or its internal rechargeable battery.
- Kuasa AC: Connect the supplied power cable to the AC Power input on the rear panel and then to a standard wall outlet.
- mengecas: When connected to AC power, the internal battery will automatically begin charging. A full charge takes approximately 4.5 hours.
- Hayat Bateri: A fully charged battery provides approximately 5 hours of playback time, depending on volume and usage.
Image: The EMB Home PKL5000 speaker with indicators for a charging time of 4.5 hours and a play time of 5 hours.
6. Arahan Operasi
6.1 Operasi Asas
- Turn on the speaker using the 'Power' switch on the rear panel.
- Adjust the main volume knob to a low level before playing audio.
6.2 Sambungan Bluetooth
Untuk menyambungkan peranti anda melalui Bluetooth:
- Pastikan pembesar suara dihidupkan.
- Press the 'Mode' button on the control panel or remote until 'Bluetooth' mode is selected. The display will show 'BLUE' and a pairing indicator will flash.
- Pada peranti mudah alih anda, dayakan Bluetooth dan cari peranti yang tersedia.
- Select 'EMB PKL5000' from the list. Once connected, the speaker will emit a confirmation tone, and the pairing indicator will stop flashing.
- Anda kini boleh memainkan audio daripada peranti anda melalui pembesar suara.
Image: A smartphone displaying the Bluetooth icon, indicating a wireless connection to the EMB Home PKL5000 speaker, with a range of up to 30 feet.
6.3 Main Semula USB/Kad SD
To play audio from a USB drive or SD card:
- Insert a USB drive or SD card into the corresponding slot on the control panel.
- The speaker will automatically switch to USB/SD mode and begin playing compatible audio files. If not, press the 'Mode' button to select USB/SD.
- Use the playback controls (Play/Pause, Next, Previous) on the control panel or remote to manage your music.
6.4 Penggunaan Mikrofon Tanpa Wayar
The included UHF wireless microphone is pre-paired with the speaker.
- Insert batteries into the wireless microphone.
- Hidupkan mikrofon.
- Adjust the 'Mic in Vol' knob on the speaker's control panel to control the microphone's volume.
- Use the 'Echo' knob to add an echo effect to the microphone's sound.
6.5 True Wireless Stereo (TWS) Mode
To connect two PKL5000 speakers for a stereo sound experience:
- Ensure both PKL5000 speakers are powered on and in Bluetooth mode.
- On one speaker (this will be your primary speaker), press and hold the 'TWS' button (or a similar pairing button, refer to the speaker's display for 'BT Mode ON' confirmation).
- Pembesar suara utama akan mencari pembesar suara kedua. Setelah disambungkan, kedua-dua pembesar suara akan mengeluarkan nada pengesahan.
- Sekarang, sambungkan peranti mudah alih anda ke pembesar suara utama melalui Bluetooth seperti yang diterangkan dalam bahagian 6.2. Audio akan dimainkan dalam stereo melalui kedua-dua pembesar suara.
Image: Two EMB Home PKL5000 speakers positioned apart, illustrating their ability to wirelessly connect up to 30 feet for a stereo sound experience.
6.6 EQ Modes and Party Lights
The PKL5000 features multiple EQ modes to optimize sound for different genres and integrated party lights.
- Mod EQ: Use the 'EQ' button on the control panel or remote to cycle through preset equalization settings (e.g., Pop, Rock, Jazz, Classic, Flat).
- Lampu Parti: The speaker features translucent cabinet lighting and 360-degree motion lights. These lights automatically activate when the speaker is powered on. Use the dedicated 'Light' button (if available) or refer to the remote control for light mode adjustments. Note that the LED light mode may reset to flash-color mode upon power cycling.
Image: The EMB Home PKL5000 speaker highlighting its 360-degree surround cabinet party lights, designed to enhance the party atmosphere.
Image: The EMB Home PKL5000 speaker showcasing its dynamic 360-degree motion lights, creating a vibrant visual effect.
7. Penyelenggaraan
7.1 Pembersihan
- Sentiasa tanggalkan plag pembesar suara daripada sumber kuasa sebelum membersihkannya.
- Gunakan kain lembut dan kering untuk mengelap permukaan luar pembesar suara.
- Jangan gunakan pembersih, lilin atau pelarut yang melelas kerana ia boleh merosakkan kemasan.
- Keep the speaker grille free of dust and debris for optimal sound quality.
7.2 Penyimpanan
- Simpan pembesar suara di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
- If storing for an extended period, ensure the battery is partially charged (around 50%) to prolong its lifespan. Recharge the battery every few months to prevent deep discharge.
8. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa | Power cable not connected; Battery drained; Power switch off | Ensure power cable is securely connected and plugged in. Charge the battery. Turn the power switch ON. |
| Tiada bunyi | Kelantangan terlalu rendah; Mod input salah; Peranti tidak disambungkan | Increase master volume and input volume. Select the correct input mode (Bluetooth, USB, AUX). Ensure your device is properly connected. |
| Bluetooth tidak berpasangan | Pembesar suara tidak dalam mod berpasangan; Peranti terlalu jauh; Gangguan | Ensure speaker is in Bluetooth pairing mode. Move device closer to speaker. Turn off other Bluetooth devices. |
| Mikrofon tidak berfungsi | Microphone off; Batteries low/dead; Mic volume low | Turn on the microphone. Replace batteries. Increase 'Mic in Vol' knob. |
| TWS mode not connecting | Incorrect TWS pairing procedure; Speakers too far apart | Ensure both speakers are in Bluetooth mode. Follow TWS pairing steps carefully (Section 6.5). Keep speakers within 30 feet. |
9. Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | PKL5000 |
| Output Kuasa | 5000W (Puncak) |
| Saiz Woofer | 15-inch Steel Frame |
| Pemandu | 1-inch Titanium Diaphragm |
| Ketersambungan | Bluetooth, USB, SD Card, AUX (3.5mm), RCA, XLR |
| Mikrofon Tanpa Wayar | UHF |
| Sumber Kuasa | AC Power, Rechargeable Battery |
| Masa Mengecas | lebih kurang 4.5 jam |
| Masa Main | Approx. 5 hours (battery) |
| Dimensi (Anggaran) | 72.7cm (Width) x 439cm (Height) x 47.3cm (Depth) - Note: Height value seems unusually large, please verify actual product dimensions. |
| Jenis Pemasangan | Pole Mount (with included tripod stand) |
| UPC | 783501154877 |

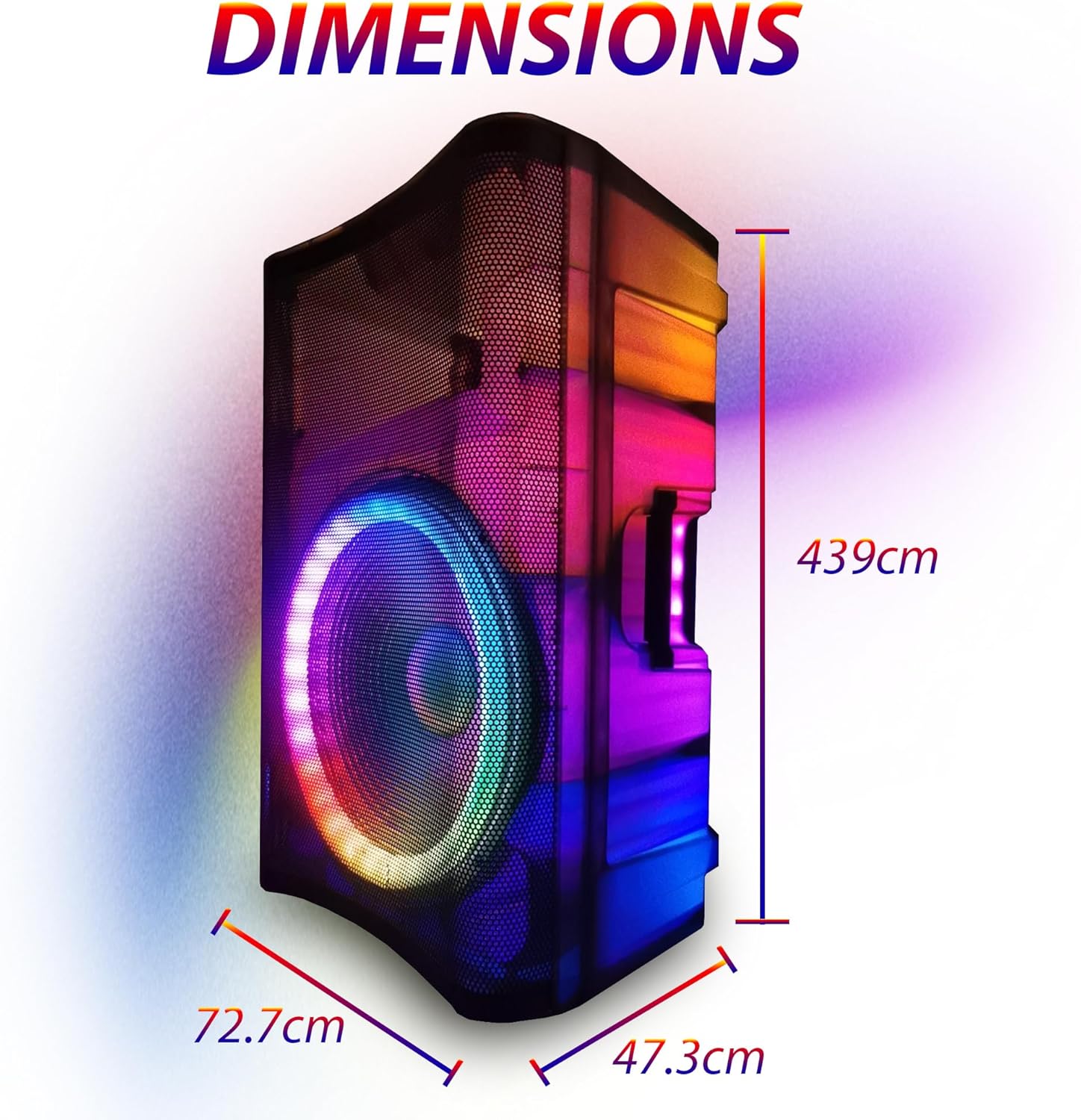

Image: Diagram showing the approximate dimensions of the EMB Home PKL5000 speaker: 72.7cm width, 439cm height, and 47.3cm depth.
10. Waranti dan Sokongan
EMB products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact EMB customer support through their official website or the retailer where the product was purchased. Please have your model number (PKL5000) and proof of purchase ready when contacting support.
