Arahan Keselamatan Penting
Read and understand all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Sentiasa pakai pelindung mata dan pelindung pendengaran semasa mengendalikan alat ini.
- Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
- Jauhkan kanak-kanak dan orang ramai semasa mengendalikan alat kuasa. Gangguan boleh menyebabkan anda hilang kawalan.
- Elakkan bermula secara tidak sengaja. Pastikan suis berada dalam kedudukan mati sebelum menyambung ke pek bateri, mengambil atau membawa alat.
- Gunakan alat yang betul untuk aplikasi anda. Jangan paksa alat.
- Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation.
- Putuskan sambungan pek bateri daripada alat sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
- Use only with specified battery packs and chargers.
Kandungan Pakej
Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda. Jika mana-mana bahagian hilang atau rosak, hubungi khidmat pelanggan.
- CUSHYBITE RY404150 Cordless Leaf Blower/Mulcher/Vacuum Unit
- Tiub Blower
- Vacuum Tube (if applicable)
- Collection Bag (for mulching/vacuum function)
- (2) Bateri 4.0 Ah 40V
- Pengecas Bateri
- Manual Arahan
Image: The CUSHYBITE RY404150 unit configured for mulching/vacuum, showing the attached collection bag and two 40V batteries and charger separately.
Perhimpunan dan Persediaan
1. Attaching the Blower Tube
- Align the grooves on the blower tube with the corresponding slots on the blower housing.
- Push the tube firmly onto the housing until it clicks into place. Ensure it is securely fastened.
2. Memasang Bateri
- Ensure the tool's power switch is in the OFF position.
- Slide a fully charged 40V battery pack into the battery port on the tool until it locks securely.
- Untuk mengeluarkan, tekan butang pelepas bateri dan luncurkan bateri keluar.

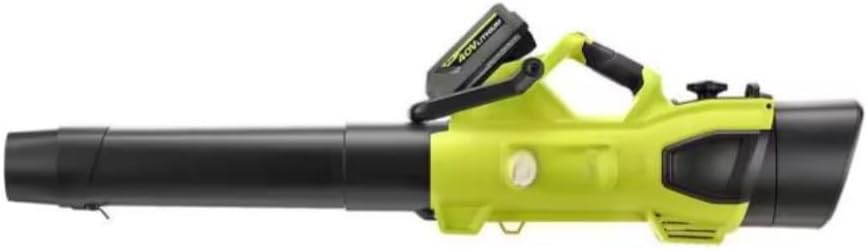

Image: The CUSHYBITE RY404150 leaf blower with a 40V battery pack inserted into its designated slot on the top of the unit.
3. Converting to Vacuum/Mulcher (if applicable)
- Keluarkan tiub peniup.
- Attach the vacuum tube to the intake port and the collection bag to the exhaust port, following the alignment and locking mechanisms.
- Pastikan semua komponen dipasang dengan selamat sebelum beroperasi.
Operasi
1. Starting the Blower
- Ensure a charged battery is installed.
- Genggam pemegang dengan kuat.
- Press the power button or pull the trigger to start the unit.
2. Kawalan Kelajuan Boleh Ubah
- The tool features variable speed control. Adjust the speed dial or trigger pressure to increase or decrease airflow as needed for different tasks.
- Lower speeds are suitable for delicate areas, while higher speeds provide maximum clearing power.
3. Using as a Mulcher/Vacuum
- With the vacuum tube and collection bag attached, position the vacuum tube over the debris.
- Turn on the unit. The mulching impeller will shred leaves and other light debris as they are drawn into the collection bag.
- Kosongkan beg koleksi dengan kerap untuk mengekalkan prestasi optimum.
4. Petua Operasi
- Work in a sweeping motion to move debris efficiently.
- Avoid directing airflow towards people or pets.
- For mulching, ensure debris is dry for best results.
Imej: Sebelah view of the CUSHYBITE RY404150 cordless leaf blower, ready for operation, showcasinreka bentuk ergonomiknya.
Penyelenggaraan
1. Pembersihan
- Sentiasa keluarkan pek bateri sebelum membersihkan.
- Lap bahagian luar alat dengan kain bersih,amp kain. Jangan gunakan detergen atau pelarut yang kuat.
- Kosongkan sebarang serpihan dari lubang udara untuk mengelakkan terlalu panas.
- For mulcher/vacuum mode, regularly empty and clean the collection bag.
2. Penyimpanan
- Simpan alat di tempat yang kering dan selamat dari jangkauan kanak-kanak.
- Tanggalkan pek bateri daripada alat sebelum menyimpannya untuk tempoh yang lama.
- Avoid storing in direct sunlight or areas with extreme temperatures.
3. Penjagaan Bateri
- Cas bateri sepenuhnya sebelum penggunaan pertama.
- Do not store batteries in a discharged state. Recharge them periodically if not in use.
- Protect batteries from moisture and extreme temperatures.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Alat tidak bermula | Bateri tidak dicas atau tidak dipasang dengan betul. | Pastikan bateri dicas sepenuhnya dan dipasang dengan betul. |
| Reduced airflow/suction | Blower tube or vacuum tube/collection bag clogged. | Remove battery, clear any obstructions from tubes or bag. |
| Alat berhenti semasa operasi | Battery is depleted or tool is overheating. | Recharge battery. Allow tool to cool down if overheating. |
| Getaran yang berlebihan | Loose components or damaged impeller (mulcher mode). | Check all connections. If vibration persists, discontinue use and contact customer service. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | RY404150 |
| Jenama | CUSHYBITE |
| Sumber Kuasa | Dikuasakan Bateri |
| Voltage | 40 Volt |
| Jenis Motor | HP Tanpa Berus |
| Kelajuan Udara Maks | 100 Batu Sejam (MPH) |
| Isipadu Udara Maks | 600 Kaki Kubik Seminit (CFM) |
| Fungsi | Blower, Mulcher, Vacuum |
| Termasuk Bateri | (2) 4.0 Ah |
| Berat Barang | 15 paun |
| Dimensi (L x W x H) | 48"L x 8"W x 9"H |
| bahan | plastik |
Waranti dan Sokongan
This CUSHYBITE product is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty duration and coverage details.
For technical assistance, replacement parts, or warranty claims, please contact CUSHYBITE customer support. Contact information can typically be found on the product packaging or the official CUSHYBITE webtapak.
When contacting support, please have your product model number (RY404150) and purchase date available to expedite service.
