COLAZE 2500 Sq. Ft 30 Pint Dehumidifier User Manual

Arahan Keselamatan Penting

Please read all instructions carefully before using this dehumidifier to ensure safe and optimal operation. Keep this manual for future reference.

• Always place the dehumidifier on a level, stable surface to prevent tipping and water spillage.
• Ensure proper clearance around the unit (at least 8 inches) for adequate airflow. Do not block air inlets or outlets.
• Do not operate the unit near water or in excessively wet environments.
• Cabut plag penyahlembap sebelum membersihkan, mengalihkan atau melakukan sebarang penyelenggaraan.
• Do not use extension cords. Plug the unit directly into a grounded electrical outlet.
• Jauhkan kanak-kanak dan haiwan peliharaan dari unit semasa operasi.
• Do not insert objects into the air vents or any openings.
• Jika kord kuasa rosak, ia mesti diganti oleh pengilang, ejen servisnya, atau orang yang berkelayakan yang serupa untuk mengelakkan bahaya.

Produk Selesaiview

The COLAZE HE0121 Dehumidifier is designed to efficiently remove excess moisture from your indoor environment, improving air quality and comfort. It features intelligent humidity control, multiple operating modes, and convenient drainage options.

Rajah 1: Depan view of the COLAZE HE0121 Dehumidifier, showing the air intake grille and compact design.

Ciri-ciri Utama:

• Kecekapan Tinggi: Menghilangkan sehingga 34 pain kelembapan setiap hari, sesuai untuk kawasan sehingga 2500 kaki persegi.
• Kawalan Kelembapan Pintar: Features a smart touch control panel with a digital display for precise humidity settings (30%-80% RH).
• Operasi Berbilang Mod: Includes Normal, Continuous, Ventilation, and Dry Clothes modes with two fan speeds.
• Pilihan Dwi Saliran: Offers both manual drainage via a 0.58-gallon water tank and continuous drainage using the included hose.
• Operasi Ultra-Senyap: Designed for minimal noise, ideal for bedrooms and living spaces.
• Pemasa 24 Jam: Allows for scheduled operation to save energy.

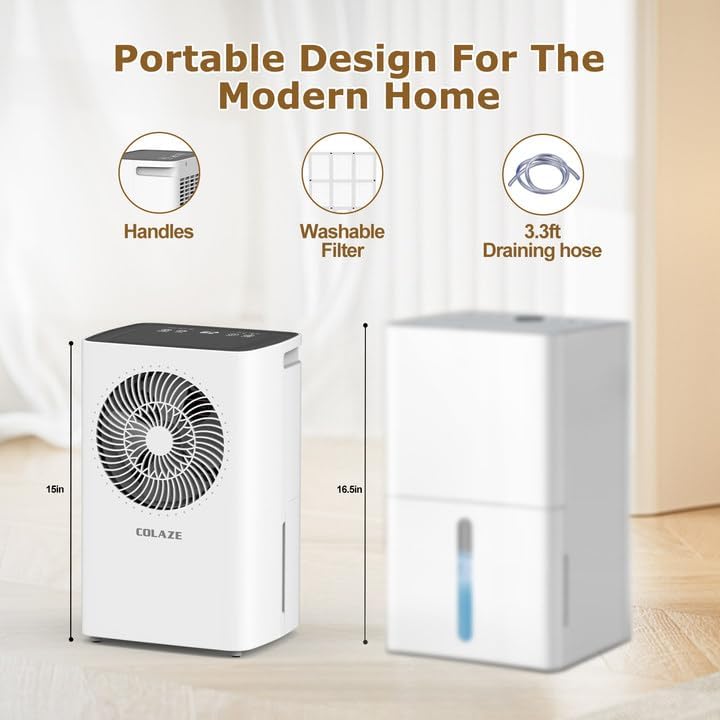

• Reka Bentuk Mudah Alih: Equipped with convenient built-in handles for easy relocation.
• Auto Nyahbeku: Mencegah pembentukan ais pada gegelung dalam suhu rendah.
• Penapis yang boleh dibasuh: Mudah dibersihkan dan diselenggara untuk prestasi yang konsisten.

Persediaan dan Pemasangan

1. Membongkar: Keluarkan dehumidifier dengan berhati-hati daripada pembungkusnya. Simpan bahan pembungkusan untuk penyimpanan atau pengangkutan masa hadapan.
2. penempatan:

   Place the unit upright on a firm, level surface in the area where dehumidification is desired. Ensure there is at least 8 inches (20 cm) of space around all sides of the unit for proper air circulation.



   Figure 2: Proper placement of the dehumidifier in a room, ensuring adequate space for airflow.

3. Sambungan Kuasa:

   Palamkan kord kuasa ke salur keluar elektrik yang dibumikan. Pastikan voltage sepadan dengan keperluan unit.

4. Drainage Setup (Choose one):
   • Saliran Manual (Tangki Air): The unit is ready for manual drainage by default. The water tank will collect condensed moisture. When the tank is full, the unit will automatically shut off and an indicator light will illuminate.
   • Saliran Berterusan (Hos Saliran): For continuous operation without emptying the tank, attach the included drain hose to the drainage port on the back of the unit. Route the hose to a suitable floor drain or larger container, ensuring the hose is sloped downwards for gravity drainage.


   Figure 3: Illustration of the two drainage methods: using the removable water tank for manual emptying or connecting a hose for continuous gravity drainage.

Arahan Operasi

The COLAZE dehumidifier features an intuitive touch control panel for easy operation.

Figure 4: The smart control panel, displaying humidity setting, timer, fan speed, and power buttons.

Fungsi Panel Kawalan:

• Butang kuasa (⏻): Tekan untuk menghidupkan atau MATI unit.
• Humidity Setting Button (⚙): Press to adjust the desired humidity level from 30% to 80% Relative Humidity (RH) in 10% increments. The unit will automatically maintain this level.
• Butang Pemasa (⏷): Press to set the auto-off or auto-on timer from 1 to 24 hours.
• Butang Kelajuan (⟳): Press to switch between Low and High fan speeds.
• paparan: Shows the current humidity level or timer setting.
• Lampu Penunjuk:
  • Pencairan: Illuminates when the unit is in defrost mode.
  • Tangki Penuh: Illuminates and an alarm sounds when the water tank is full and needs to be emptied.
  • Pemasa: Menyala apabila fungsi pemasa aktif.
  • Low/High (Operation): Menunjukkan kelajuan kipas semasa.

Mod Pengendalian:

• Penyahlembapan Normal: The unit operates to reach and maintain the set humidity level.
• Penyahlembapan Berterusan: The unit runs continuously regardless of the humidity level, ideal for very damp syarat.
• Pengudaraan: The fan operates without dehumidification, circulating air.
• Pakaian Kering: Optimized settings for drying laundry in humid environments.

Figure 5: The dehumidifier adapting to various environments and modes, including automatic humidity control, clothes drying, and simple fan operation.

Humidity Indicator Lights:

The unit features ambient lighting that changes color based on the environmental humidity:

• Biru: Low humidity (e.g., below 45% RH)
• hijau: Ideal humidity (e.g., 45%-55% RH)
• merah: High humidity (e.g., above 55% RH)

Penyelenggaraan

Regular maintenance ensures the longevity and efficiency of your COLAZE dehumidifier.

1. Mengosongkan Tangki Air:

When the water tank is full, the "Tank Full" indicator will light up, and the unit will beep for 20 seconds before automatically shutting off. To empty:

1. Tarik keluar tangki air dari bahagian belakang unit dengan lembut.
2. Kosongkan air yang terkumpul.
3. Luncurkan tangki kosong kembali ke dalam unit sehingga ia berbunyi klik pada tempatnya. Unit akan menyambung semula operasi.

Figure 6: The water tank being removed for manual drainage, highlighting the ease of access.

2. Membersihkan Penapis Udara:

Penapis udara hendaklah dibersihkan setiap dua minggu atau lebih kerap bergantung pada penggunaan dan kualiti udara.

1. Matikan dan cabut plag penyahlembap.
2. Keluarkan penapis dari bahagian belakang unit.
3. Wash the filter with clean water and a soft rag. Do not use harsh detergents or abrasive cleaners.
4. Benarkan penuras kering sepenuhnya sebelum memasukkannya semula ke dalam unit.

Figure 7: The washable filter being removed for cleaning, emphasizing ease of maintenance.

3. Storan:

Jika menyimpan unit untuk tempoh yang lama:

• Kosongkan tangki air dan pastikan ia benar-benar kering.
• Bersihkan penapis udara.
• Simpan unit dalam kedudukan tegak di tempat yang sejuk dan kering.

Menyelesaikan masalah

Spesifikasi

Video Produk Rasmi

Waranti dan Sokongan

COLAZE products are designed for reliability and performance. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official COLAZE webtapak.

If you encounter any issues or have questions regarding your dehumidifier, please contact COLAZE customer service for assistance. Provide your model number (HE0121) and purchase details for faster service.

Maklumat Hubungan: (Typically found on product packaging or official webtapak)

• Webtapak: COLAZE Official Store on Amazon
• e-mel: Rujuk kepada dokumentasi produk
• telefon: Rujuk kepada dokumentasi produk
