Silva Homeline Immersion Blender Set SMS 6502 User Manual

1. Arahan Keselamatan Penting

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect operation can cause damage to the appliance and injury to the user.

• Keselamatan Elektrik: Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage before connecting. Do not immerse the motor unit in water or any other liquid. Do not operate with a damaged cord or plug.
• Keselamatan Bilah: The blades are very sharp. Handle with extreme care, especially when assembling, disassembling, emptying the bowl, and cleaning.
• Kanak-kanak dan Orang Terdedah: This appliance should not be used by children. Keep the appliance and its cord out of reach of children. Close supervision is necessary when any appliance is used near children.
• Persekitaran Penggunaan: Use the appliance only for its intended household purpose. Do not use outdoors. Do not place on or near a hot gas or electric burner, or in a heated oven.
• Operasi: Never touch moving parts. Always switch off the appliance and unplug it from the power supply before changing accessories or approaching parts that move in use.
• Pembersihan: Refer to the "Maintenance and Cleaning" section for detailed instructions.
• Pembaikan: Jangan cuba membaiki sendiri perkakas. Hubungi kakitangan perkhidmatan yang berkelayakan untuk pembaikan.

2. Produk Lebihview

The Silva Homeline Immersion Blender Set SMS 6502 is a versatile kitchen appliance designed for blending, chopping, and whisking. It features a powerful 700W motor and two speed settings for optimal control.

2.1 Komponen

• Unit Motor: The main body containing the 700W motor and speed controls.
• Immersion Blender Shaft: Stainless steel blending shaft for pureeing and mixing.
• Chopper Attachment (500 ml): For chopping nuts, herbs, vegetables, and more. Includes a chopping blade and lid.
• Pukul Lampiran: For whipping cream, beating eggs, and making light batters.
• Cawan Sukat (700 ml): For blending and measuring ingredients.

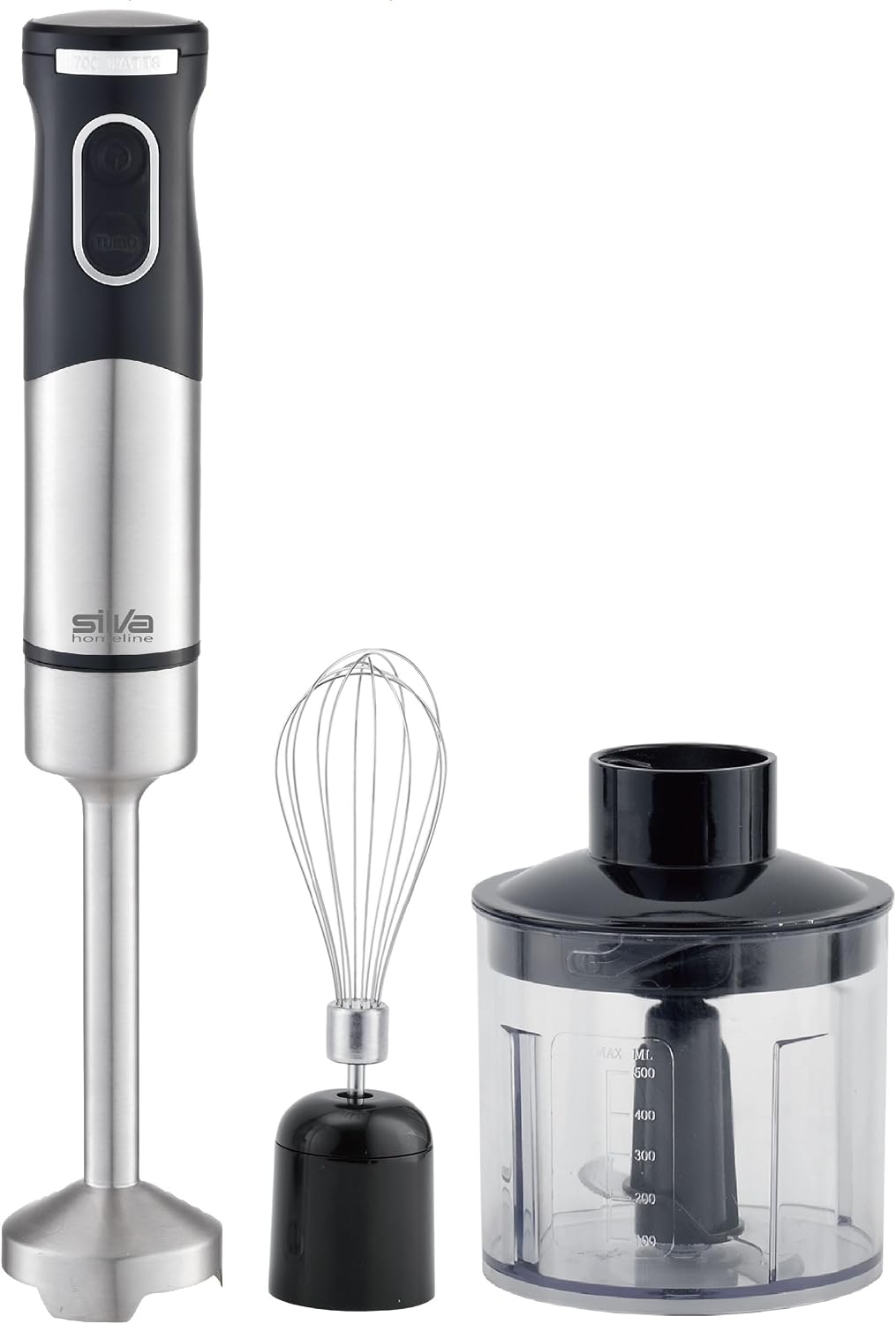

Rajah 1: Complete Silva Homeline Immersion Blender Set. This image displays the main motor unit, the stainless steel blending shaft, the whisk attachment, and the 500 ml chopper attachment with its lid.

Rajah 2: Whisk attachment and 700 ml measuring cup. This image shows the wire whisk attachment and the clear plastic measuring cup, which can also be used for blending.

Rajah 3: jarak dekat view of the chopper attachment lid. This image highlights the design of the lid for the 500 ml chopper, showing the connection point for the motor unit.

3. Persediaan dan Pemasangan

Before first use, clean all parts that will come into contact with food as described in the "Maintenance and Cleaning" section.

3.1 Memasang Pengisar Rendaman

1. Align the motor unit with the immersion blender shaft.
2. Putar unit motor mengikut arah jam sehingga ia terkunci dengan kukuh pada tempatnya.
3. Untuk membuka, putarkan lawan arah jam dan tarik keluar.

3.2 Assembling the Whisk Attachment

1. Insert the whisk into the whisk gear box.
2. Align the whisk gear box with the motor unit.
3. Putar unit motor mengikut arah jam sehingga ia terkunci dengan kukuh pada tempatnya.
4. Untuk membuka, putarkan lawan arah jam dan tarik keluar.

3.3 Assembling the Chopper Attachment

1. Carefully place the chopping blade onto the central pin inside the chopper bowl.
2. Masukkan bahan ke dalam mangkuk pencincang.
3. Letakkan penutup pencincang ke atas mangkuk, pastikan ia diletakkan dengan betul.
4. Align the motor unit with the chopper lid.
5. Putar unit motor mengikut arah jam sehingga ia terkunci dengan kukuh pada tempatnya.
6. Untuk membuka, putarkan lawan arah jam dan tarik keluar.

4. Arahan Operasi

Sentiasa pastikan perkakas dipasang dengan betul dan dipasang pada soket kuasa yang sesuai sebelum beroperasi.

4.1 Menggunakan Pengisar Rendaman

1. Assemble the immersion blender shaft to the motor unit.
2. Immerse the blending shaft into the ingredients in a deep pot or the 700 ml measuring cup. Ensure the liquid level is below the maximum fill line.
3. Pasangkan perkakas.
4. Press and hold the desired speed button (Speed 1 or Speed 2) to start blending. The appliance has 2 speeds.
5. Gerakkan pengisar ke atas dan ke bawah perlahan-lahan untuk memastikan adunan sekata.
6. Lepaskan butang untuk berhenti.
7. Unplug the appliance before removing the blending shaft.

Petua: For best results, do not operate continuously for more than 1 minute. Allow the motor to cool down between uses.

4.2 Menggunakan Lampiran Whisk

1. Pasangkan alat tambahan pemukul pada unit motor.
2. Place ingredients in a suitable bowl.
3. Pasangkan perkakas.
4. Celupkan pemukul ke dalam bahan-bahan.
5. Press and hold the desired speed button to start whisking.
6. Move the whisk gently to incorporate air.
7. Lepaskan butang untuk berhenti.
8. Unplug the appliance before removing the whisk attachment.

4.3 Menggunakan Alat Pencincang

1. Pasangkan alat pencincang dengan bilah dan bahan-bahannya.
2. Ensure the motor unit is securely locked onto the chopper lid.
3. Pasangkan perkakas.
4. Press and hold the desired speed button to start chopping. Use short pulses for coarse chopping, or hold longer for finer results.
5. Lepaskan butang untuk berhenti.
6. Unplug the appliance before disassembling the chopper.
7. Carefully remove the chopping blade before emptying the bowl.

Awas: Do not overfill the chopper bowl. Ensure ingredients are cut into small pieces before chopping hard items.

5. Penyelenggaraan dan Pembersihan

Proper cleaning ensures the longevity and hygiene of your appliance. Always unplug the appliance before cleaning.

5.1 Motor Unit

• Lap unit motor dengan iklanamp kain.
• Jangan sekali-kali merendam unit motor di dalam air atau sebarang cecair lain.
• Jangan gunakan pembersih yang melelas atau pad penyental.

5.2 Immersion Blender Shaft, Whisk, and Measuring Cup

• These parts can be washed in warm soapy water.
• Bilas dengan teliti dan keringkan dengan segera.
• The stainless steel blending shaft is generally dishwasher safe, but hand washing is recommended for longevity.

5.3 Chopper Bowl, Lid, and Blade

• Awas: Handle the chopping blade with extreme care as it is very sharp.
• Wash the chopper bowl, lid, and blade in warm soapy water.
• Bilas dengan teliti dan keringkan dengan segera.
• These parts are generally dishwasher safe (top rack only), but hand washing is recommended for the blade.

5.4 Penyimpanan

Store the appliance and its accessories in a dry place, out of reach of children.

6. Penyelesaian masalah

If you encounter issues with your appliance, please refer to the following common problems and solutions:

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

7. Spesifikasi Teknikal

8. Waranti dan Sokongan Pelanggan

Silva Homeline products are manufactured to high-quality standards. In the unlikely event of a defect in material or workmanship, please refer to your purchase documentation for warranty details.

For technical assistance, spare parts, or any questions regarding your product, please contact your retailer or the Silva Homeline customer service department. Please have your model number (SMS 6502) and proof of purchase ready when contacting support.

Sokongan dalam talian: Visit the official Silva Homeline webtapak untuk Soalan Lazim dan bantuan lanjut.
