EDISLIVE Modern Milk Globe Chandelier User Manual

1. Pengenalan

Terima kasih kerana membeliasing the EDISLIVE Modern Milk Globe Chandelier. This user manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before installation and retain it for future reference.

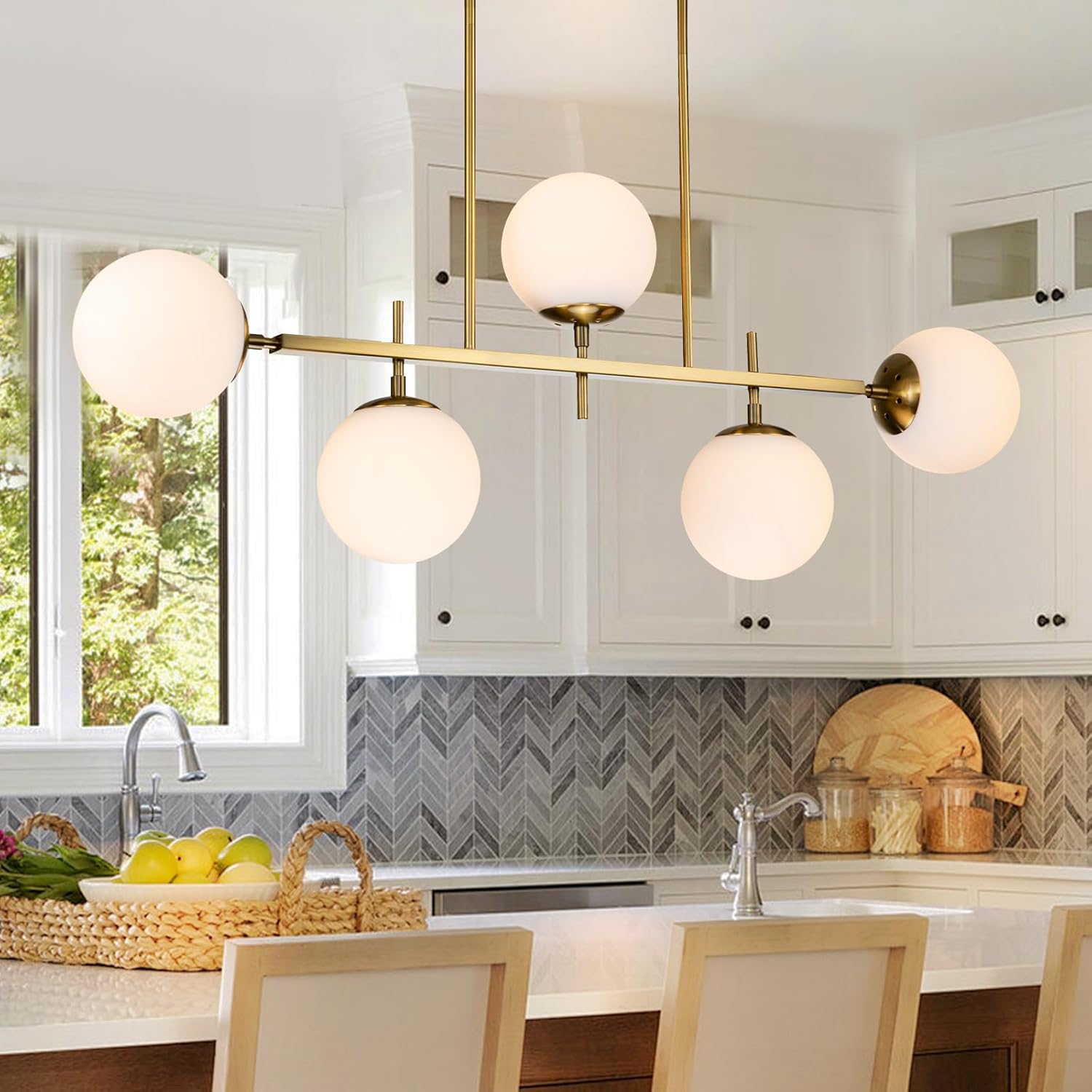

Figure 1.1: EDISLIVE Modern Milk Globe Chandelier (Gold-Frosted Bubble, 39.4in-5 Light)

2. Maklumat Keselamatan

Always follow basic safety precautions when installing and operating electrical products. Failure to do so may result in fire, electric shock, or serious injury.

• AMARAN: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation, maintenance, or bulb replacement.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unsure about wiring.
• Use only E26 base bulbs as specified. Do not exceed the maximum wattage ditunjukkan pada lekapan.
• Handle glass globes with care to prevent breakage.
• Do not install the fixture in wet or damp locations. This product is designed for indoor use only.
• Pastikan permukaan pelekap boleh menyokong berat lekapan.

3. Kandungan Pakej

Carefully unpack all components and inspect for any damage. Keep all packaging materials until you are sure all parts are present and in good condition. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support immediately.

• Chandelier Fixture Assembly
• Mounting Hardware (Ceiling Plate, Screws, Wire Nuts)
• Adjustable Hanging Rods (various lengths)
• Frosted Glass Globes (5 pieces)
• Manual Pengguna
• Note: E26 Bulbs are NOT included.

Figure 3.1: Key components of the chandelier.

4. Spesifikasi Produk

Figure 4.1: Detailed dimensions of the chandelier fixture.

5. Panduan Pemasangan

Professional installation is recommended. If you are not familiar with electrical wiring, consult a qualified electrician. Ensure power is OFF at the circuit breaker before beginning installation.

5.1 Alat Diperlukan (Tidak Termasuk)

• Pemutar Skru Kepala Phillips
• Pemutar Skru Kepala Rata
• Pelucut Kawat
• Pita Elektrik
• Tangga
• Cermin Mata Keselamatan

5.2 Langkah Pemasangan

1. Matikan Kuasa: Locate the circuit breaker controlling the light fixture's power supply and turn it OFF. Verify power is off using a voltage penguji.
2. Sediakan Permukaan Pemasangan: Remove the existing fixture (if any) and its mounting bracket. Ensure the junction box is securely mounted to the ceiling joist and can support the chandelier's weight.
3. Pasang Plat Pemasangan: Secure the provided mounting plate to the junction box using the screws.
4. Assemble Hanging Rods: Determine the desired hanging height. The chandelier comes with adjustable rods of various lengths (e.g., 2x5.9", 2x7.87", 6x11.81"). Connect the appropriate rods to achieve your preferred length.
5. Sambungan Wayar:
   • Connect the fixture's ground wire (bare copper or green) to the house's ground wire.
   • Connect the fixture's neutral wire (white) to the house's neutral wire (white).
   • Connect the fixture's hot wire (black or smooth) to the house's hot wire (black or ribbed).
   • Selamatkan semua sambungan dengan nat wayar dan balut dengan pita elektrik untuk keselamatan tambahan.
6. Mount Fixture Canopy: Carefully lift the fixture and align the canopy with the mounting plate. Secure the canopy to the mounting plate using the provided screws.
7. Install Glass Globes: Carefully screw each frosted glass globe onto its respective lamp holder on the fixture. Do not overtighten.
8. Pasang Mentol: Insert E26 base bulbs (not included) into each socket. Ensure bulbs are fully seated.
9. Pulihkan Kuasa: Hidupkan semula kuasa pada pemutus litar. Uji lekapan lampu.

Figure 5.1: Adjustable hanging rod and sturdy ceiling plate details.

6. Arahan Operasi

The EDISLIVE Modern Milk Globe Chandelier is designed for ease of use once installed.

6.1 Menghidupkan/Mematikan

Control the light fixture using your wall switch. For advanced control, including dimming, use the compatible remote control or a smart home application if connected to a smart system.

6.2 Fungsi Pemalapan

This fixture supports dimming when used with dimmable E26 bulbs and a compatible dimmer switch or smart control system (App/Remote Control). Refer to your dimmer switch or smart system's instructions for specific dimming operations.

7. Penyelenggaraan

Penyelenggaraan yang kerap akan membantu mengekalkan penampilan dan fungsi candelier anda.

7.1 Pembersihan

• Sentiasa matikan kuasa sebelum membersihkan.
• For the metal frame, wipe with a soft, dry cloth. Do not use abrasive cleaners or polishes as they may damage the finish.
• For the glass globes, gently wipe with a soft, damp cloth. A mild glass cleaner can be used if necessary, applied to the cloth first, not directly to the glass. Dry immediately with a clean, dry cloth to prevent water spots.

7.2 Penggantian Mentol

• Ensure power is turned off at the circuit breaker before replacing bulbs.
• Allow bulbs to cool completely before touching them.
• Tanggalkan mentol E26 lama melawan arah jam.
• Screw in the new E26 bulb clockwise until snug. Do not overtighten.
• Pulihkan kuasa dan uji mentol baharu.

8. Penyelesaian masalah

Jika anda menghadapi masalah dengan candelier anda, rujuk masalah dan penyelesaian biasa berikut:

If the problem persists after trying these solutions, please contact EDISLIVE customer support.

9. Waranti dan Sokongan

EDISLIVE products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact EDISLIVE customer support directly. Keep your proof of purchase for warranty claims.

For technical assistance, missing parts, or any other inquiries, please contact the seller or manufacturer through the platform where you purchased the product. You can also visit the official EDISLIVE store on Amazon for more information: EDISLIVE Store.
