Generic 12MP IMX258 USB Camera Module Instruction Manual

1. Pengenalan

This manual provides essential information for the proper setup, operation, and maintenance of your Generic 12MP IMX258 USB Camera Module. This module features a SONY IMX258 (1/3.06 inch) image sensor, offering 12MP HD resolution and 4K video capture at 30fps. It supports Auto Focus, High Dynamic Range (HDR), and a 75° Field of View (FOV). Designed for various applications including facial recognition, QR code scanning, and intelligent devices, it operates via the UVC protocol, ensuring plug-and-play compatibility without requiring additional drivers.

2. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 1x Camera module
• 1x USB kabel data

Image: The camera module connected to its USB data cable, as included in the package.

3. Produk Lebihview

The Generic 12MP IMX258 USB Camera Module consists of a compact camera sensor board and a main processing board connected by a flexible ribbon cable. The main board features the USB interface and control circuitry.

Imej: Belakang view of the camera module's main circuit board, showing components and connectors.

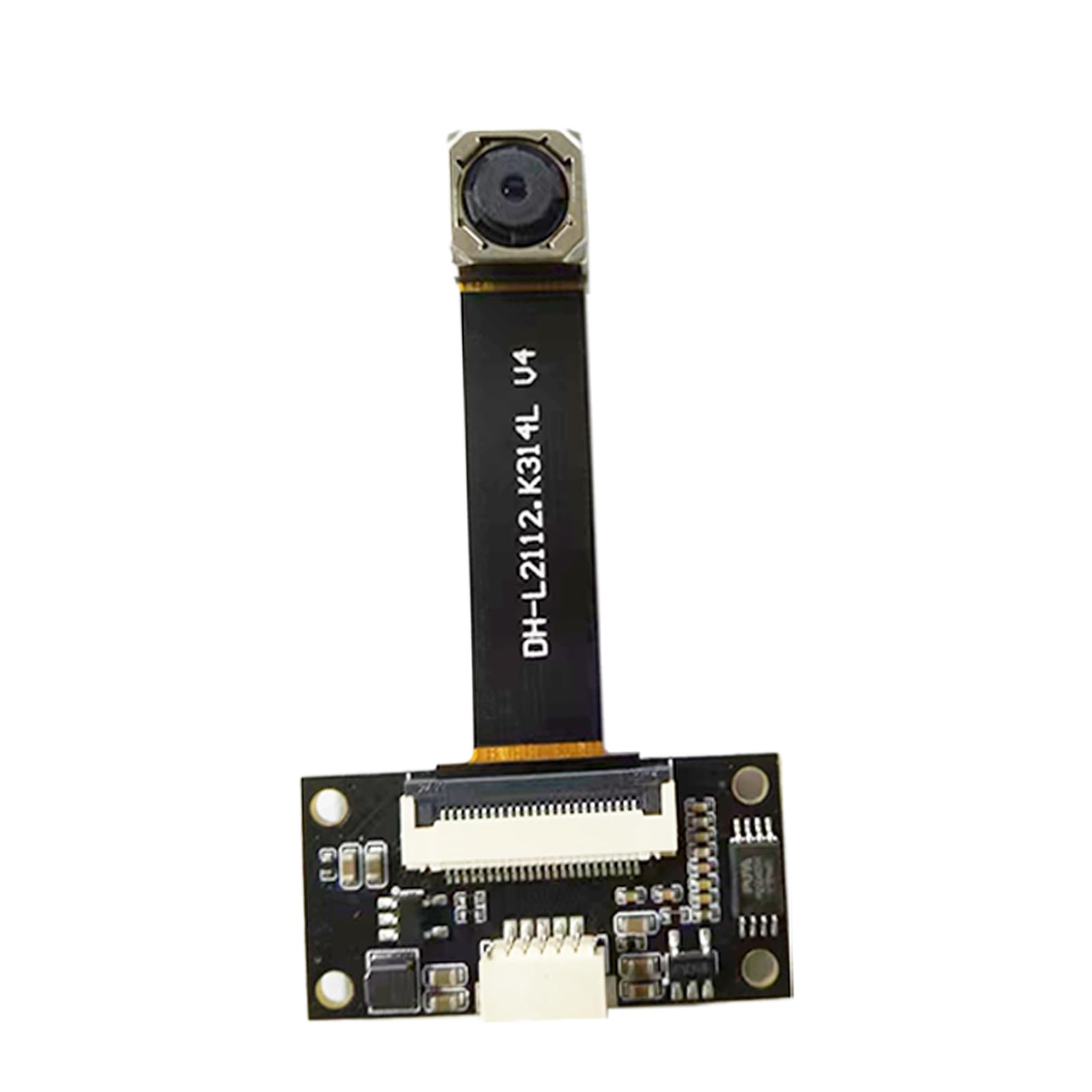

Image: The camera sensor board and the main processing board, illustrating their connection via a flexible ribbon cable.

Imej: Atas ke bawah view of the assembled camera module, highlighting the lens and ribbon cable.

4. Persediaan

1. Sambungkan Modul Kamera: Ensure the camera sensor board is securely connected to the main processing board via the flexible ribbon cable.
2. Sambung ke Peranti Hos: Plug the provided USB data cable into the USB port on the camera module's main board. Connect the other end of the USB cable to an available USB port on your computer or compatible host device.
3. Pemasangan Pemandu: The module supports the UVC (USB Video Class) protocol, meaning it is plug-and-play. No specific drivers are typically required for most operating systems (Windows, Linux, macOS). The device should be automatically recognized.
4. Pengecaman Perisian: Open your preferred camera application or software. The camera module should appear as an available video input device.

5. Arahan Operasi

Once connected and recognized by your system, the camera module is ready for operation.

• Video Resolution and Frame Rate: The module supports various resolutions, including 4K (3840 x 2160) at 30 frames per second (fps). It can also achieve 1920x1080 at 60fps and 1280x720 at 30fps. You can select the desired resolution and frame rate within your camera application's settings.
• Fokus Auto: The module features auto-focus capabilities. Ensure your software is configured to utilize this feature for clear imaging at varying distances.
• Permohonan: This camera module is suitable for a range of applications, including:
  • Sistem Pengecaman Muka
  • Pengimbasan kod QR
  • Intelligent Device Integration
  • Video Recording and Streaming
  • Visual Doorbells
• Julat Dinamik Tinggi (HDR): The module supports HDR, which can be enabled in compatible software to improve image quality in scenes with both very bright and very dark areas.

6. Penyelenggaraan

To ensure the longevity and optimal performance of your camera module, follow these maintenance guidelines:

• Pengendalian: Handle the module by its edges to avoid touching the lens or electronic components. Static electricity can damage sensitive electronics.
• Membersihkan Lensa: Use a soft, lint-free cloth specifically designed for optical lenses to gently clean the camera lens. Avoid abrasive materials or harsh chemicals.
• Storan: Store the module in a dry, dust-free environment away from extreme temperatures and direct sunlight.
• Elakkan Kelembapan: Do not expose the module to water or high humidity, as this can cause irreparable damage to the electronic components.

7. Penyelesaian masalah

If you encounter issues with your camera module, refer to the following common problems and solutions:

• Kamera Tidak Dikesan:
  • Ensure the USB cable is securely connected to both the module and the host device.
  • Cuba sambungkan ke port USB lain pada peranti anda.
  • Test the module on another computer or compatible device to rule out host device issues.
  • Mulakan semula komputer atau peranti hos anda.
• Tiada Imej atau Skrin Hitam:
  • Verify that the camera module is selected as the active video input in your camera software.
  • Periksa sebarang halangan fizikal yang menutupi kanta.
  • Ensure the ribbon cable connecting the sensor board to the main board is properly seated.
• Kualiti Imej Lemah:
  • Clean the camera lens gently with a suitable lens cloth.
  • Adjust lighting conditions in the environment.
  • Ensure auto-focus is enabled or manually adjust focus if your software allows.
  • Check software settings for resolution and frame rate; higher settings require more processing power.
• Modul Terlalu Panas:
  • Ensure adequate airflow around the module, especially during extended use.
  • Reduce the resolution or frame rate if operating in a confined space.

8. Spesifikasi

9. Waranti dan Sokongan

This Generic 12MP IMX258 USB Camera Module is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the point of purchase. Ensure you have your product model number (IMX258) and purchase details available when seeking support.
