HUABAO Karaoke Machine A108 Instruction Manual

pengenalan

Thank you for choosing the HUABAO Karaoke Machine A108. This portable multimedia speaker system is designed to provide a versatile audio experience with features including Bluetooth connectivity, dual wireless microphones, LED lighting, and multiple input options. Please read this manual carefully to ensure proper setup, operation, and maintenance of your device.

Apa yang ada dalam Kotak

Selepas membongkar, sila pastikan semua item berikut ada:

• 1 x Pembesar suara
• 2 x Mikrofon Tanpa Wayar
• 1 x Alat Kawalan Jauh
• 1 x Tali Bahu
• 1 x Kabel AUX
• 1 x Kabel Pengecas Jenis-C
• 1 x Manual Pengguna (dokumen ini)

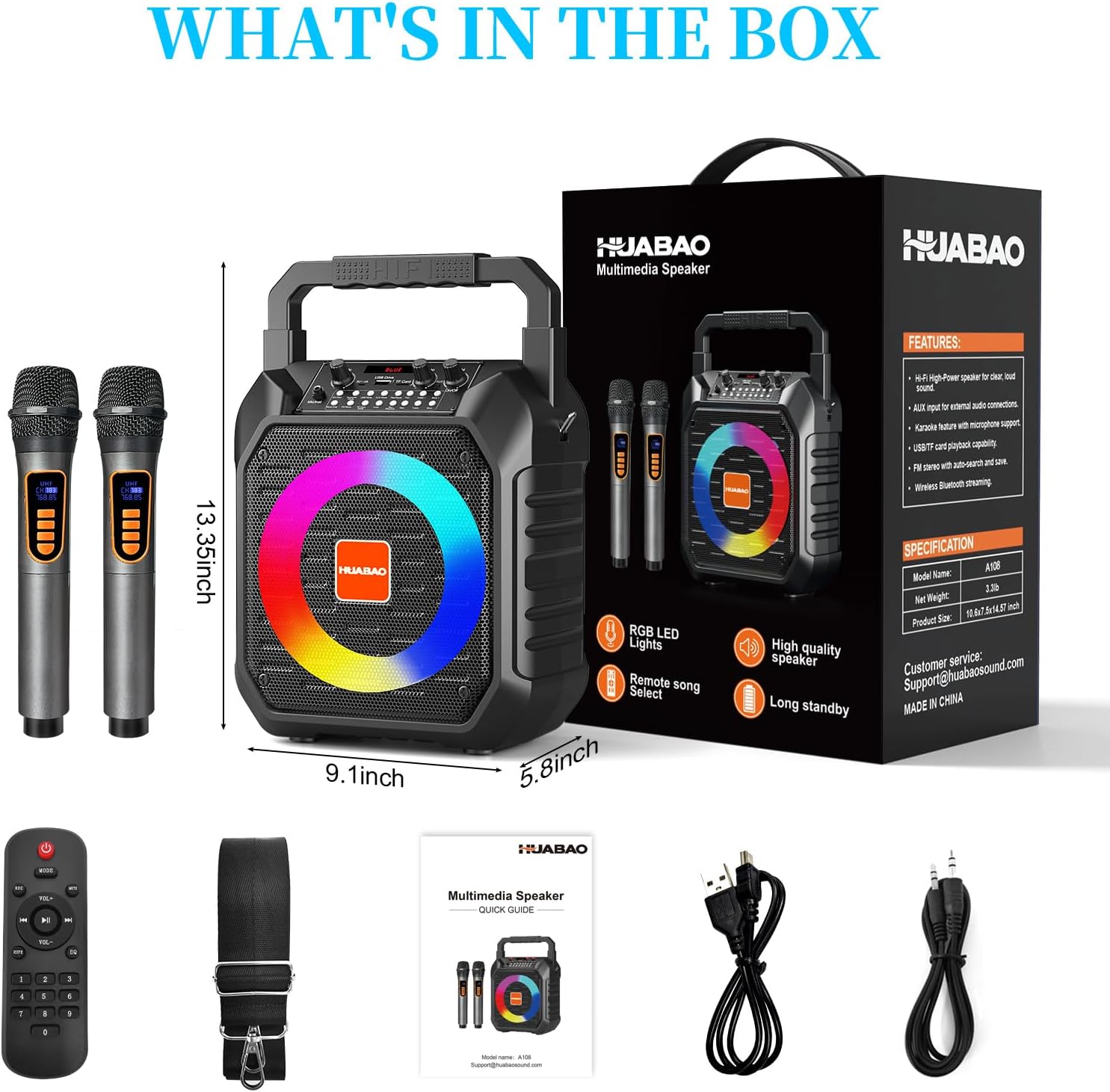

Image: All items included in the HUABAO Karaoke Machine A108 package, including the speaker, two wireless microphones, remote control, shoulder strap, AUX cable, Type-C charging cable, and user manual.

Persediaan

1. Mengisi Speaker

Before first use, fully charge the speaker using the provided Type-C charging cable. The built-in 5400 mAh rechargeable battery provides 6-8 hours of playtime on a full charge, with a charging time of 4-5 hours.

Image: The HUABAO Karaoke Machine highlighting its 5400 mAh high-capacity rechargeable battery for extended playtime.

2. Installing Batteries in Microphones

Each wireless microphone requires 2 AAA batteries (included). Twist the bottom part of the microphone to open the battery compartment, insert the batteries with correct polarity, and close the compartment securely.

3. Memasang Tali Bahu

For portability, attach the adjustable shoulder strap to the designated loops on the speaker. This allows for easy carrying during outdoor activities or travel.

Image: Two individuals carrying the lightweight and portable HUABAO Karaoke Machine using its adjustable shoulder strap.

Arahan Operasi

1. Hidupkan/Mati Kuasa

Locate the power button/volume knob on the control panel. Turn the knob clockwise to power on the speaker and adjust the main volume. Turn counter-clockwise to decrease volume and power off.

2. Pemilihan Mod

Press the "Mode" button on the control panel or remote control to cycle through available input modes: Bluetooth, USB Drive, TF Card, AUX, and FM Radio.

3. Berpasangan Bluetooth

1. Switch the speaker to Bluetooth mode. The display will show "BLUE" and an audible prompt will confirm.
2. Enable Bluetooth on your smartphone, tablet, laptop, or other compatible device.
3. Cari untuk "HUABAO A108" in the list of available devices and select it to pair.
4. Once paired, an audible confirmation will sound, and you can stream audio wirelessly.

Image: The HUABAO Karaoke Machine demonstrating stable wireless connectivity via Bluetooth 5.0 with various devices like phones, tablets, laptops, desktops, and smart TVs.

4. USB Drive / TF Card Playback

Insert a USB flash drive or TF card (containing MP3 files only) into the respective slot. The speaker will automatically switch to the corresponding mode and begin playback. Use the control panel buttons or remote for track navigation (Prev/Next) and Play/Pause.

5. Sambungan AUX

Connect an external audio device using the provided 3.5mm AUX cable. Switch the speaker to AUX mode. Audio from your external device will play through the speaker.

6. Radio FM

Switch to FM Radio mode. Use the control panel or remote to scan for stations. The speaker will automatically search and save available FM frequencies.

7. Penggunaan Mikrofon

Turn on the wireless microphones. They will automatically connect to the speaker. Use the dedicated "Mic" volume knob on the speaker to adjust microphone volume. The "Echo" knob controls the echo effect for vocals.

8. LED Lights Control

The speaker features dynamic LED lights that sync to the music. Long press the "Mode/LED" button to change different lighting effects or turn them off.

Image: The HUABAO Karaoke Machine displaying its colorful LED lighting show, which can be adjusted by pressing the Mode/LED button.

9. Treble & Bass Adjustment

Use the dedicated Treble and Bass controls on the speaker's control panel to fine-tune the audio output to your preference.

Image: Close-up of the HUABAO Karaoke Machine's control panel, highlighting the adjustable treble and bass knobs for personalized sound.

10. Menggunakan Alat Kawalan Jauh

The remote control allows for convenient operation from a distance, including power on/off, mode selection, volume adjustment, track control, and LED light settings.

Penyelenggaraan

• Keep the speaker and microphones dry and away from moisture.
• Bersihkan peranti dengan kain lembut dan kering. Jangan gunakan pembersih atau pelarut yang melelas.
• Simpan peranti di tempat yang sejuk dan kering apabila tidak digunakan.
• Elakkan daripada menjatuhkan peranti atau terkena impak yang kuat.

Menyelesaikan masalah

Spesifikasi

• model: A108
• Sumber Kuasa: Battery Powered (Built-in 5400 mAh rechargeable battery)
• Kuasa Output: 15W
• Saiz Subwoofer: 6.5 inci
• Ketersambungan: Bluetooth 5.0, AUX, USB, TF Card (MP3 files sahaja)
• Mikrofon: 2 x Wireless Microphones (2 AAA batteries each)
• Dimensi: 9.1 x 5.8 x 13.35 inci
• Berat Barang: 3.3 paun
• Bahan: plastik
• Impedans: 3 ohm
• Pengeluar: HUABAO

Image: The HUABAO Karaoke Machine showcasing its multiple connectivity options including Bluetooth 5.0, TF Card, USB, AUX, and adjustable Treble & Bass.

Image: The HUABAO Karaoke Machine emphasizing its superior Hi-Fi sound quality with a 6.5-inch subwoofer and 15W power output.

Waranti & Sokongan

HUABAO offers a one-year warranty and lifetime technical support for all customers. If you have any questions or concerns regarding your HUABAO Karaoke Machine A108, please do not hesitate to reach out to our customer service team.

For support, please refer to the contact information provided on the product packaging or the official HUABAO webtapak.
