Generic Cordless Vacuum Cleaner H320 User Manual

1. Arahan Keselamatan Penting

Sila baca semua arahan dengan teliti sebelum menggunakan perkakas ini. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Jangan gunakan di luar atau di permukaan basah.
• Jangan biarkan digunakan sebagai mainan. Perhatian yang rapi diperlukan apabila digunakan oleh atau berhampiran kanak-kanak.
• Gunakan hanya seperti yang diterangkan dalam manual ini. Gunakan hanya lampiran yang disyorkan pengilang.
• Jangan gunakan dengan kord atau palam yang rosak. Jika perkakas tidak berfungsi sebagaimana mestinya, telah terjatuh, rosak, ditinggalkan di luar rumah, atau terjatuh ke dalam air, kembalikannya ke pusat servis.
• Jangan tarik atau bawa dengan kord, gunakan kord sebagai pemegang, tutup pintu pada kord, atau tarik kord di sekeliling tepi atau sudut yang tajam. Jangan jalankan perkakas di atas kord. Jauhkan kord dari permukaan yang dipanaskan.
• Jangan cabut plag dengan menarik kord. Untuk mencabut palam, pegang palam, bukan kordnya.
• Jangan pegang palam atau perkakas dengan tangan yang basah.
• Jangan letakkan sebarang objek ke dalam bukaan. Jangan gunakan dengan mana-mana bukaan yang disekat; jauhkan daripada habuk, serabut, rambut dan apa sahaja yang boleh mengurangkan aliran udara.
• Jauhkan rambut, pakaian longgar, jari dan semua bahagian badan daripada bukaan dan bahagian yang bergerak.
• Jangan ambil apa-apa yang terbakar atau berasap, seperti rokok, mancis, atau abu panas.
• Jangan ambil cecair mudah terbakar atau mudah terbakar, seperti petrol, atau gunakan di kawasan yang mungkin terdapat.
• Jangan gunakan tanpa beg habuk dan/atau penapis di tempatnya.
• Matikan semua kawalan sebelum mencabut plag.
• Gunakan lebih berhati-hati semasa membersihkan di tangga.
• Jangan gunakan untuk mengambil bahan toksik (peluntur klorin, ammonia, pembersih longkang, dll.).
• Do not use in an enclosed space where vapors are given off from oil base paints, paint thinner, mothproofing substances, flammable dust, or other explosive or toxic vapors.
• Jangan gunakan untuk mengutip objek keras atau tajam seperti kaca, paku, skru, syiling, dll.
• Simpan di dalam rumah.

2. Produk Lebihview

The Generic Cordless Vacuum Cleaner H320 is designed for efficient home cleaning with its powerful brushless motor and versatile features. Below are the main components and their functions.

Ciri-ciri Utama:

• Powerful 28Kpa Suction with 380W Brushless Motor: Provides deep cleaning for carpets, hard floors, and upholstery. The motor is energy-efficient and durable.
• Up to 50 Minutes Runtime with Detachable Battery: Allows for extended cleaning sessions without frequent recharging. The detachable battery design enables easy swapping for continuous power.
• Versatile Attachments for Comprehensive Cleaning: Includes a motorized floor brush, crevice tool, and dusting brush for multi-surface cleaning, reaching hard-to-reach areas, and delicate surfaces.
• Bright LED Headlights on Motorized Brush Head: Illuminates dark corners and under furniture, revealing hidden dust and debris for a more thorough and accurate clean.
• Lightweight, Cordless, and Ergonomic Design: Ensures effortless maneuverability around furniture and obstacles, reducing physical strain. The cord-free design offers flexibility for quick clean-ups.
• Berbilang Stage Sistem Penapisan: Captures 99.99% of fine dust and allergens, including pollen and pet dander, improving indoor air quality. Filters are washable for easy maintenance.
• Operasi senyap: Advanced motor technology ensures quiet cleaning, suitable for homes with children and pets.

Komponen Produk:

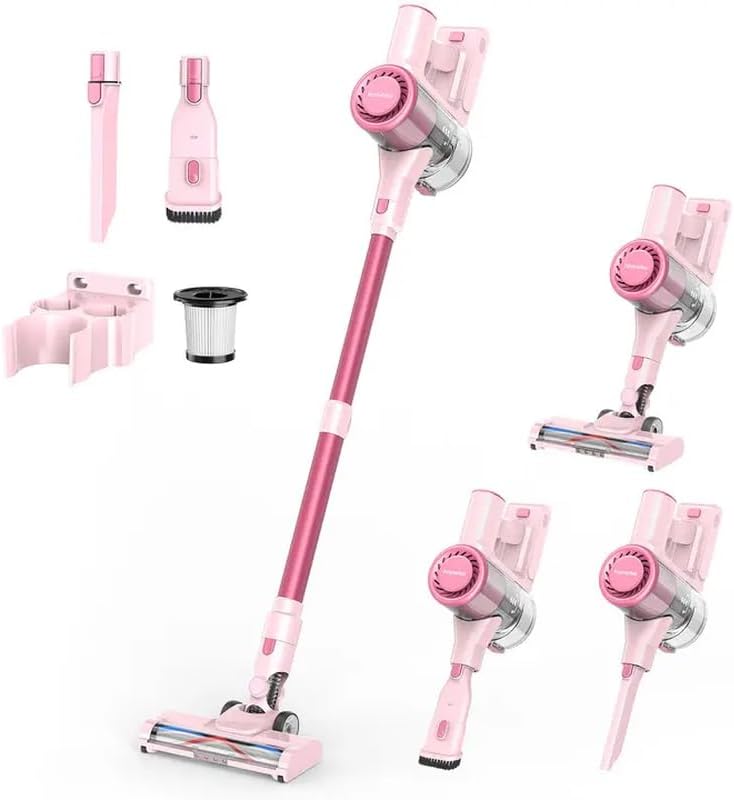

Image: Generic Cordless Vacuum Cleaner H320 with its main body, extension wand, motorized brush head, and various attachments.

Image: The Generic Cordless Vacuum Cleaner H320 assembled as a stick vacuum, showcasing reka bentuknya yang anggun.

3. Persediaan

3.1 Perhimpunan

1. Pasang Tongkat Sambungan: Align the extension wand with the main unit's suction port and push until it clicks securely into place.
2. Pasangkan Kepala Berus Bermotor: Connect the motorized brush head to the bottom of the extension wand, ensuring it clicks firmly.
3. Pasang Bateri: Slide the detachable battery pack into the designated slot on the main unit's handle until it locks.

3.2 Pengecasan Awal

Before first use, fully charge the vacuum cleaner for approximately 4-5 hours. The battery indicator on the main unit will show charging progress.

• Sambungkan penyesuai pengecas ke port pengecasan pada unit utama.
• Pasangkan penyesuai ke soket dinding.
• The battery indicator lights will illuminate and show progress. All lights will be solid when fully charged.

4. Arahan Operasi

4.1 Kuasa Hidup/Mati dan Pemilihan Mod

• Hidupkan kuasa: Press the power button on the main unit to turn on the vacuum. It will start in standard mode.
• Laraskan Mod Sedutan: Press the mode selection button to cycle through Standard, Strong, and Hyper modes. The display will indicate the current mode and remaining battery life.
• Matikan: Tekan butang kuasa sekali lagi untuk mematikan vakum.

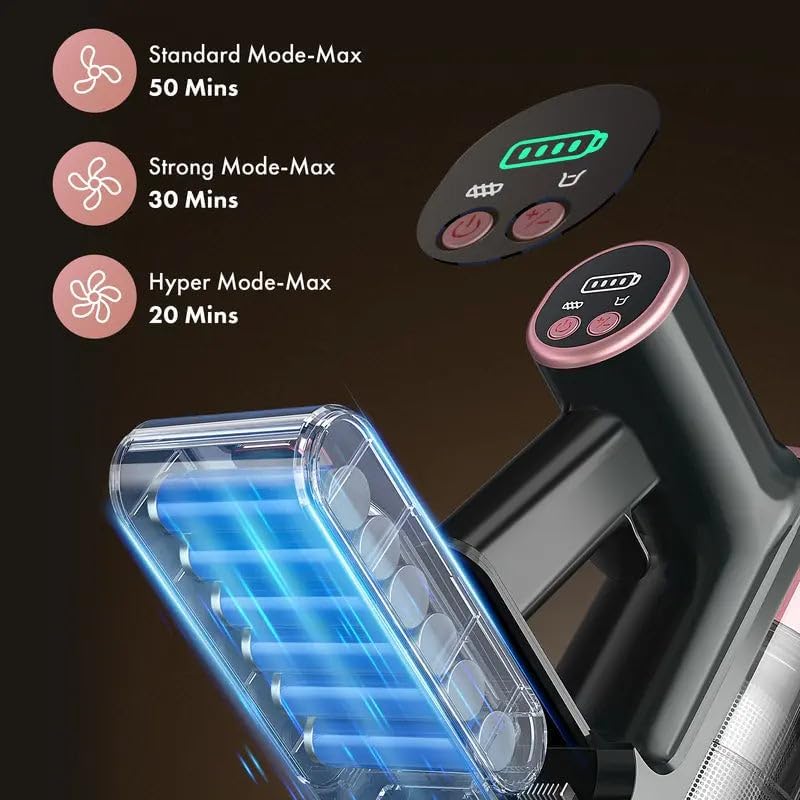

Image: The vacuum's display panel indicating different suction modes (Standard, Strong, Hyper) and corresponding battery runtimes (50, 30, 20 minutes).

4.2 Menggunakan Lampiran

The H320 comes with various attachments for different cleaning needs:

• Berus Lantai Bermotor: Ideal for both hard floors and carpets. The integrated LED headlights illuminate debris for thorough cleaning.
• Alat Celah: Sesuai untuk celah, sudut dan tepi yang sempit.
• Berus Debu: Sesuai untuk permukaan halus, upholsteri dan bahagian dalam kereta.

Image: The vacuum's motorized brush head effectively cleaning different types of debris from a rug, including dust, pet hair, crumbs, and pet food.

Image: The vacuum's brush head demonstrating its 180-degree left/right and 90-degree up/down swivel capabilities, along with bright LED headlights illuminating the floor.

Image: The vacuum in handheld mode, demonstrating the use of the crevice nozzle for tight spaces and the dusting brush for cleaning upholstery.

5. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat pembersih vakum anda.

5.1 Mengosongkan Tong Sampah

• Pastikan vakum dimatikan.
• Tekan butang pelepas tong sampah untuk menanggalkan tong sampah daripada unit utama.
• Position the dustbin over a trash can and press the bottom release button to open the lid and empty the contents.
• Close the dustbin lid and reattach it to the main unit until it clicks.

Image: A hand operating the one-click dust removal feature of the vacuum, emptying collected debris into a waste bin.

5.2 Membersihkan Penapis

Berbilang-stage filtration system includes washable filters. Clean them regularly to maintain suction power.

• Keluarkan tong sampah seperti yang diterangkan di atas.
• Putar dan tarik keluar pemasangan penapis dari tong sampah.
• Asingkan penapis HEPA dan penapis jaringan logam.
• Rinse both filters under cold running water until the water runs clear.
• Biarkan penapis kering sepenuhnya di udara selama sekurang-kurangnya 24 jam sebelum dipasang semula. Jangan gunakan pengering atau haba langsung.

5.3 Membersihkan Gulungan Berus

• Ensure the vacuum is off and disconnected from the extension wand.
• Locate the brush roll release tab on the motorized brush head.
• Remove the brush roll and use scissors or a cleaning tool to cut away any tangled hair or debris.
• Reinsert the clean brush roll until it locks into place.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

This Generic Cordless Vacuum Cleaner H320 comes with a standard manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included in your product packaging or contact the manufacturer directly.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Generic customer service through the contact information provided in your product documentation.
