Machenike K500W Tri-Mode Mechanical Gaming Keyboard User Manual

1. Pengenalan

The Machenike K500W is a versatile mechanical gaming keyboard designed for performance and flexibility. It features a compact 94-key layout, tri-mode connectivity (Bluetooth, 2.4G wireless, and wired USB), hot-swappable switches, and customizable RGB backlighting. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your K500W keyboard.

Ciri-ciri Utama:

• Tri-Mode Connectivity: Bluetooth 5.0, 2.4G Wireless, and Wired USB.
• 94-Key Compact Layout.
• 100% Anti-Ghosting & N-Key Rollover.
• Hot-Swappable Switches (compatible with 3/5-pin switches).
• PBT Doubleshot Keycaps.
• Customizable RGB Backlighting (20 effects, 16.8 million colors).
• Programmable Driver Software.
• Built-in 2500mAh Lithium Battery.
• Bunyi Damping Silicone Pad for improved acoustics.

2. Persediaan

2.1 Pengecasan Awal

Before first use, ensure the keyboard is fully charged. Connect the keyboard to a USB power source using the provided USB-C cable. The charging indicator will show the charging status.

2.2 Menyambung Papan Kekunci

The Machenike K500W supports three connection modes:

2.2.1 Mod Berwayar

1. Sambungkan kabel USB-C ke papan kekunci dan hujung yang satu lagi ke port USB komputer anda.
2. Papan kekunci akan dikenali secara automatik dan sedia untuk digunakan.

2.2.2 Mod Tanpa Wayar 2.4G

1. Locate the 2.4G USB receiver, typically stored in a dedicated slot on the keyboard.
2. Pasangkan penerima USB 2.4G ke port USB yang tersedia pada komputer anda.
3. Switch the keyboard's mode selector to 2.4G wireless mode. The keyboard should connect automatically.

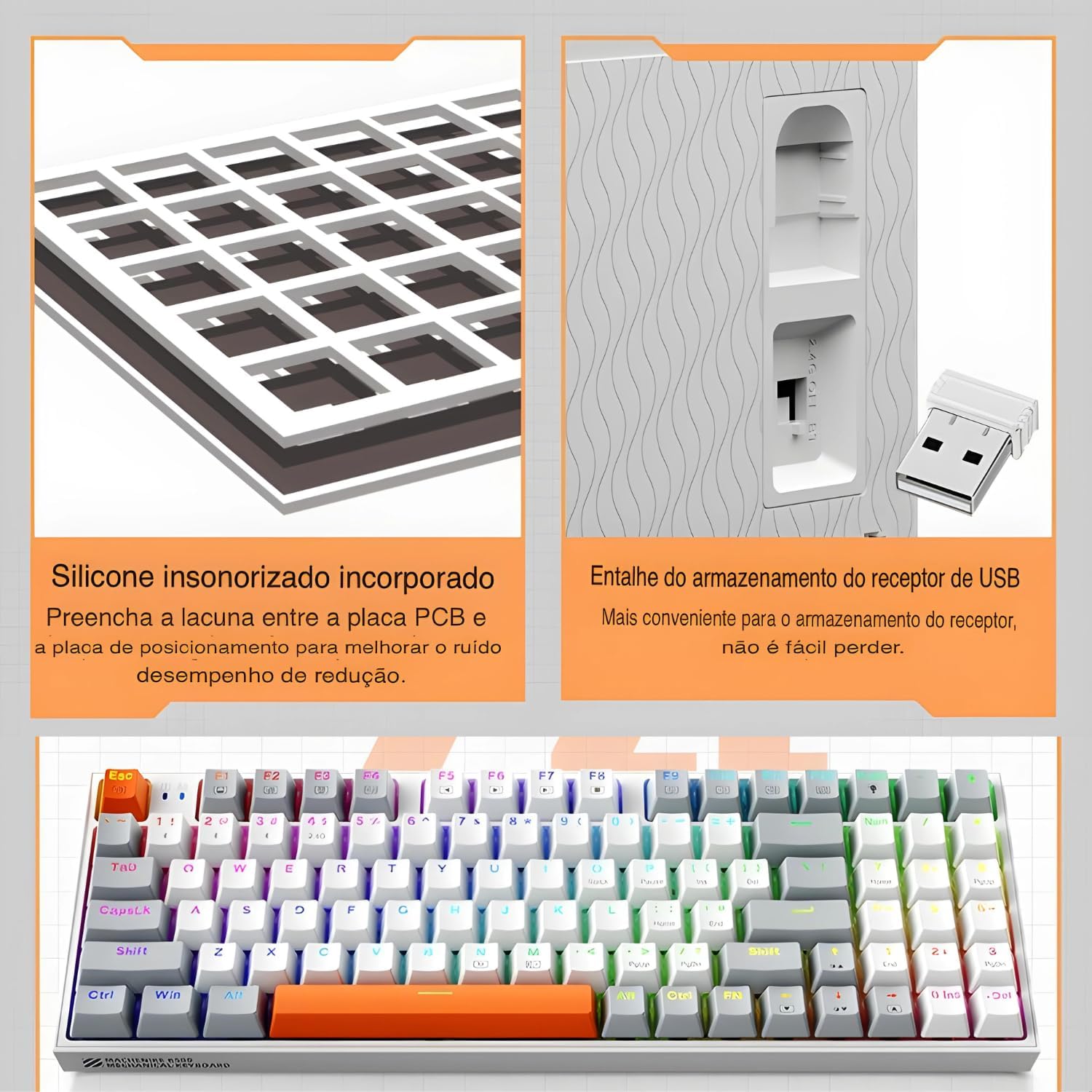

The keyboard features a silicone sound damping pad and a convenient storage slot for the 2.4G USB receiver.

2.2.3 Mod Bluetooth

1. Switch the keyboard's mode selector to Bluetooth mode.
2. Pada komputer atau peranti anda, dayakan Bluetooth dan cari peranti baharu.
3. Select "Machenike K500W" from the list of available devices to pair.
4. Jika digesa, masukkan kod pasangan yang dipaparkan pada skrin anda.

The Machenike K500W supports tri-mode connectivity, allowing connection to multiple devices like PCs, laptops, and smartphones.

3. Arahan Operasi

3.1 Key Layout and Functions

The K500W features a compact 94-key layout, providing essential keys while saving desk space. Familiarize yourself with the key positions, especially the function (Fn) key combinations for multimedia and lighting controls.

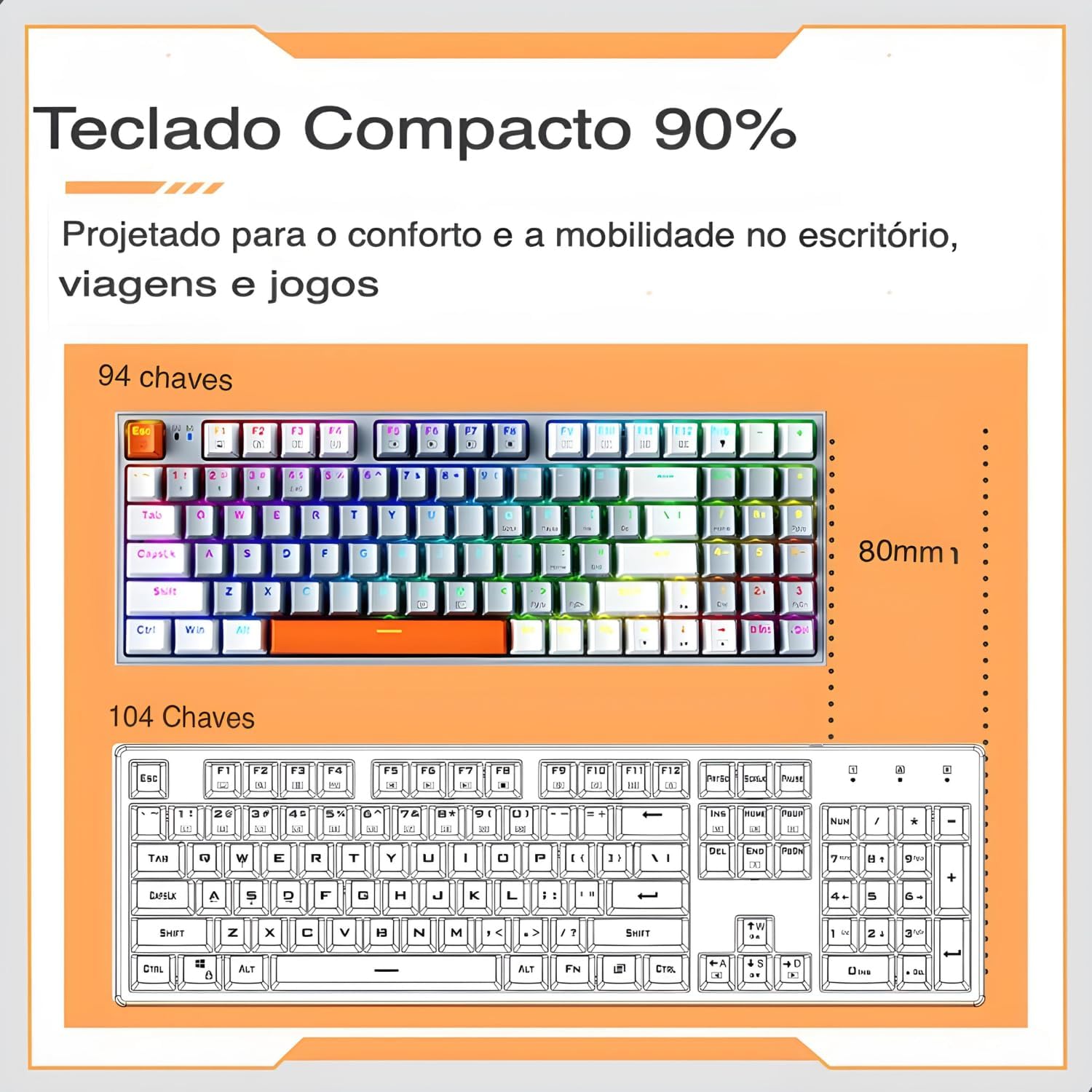

The 94-key compact layout offers more space for mouse movement compared to a 104-key keyboard.

3.2 Lampu latar RGB

The keyboard features dynamic RGB backlighting with 20 lighting effects and approximately 16.8 million programmable colors. Use the dedicated function keys (often combined with the Fn key) to cycle through lighting modes, adjust brightness, and change speed.

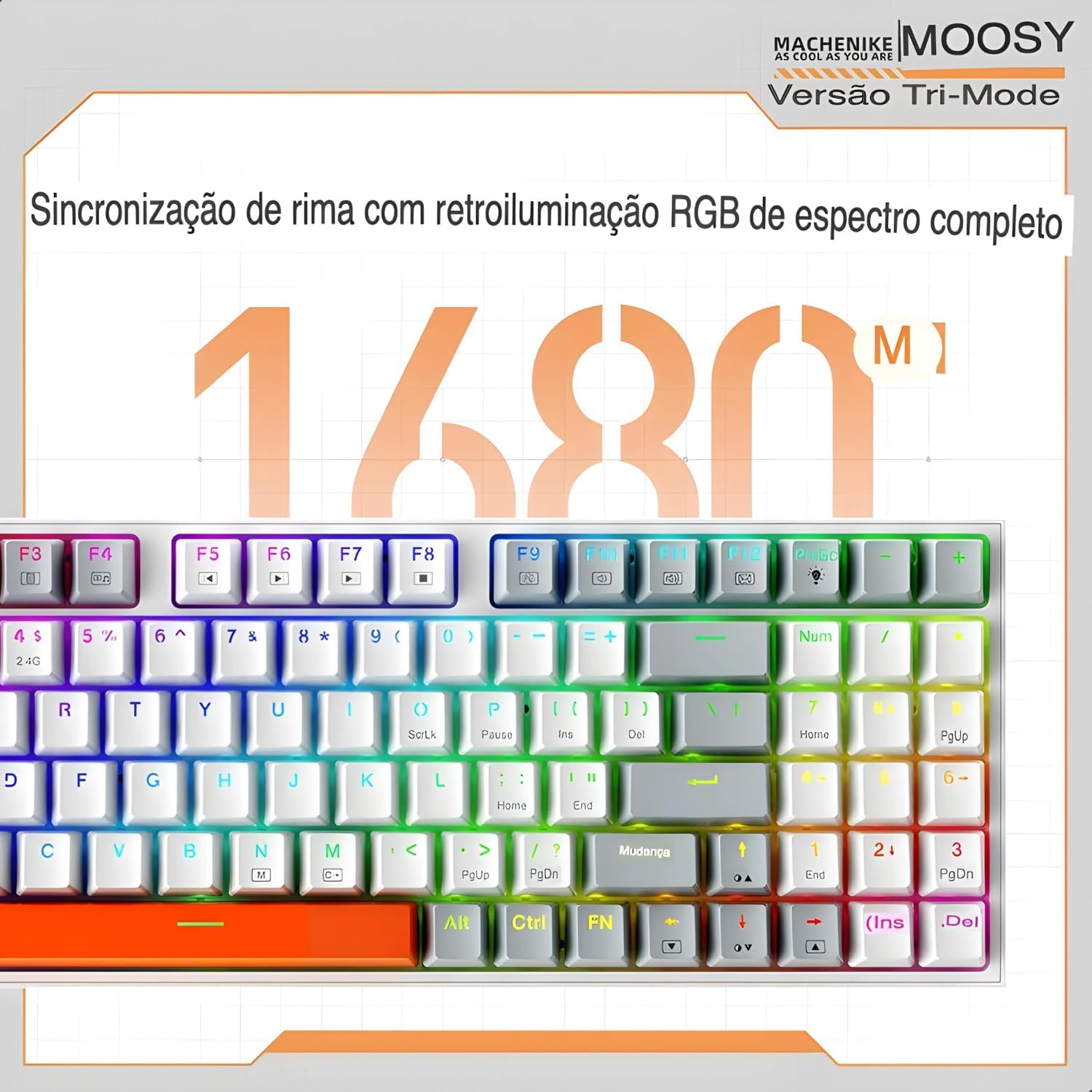

Experience full-spectrum RGB backlighting with 16.8 million colors and various dynamic effects.

3.3 Suis Boleh Tukar Panas

The K500W allows you to easily change mechanical switches without soldering. This feature enables customization of your typing experience. Use the included switch puller to remove existing switches and insert new 3-pin or 5-pin compatible switches.

The hot-swap feature allows for easy installation and replacement of mechanical switches.

3.4 Programmable Driver Software

For advanced customization, download and install the Machenike K500W programmable driver software. This software allows you to remap keys, create macros, and fine-tune RGB lighting effects to your preference.

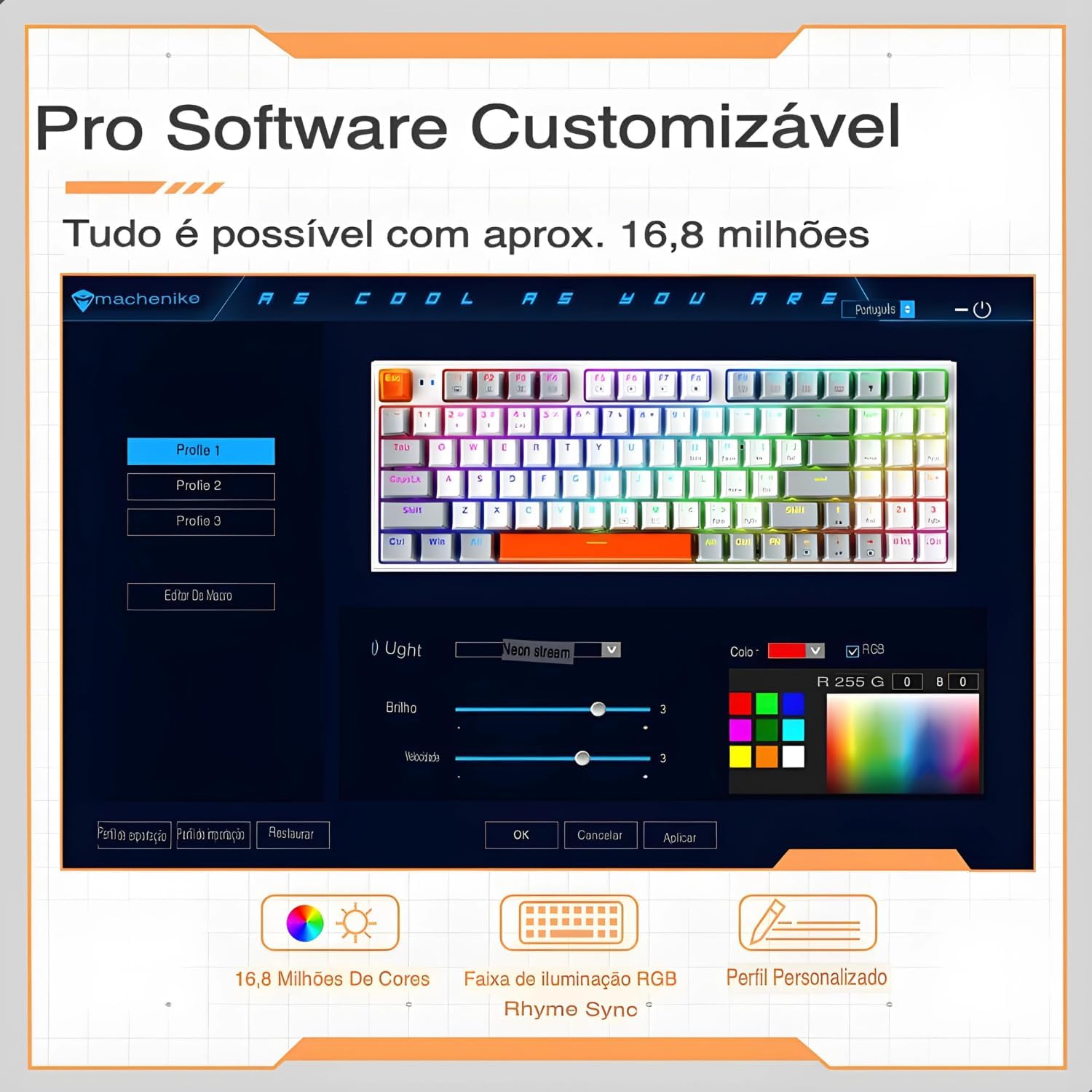

The professional software allows for customizable RGB lighting, macro creation, and personalized profiles.

4. Penyelenggaraan

Penyelenggaraan yang betul memastikan jangka hayat dan prestasi optimum papan kekunci anda.

• Elakkan Tumpahan: Keep liquids away from your mechanical keyboard, as spills can damage the internal circuits.
• Gentle Disconnection: When disconnecting the cable, always pull the plug, not the cable itself, to prevent damage.
• Pembersihan tetap: Dust and debris can accumulate and affect performance. Regularly clean your keyboard using compressed air and a soft cloth. For keycaps, you can remove them for a deeper clean.
• Lindungi Penyambung USB: When not in use, disconnect and store the keyboard properly to protect the USB connector from damage.
• Kemas Kini Perisian: Keep the keyboard's software and drivers updated to ensure optimal performance and access to new features.
• Elakkan Titisan: While mechanical keyboards are durable, severe impacts can still cause damage. Handle with care.

5. Penyelesaian masalah

If you encounter issues with your Machenike K500W keyboard, refer to the following troubleshooting steps:

5.1 Connectivity Issues (Bluetooth or 2.4G Wireless)

1. Penyesuai Bluetooth: Use a reputable brand Bluetooth adapter. Other adapters may cause compatibility issues. Refer to your adapter's instructions for installation details.
2. Pengaktifan Bluetooth: Before connecting, ensure your computer's Bluetooth adapter is correctly installed and Bluetooth is enabled.
3. Berpasangan semula: If you cannot connect, disable or delete the existing keyboard connection from your device's Bluetooth settings, then re-pair according to the setup instructions.
4. Perubahan Peranti: Jika peranti Bluetooth komputer anda telah berubah, anda mesti memasangkan semula papan kekunci tersebut.
5. Gangguan: If your computer's Bluetooth is connected to other devices, check if the Bluetooth speed is adequate or if there's interference.
6. 2.4G Anomaly: For 2.4G mode issues, re-pair the keyboard and device by removing the 2.4G receiver and inserting it into another valid USB port.
7. Julat Operasi: Ensure the keyboard is used within a 10-meter working range from the receiver/device.

5.2 Petunjuk Bateri Rendah

If the keyboard shows a low battery indication, connect it to a USB power source using the provided cable to charge it. Refer to section 2.1 for initial charging instructions.

6. Spesifikasi

Berakhirview of the Machenike K500W's main features and specifications.

7. Waranti dan Sokongan

7.1 Maklumat Waranti

Produk ini disertakan dengan a Waranti 90 hari from the date of purchase. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

7.2 Sokongan Pelanggan

For technical assistance, warranty claims, or any questions regarding your Machenike K500W keyboard, please contact the seller or manufacturer's customer support. Refer to your purchase documentation for contact details.
