pengenalan
The Powrun P8 is a versatile and essential tool for any vehicle owner. It combines a powerful car battery jump starter, a 150 PSI air compressor, a bright 160-lumen emergency flashlight, and a 10000mAh power bank with a USB output port. Designed for convenience and safety, this all-in-one device is a reliable companion for outdoor adventures, travel, and unexpected emergencies.
Maklumat Keselamatan Penting
Always read and understand all safety information before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Pastikan pengudaraan yang betul semasa mengendalikan peranti.
- Avoid contact with sparks or open flames during jump-starting.
- Sambungkan clamps correctly: positive (+) to positive (+), and negative (-) to a metal part of the engine block (ground) away from the battery. The device features 8-fold protection against incorrect connections.
- Do not expose the device to extreme temperatures outside the operating range of -4°F to 140°F (-20°C to 60°C).
- Jauhkan daripada kanak-kanak.
- Jangan buka unit ini. Rujuk semua servis kepada kakitangan yang berkelayakan.
- When using the air compressor, the unit may become warm. Exercise caution as indicated by the "CAUTION HOT" warning on the device.
Kandungan Pakej
Figure 1: All items included in the Powrun P8 package.
Your Powrun P8 package should include the following items:
- Powrun P8 Jump Starter with Air Compressor x1
- Penggalak 12V Clamps x1
- Air Tube x1
- USB-A TO C Cable x1
- Schrader-Presta Valve Adaptor x1
- Needle Valve Adaptor x1
- Tapered Adaptor x1
- Manual Pengguna x1
- Membawa Beg x1
Untuk visual overview of the package contents, please refer to the video below:
Video 1: Membuka kotak dan seterusnyaview of the Powrun P8 Jump Starter with Air Compressor.
Ciri-ciri Produk

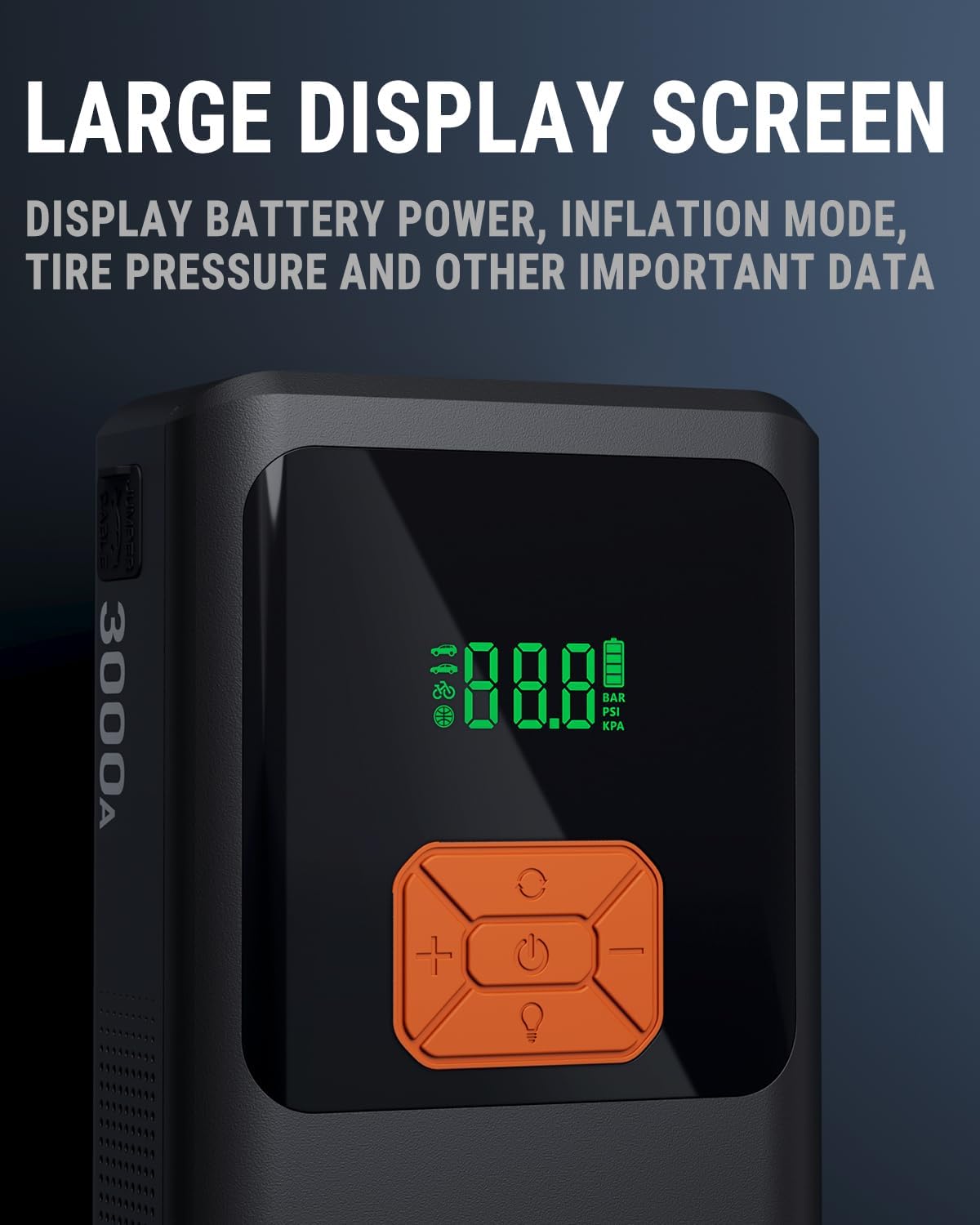

Figure 2: The large LCD screen provides clear operational data.
- Powerful Jumping Performance: Boasts a peak current of 3000A, capable of starting all 12V vehicles (up to 10L gasoline/7.5L diesel engines) up to 30 times on a single charge. Includes a BOOST function for low voltage or completely drained batteries. Suitable for vehicles, boats, and lawnmowers.
- Smart Air Compressor with LCD Screen: Offers a maximum pressure of 150PSI and a turbocharged rate of 40L/min. Can inflate a 225/40 R18 tire from 25 to 36 PSI in less than 1 minute. Features smart presetting and automatic shut-off to prevent over-inflation. The large LCD screen displays tire pressure data in KPA, PSI, and BAR, with multiple mode selections (SUV, car, bicycle, and ball).
- Smart and Safe Design: Features a honeycomb structure heat dissipation design to prevent damage from high temperatures. Equipped with 8-fold protection, supported by intelligent protection devices and smart chips, to prevent incorrect connections or sparks. Operates in extreme temperatures from -4°F to 140°F.
- Multi-Function All-in-One Machine: Beyond jump-starting and air compression, it includes a 160-lumen emergency flashlight and a 10000mAh power bank with a USB output port for charging electronic devices.
Persediaan
Pengecasan Awal
Before first use, fully charge the Powrun P8 using the provided USB-A to C cable. Connect the USB-C end to the device's input port and the USB-A end to a compatible USB power adapter (not included). The LCD screen will indicate the charging status.
Hos Udara Penyambung
For air compression, screw the air tube into the designated port on the device. Ensure it is securely fastened to prevent air leakage.
Menyambungkan Kabel Jumper
For jump-starting, plug the 12V Booster Clamps into the dedicated jumper cable port on the device. Ensure a firm connection.
Arahan Operasi
Lompat Memulakan Kenderaan
Rajah 3: Sambungan yang betul untuk menghidupkan kenderaan secara lompat.
- Ensure the Powrun P8 is sufficiently charged.
- Sambungkan cl merah (+).amp to the positive (+) terminal of the vehicle's dead battery.
- Sambungkan cl hitam (-).amp to a metal part of the vehicle's engine block (ground) away from the battery.
- If the vehicle battery is extremely low or completely drained, press the "BOOST" button on the jumper cable adapter for full cranking power.
- Mulakan kenderaan.
- Sebaik sahaja kenderaan dihidupkan, segera putuskan sambungan kabel hitam (-)amp, maka cl merah (+)amp daripada bateri.
The smart chip and LED indicators on the clamps will guide you and prevent incorrect connections.
Menggunakan Pemampat Udara
Figure 4: Inflating a tire using the integrated air compressor.
- Screw the air tube securely into the device's air output port.
- Attach the air tube's nozzle to the tire valve or inflatable item. Use appropriate valve adaptors if necessary.
- Turn on the device. The LCD screen will display the current pressure.
- Use the mode selection button to choose the correct item type (car, SUV, bicycle, ball) and the desired pressure unit (PSI, KPA, BAR).
- Use the '+' and '-' buttons to set the target pressure.
- Press the power button to start inflation. The compressor will automatically stop once the preset pressure is reached.
- Disconnect the air tube from the tire valve and the device.
Using the Emergency Flashlight
Figure 5: The multi-function LED light provides illumination and signaling.
The Powrun P8 features a 160-lumen LED light with multiple modes:
- Press the flashlight button once for stable illumination.
- Tekan sekali lagi untuk mod strob.
- Press a third time for SOS signal mode.
- Tekan kali keempat untuk mematikan lampu.
Menggunakan sebagai Power Bank
Figure 6: Charging electronic devices using the power bank function.
The 10000mAh power bank allows you to charge your electronic devices:
- Connect your device's charging cable to the USB-A output port on the Powrun P8.
- The device will automatically begin charging your connected electronic device.
For a comprehensive demonstration of the Powrun P8's features and operation, please watch the video below:
Video 2: Perincian berakhirview and demonstration of the Powrun P8 Jump Starter and Air Compressor functions.
Penyelenggaraan
- mengecas: To maintain optimal battery health, it is recommended to fully charge the Powrun P8 every 3-6 months, even if not in use.
- Storan: Store the device in its provided carry bag in a cool, dry place, away from direct sunlight and extreme temperatures. The operating temperature range is -4°F to 140°F (-20°C to 60°C).
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar peranti. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peranti tidak dihidupkan. | Bateri telah kehabisan sepenuhnya. | Cas peranti sepenuhnya menggunakan kabel USB-C. |
| Kenderaan tidak boleh dihidupkan semula (jump start). | cl yang salahamp connection; vehicle battery too low. | Pastikan clamps are connected correctly (positive to positive, negative to ground). Use the BOOST function if the battery is severely discharged. |
| Pemampat udara tidak mengembang atau berhenti sebelum waktunya. | Air tube not securely connected; target pressure reached; unit overheating. | Check air tube connection. Verify target pressure setting. Allow unit to cool down if it feels hot. |
| Display is hard to read in sunlight. | Keadaan pencahayaan persekitaran. | Move to a shaded area or shield the screen from direct sunlight. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Powrun |
| Nombor Model | P8/JS-383 |
| Arus Keluaran Puncak | 3000 Amps |
| Tekanan Udara Maks | 150 PSI |
| Air Compressor Rate | 40L/min |
| Lumen Lampu Suluh | 160 Lumen |
| Kapasiti Power Bank | 10000mAh |
| Dimensi Produk | 4.6"D x 2.1"W x 7.8"H |
| Berat Barang | 1.83 paun (830 Gram) |
| Suhu Operasi | -4°F hingga 140°F (-20°C hingga 60°C) |
| UPC | 610840128392 |
Waranti dan Sokongan
The Powrun P8 Jump Starter with Air Compressor comes with a Waranti 2 tahun dari tarikh pembelian.
For technical support, warranty claims, or any inquiries regarding your product, please contact Powrun customer service through their official webtapak atau maklumat hubungan yang diberikan bersama dokumentasi pembelian anda.
Lawati Powrun Store on Amazon untuk maklumat lanjut dan kemas kini produk.
