1. Pengenalan
This manual provides essential information for the safe and correct installation, operation, and maintenance of the ALLIANCE LAUNDRY SYSTEMS MC7 I/O Control Board, model SP553405P. Please read this manual thoroughly before attempting any installation or service to ensure proper function and to prevent potential damage or injury.
The SP553405P is a genuine ALLIANCE LAUNDRY SYSTEMS OEM part designed to fit compatible Alliance Laundry Systems washers. It replaces part numbers SP553405 and W10712234.
2. Maklumat Keselamatan
AMARAN: Risiko Renjatan Elektrik. Putuskan sambungan kuasa sebelum diservis.
Always follow local electrical codes and safety regulations. Installation and service should only be performed by qualified personnel. Failure to follow these instructions could result in serious injury or death.
- Ensure the appliance is disconnected from the power supply before beginning any work.
- Pakai peralatan perlindungan diri (PPE) yang sesuai, seperti cermin mata keselamatan dan sarung tangan.
- Handle the control board with care to avoid damage from electrostatic discharge.
- Do not operate the appliance with damaged or missing components.
3. Produk Lebihview
The MC7 I/O Control Board (SP553405P) is a critical component for managing the functions of your Alliance Laundry Systems washer. It processes inputs from various sensors and controls outputs to motors, valves, and other operational parts.

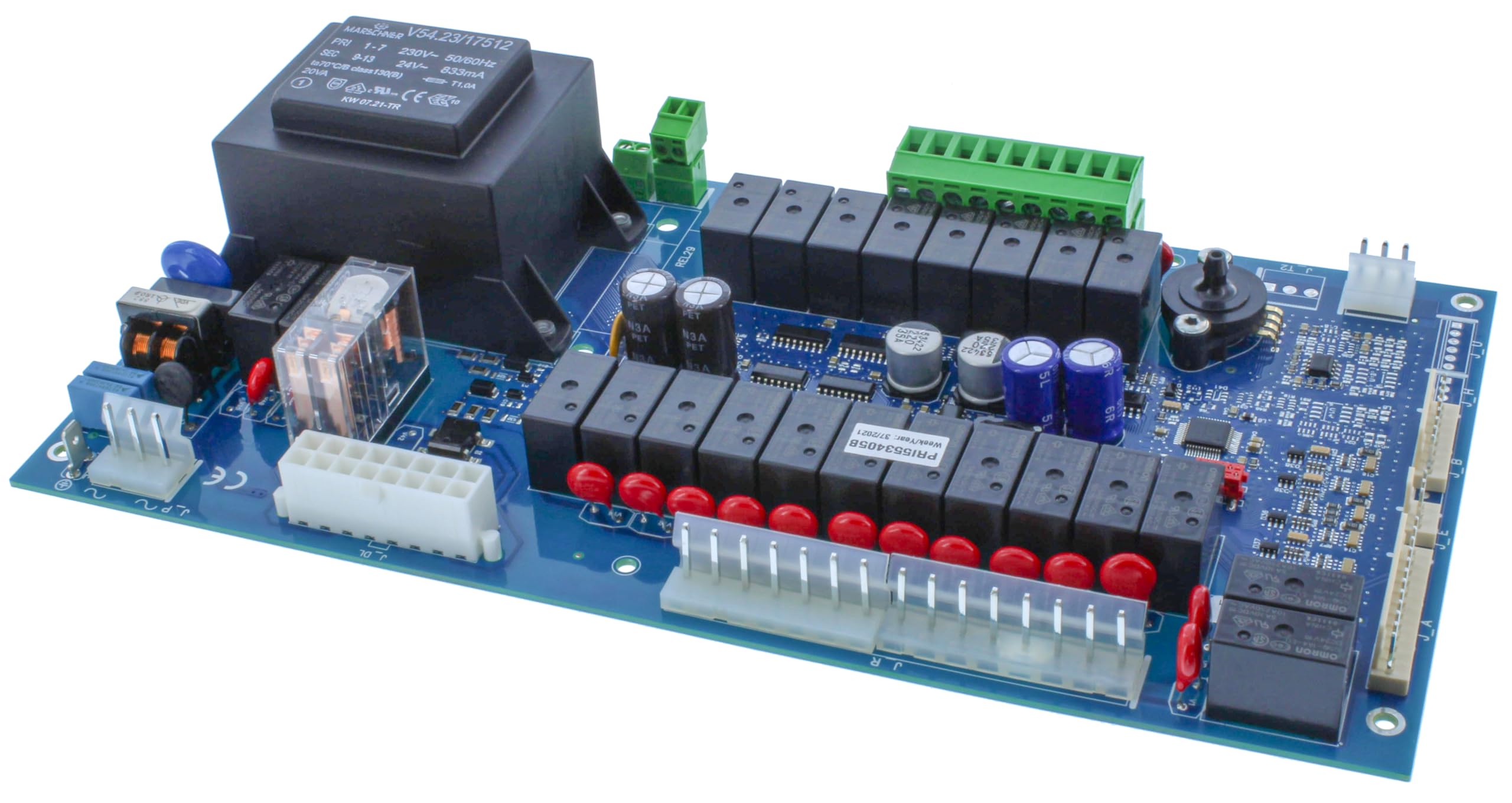

Figure 1: ALLIANCE LAUNDRY SYSTEMS MC7 I/O Control Board (SP553405P). This image shows the front view of the control board with various connectors and electronic components.
This genuine OEM part ensures compatibility and optimal performance with your Alliance Laundry Systems appliance.
4. Pemasangan (Persediaan)
4.1 Alat Diperlukan
- Set pemutar skru (Phillips dan kepala rata)
- Tang hidung jarum
- Multimeter (for testing, optional but recommended)
- Tali pergelangan tangan anti statik (disyorkan)
4.2 Langkah Pemasangan
- Putuskan Kuasa: Locate the circuit breaker for the washer and turn off the power. Verify power is off using a multimeter.
- Panel Kawalan Akses: Depending on your washer model, you may need to remove the top panel or front access panel to reach the control board. Refer to your specific washer's service manual for detailed access instructions.
- Sambungan Dokumen: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the existing control board. This is crucial for correct reassembly.
- Putuskan Sambungan Wayar: Carefully disconnect all wire harnesses and connectors from the old control board. Note their positions.
- Keluarkan Papan Lama: Tanggalkan atau buka klip papan kawalan lama daripada kurungan pelekapnya.
- Pasang Papan Baharu: Position the new SP553405P control board in the same location and secure it with the original screws or clips.
- Sambung semula wayar: Using your photos or diagram, carefully reconnect all wire harnesses and connectors to the new control board. Ensure all connections are secure and correctly seated.
- Pasang semula Perkakas: Replace any panels removed to access the control board.
- Pulihkan Kuasa: Hidupkan semula pemutus litar.
- Kefungsian Ujian: Perform a test cycle on the washer to ensure the new control board is functioning correctly.
5. Operasi
The MC7 I/O Control Board itself does not have user-operable controls. Its function is to interpret commands from the user interface (e.g., buttons, dials) and execute the corresponding actions within the washer. For specific operational instructions regarding your washer's cycles, settings, and features, please refer to your washer's user manual.
Upon successful installation, the control board should seamlessly integrate with your washer's existing operational system.
6. Penyelenggaraan
The ALLIANCE LAUNDRY SYSTEMS MC7 I/O Control Board (SP553405P) is designed to be maintenance-free under normal operating conditions. However, periodic inspection of the board and its connections can help ensure longevity and prevent issues.
6.1 Garis Panduan Pemeriksaan
- Pemeriksaan Visual: Periodically (e.g., annually, or if accessing the control panel for other reasons), visually inspect the control board for any signs of damage, such as burn marks, swollen components, or loose connections.
- Integriti Sambungan: Ensure all wire harnesses and connectors are firmly seated and free from corrosion.
- Kebersihan: Keep the area around the control board free from dust, lint, and moisture. Use a soft, dry brush or compressed air to gently clean the board if necessary, ensuring power is disconnected first.
CAUTION: Do not use liquid cleaners directly on the control board.
7. Penyelesaian masalah
If your washer is experiencing issues after replacing the control board, or if new issues arise, consider the following troubleshooting steps. Always disconnect power before performing any checks inside the appliance.
| simptom | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Washer does not power on | No power to appliance; loose connection to control board; faulty control board (unlikely if new) | Check circuit breaker. Verify all wire connections to the control board are secure. Ensure the main power cord is plugged in. |
| Specific functions not working (e.g., no fill, no spin) | Incorrect wiring; faulty component connected to the board; software issue (if applicable) | Review wiring diagrams and ensure all connections are correct. Test the specific component (e.g., water inlet valve, motor) if possible. Consult your washer's service manual. |
| Kod ralat dipaparkan | Indicates a specific fault within the washer system | Refer to your washer's user manual or service manual for the meaning of the error code and recommended troubleshooting steps. |
| Operasi sekejap-sekejap | Loose connections; environmental factors (e.g., humidity, temperature fluctuations) | Check all connections for tightness. Ensure the appliance is in a suitable environment. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified service technician or ALLIANCE LAUNDRY SYSTEMS customer support.
8. Spesifikasi
| Atribut | Perincian |
|---|---|
| Pengeluar | ALLIANCE LAUNDRY SYSTEMS |
| Nombor Bahagian | SP553405P |
| Menggantikan Nombor Bahagian | SP553405, W10712234 |
| Berat Barang | 3 paun |
| Dimensi Pakej | 12 x 9 x 8 inci |
| Kuantiti Pakej Item | 1 |
| ASIN | B0CXRP1ZXB |
| Pertama Tersedia | 11 Mac 2024 |
9. Maklumat Waranti
ALLIANCE LAUNDRY SYSTEMS provides a limited warranty for its genuine OEM parts. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please refer to the documentation included with your original appliance or visit the official ALLIANCE LAUNDRY SYSTEMS website. This control board is intended for use as a replacement part and its warranty typically aligns with the standard parts warranty provided by the manufacturer.
10. Sokongan Pelanggan
For technical assistance, service inquiries, or to purchase additional genuine ALLIANCE LAUNDRY SYSTEMS parts, please contact ALLIANCE LAUNDRY SYSTEMS customer support or an authorized service provider.
You can typically find contact information on the ALLIANCE LAUNDRY SYSTEMS official website or in your original appliance's user manual.
Sumber Dalam Talian: www.alliancelaundry.com
When contacting support, please have your appliance model number, serial number, and the part number (SP553405P) ready.
