1. Pengenalan
Thank you for choosing the Aosom Kids Pedal Go Kart. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new pedal go-kart. Please read this manual thoroughly before use and retain it for future reference. This pedal go-kart is designed to provide an engaging and active riding experience for children aged 5 to 12 years.
Imej: Selesaiview of the Aosom Kids Pedal Go Kart highlighting its key features and age suitability.
2. Maklumat Keselamatan
AMARAN: Adult supervision is required at all times. This product is not suitable for children under 5 years of age due to small parts and potential hazards. Always ensure the child wears appropriate safety gear, including a helmet, knee pads, and elbow pads, when operating the go-kart.
- Jangan gunakan di jalan awam, berhampiran kenderaan bermotor atau di lereng curam.
- Ensure the go-kart is used on flat, even surfaces free from obstacles.
- Check all nuts, bolts, and connections are securely fastened before each use.
- The maximum weight capacity for this go-kart is 110 lbs (50 kg).
- Instruct the child on proper braking techniques and steering control.
- Keep hands and feet away from moving parts, especially the chain and wheels.
- No Warning Applicable.
3. Arahan Perhimpunan
The Aosom Kids Pedal Go Kart requires assembly. While many components are pre-assembled, some parts will need to be attached by an adult. Please follow the detailed step-by-step instructions provided in the separate assembly guide included in the product packaging. Ensure all parts are present before beginning assembly.
Key Assembly Steps (General Overview):
- Buka bungkusan semua komponen dan sahkan terhadap senarai bahagian.
- Attach the front axle and steering column to the main frame.
- Install the wheels, ensuring they are securely fastened.
- Mount the seat onto the frame and adjust to the desired position.
- Connect the pedal system and chain, ensuring the chain is properly tensioned and enclosed.
- Attach the hand brake lever and connect it to the braking mechanism.
Image: The enclosed chain design ensures safety and a clean appearance.
4. Arahan Operasi
Operating the Aosom Kids Pedal Go Kart is straightforward, designed for intuitive use by children. Familiarize your child with the controls before their first ride.
- Pedal Power: The go-kart is propelled by foot pedals. Push the pedals forward to move forward and backward to engage reverse. This pedal-based operation eliminates the need for batteries and promotes physical activity.
- Pemandu: Use the steering wheel to control the direction of the front wheels. Encourage smooth and gradual turns.
- Brek Tangan: The go-kart is equipped with a safety hand brake. To stop, pull the hand brake lever located near the seat. Practice braking in a safe, open area until the child is proficient.
- Tempat Duduk Boleh Laras: The 3-position adjustable seat allows for comfortable driving posture as your child grows. To adjust, loosen the fasteners, slide the seat to the desired position, and re-secure the fasteners.
Image: Controls for the Aosom Kids Pedal Go Kart, including hand brake and pedal functions.
Image: The ergonomic seat can be adjusted to three positions for optimal comfort and fit.
5. Penyelenggaraan
Regular maintenance ensures the longevity and safe operation of your Aosom Kids Pedal Go Kart.
- Pembersihan: Wipe down the go-kart with a damp cloth after use. Avoid harsh chemicals that may damage the finish.
- Pemeriksaan Tayar: The rubber wheels feature wear-resistant tread. Periodically inspect tires for wear, punctures, or damage. Ensure they are free of debris.
- Pengikat: Regularly check all nuts, bolts, and screws to ensure they are tight. Re-tighten as necessary to prevent parts from loosening during use.
- rantai: The enclosed chain requires minimal maintenance. If you notice any unusual noise or stiffness, consult the assembly guide for chain tension adjustment.
- Storan: Store the go-kart in a dry, covered area to protect it from weather elements when not in use.
Image: Durable rubber wheels with shock absorption for a smooth ride on different surfaces.
6. Penyelesaian masalah
If you encounter issues with your Aosom Kids Pedal Go Kart, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Go-kart does not move when pedaling. | Chain is loose or disengaged. | Check chain tension and re-engage if necessary. Refer to assembly guide. |
| Difficulty steering or poor turning radius. | Steering components are loose or damaged. | Inspect steering rod and connections for damage or looseness. Ensure all fasteners are tight. Note that the go-kart is designed for general use and may have a wider turning radius than some other vehicles. |
| Hand brake is ineffective. | Brake cable is loose or worn. | Adjust the brake cable tension. If the brake pads are worn, they may need replacement (contact customer support for parts). |
| Bunyi luar biasa semasa operasi. | Loose parts, dry chain, or debris in moving components. | Check all fasteners. Clean and lubricate the chain if dry. Remove any debris from wheels or pedals. |
| Go-kart struggles on grass or uneven surfaces. | Designed primarily for hard, flat surfaces. | This pedal go-kart performs best on concrete, asphalt, or boardwalks. Avoid deep grass or very uneven terrain for optimal performance and to prevent strain on components. |
If you experience issues not covered here, or if solutions do not resolve the problem, please contact Aosom customer support.
7. Spesifikasi
Detailed specifications for the Aosom Kids Pedal Go Kart, Model 370-256V00GN:
- Dimensi Keseluruhan: 47.75" L x 22.75" W x 24" H
- Dimensi Tempat Duduk: 13.75" W x 11" D x 13.75" H
- Berat Barang: 29.7 paun
- Kapasiti Berat: 110 paun (50 kg)
- Umur Disyorkan: 5 - 12 tahun
- Nombor Model: 370-256V00GN
- Pensijilan: ASTM F963, CPSIA, SOR
- Bahan: Steel frame, plastic components, rubber wheels

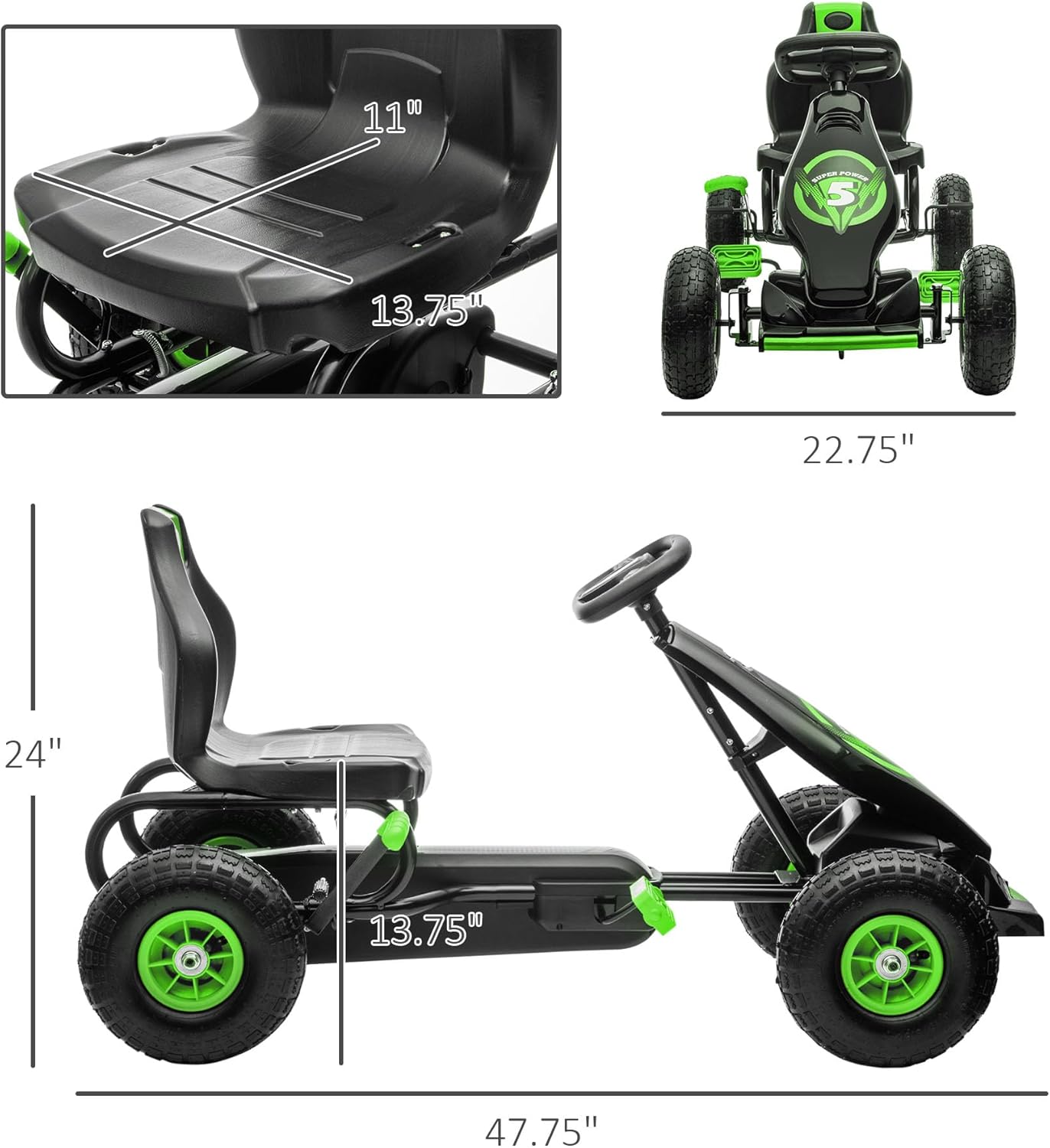

Image: Technical drawing showing the key dimensions of the go-kart.
8. Video Produk
Watch the official product video for a visual guide to the Aosom Kids Pedal Go Kart's features and operation.
Video: Tayangan video produk rasmicasing the Aosom 370-256V00GN Pedal Go Kart, demonstrating its features and how it operates.
9. Waranti dan Sokongan
Aosom stands behind the quality of its products. For warranty information, replacement parts, or further assistance, please refer to the warranty card included with your purchase or visit the official Aosom website. Please have your model number (370-256V00GN) and purchase date ready when contacting support.
Maklumat Hubungan:
- Webtapak: www.aosom.com
- Perkhidmatan Pelanggan: Refer to the contact details on the Aosom webtapak atau pembungkusan produk anda.
