OLEVS Men's Quartz Watch (Model 6898) - Instruction Manual

1. Pengenalan

Thank you for choosing the OLEVS Men's Quartz Watch. This manual provides essential information for the proper setup, operation, and maintenance of your watch. Please read it carefully to ensure optimal performance and longevity of your timepiece.

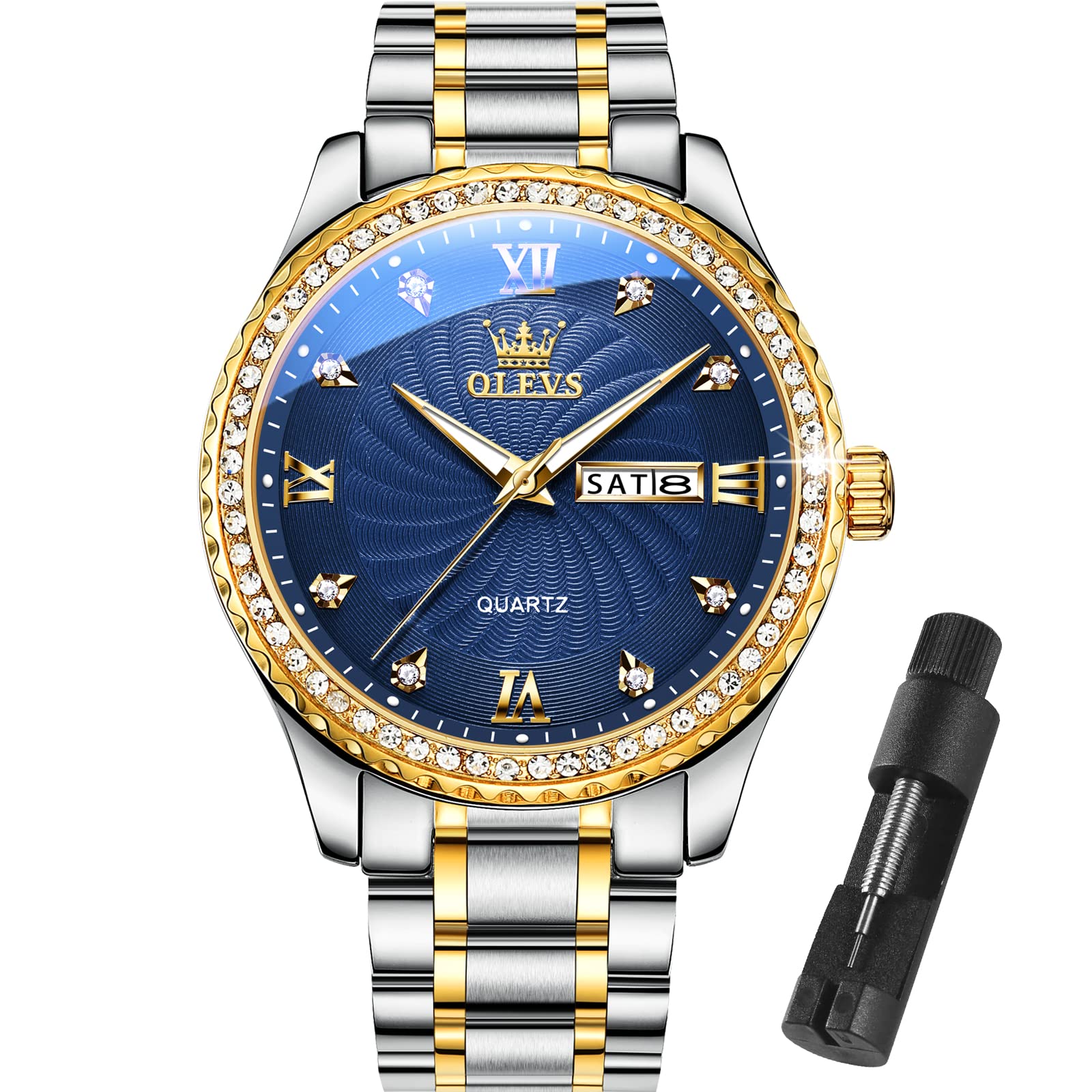

Figure 1: OLEVS Men's Quartz Watch (Model 6898)

2. Produk Lebihview

The OLEVS Men's Quartz Watch is designed for durability and style, featuring a precise Japanese-quartz movement and a robust stainless steel construction. Key features include:

• Pergerakan: Japanese-quartz for accurate timekeeping.
• paparan: Analog with luminous hands for visibility in low light.
• Fungsi: Day and Date display.
• Kes: 40mm diameter, 9.5mm thickness, made of stainless steel.
• Band: 18mm width, 20cm length, stainless steel bracelet with Push Button Deployment Clasp.
• Kristal: Wear-resistant and scratch-resistant mineral glass lens.
• Tahan Air: 30 meters (100 feet), suitable for daily use, splashes, and brief immersion. Not suitable for showering, bathing, swimming, diving, or hot water activities.

Figure 2: Key features of the OLEVS Watch

3. Persediaan

3.1 Menetapkan Masa dan Tarikh

To set the time and date on your OLEVS watch, follow these steps:

1. Tetapkan Masa: Unscrew the crown and pull it out to position 3. Turn the crown to set the correct time. Once set, push the crown firmly back in and screw clockwise to restart the watch.
2. Set Day and Date: Unscrew the crown and pull it out to position 2. Turn the crown mengikut arah jam until the correct date appears. Turn the crown lawan arah jam untuk menetapkan hari dalam seminggu.
3. Language Setting (if applicable): If your watch has a language setting for the day, pull the crown out to position 2 and turn the stem counter-clockwise to cycle through languages until English is displayed (default is English).

Petua Penting: The date may need to be manually updated at the end of months with fewer than 31 days. If not adjusted, it will continue to 31 and then roll over to 01 the next month.

Figure 3: Setting the Time, Day, and Date

3.2 Melaraskan Gelang

Your watch comes with an adjustable stainless steel bracelet. If adjustment is needed, a tool is typically included. Follow these general steps:

1. Locate the correct positions on the strap for pin removal, usually indicated by small circular holes.
2. Open and flatten the steel strap. Place it on the active slot of the strap removal tool.
3. Gently push the slot into the appropriate position.
4. Rotate the top pin of the handle on the removal tool to align with the rivet on the steel strap.
5. Simply rotate the handle manually to push out the rivet.
6. Remove desired links and reassemble by reversing the steps, ensuring pins are securely reinserted.

Figure 4: Bracelet Adjustment (Part 1)

Figure 5: Bracelet Adjustment (Part 2)

4. Beroperasi

Your OLEVS watch is designed for reliable daily operation. The quartz movement ensures consistent accuracy. The luminous hands provide readability in low-light conditions.

4.1 Tahan Air

This watch is water-resistant to 30 meters (100 feet). This means it is suitable for daily life use, such as hand washing, rain, and accidental splashes. It can withstand brief immersion in water.

• JANGAN pull out the crown or press any buttons while the watch is underwater.
• Elakkan mendedahkan jam tangan kepada air panas, wap atau perubahan suhu yang melampau, kerana ini boleh menjejaskan pengedap air.
• Not suitable for showering, bathing, swimming, diving, or any water sports where prolonged immersion or high water pressure is involved.

Rajah 6: Garis Panduan Rintangan Air

5. Penyelenggaraan

Proper care will help maintain the appearance and function of your OLEVS watch.

• Pembersihan: Wipe the watch case and bracelet regularly with a soft, dry cloth to remove dirt, sweat, and moisture. For the stainless steel bracelet, a slightly damp kain boleh digunakan, diikuti dengan pengeringan menyeluruh.
• Elakkan Bahan Kimia: Jangan dedahkan jam tangan kepada bahan kimia, pelarut atau detergen yang keras, kerana ini boleh merosakkan bekas, kristal atau pengedap.
• Suhu: Avoid extreme temperatures and sudden temperature changes.
• Medan Magnet: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, mobile phones) to prevent interference with the quartz movement.
• Bateri: The Japanese-quartz movement has a battery service life of more than 1 year. When the watch stops or the second hand moves erratically, it's time to replace the battery. We recommend having the battery replaced by a professional watchmaker to ensure the water resistance is maintained.

6. Penyelesaian masalah

7. Spesifikasi

• Jenama: OLEVS
• Nombor Model: 6898-5563-5567-5565-5562
• Jenis Pergerakan: Kuarza
• Jenis Paparan: Analog
• Bahan kes: Keluli Tahan Karat
• Diameter Sarung: 40 Milimeter
• Ketebalan Sarung: 9.5 Milimeter
• Bahan Band: Keluli Tahan Karat
• Lebar jalur: 18 Milimeter
• Panjang Jalur: 20 Sentimeter
• Jenis Kancing: Push Button Deployment Clasp
• Kristal: Hardlex Mineral Glass
• Kedalaman Rintangan Air: 30 Meter (100 Kaki)
• Sumber Kuasa: Dikuasakan Bateri
• Ciri-ciri tambahan: Day Date, Luminous Hands
• Berat Barang: 0.15 Kilogram (lebih kurang 5.29 auns)

8. Waranti

This product comes with a seller warranty. For specific details regarding the warranty period and coverage, please refer to the purchase documentation or contact the seller directly.

9. Sokongan

Should you encounter any issues or have questions not covered in this manual, please contact the seller for assistance. The seller for this product is qiyi16888.

For additional product information and support, you may visit the OLEVS Store on Amazon: OLEVS Amazon Store

10. Video Produk Rasmi

Tonton video produk rasmi untuk visual overview of the OLEVS Men's Watch features and design.
