WilTec Lawn Mower Lift 64980 Instruction Manual

1. Pengenalan

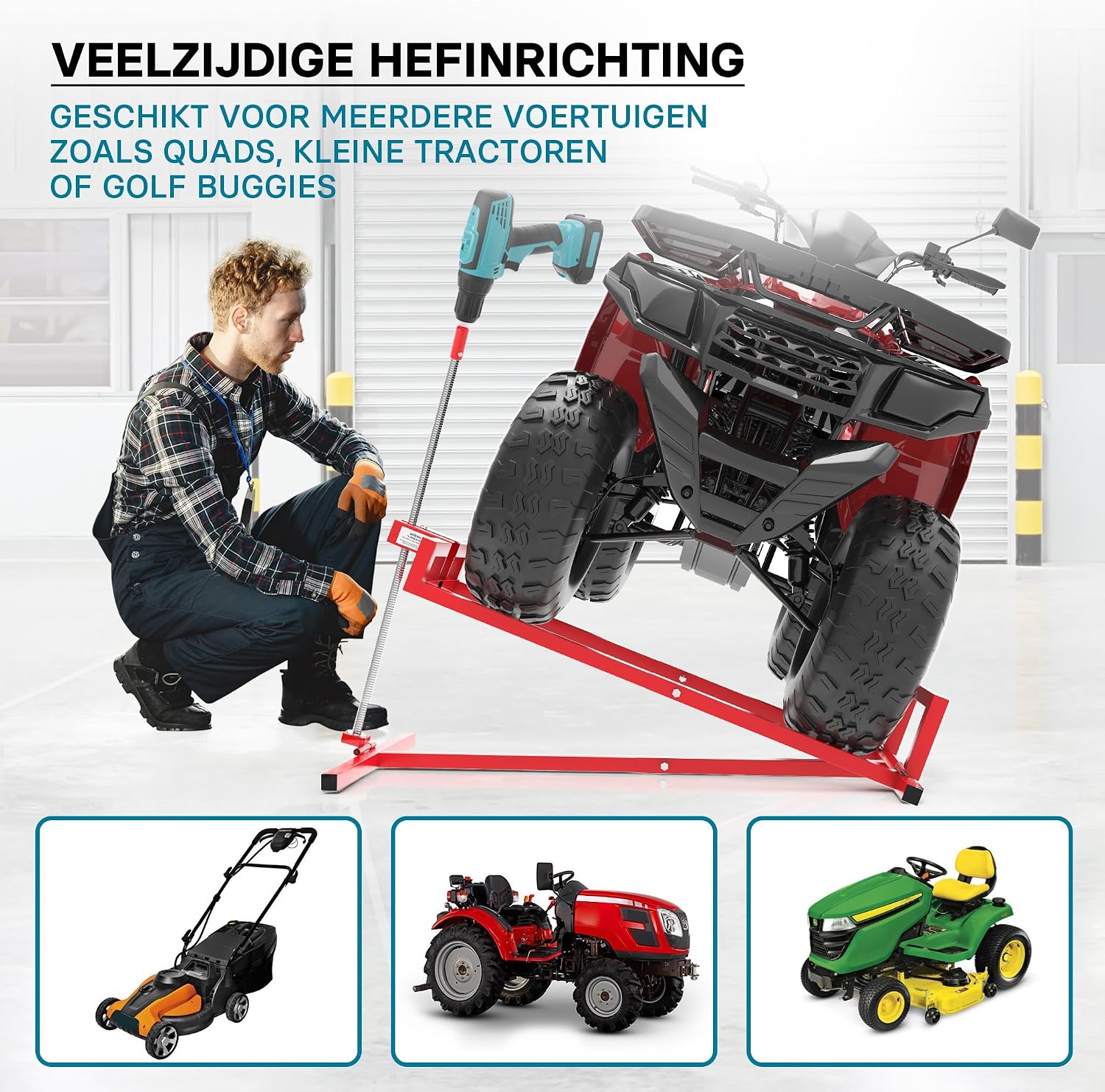

This manual provides essential information for the safe and efficient use of your WilTec Lawn Mower Lift, Model 64980. Please read these instructions carefully before assembly, operation, or maintenance. Proper use ensures optimal performance and safety. This lift is designed for raising garden and lawn mowers, ATVs, small tractors, and similar equipment up to a maximum weight of 400 kg for cleaning, maintenance, and repair tasks.

2. Arahan Keselamatan

Always prioritize safety when operating the lift. Failure to follow these instructions can result in serious injury or damage to property.

• Kapasiti Beban Maksimum: Do not exceed the maximum load capacity of 400 kg. Overloading can cause structural failure and severe accidents.
• Permukaan Stabil: Always operate the lift on a firm, level, and non-slip surface. Uneven ground can cause the lift or the supported vehicle to tip over.
• Penempatan Selamat: Ensure the vehicle is properly positioned and secured on the lift before raising. Use wheel chocks if necessary.
• Pin Keselamatan: Always insert the safety pin into the designated hole once the desired height or tilt angle is reached. This prevents accidental lowering.
• Peralatan Pelindung Diri: Wear appropriate safety gear, such as gloves and safety shoes, during assembly and operation.
• Kawasan Jernih: Keep hands, feet, and other body parts clear of moving parts and pinch points during operation. Ensure no one is under the lifted vehicle.
• Kanak-kanak dan Haiwan Kesayangan: Jauhkan kanak-kanak dan haiwan peliharaan dari kawasan kerja.
• Pemeriksaan: Before each use, inspect the lift for any signs of damage, wear, or loose components. Do not use if damaged.
• Penyelenggaraan: Perform maintenance and repairs only on a securely supported vehicle.

3. Kandungan Pakej

Sahkan bahawa semua komponen ada dan tidak rosak semasa membongkar.

• WilTec Lawn Mower Lift frame
• Lifting spindle with handle
• Hex bit adapter for drill/cordless screwdriver
• Pin keselamatan
• Manual Arahan (dokumen ini)

4. Persediaan

Follow these steps to set up your WilTec Lawn Mower Lift.

1. Unfold the Lift: Carefully unfold the lift frame on a flat, stable surface. Ensure all hinges and joints are fully extended and locked into position.
2. Insert Lifting Spindle: Place the lifting spindle into its designated slot on the lift frame.
3. Attach Adapter (Optional): If using a drill or cordless screwdriver for faster operation, attach the provided hex bit adapter to the top of the spindle and secure it to your power tool.
4. Position Vehicle: Drive or push the vehicle onto the lift. Ensure the wheels are securely seated in the lift's cradles. The center of gravity of the vehicle should be balanced over the lift for stability.
5. Semak Kestabilan: Before lifting, gently rock the vehicle to confirm it is stable and properly positioned on the lift.

5. Arahan Operasi

Operating the WilTec Lawn Mower Lift is straightforward, but always adhere to safety guidelines.

1. Mengangkat Kenderaan:
   • Operasi Manual: Turn the handle of the lifting spindle clockwise to raise the vehicle.
   • Operasi Alat Kuasa: Use a drill or cordless screwdriver with the hex bit adapter to turn the spindle clockwise for faster lifting.
2. Melaraskan Sudut Kecondongan: The lift allows for a continuously adjustable tilt angle up to 35 degrees. Raise the vehicle gradually, observing its stability.
3. Securing the Lift: Once the desired height and tilt angle are achieved, immediately insert the safety pin through the corresponding holes in the lifting mechanism. This locks the lift in position and prevents accidental lowering.
4. Menurunkan Kenderaan:
   • Remove Safety Pin: Before lowering, ensure the area around the lift is clear, then remove the safety pin.
   • Operasi Manual: Turn the handle of the lifting spindle counter-clockwise to slowly lower the vehicle.
   • Operasi Alat Kuasa: Use a drill or cordless screwdriver with the hex bit adapter to turn the spindle counter-clockwise for faster lowering.
5. Remove Vehicle: Once the vehicle is fully lowered and stable on the ground, carefully remove it from the lift.

6. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your lift.

• Pembersihan: Clean the lift after each use, especially if exposed to dirt, grass, or fluids. Use a damp kain dan detergen lembut.
• Pelinciran: Periodically lubricate the lifting spindle and moving parts with appropriate grease or oil to ensure smooth operation and prevent rust.
• Pemeriksaan: Regularly check all bolts, nuts, and connections for tightness. Inspect the steel frame for any signs of bending, cracks, or corrosion.
• Storan: When not in use, store the lift in a dry, clean place. The foldable design allows for compact storage.

7. Penyelesaian masalah

If you encounter issues with your WilTec Lawn Mower Lift, refer to the following common problems and solutions.

8. Spesifikasi

Detailed technical specifications for the WilTec Lawn Mower Lift 64980.

• Nombor Model: 64980
• Jenama: WilTec
• Bahan: Keluli Aloi
• warna: merah
• Kapasiti Muatan: 400 kg
• Ketinggian Minimum: 110 mm
• Sudut Kecondongan Maksimum: 35 degrees (continuously adjustable)
• Dimensi Item (L x W x H): 114 x 49.5 x 103 cm
• Dimensi Produk (Dilipat): Approximately 98 x 49.5 x 11 cm (based on diagram)
• Berat Barang: 8.2 kg
• Compatible Vehicle Types: ATV, Tractor, Lawn Mowers, Garden Tractors (Universal Fit)
• Negara Asal: China

9. Waranti dan Sokongan

For warranty information, technical support, or spare parts, please contact WilTec customer service. Refer to your purchase documentation for specific warranty terms and contact details.
