DRYGUY Force Dry DX + Travel Boot Dryer Instruction Manual

1. Produk Lebihview

The DRYGUY Force Dry DX and Travel Boot Dryer bundle provides comprehensive drying solutions for various footwear and gear. The Force Dry DX is a versatile forced-air dryer designed for home use, capable of drying multiple items simultaneously. The Travel Dry DX is a compact, portable unit with AC/DC power options, ideal for on-the-go drying in shoes or boots.

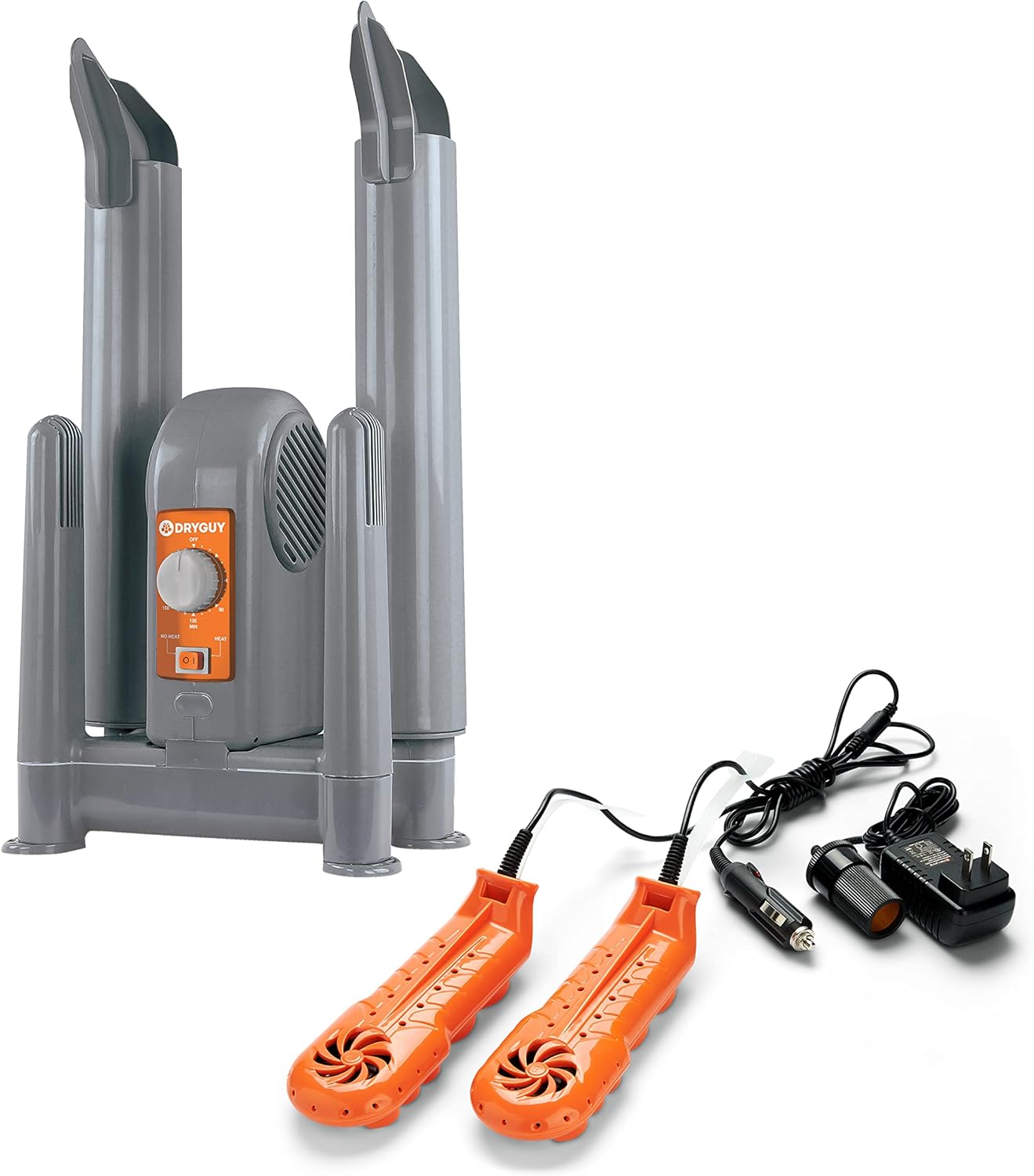

Image 1: The DRYGUY Force Dry DX (gray unit with four drying posts) and the orange Travel Dry DX portable dryers with their power adapters.

2. Ciri-ciri Utama

• Versatile Drying: Suitable for cleats, running shoes, golf shoes, cycling shoes, ski boots, hiking boots, gloves, and helmet accessories.
• Pengeringan yang cekap: Force Dry DX heats air to 105°F (40.5°C) to dry most items in 1-2 hours. Travel Dry DX uses a combined forced air and convection system, heating to 99°F to dry footwear faster than many portable alternatives.
• Pencegahan Bau: Helps keep footwear fresh by drying wet, soggy environments that can breed odors.
• Material Safe: Designed not to shrink or warp custom-fit liners.
• Pemasa Automatik: Force Dry DX features a 3-hour auto shut-off timer for convenience and safety.
• Reka Bentuk Mudah Alih: Travel Dry DX includes an AC/DC power adapter for use at home or in the car, with a compact design for easy packing.

3. Apa yang Termasuk

• 1 x DRYGUY Force Dry DX Unit (main dryer with four drying posts)
• 2 x Removable Extension Tubes (for taller boots on Force Dry DX)
• 1 x DRYGUY Travel Dry DX Unit (portable shoe dryer inserts)
• 1 x AC Power Adapter (for home use with Travel Dry DX)
• 1 x DC 12-Volt Power Adapter (for car use with Travel Dry DX)

4. Arahan Persediaan

4.1. Force Dry DX Setup

1. Place the Force Dry DX unit on a stable, flat surface.
2. For taller boots, insert the two removable extension tubes onto the longer drying posts.
3. Palamkan unit ke soket elektrik standard.

Image 2: Close-up of the DRYGUY Force Dry DX showing the control panel with timer knob, heat/no heat switch, and removable extension tubes.

4.2. Travel Dry DX Setup

1. Insert one Travel Dry DX unit into each shoe or boot.
2. For home use, connect the Travel Dry DX to the AC power adapter and plug into a standard electrical outlet.
3. For car use, connect the Travel Dry DX to the DC 12-volt power adapter and plug into your vehicle's accessory outlet.

Image 3: A person inserting the orange Travel Dry DX portable dryer into a shoe while inside a car, demonstrating its portability and car adapter use.

5. Arahan Operasi

5.1. Using the Force Dry DX

1. Place your wet footwear, gloves, or other gear onto the drying posts. Ensure air can circulate freely.
2. Turn the timer knob to select the desired drying duration (up to 180 minutes). The unit will automatically shut off once the timer expires.
3. Use the 'HEAT/NO HEAT' switch to select whether you want heated air or ambient air drying. Heated air dries faster.
4. Drying times typically range from 1 to 2 hours for most items.

Image 4: The DRYGUY Force Dry DX in use, drying a pair of boots and a pair of cleats simultaneously on its four posts.

5.2. Using the Travel Dry DX

1. Ensure the Travel Dry DX units are fully inserted into your footwear.
2. Plug the unit into the appropriate power source (AC for home, DC for car).
3. The Travel Dry DX will begin to circulate heated air (up to 99°F) to dry your footwear.
4. Drying times will vary depending on the wetness of the footwear.

Image 5: The orange DRYGUY Travel Dry DX units inserted into a pair of running shoes, illustrating their compact design for in-shoe drying.

6. Penyelenggaraan

• Cabut plag unit sebelum membersihkan.
• Wipe the exterior of the dryer units with a damp kain.
• Do not immerse the units in water or any other liquid.
• Ensure air vents are clear of obstructions for optimal performance.

7. Penyelesaian masalah

• Unit tidak dihidupkan: Ensure the power cord is securely plugged into a working electrical outlet. Check the timer setting and heat switch.
• Insufficient drying: Verify that air vents are not blocked. For Force Dry DX, ensure items are placed to allow proper air circulation. For Travel Dry DX, ensure units are fully inserted into footwear. Consider using the heat setting for faster drying.
• Bunyi luar biasa: Unplug the unit and check for any foreign objects obstructing the fan or air pathways.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information, technical support, or any product-related inquiries, please contact DRYGUY customer service directly. Refer to the product packaging or the official DRYGUY webtapak untuk mendapatkan butiran hubungan yang paling terkini.
