Manual Pengguna Bank Kuasa Magnetik Podoru

1. Pengenalan

Thank you for choosing the Podoru 5000mAh Magnetic Power Bank. This portable charger is designed to provide convenient and efficient power to your compatible devices, especially iPhone 12/13/14/15/16 series, through both magnetic wireless charging and wired connections. Its compact design and robust safety features make it an ideal companion for daily use and travel.

2. Apa yang ada di dalam Kotak

• Bank Kuasa Wayarles Magnet x 1
• Kabel Pengecas USB-C x 1
• Manual Arahan x 1

3. Maklumat Keselamatan

Please read all safety instructions carefully before using this product. Failure to follow these instructions may result in fire, electric shock, damage to the product, or property damage.

• Kawalan Suhu: The power bank is equipped with 8 built-in low-temperature ice cores and a comprehensive multi-protect safety system including temperature control. It is normal for the power bank to be slightly warm during the energy transfer process.
• Magnetic Cases: If your iPhone overheats during wireless charging, especially with magnetic cases thicker than 2MM, please remove the magnetic case or pause charging until the device cools down.
• Perlindungan Lebihan: The device includes overcharge protection to prevent battery damage.
• Perlindungan Litar pintas: Built-in short circuit protection ensures safe operation.
• Keselamatan Umum: Avoid dropping, disassembling, or exposing the power bank to extreme temperatures, direct sunlight, or liquids. Keep out of reach of children.

Figure 3.1: Superior Safety Features

4. Produk Lebihview

Familiarize yourself with the components of your Podoru Magnetic Power Bank.

Figure 4.1: Power Bank Components

• Pengecas Wayarles Magnetik: For MagSafe compatible devices.
• Penunjuk Bateri: LED lights to show remaining power.
• Type-C Input/Output (20W PD Fast Charging): Universal port for charging the power bank or other devices.
• Lighting Input (12W Max): Dedicated input for charging the power bank using a Lighting cable.
• Butang HIDUP/MATI: To activate or deactivate the power bank.

5. Persediaan

5.1 Pengecasan Awal Bank Kuasa

Before first use, fully charge your Podoru Magnetic Power Bank.

1. Connect the provided USB-C cable to the Type-C port on the power bank.
2. Connect the other end of the USB-C cable to a compatible USB wall adapter (not included). Alternatively, you can use a Lighting cable to charge via the Lighting input port.
3. The battery indicator lights will illuminate to show charging progress. Once all lights are solid, the power bank is fully charged.

Figure 5.1: Charging the Power Bank

6. Arahan Operasi

6.1 Pengecasan Tanpa Wayar Magnetik

This power bank is designed for seamless magnetic wireless charging with iPhone 12/13/14/15/16 series.

1. Pastikan iPhone anda serasi dengan MagSafe (iPhone 12 siri atau lebih baharu).
2. Align the power bank with the back of your iPhone. The strong magnetic connection will snap it into place.
3. Wireless charging will begin automatically, providing up to 15W.
4. For optimal magnetic suction and charging efficiency, use a MagSafe compatible phone case or no case at all. Non-magnetic cases may prevent proper adsorption.

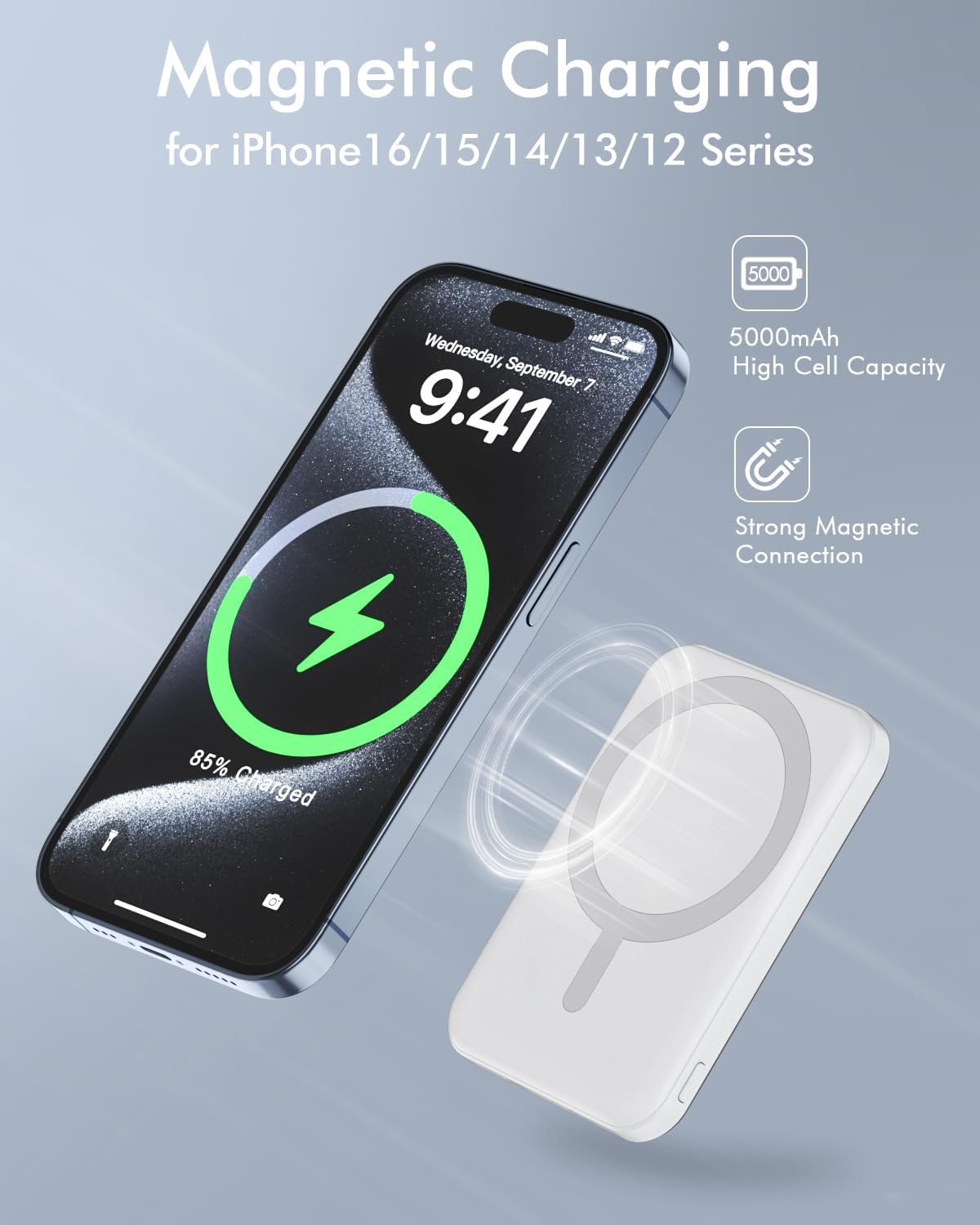

Figure 6.1: Magnetic Wireless Charging in Action

Figure 6.2: Using with Magnetic Cases

Figure 6.3: Magnetic Case Recommendation

6.2 Pengecasan Berwayar

The power bank supports wired charging for a wide range of devices via its USB-C port.

1. Connect one end of the USB-C cable to the Type-C port on the power bank.
2. Sambungkan hujung kabel USB-C yang satu lagi ke port pengecasan peranti anda.
3. The power bank provides up to 20W USB-C output for fast wired charging.

6.3 Mengecas Dua Peranti Secara Serentak

You can charge two devices at the same time using both wireless and wired connections.

• Attach your MagSafe compatible iPhone for wireless charging.
• Connect another device (e.g., tablet, another phone) to the USB-C port using a cable.

Figure 6.4: Charging Two Devices Simultaneously

Figure 6.5: Dual Device Charging

6.4 Pengecasan Laluan

The power bank supports pass-through charging, allowing you to charge your phone and the power bank simultaneously.

1. Connect your phone to the power bank (either wirelessly or via cable).
2. Connect the power bank to a wall adapter using the USB-C or Lighting input port.
3. Both your phone and the power bank will charge.

Figure 6.6: Pass-Through Charging Setup

7. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan permukaan bank kuasa. Jangan gunakan bahan kimia yang keras atau bahan yang melelas.
• Storan: Simpan bank kuasa di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Penjagaan Bateri: Untuk memanjangkan hayat bateri, cas sepenuhnya power bank sekurang-kurangnya sekali setiap tiga bulan jika tidak digunakan secara tetap.

8. Penyelesaian masalah

9. Spesifikasi

10. Waranti dan Sokongan

Podoru products are manufactured with high-quality standards and undergo rigorous testing. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, warranty claims, or general inquiries, please contact our customer service team via the contact information provided on the product packaging or our official website. Please have your model number (KT-D003MINI) and purchase details ready when contacting support.

11. Video Demonstrasi Produk
