Zogola 43.3" Tall Fireproof Wall Safe User Manual

pengenalan

This user manual provides comprehensive instructions for the Zogola 43.3" Tall Fireproof Wall Safe. It covers essential information regarding product features, installation, operation, maintenance, and troubleshooting. Please read this manual thoroughly before using your safe to ensure proper function and security.

Maklumat Keselamatan

Your Zogola wall safe is designed with multiple security features to protect your valuables. Adhering to the following safety guidelines is crucial:

• Fireproof Protection: The safe is constructed with fire-resistant materials to protect contents from high temperatures.
• Anti-Prying, Anti-Drilling, Anti-Collision, Anti-Theft: The robust alloy steel construction and design features are engineered to resist common methods of forced entry.
• Emergency Key Caution: NEVER store the emergency override keys inside the safe. Keep them in a secure, separate location known only to trusted individuals.
• Ensure the safe is securely mounted according to the installation instructions to prevent unauthorized removal.
• Keep the combination or key access information confidential and do not share it with unauthorized persons.

Image: The Zogola wall safe demonstrating its fireproof capability, surrounded by flames, highlighting its protective features against fire, prying, drilling, collision, and theft.

Produk Selesaiview

Ciri-ciri

• 43.3" Tall design for ampkapasiti penyimpanan.
• Fireproof construction for enhanced protection.
• Combination lock with digital keypad for secure access.
• Emergency key override for backup access.
• Removable shelf for flexible internal organization.
• Designed for installation between 16" on-center wall studs.
• Constructed from durable alloy steel with anti-cutting technology.

Komponen

The Zogola wall safe includes the following main components:

• Safe Body (Alloy Steel)
• Electronic Keypad with Combination Lock
• Emergency Key Slot
• Rak Dalaman boleh tanggal
• Mounting Hardware (Expansion Bolts)

Imej: komprehensif view of the Zogola wall safe, displaying its sleek black exterior and the spacious interior with a removable shelf, capable of storing various valuables including documents, jewelry, and firearms.

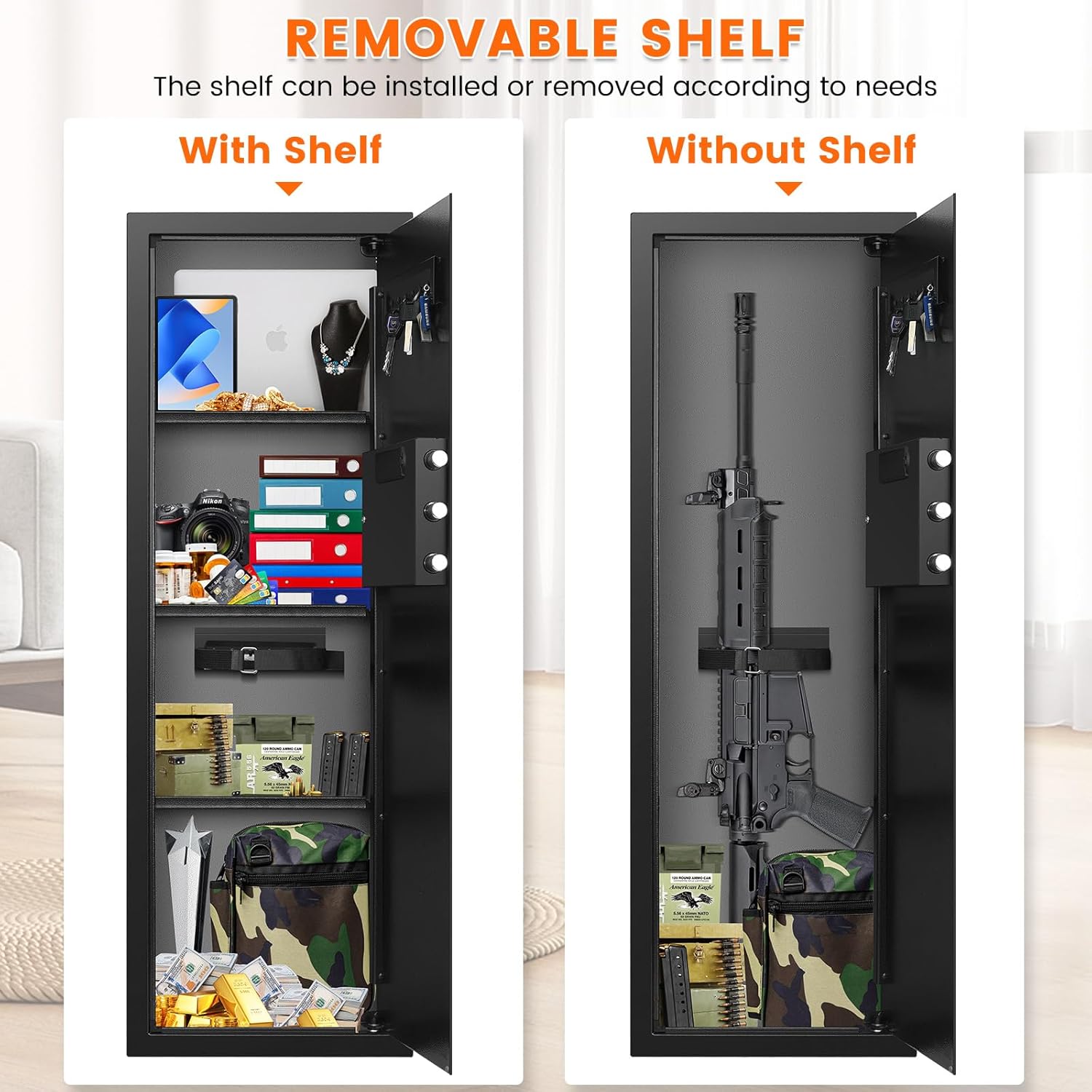

Image: The Zogola wall safe demonstrating the versatility of its removable shelf, showing configurations both with the shelf installed for organized storage of smaller items and without the shelf for accommodating taller items like firearms.

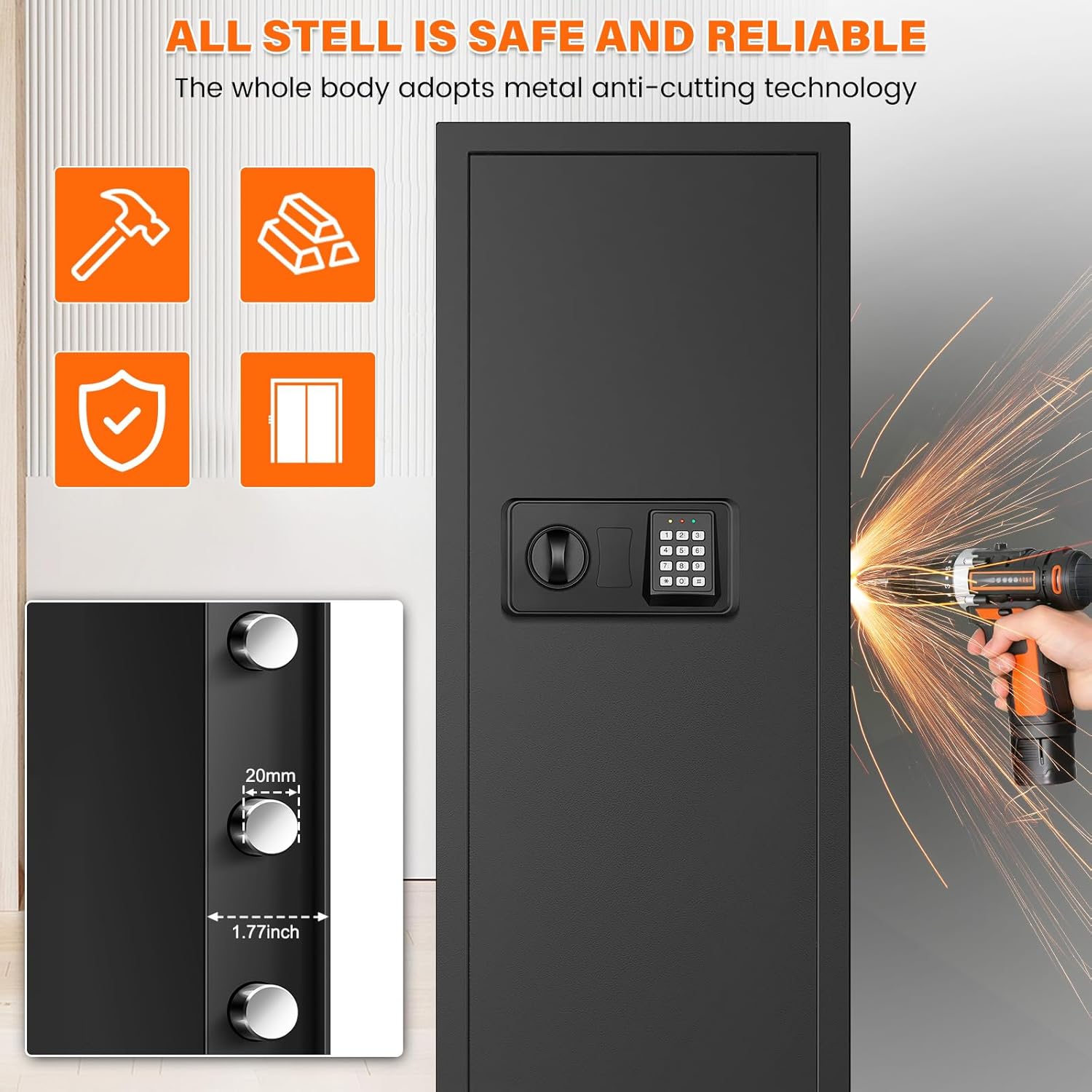

Imej: Dari dekat view of the Zogola wall safe's robust alloy steel construction, highlighting its thick door and anti-cutting technology, with a visual representation of resistance to cutting tools.

Persediaan

Pemasangan (Pemasangan Dinding)

The Zogola wall safe is designed to be installed between standard 16-inch on-center wall studs. Follow these steps for secure installation:

1. Cari Studs: Use a stud finder to locate two adjacent wall studs that are 16 inches apart (center to center).
2. Mark Opening: Carefully mark the outline for the safe's opening on the wall, ensuring it aligns perfectly between the studs and at the desired height.
3. Pembukaan Potong: Using appropriate tools, cut out the marked section of the drywall. Ensure the opening is precise to allow the safe to fit snugly.
4. Insert Safe: Carefully slide the safe into the wall opening. The flanges on the safe should rest flush against the wall surface.
5. Selamat dengan Bolt: Use the provided expansion bolts to secure the safe to the wall studs. There are pre-drilled holes on the sides of the safe for this purpose. Tighten all bolts firmly.
6. Concealment (Optional): The flush mount design allows for concealment behind framed artwork or other wall decor.

Image: A visual guide illustrating the three-step process of installing the Zogola wall safe into a wall using expansion bolts, demonstrating how it can be concealed behind a picture frame.

Image: The Zogola wall safe with its dimensions (43.3 inches tall) and an illustration of the six expansion bolts included for secure wall mounting.

Initial Setup (Setting Combination)

Refer to the specific instructions provided with your safe for setting the initial combination. Typically, this involves:

1. Open the safe using the emergency key or factory default code (if applicable).
2. Locate the reset button inside the safe (often on the back of the door).
3. Press the reset button. The indicator light on the keypad should illuminate.
4. Enter your desired new combination (usually 3-8 digits) followed by the '#' or 'ENTER' key.
5. Confirm the new combination by re-entering it.
6. Test the new combination with the door open before closing it.

Arahan Operasi

Menggunakan Kunci Gabungan

To open the safe using the combination:

1. Enter your personal combination on the keypad.
2. Press the '#' or 'ENTER' key.
3. The indicator light will turn green, and you will hear a click.
4. Within 5 seconds, turn the handle clockwise to open the safe door.

Untuk mengunci peti besi:

• Tutup pintu peti keselamatan dengan kuat.
• Turn the handle counter-clockwise to engage the locking bolts.

Using the Emergency Key

In case of forgotten combination, dead batteries (if applicable), or electronic malfunction, the emergency key can be used:

1. Cari lubang kunci kecemasan, biasanya tersembunyi di sebalik penutup pada panel papan kekunci.
2. Insert the emergency key and turn it.
3. While holding the key turned, rotate the handle to open the safe.
4. Ingat: Do not keep the emergency keys inside the safe.

Image: Detailed illustration of the Zogola wall safe's combination lock, showing how to input a password and how to use the emergency key for access, with a critical reminder not to store emergency keys inside the safe.

Penyelenggaraan

• Pembersihan: Lap bahagian luar peti besi dengan lembut, damp kain. Elakkan pembersih atau pelarut yang melelas yang boleh merosakkan kemasan.
• Mekanisme Kunci: The electronic lock mechanism is generally maintenance-free. Do not attempt to lubricate or disassemble it.
• Engsel: Periodically check the door hinges for smooth operation. If they become stiff, a small amount of silicone-based lubricant can be applied.
• Penggantian Bateri: Although the product specifications state "Batteries Included?: No", if your specific model requires batteries for the electronic keypad, replace them promptly when the low battery indicator appears to avoid being locked out. Use only the recommended battery type.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For warranty information, technical support, or any inquiries regarding your Zogola wall safe, please contact the manufacturer directly. Refer to the product packaging or the Zogola official weblaman web untuk maklumat hubungan.
