1. Pengenalan
This user manual provides essential information for the proper installation, operation, and maintenance of your XIBANY EP1-B3G1S EP1-3J1S 5-pin electromagnetic automotive relay. Please read this manual thoroughly before using the product to ensure safe and efficient performance. This relay is designed for automotive applications, facilitating the control of higher current circuits with a lower current signal.
2. Produk Lebihview
The XIBANY EP1-B3G1S EP1-3J1S is a 5-pin electromagnetic automotive relay. Automotive relays are crucial components in a vehicle's electrical system, acting as an electrical switch that allows a low-current circuit to control a high-current circuit. This particular model is suitable for various automotive applications where reliable switching is required.
- Jenis: Electromagnetic Automotive Relay
- Konfigurasi Pin: 5-pin
- Fungsi: Electrical switching for automotive circuits

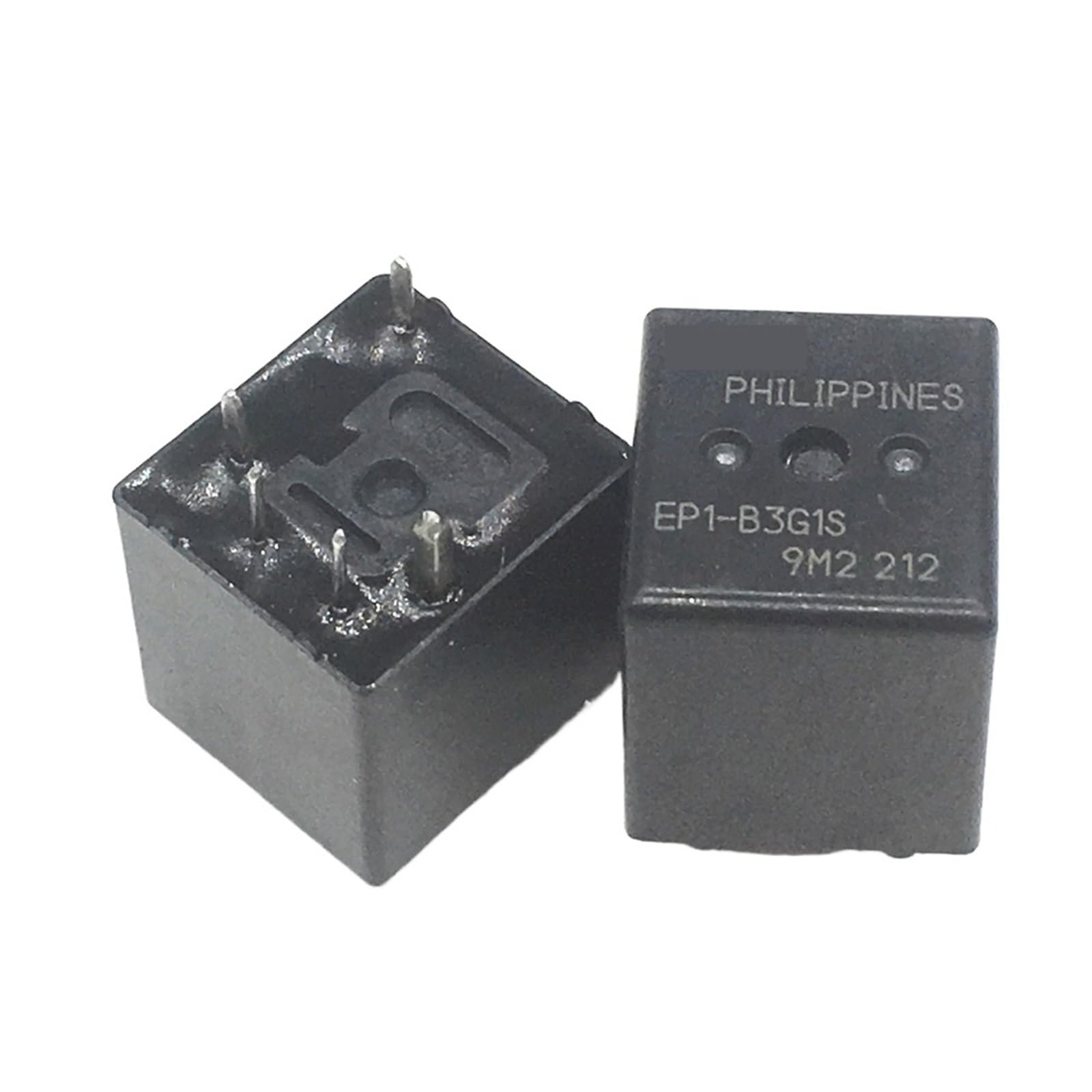

Figure 1: XIBANY EP1-B3G1S EP1-3J1S Automotive Relay. This image displays two units of the relay, highlighting its compact design and pin configuration. The markings on the relay indicate its origin and model number.
3. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | XIBANY |
| Nombor Model | EP1-B3G1S EP1-3J1S |
| taip | Electromagnetic Automotive Relay |
| Konfigurasi Pin | 5-pin |
| Pengeluar | XIBANY |
| ASIN | B0CS8ZK293 |
4. Maklumat Keselamatan
Sentiasa patuhi langkah berjaga-jaga keselamatan berikut semasa bekerja dengan komponen elektrik automotif:
- Putuskan Kuasa: Always disconnect the vehicle's battery before installing or removing any electrical components to prevent electrical shock or short circuits.
- Pemasangan Profesional: If you are not familiar with automotive electrical systems, it is highly recommended to seek professional assistance for installation.
- Betul Voltage: Ensure the relay's voltage rating matches your vehicle's electrical system.
- Elakkan beban berlebihan: Do not exceed the relay's specified current rating, as this can lead to overheating and failure.
- Pendawaian yang betul: Use appropriate gauge wiring for the current load to prevent overheating and fire hazards.
- Penebat: Pastikan semua sambungan ditebat dengan betul untuk mengelakkan litar pintas.
5. Persediaan dan Pemasangan
Follow these general steps for installing the automotive relay. Specific wiring diagrams for your application should be consulted from your vehicle's service manual or the circuit diagram you are implementing.
- Identify Relay Location: Determine the correct location for the relay in your vehicle's fuse box or custom circuit.
- Putuskan Sambungan Bateri: Disconnect the negative terminal of the vehicle's battery to prevent accidental power surges or short circuits.
- Sediakan Pendawaian: Strip the ends of the wires that will connect to the relay terminals. Ensure the wire gauge is appropriate for the current draw of the circuit.
- Connect Control Circuit: Connect the low-current control wires to the appropriate coil terminals of the relay (typically pins 85 and 86 for a standard Bosch-style relay, though this relay is 5-pin, so consult a specific diagram if available). One side of the coil typically connects to a switched 12V source, and the other to ground.
- Connect Power Circuit: Connect the high-current power source to the common terminal (e.g., pin 30). Connect the load (e.g., headlights, horn) to the normally open (NO) terminal (e.g., pin 87). If a normally closed (NC) circuit is needed, connect to that terminal (e.g., pin 87a).
- Secure Relay: Mount the relay securely in its designated location using a relay socket or appropriate mounting hardware.
- Sambung semula Bateri: Once all connections are secure and insulated, reconnect the negative terminal of the vehicle's battery.
- Kefungsian Ujian: Test the circuit to ensure the relay operates correctly and the connected device functions as intended.
6. Arahan Operasi
Once properly installed, the XIBANY EP1-B3G1S EP1-3J1S relay operates automatically based on the control signal it receives.
- When the control circuit (e.g., a switch or ECU signal) sends a low-current signal to the relay's coil, an electromagnetic field is generated.
- This electromagnetic field pulls a contact arm, closing the high-current circuit between the power source and the connected load.
- When the control signal is removed, the electromagnetic field collapses, and a spring returns the contact arm to its original position, opening the high-current circuit and turning off the load.
Ensure that the control signal is stable and within the relay's operational parameters for consistent performance.
7. Penyelenggaraan
Automotive relays are generally low-maintenance components. However, periodic checks can help ensure their longevity and reliable operation:
- Pemeriksaan Visual: Periodically inspect the relay and its connections for any signs of corrosion, loose wires, or physical damage.
- Kebersihan: Keep the area around the relay clean and free from dirt, moisture, and debris.
- Pemeriksaan Haba: While the circuit is active, carefully check if the relay or its wiring is excessively hot, which could indicate an overload or a faulty connection.
- Penggantian: If the relay shows signs of intermittent operation, clicking without engaging, or visible damage, it should be replaced with an identical or equivalent model.
8. Penyelesaian masalah
If the connected device is not functioning correctly, consider the following troubleshooting steps:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Relay does not click or activate. | No power to control coil, faulty control switch, open circuit in control wiring, faulty relay coil. | Check control circuit for voltage and ground. Test the control switch. Inspect wiring for breaks. Replace relay if coil is faulty. |
| Connected device does not turn on. | No power to main contacts, open circuit in power wiring, faulty load, corroded contacts, faulty relay contacts. | Check power supply to relay (e.g., fuse). Inspect wiring to load. Test the load directly. Clean or replace relay. |
| Relay clicks but device does not turn on. | Corroded or burnt main contacts, insufficient power to load, faulty load. | Replace relay. Check power supply to load. Test the load. |
| Relay gets excessively hot. | Overloaded circuit, loose connections, internal short. | Ensure load current does not exceed relay rating. Tighten all connections. Replace relay. |
Jika langkah penyelesaian masalah tidak menyelesaikan masalah, rujuk juruteknik automotif yang berkelayakan.
9. Waranti dan Sokongan
For specific warranty information regarding your XIBANY EP1-B3G1S EP1-3J1S automotive relay, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period.
For technical support or further assistance, please reach out to the retailer or manufacturer (XIBANY) through their official contact channels. When contacting support, please have your product model number (EP1-B3G1S EP1-3J1S) and purchase details readily available.
