pengenalan
This manual provides instructions for the Generic replacement remote control, designed for use with various Konwin Electric Fireplace Infrared Heater models including GD9315BC1-BJ1, GD8215BW-6, GD9315BCP-6, GD9315BCW-FP, FP204R-T3-Q, and FP202-Q. Please ensure your original remote control matches the appearance of this replacement unit for proper compatibility.
Persediaan
1. Pemasangan Bateri
Alat kawalan jauh memerlukan dua (2) bateri AAA (tidak termasuk). Ikuti langkah ini untuk memasangnya:
- Cari penutup petak bateri di belakang alat kawalan jauh.
- Tekan ke bawah pada tab dan luncurkan penutup ke bawah untuk membuka petak.
- Masukkan dua bateri AAA, pastikan terminal positif (+) dan negatif (-) sejajar dengan tanda di dalam petak.
- Luncurkan penutup petak bateri kembali ke tempatnya sehingga ia berbunyi dengan selamat.

Imej: Belakang view of the remote control, showing the battery compartment cover.

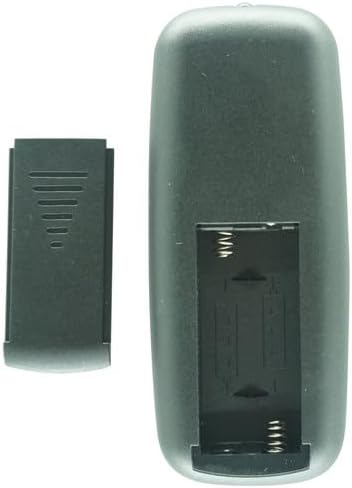

Imej: Belakang view of the remote control with the battery cover removed, revealing the battery compartment for two AAA batteries.
2. Penggunaan Awal
This replacement remote control does not require any special setup or code programming. Once batteries are installed, it should be ready for immediate use with compatible Konwin electric fireplaces.
Arahan Operasi
Point the remote control directly at the infrared receiver on your Konwin electric fireplace. Ensure there are no obstructions between the remote and the fireplace.

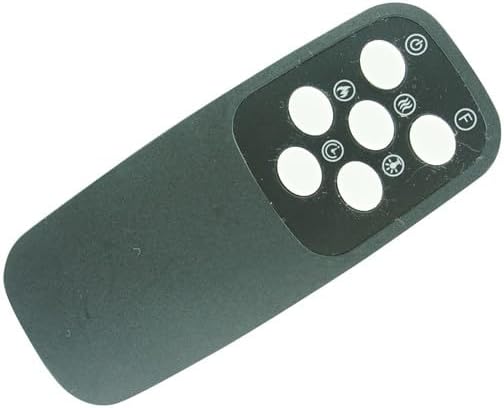

Imej: Depan view of the remote control, displaying its button layout.
Fungsi Butang:
- Butang Kuasa (⏻): Menghidupkan atau mematikan pendiang api.
- Heat Button (Wavy lines icon): Mengaktifkan atau menyahaktifkan fungsi pemanasan.
- Fan Button (Fan blade icon): Controls the fan speed or operation.
- Flame Button (🔥): Adjusts the flame effect settings (e.g., brightness, intensity).
- Butang Cahaya (💡): Controls the internal lighting or ember bed illumination.
- Butang Pemasa (⏱): Sets or adjusts the operational timer for the fireplace.
- Temperature Unit Button ('F' icon): Menukar paparan suhu antara Fahrenheit dan Celsius.
Note: Specific functions and available settings may vary depending on your Konwin fireplace model. Refer to your fireplace's original manual for detailed operation of each feature.
Penyelenggaraan
Penggantian Bateri:
Replace batteries when the remote's range decreases or it stops responding. Always replace both batteries simultaneously with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
Pembersihan:
Lap alat kawalan jauh dengan kain lembut dan kering. Jangan gunakan pembersih cecair atau bahan kasar, kerana ini boleh merosakkan permukaan atau komponen dalaman.
Storan:
Jika alat kawalan jauh tidak akan digunakan untuk tempoh yang lama, keluarkan bateri untuk mengelakkan kebocoran dan kemungkinan kerosakan.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Jauh tidak bertindak balas. | Bateri mati atau tidak dipasang dengan betul. | Check battery orientation. Replace with new AAA batteries. |
| Alat kawalan jauh mempunyai julat yang terhad. | Bateri lemah; Halangan antara alat kawalan jauh dan pendiang api. | Replace batteries. Ensure clear line of sight to the fireplace's IR receiver. |
| Certain functions do not work. | Incompatibility with specific fireplace model; Fireplace feature not present. | Verify your fireplace model is listed as compatible. Some fireplace models may not support all remote functions. Refer to your fireplace's original manual. |
Spesifikasi
- Jenama: Generik
- Model yang Serasi: Konwin GD9315BC1-BJ1, GD8215BW-6, GD9315BCP-6, GD9315BCW-FP, FP204R-T3-Q, FP202-Q
- Jenis Bateri: 2 x AAA (tidak termasuk)
- warna: Hitam
- Ciri Khas: Ergonomic design, direct replacement
- Bilangan Maks Peranti yang Disokong: 1
Waranti dan Sokongan
As a replacement remote control, specific warranty details are typically covered by the original purchase terms. For operational issues related to your Konwin electric fireplace, please consult the original fireplace manufacturer's manual or contact their customer support directly.
It is crucial to ensure that this replacement remote visually matches your original remote control to guarantee compatibility and functionality.
