Conentool 24V Cordless Grass Trimmer User Manual

1. Arahan Keselamatan Penting

Read all safety warnings and instructions carefully before operating this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Alat Pelindung Diri (PPE): Always wear appropriate safety gear, including safety glasses or goggles, gloves, long pants, and sturdy footwear, to protect against flying debris and cutting hazards.
• Kekalkan Jarak Selamat: Pastikan orang ramai, kanak-kanak dan haiwan peliharaan berada pada jarak yang selamat (sekurang-kurangnya 15 meter / 50 kaki) dari kawasan operasi.
• Periksa Sebelum Penggunaan: Before each use, inspect the trimmer for any damaged parts, loose fasteners, or worn blades. Do not operate if any damage is found.
• Keselamatan Bateri: Use only the specified battery pack and charger. Do not expose batteries to water, heat, or direct sunlight. Store batteries in a cool, dry place.
• Cengkaman Selamat: Always hold the trimmer firmly with both hands during operation.
• Kosongkan Kawasan Kerja: Ensure the work area is clear of obstacles, rocks, wires, or other debris that could be thrown or entangled in the cutting head.
• Elakkan Keadaan Basah: Do not operate the trimmer in wet grass or damp keadaan untuk mengelakkan kejutan elektrik.
• Manufacturer's Instructions: Always follow the manufacturer's instructions for safe operation, maintenance, and storage.

2. Produk Lebihview

The Conentool 24V Cordless Grass Trimmer is designed for efficient and versatile lawn and garden maintenance. It features a powerful brushless motor, a wide cutting diameter, and long-lasting batteries for extended use.

Image 2.1: Conentool 24V Cordless Grass Trimmer main unit.

Ciri-ciri Utama:

• Operasi tanpa wayar: Provides freedom of movement without the limitations of power cords.
• Motor tanpa berus berkuasa: 1000W motor ensures efficient and powerful cutting, extending motor life and enhancing performance.
• Jangka Hayat Bateri: Includes two 4000mAh 24V batteries, offering approximately 1 hour of runtime per battery for uninterrupted gardening sessions.
• Wide Cutting Diameter: A maximum cutting diameter of 300mm (9 inches) allows for covering more ground quickly.
• Versatile Cutting Options: Adjustable cutting heights and angles, compatible with plastic blades, metal blades, and saw discs for various tasks.

Image 2.2: Detail of the 1000W newly upgraded brushless motor for faster and quieter cutting.

Image 2.3: Illustration showing up to 60 minutes of runtime with two 4000mAh batteries.

Image 2.4: Different cutting blades: plastic blades for lawn pruning, saw disc for crop harvesting/thick brush, and metal blades for complex terrain weeds.

3. Pemasangan dan Persediaan

Follow these steps to assemble your Conentool Grass Trimmer:

Image 3.1: Labeled diagram of the grass trimmer components.

1. Pasangkan Pemegang Bantu: Secure the auxiliary handle to the steel pipe at a comfortable position using the provided fasteners.
2. Install Fender: Attach the fender (guard) to the motor housing to protect against debris. Ensure it is firmly in place.
3. Mount Cutter Head/Blade: Select the appropriate blade (plastic, metal, or saw disc) for your task. Carefully align and secure it to the cutter head using the provided fixed pad and screw. Ensure it is tightened securely.
4. Masukkan Bateri: Slide a fully charged lithium battery into the battery slot on the handle until it clicks into place.
5. Adjust Length (if applicable): The trimmer features a folding long rod. Adjust the length of the steel pipe for comfortable operation. The total length can be extended to 150cm and folded to 70cm for storage.

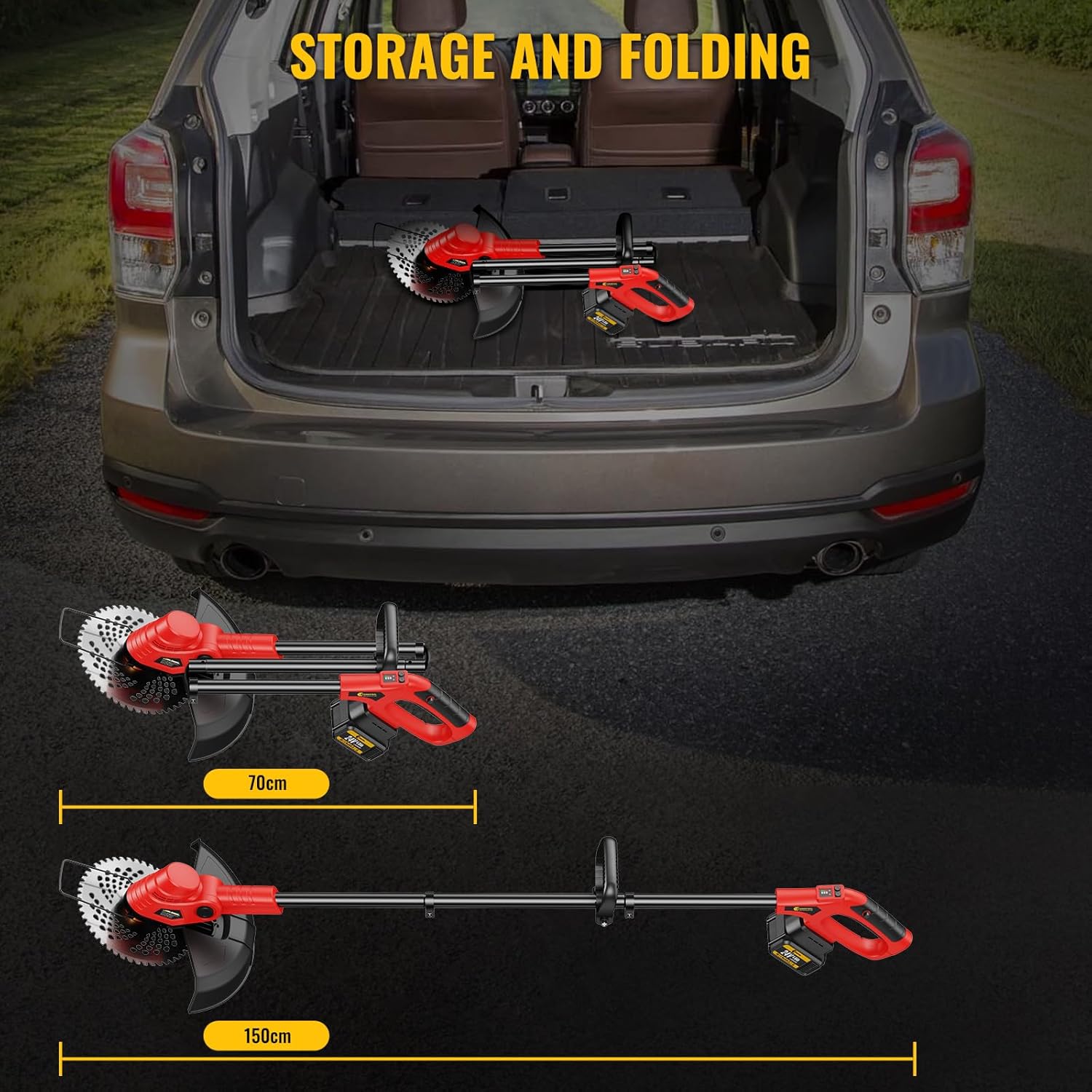

Image 3.2: Illustration of the trimmer's folding mechanism for storage and transport.

4. Operasi

Familiarize yourself with the controls before starting.

Kawalan:

• Suis Kuasa (Hidup/Mati): Located on the main handle. Press to start or stop the trimmer.
• Butang Gear: Adjusts the cutting speed/power.
• Work Button: Engages the cutting head.
• Head Rotation Button: Allows adjustment of the cutter head angle for edging or trimming in difficult areas.

Prosedur Operasi:

1. Semakan Pra-Operasi: Ensure the battery is fully charged, the blade is securely attached, and all safety guards are in place.
2. Start the Trimmer: Press the power switch to turn on the unit. Use the gear button to select the desired speed.
3. Mulakan Pemangkasan: Press the work button to engage the cutting head. Hold the trimmer firmly with both hands, maintaining balance.
4. Teknik Memotong: Use a sweeping motion, moving the trimmer from side to side. For grass, use plastic blades. For thicker weeds or brush, switch to metal blades or the saw disc.
5. tepi: Use the head rotation button to adjust the cutting head for vertical edging along pathways or flowerbeds.
6. Berhenti: Release the work button and then the power switch to turn off the trimmer.

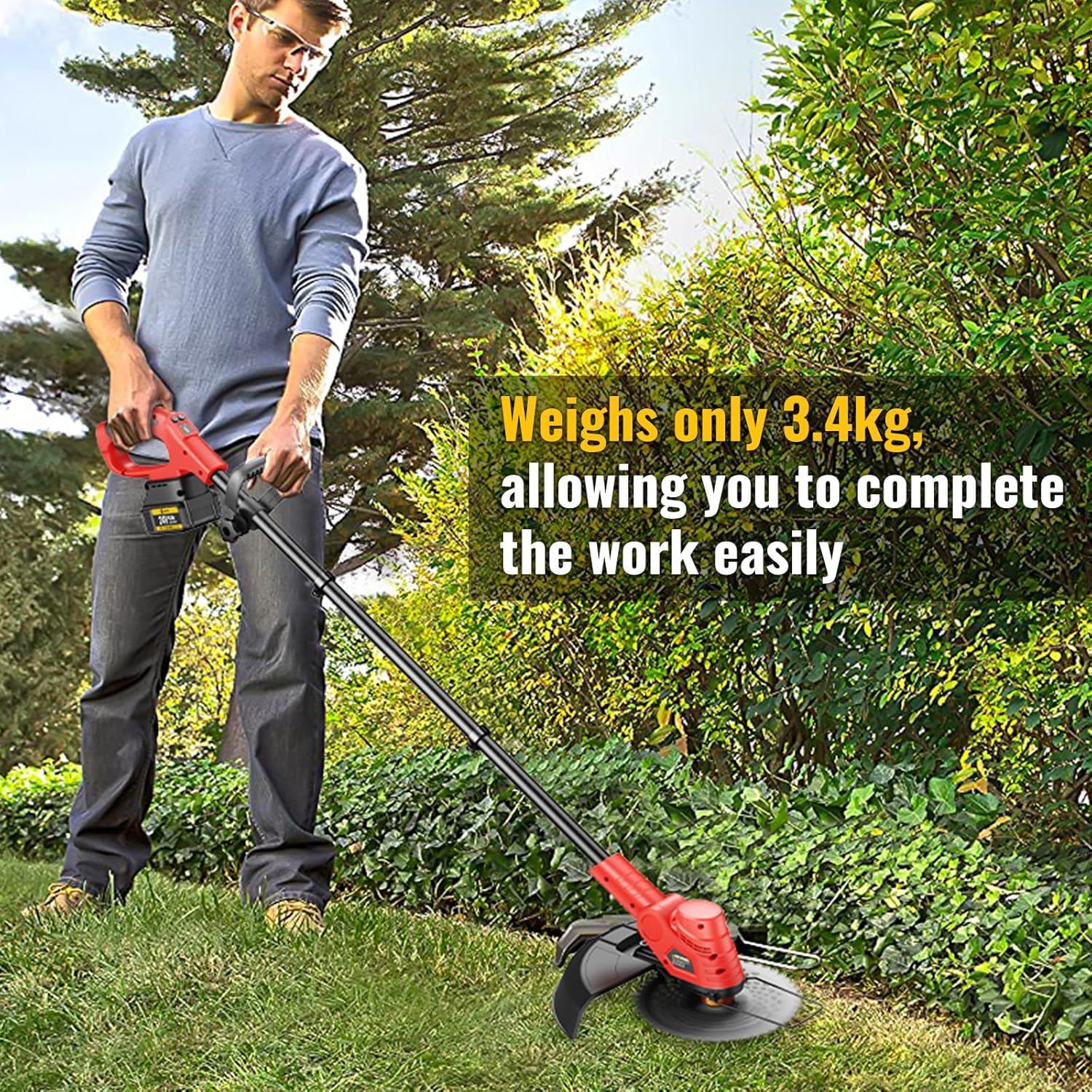

Image 4.1: User demonstrating proper operation of the cordless grass trimmer.

5. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan hayat perapi anda.

• Pembersihan: After each use, remove the battery and clean the cutting head, guard, and motor housing with a dry cloth or soft brush. Do not use water or solvents.
• Pemeriksaan Bilah: Regularly inspect blades for wear, damage, or dullness. Replace worn or damaged blades immediately to maintain cutting efficiency and safety.
• Penjagaan Bateri: Store batteries in a cool, dry place away from direct sunlight. Charge batteries fully before long-term storage and recharge every 3-6 months to prevent deep discharge.
• Storan: When not in use, store the trimmer in a dry, secure location out of reach of children. The folding design allows for compact storage.

6. Penyelesaian masalah

Jika anda menghadapi masalah, rujuk kepada masalah dan penyelesaian biasa berikut:

If the problem persists, contact Conentool customer support.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information, product registration, or technical support, please refer to the official Conentool webtapak atau hubungi bahagian perkhidmatan pelanggan mereka. Simpan resit pembelian anda sebagai bukti pembelian.
