AJ ENJOY 30'' Round Propane Fire Pit Table User Manual

Model: B0CPHYKT98

1. Maklumat Keselamatan Penting

AMARAN: For outdoor use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

BAHAYA: Jika anda terhidu gas:

  1. Matikan gas pada perkakas.
  2. Padamkan sebarang nyalaan terbuka.
  3. Jika bau berterusan, jauhkan daripada perkakas dan segera hubungi pembekal gas atau bomba anda.

AMARAN: Jangan simpan atau gunakan petrol atau wap dan cecair mudah terbakar lain di sekitar ini atau mana-mana perkakas lain.

AMARAN: Use in a well-ventilated area. Handle propane carefully. Follow local regulations for outdoor fire features.

Always ensure the fire pit is on a level, non-combustible surface. Keep children and pets away from the fire pit during operation.

2. Produk Lebihview dan Ciri

The AJ ENJOY 30'' Round Propane Fire Pit Table is designed to provide warmth and ambiance for outdoor gatherings. This unit features a durable steel construction and a 50,000 BTU heat output.

Ciri-ciri Utama:

  • Output Haba 50,000 BTU: Provides substantial warmth for outdoor spaces.
  • Pembinaan Tahan Lama: Made from alloy steel with a painted finish, designed for outdoor use.
  • Integrated Propane Tank Storage: Features a curved door for discreetly storing a 20lb propane tank.
  • Pencucuhan mudah: Equipped with an electric ignitor for convenient startup.
  • Lava Rocks Included: Enhances the flame appearance and heat distribution.
  • Steel Lid: Converts the fire pit into a solid table when not in use.
  • Nyalaan boleh laras: Control knob allows adjustment of flame intensity.
  • Ciri-ciri Keselamatan: Includes a safety thermocouple and double insulation panels for propane tank safety.
AJ ENJOY 30-inch Round Propane Fire Pit Table with flame

Image 2.1: The AJ ENJOY 30-inch Round Propane Fire Pit Table in operation, showcasing the flame and overall design.

AJ ENJOY 30-inch Round Propane Fire Pit Table on a deck with two wine glasses

Image 2.2: The fire pit table on an outdoor deck, demonstrating its use as a centerpiece for social gatherings.

AJ ENJOY 30-inch Round Propane Fire Pit Table with flame and two wine glasses

Imej 2.3: Lebih dekat view of the fire pit table with lit flames and two wine glasses on the tabletop.

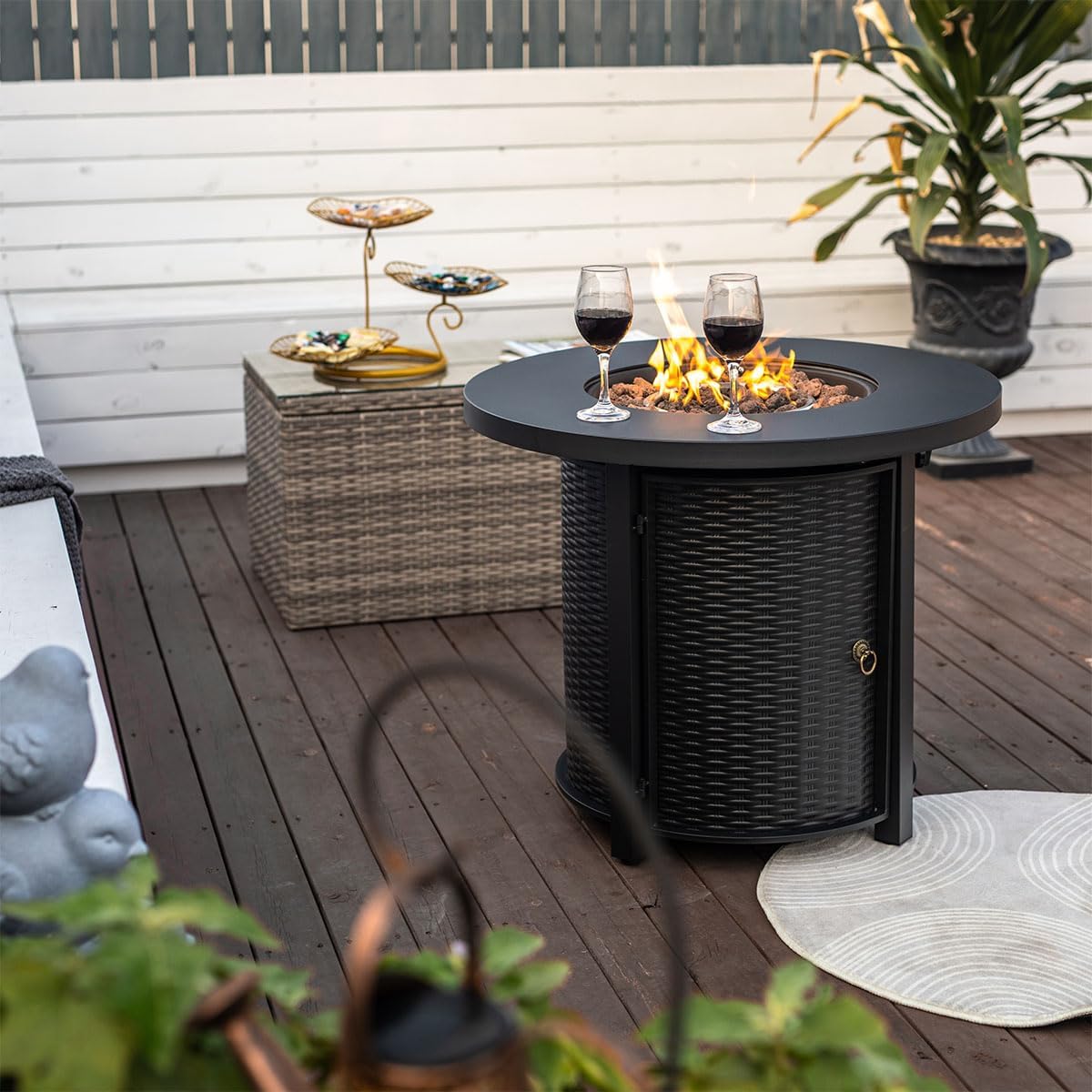

AJ ENJOY 30-inch Round Propane Fire Pit Table on a patio with a wicker side table

Image 2.4: The fire pit table positioned on a patio, complementing other outdoor furniture.

Open door of the AJ ENJOY 30-inch Round Propane Fire Pit Table revealing a propane tank inside

Image 2.5: The access door opened, showing the internal compartment designed to hold a standard propane tank.

Close-up of the burner and lava rocks in the AJ ENJOY 30-inch Round Propane Fire Pit Table

Imej 2.6: Perincian view of the burner assembly and lava rocks, with flames visible.

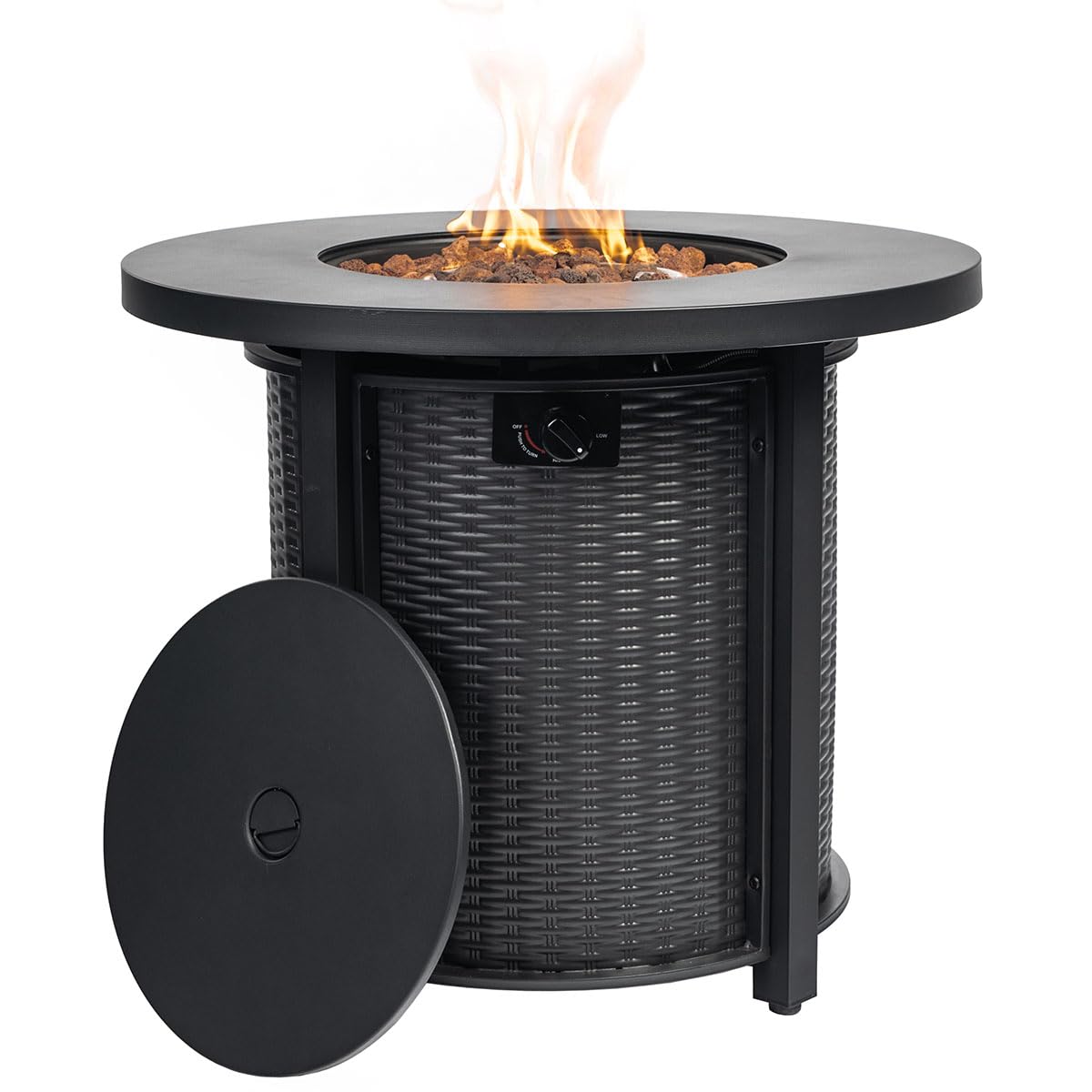

AJ ENJOY 30-inch Round Propane Fire Pit Table with the steel lid partially covering the burner

Image 2.7: The fire pit table with its steel lid partially covering the burner area, demonstrating its dual function as a table.

3. Persediaan dan Pemasangan

This fire pit table is designed for straightforward assembly. Ensure all components are present before beginning.

Komponen Termasuk:

  • Steel tabletop
  • Fire pan and Stainless Steel burner
  • Pengatur gas
  • Termokopel keselamatan
  • Batu Lava
  • Tudung Keluli
  • Manual Pengguna (dokumen ini)

Langkah Perhimpunan:

  1. Buka bungkusan semua komponen dan sahkan terhadap senarai bahagian.
  2. Place the main body of the fire pit in the desired outdoor location, ensuring it is on a stable, level, non-combustible surface.
  3. Open the access door and carefully place a 20lb propane tank (not included) into the designated storage space.
  4. Connect the gas regulator hose to the propane tank. Ensure a secure connection.
  5. Distribute the lava rocks evenly over the burner area, ensuring not to block the ignitor or burner ports.
  6. Tutup pintu akses.

Refer to the included user manual for detailed diagrams and specific fastening instructions.

4. Arahan Operasi

Sebelum Penggunaan Pertama:

  • Perform a leak test on all gas connections according to the instructions in the full manual.
  • Ensure the area around the fire pit is clear of flammable materials.

Menyalakan Lubang Api:

  1. Ensure the control knob is in the "OFF" position.
  2. Buka injap pada tangki propana.
  3. Push and turn the control knob to the "LOW" position.
  4. Press and hold the ignitor button until the burner ignites. You may need to hold the button for a few seconds to allow gas to flow.
  5. Once ignited, continue to hold the control knob in for 10-15 seconds to engage the thermocouple.
  6. Release the control knob. If the flame extinguishes, repeat steps 3-5.
  7. Adjust the flame height by turning the control knob between "LOW" and "HIGH".

Video 4.1: Demonstration of the fire pit table's operation, including ignition and flame adjustment. This video shows the control knob and the propane tank storage.

Shutting Down the Fire Pit:

  1. Putar tombol kawalan ke kedudukan "MATI".
  2. Tutup injap pada tangki propana.
  3. Allow the fire pit and lava rocks to cool completely before covering or moving.

5. Penyelenggaraan

Penyelenggaraan berkala memastikan jangka hayat dan operasi meja lubang api anda yang selamat.

Pembersihan:

  • Permukaan Luaran: Lap dengan lembut, damp kain. Jangan gunakan pembersih yang melelas atau bahan kimia yang keras.
  • Lava Rocks: Periodically inspect lava rocks for debris. Replace if they become excessively dirty or degraded.
  • Pembakar: Keep the burner ports clear of insects and debris. Use a soft brush to clean.

Storan:

  • When not in use, especially during inclement weather or extended periods, cover the fire pit with the provided steel lid or a suitable outdoor cover.
  • Disconnect the propane tank if storing for a long duration. Store the propane tank in a well-ventilated area, away from direct sunlight and heat sources.

Pemeriksaan:

  • Regularly check gas hoses and connections for signs of wear, cuts, or leaks.
  • Inspect the ignitor and thermocouple for proper function.

6. Penyelesaian masalah

Masalah Kemungkinan Punca Penyelesaian
Pembakar tidak menyala.
  • Tiada aliran gas.
  • Ignitor not sparking.
  • Udara di saluran gas.
  • Check propane tank valve and ensure tank is not empty.
  • Verify ignitor electrode is clean and properly positioned.
  • Purge air from the gas line by repeating ignition steps several times.
Nyalaan rendah atau nyalaan tidak konsisten.
  • Tahap propana yang rendah.
  • Obstructed burner ports.
  • Gas regulator issue.
  • Gantikan atau isi semula tangki propana.
  • Bersihkan port pembakar.
  • Ensure regulator is properly connected and not damaged.
Bau gas dikesan.
  • Kebocoran gas.
  • Immediately shut off gas. Perform a leak test. If odor persists, do not operate and contact a qualified service technician.

For issues not listed here, or if troubleshooting steps do not resolve the problem, contact customer support.

7. Spesifikasi

  • model: B0CPHYKT98
  • Jenama: AJ ENJOY
  • Bahan: Keluli Aloi
  • Dimensi Produk: 30"D x 30"W x 24.8"H
  • Berat Barang: 49 paun
  • Jenis bahan api: Gas Petroleum Cecair (Propana)
  • Keluaran Haba: 50,000 BTU
  • warna: Hitam
  • UPC: 614158501748

8. Waranti dan Sokongan

AJ ENJOY provides a 1-year worry-free quality assurance for this product. For any issues or support needs, please contact our expert support team via email. We are committed to resolving issues quickly.

For further assistance, please refer to the contact information provided with your purchase or visit the official AJ ENJOY webtapak.
