pengenalan
This manual provides instructions for the safe and effective use of your Connexx Charging+ Station B-P. This device is designed to charge, dry, and disinfect compatible hearing aids. Please read this manual thoroughly before using the product and keep it for future reference.
The Connexx Charging+ Station B-P is specifically designed for use with Signia dan Audio Service P Li-Ion G6 hearing aids.
Maklumat Keselamatan
Sila patuhi langkah berjaga-jaga keselamatan berikut untuk mengelakkan kerosakan pada peranti atau kecederaan pada diri anda:
- Jangan dedahkan peranti kepada air atau kelembapan berlebihan.
- Jangan cuba membuka atau membaiki peranti sendiri. Rujuk semua servis kepada kakitangan yang berkelayakan.
- Gunakan hanya penyesuai kuasa yang disediakan.
- Jauhkan daripada kanak-kanak dan haiwan peliharaan.
- Pastikan pengudaraan yang betul semasa operasi.
- Do not place foreign objects into the charging slots.
Produk Selesaiview
The Connexx Charging+ Station B-P is a compact and portable charging solution for your hearing aids. It combines charging, drying, and UV disinfection functions in one unit.
Rajah 1: Depan view of the Connexx Charging+ Station B-P. The device is black with a sleek, rounded design. Indicator lights are visible on the front panel, showing charging status.
Ciri-ciri Utama:
- Reliable charging for P Li-Ion G6 hearing aids.
- Integrated drying function to protect hearing aids from moisture.
- UV light for thorough disinfection.
- Reka bentuk mudah alih.
- Mudah digunakan.
Kandungan Pakej:
- 1 x Connexx Charging+ Station (B-P)
- 1 x Penyesuai Kuasa
- 1 x Manual Pengguna
Persediaan
- Buka bungkusan Peranti: Carefully remove the Charging+ Station and all accessories from the packaging.
- Sambungkan Kuasa: Connect the provided power adapter to the charging station's USB port. Plug the adapter into a standard electrical outlet (Type E – 2 pins, France compatible).
- Caj Permulaan: It is recommended to fully charge the station before first use, if it has an internal battery. The indicator lights will show the charging status.

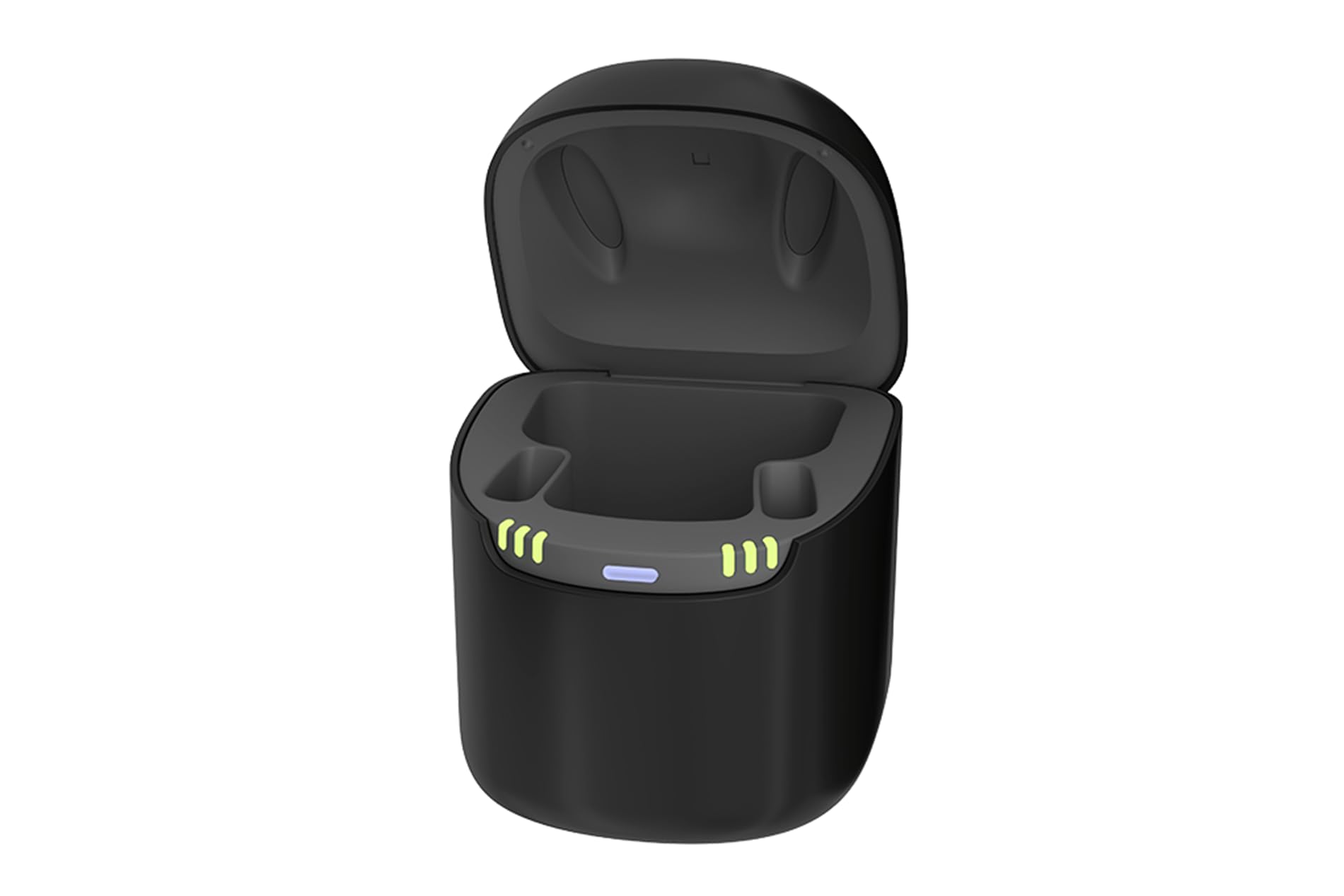

Rajah 2: Atas view of the Connexx Charging+ Station B-P with the lid open, revealing two dedicated slots for placing hearing aids. The internal design facilitates proper positioning for charging, drying, and UV disinfection.
Arahan Operasi
- Place Hearing Aids: Open the lid of the Charging+ Station. Carefully place your compatible Signia or Audio Service P Li-Ion G6 hearing aids into the designated charging slots. Ensure they are correctly seated.
- Tutup Tudung: Close the lid of the charging station. This initiates the charging, drying, and UV disinfection cycle.
- Status Pantau: The indicator lights on the front of the station will show the current status (e.g., charging, drying, disinfection complete). Refer to the specific light patterns in the table below for detailed information.
- Remove Hearing Aids: Once the cycle is complete (indicated by the lights), open the lid and remove your clean, dry, and charged hearing aids.
Panduan Lampu Penunjuk:
| Corak Cahaya | Status |
|---|---|
| Hijau Pejal | Fully Charged / Cycle Complete |
| Hijau Berdenyut | Pengecasan sedang berjalan |
| Biru Pepejal | Drying / UV Disinfection in Progress |
| Merah Berkelip | Error / Malfunction (refer to Troubleshooting) |
Note: Specific light patterns may vary slightly. Consult the full manual for precise details if available.
Penyelenggaraan
- Pembersihan: Wipe the exterior of the charging station with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the device is unplugged before cleaning.
- Pembersihan Dalaman: Periodically inspect the charging slots for dust or debris. Use a soft brush or cotton swab to gently clean if necessary. Ensure no moisture enters the slots.
- Storan: Apabila tidak digunakan untuk tempoh yang lama, simpan peranti di tempat yang sejuk dan kering.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Device not charging / no indicator lights | No power connection; faulty adapter; device malfunction. | Check power adapter connection to both the station and the outlet. Try a different outlet. Ensure the lid is closed. If problem persists, contact support. |
| Hearing aids not charging | Hearing aids not correctly seated; incompatible hearing aids; dirty charging contacts. | Ensure hearing aids are properly placed in the slots. Verify compatibility (P Li-Ion G6). Clean charging contacts on both hearing aids and station. |
| Lampu Merah Berkelip | General error; overheating; foreign object. | Unplug the device, wait 5 minutes, then plug it back in. Ensure no foreign objects are in the slots. If the error persists, contact customer support. |
Spesifikasi
| Jenama: | Connexx |
| model: | Charging+ Station B-P |
| Peranti Serasi: | Signia and Audio Service P Li-Ion G6 Hearing Aids |
| Jenis Penyambung: | USB Jenis A |
| Arus Keluaran: | 2.4 A |
| Keluaran Voltage: | 3.7 Volt (DC) |
| Sumber Kuasa: | Elektrik Bertali |
| Jenis Palam Elektrik: | Jenis E – 2 pin (Perancis) |
| Bahan: | plastik |
| mudah alih: | ya |
| Berat: | 150.00 Gram |
| ASIN: | B0CPFPWVND |
| Reference Number (REF): | 10991663 |
| GTIN/UPC: | 0105714880106213 |
| Nombor Siri (SN): | 21JB922000BP00282 |
Maklumat Waranti
Warranty information is typically provided with the product packaging or available from the point of purchase. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation included with your product or contact your retailer.
Sokongan
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Connexx Charging+ Station B-P, please contact your authorized Connexx dealer or the retailer from whom you purchased the product. Please have your product model and serial number ready when contacting support.
Manufacturer: Connexx
