Swan SCM8B Host Drip and Cold Brew Coffee Maker

Perlindungan Penting

Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa dipatuhi, termasuk yang berikut:

• Read all instructions before operating the coffee maker.
• Jangan sentuh permukaan panas. Gunakan pemegang atau tombol.
• Untuk melindungi daripada kebakaran, renjatan elektrik dan kecederaan kepada orang lain, jangan rendam kord, palam atau pembuat kopi di dalam air atau cecair lain.
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
• Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian, dan sebelum membersihkan perkakas.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau telah rosak dalam apa jua cara. Hubungi khidmat pelanggan untuk pemeriksaan, pembaikan atau pelarasan.
• Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh mengakibatkan kebakaran, renjatan elektrik atau kecederaan kepada orang.
• Jangan gunakan di luar rumah.
• Jangan biarkan kord tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
• Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
• Sentiasa pasangkan plag pada perkakas terlebih dahulu, kemudian pasangkan kord ke dalam salur keluar dinding. Untuk memutuskan sambungan, matikan mana-mana kawalan kepada "mati", kemudian tanggalkan palam dari alur keluar dinding.
• Jangan gunakan perkakas untuk kegunaan selain daripada yang dimaksudkan.
• Teko direka bentuk untuk digunakan dengan perkakas ini. Ia tidak boleh digunakan pada bahagian atas julat.
• Jangan letakkan botol panas di atas permukaan yang sejuk atau basah.
• Jangan gunakan bekas retak atau bekas yang mempunyai pemegang longgar atau lemah.
• Jangan bersihkan botol dengan pembersih, pad bulu keluli atau bahan pelelas lain.
• This appliance has a grounded plug. Please ensure the wall outlet in your home is properly grounded.
• Boil-dry protection is included for safety.

Produk Selesaiview

Familiarize yourself with the components of your Swan SCM8B Coffee Maker before first use.

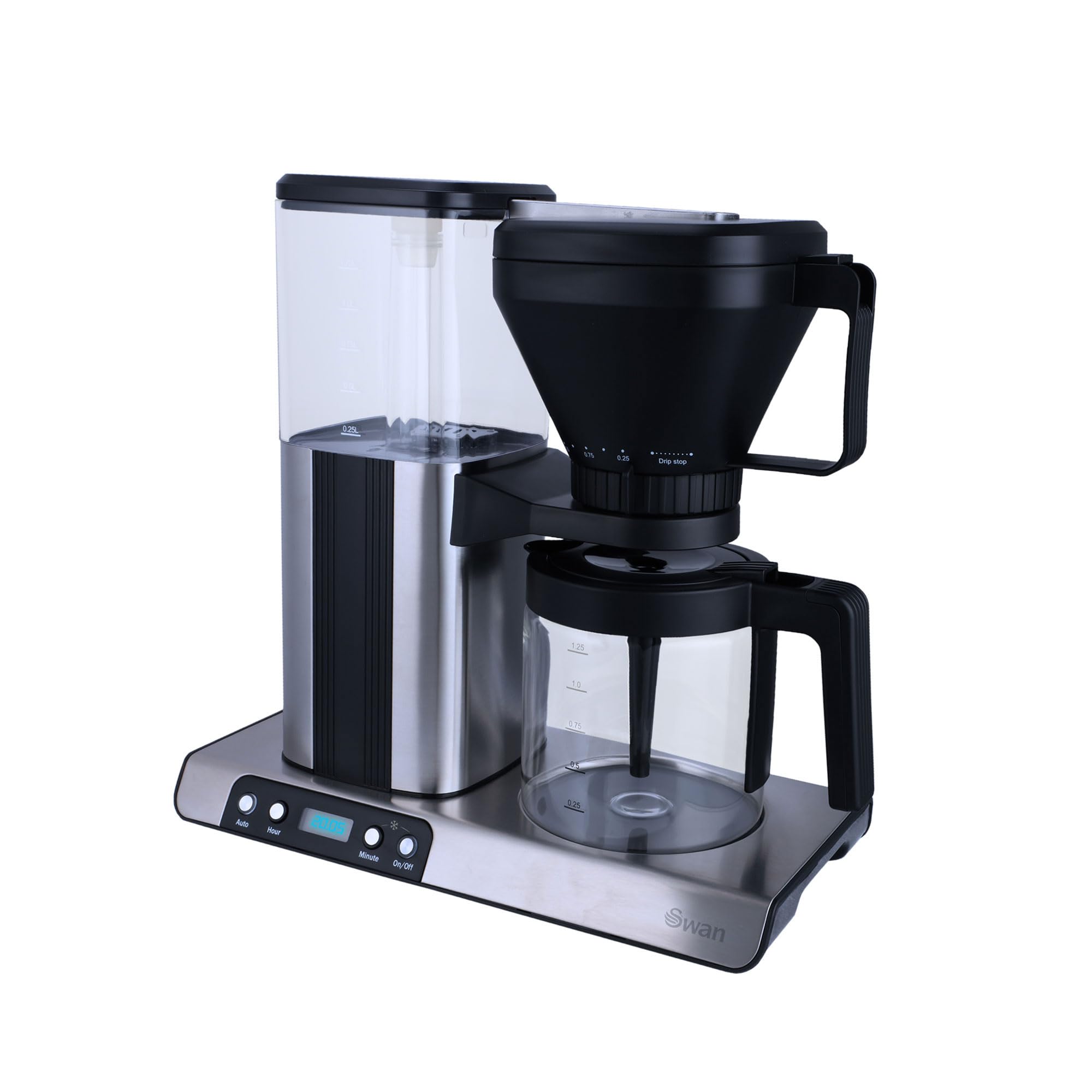

Image: The Swan SCM8B coffee maker, showing the water tank, filter funnel, glass carafe, and control panel.

• Tangki Air (kapasiti 1.25L)
• Penunjuk Aras Air
• Upwards Removable Funnel with Strength Adjustment
• Filter Basket (reusable)
• Glass Carafe (high-temperature, dishwasher safe)
• Plat Pemanas
• Digital Control Panel with LCD Display
• On/Off Power Indicator Light
• Kord Kuasa dan Palam

Imej: A terperinci view of the coffee maker's base, highlighting the digital control panel and the Swan logo.

Persediaan

1. Membongkar: Carefully remove all packaging materials and components. Retain packaging for future transport or storage.
2. Pembersihan Awal: Before first use, wash the glass carafe, funnel, and reusable filter basket in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the coffee maker with a damp kain.
3. Kitaran Brew Pertama (Pembersihan):
   • Fill the water tank with clean water up to the MAX level (1.25L).
   • Place the empty funnel and filter basket into position.
   • Letakkan bekas kaca kosong di atas plat pemanas.
   • Pasangkan pembuat kopi ke soket elektrik yang dibumikan.
   • Press the On/Off button to start a brewing cycle without coffee grounds.
   • Allow the cycle to complete, then discard the water from the carafe. This cleans the internal system.

Arahan Operasi

Pembuatan Kopi Titisan

1. Isi Tangki Air: Open the water tank lid and fill with fresh, cold water up to the desired level, indicated by the water level indicator. Do not exceed the MAX line (1.25L).
2. Tambah serbuk kopi: Place the reusable filter basket into the funnel. Add the desired amount of ground coffee into the filter. A general guideline is one tablespoon of coffee per cup (150ml). Adjust according to personal preference.
3. Laraskan Kekuatan Kopi: Use the strength adjustment function on the funnel to select your preferred coffee strength. Rotate the ring to the desired setting.
4. Kedudukan Botol: Pastikan bekas kaca diletakkan dengan betul pada plat pemanas.
5. Mulakan Pembuatan Bir: Plug in the appliance. Press the On/Off button. The indicator light will illuminate, and the brewing process will begin.
6. Fungsi Anti Titisan: Fungsi anti-titisan 30 saat membolehkan anda menanggalkan karafe sementara semasa membancuh untuk menuang cawan. Gantikan karafe dalam masa 30 saat untuk mengelakkan limpahan.
7. Tetap Hangat: After brewing, the coffee maker will automatically switch to a 40-minute keep warm function. The heating plate will keep the coffee warm. After 40 minutes, the appliance will automatically shut off for safety.

Brewing Ice Coffee (Cold Brew Style)

This feature allows for a concentrated brew suitable for ice coffee. Follow the drip coffee steps with specific adjustments:

1. Prepare Water and Coffee: Fill the water tank with the desired amount of cold water. Use a higher ratio of coffee grounds than for hot drip coffee to create a concentrate.
2. Add Ice to Carafe: Fill the glass carafe with ice cubes before starting the brew cycle. This will rapidly cool the hot concentrate as it drips.
3. brew: Start the brewing process as you would for drip coffee. The hot water will extract the coffee, which will then drip onto the ice, creating an instant cold brew.
4. Hidangkan: Once brewing is complete, remove the carafe and serve over additional ice if desired.

Setting the 24-Hour Timer

The digital control panel allows you to program the coffee maker to start brewing at a specific time.

1. Sediakan Pembuat Kopi: Follow steps 1-3 for brewing drip coffee (fill water, add grounds, adjust strength).
2. Tetapkan Masa Semasa: Press the "Hour" button to set the current hour. Press the "Minute" button to set the current minute. The LCD display will show the time.
3. Set Programmed Time: Press the "Auto" button. The display will flash. Use the "Hour" and "Minute" buttons to set the desired start time for brewing.
4. Aktifkan Pemasa: Press the "Auto" button again to confirm the programmed time. The "Auto" indicator light will illuminate, indicating the timer is active.
5. Pembuat kopi akan mula membancuh secara automatik pada masa yang ditetapkan.

Pembersihan dan Penyelenggaraan

Pembersihan tetap memastikan prestasi optimum dan memanjangkan hayat pembuat kopi anda.

1. Sentiasa Cabut plag: Before cleaning, always unplug the coffee maker from the power outlet and allow it to cool completely.
2. Carafe, Funnel, Filter: Remove the glass carafe, funnel, and reusable filter basket. Wash them in warm, soapy water. The glass carafe is dishwasher safe. Rinse thoroughly and dry.
3. Luaran: Lap permukaan luar pembuat kopi dengan lembut, damp kain. Jangan gunakan pembersih yang kasar atau pad penggosok. Jangan sekali-kali merendam unit utama di dalam air atau sebarang cecair lain.
4. Plat Pemanas: Lap plat pemanas dengan iklanamp cloth. Do not use abrasive materials that could scratch the surface.
5. Mengurangkan: Mineral deposits from water can build up over time and affect performance. Descale your coffee maker every 2-4 weeks, depending on water hardness and usage.
   • Fill the water tank with a mixture of white vinegar and water (1:2 ratio).
   • Letakkan bekas kosong di atas plat pemanas.
   • Run a full brew cycle.
   • After the cycle, let the solution sit in the carafe for 15 minutes, then discard.
   • Run 2-3 cycles with clean water to rinse thoroughly and remove any vinegar taste.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

This Swan SCM8B Host Drip and Cold Brew Coffee Maker comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Swan customer service. Contact information can typically be found on the manufacturer's webtapak atau pada pembungkusan produk.

Please have your model number (SCM8B) and proof of purchase ready when contacting support.
