EMANER Smart Security Light Motion Sensor (Model EMR-8030) User Manual

1. Pengenalan

Thank you for choosing the EMANER Smart Security Light Motion Sensor. This device combines advanced motion detection with smart control features, offering adjustable brightness, color temperature, and seamless integration with smart home systems like Alexa and Google Home. This manual provides detailed instructions for safe installation, configuration, and operation of your new security light.

Two EMANER Smart Security Lights with a smartphone displaying the control app and various smart home devices like Amazon Echo and Google Home.

Image 1.1: EMANER Smart Security Lights with smart home integration.

2. Maklumat Keselamatan

WARNING: Risk of electric shock. Installation should be performed by a qualified electrician or a person with electrical knowledge. Disconnect power at the fuse box or circuit breaker before installation or servicing.

Pastikan bekalan kuasa dimatikan sebelum pemasangan.
Follow all local electrical codes and ordinances.
Jangan cuba mengubah suai produk.
Jauhkan produk daripada bahan mudah terbakar.
This product is designed for outdoor use and is water-resistant. However, do not submerge it in water.

3. Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

EMANER Smart Security Light (2 units for 2-Pack)
Perkakasan Pemasangan (skru, nat dawai, plat pemasangan)
Manual Arahan (dokumen ini)

4. Spesifikasi

Ciri	Perincian
Jenama	EMANER
Nama Model	EMR-8030
Output Cahaya	2800 Lumen (Maks)
Suhu Warna	2700K-6500K (Tunable)
Boleh dimalapkan	1% to 100% via App
Sumber Kuasa	Elektrik Bertali arus (120 Volt)
Ketersambungan	Wi-Fi 2.4GHz
Kaedah Kawalan	App (Smart Life/Tuya Smart), Voice (Alexa, Google Assistant)
Julat Penderia Pergerakan	Sehingga 26 kaki (boleh laras)
Tempoh Cahaya	5 seconds to 60 minutes (adjustable)
bahan	plastik
Dimensi	12"L x 6.7"W x 6"H
Tahan Air	Water Resistant (Weatherproof)

Diagram showing the dimensions and rotatable heads of the EMANER Smart Security Light.

Imej 4.1: Dimensi produk dan kepala lampu boleh laras.

5. Persediaan

5.1. Pemasangan

Matikan Kuasa: Before starting, ensure the power to the junction box is turned off at the circuit breaker.
Sediakan Pemasangan: Attach the mounting plate to your outdoor junction box using the provided screws.
Sambungan Wayar: Connect the light's wires to your household wiring:
- Black wire (Live) to Black wire (Live)
- Wayar putih (Neutral) ke Wayar putih (Neutral)
- Wayar kuprum Hijau/Kosong (Ground) ke Wayar kuprum Hijau/Kosong (Ground)
Kencangkan sambungan dengan nat dawai.
Lekapan Lekapan: Carefully tuck the wires into the junction box and secure the light fixture to the mounting plate.
Laraskan Kepala Cahaya: The three light heads and the motion sensor are rotatable. Adjust them to cover your desired area.
Pulihkan Kuasa: Hidupkan semula kuasa pada pemutus litar.

5.2. App Connection (Smart Life / Tuya Smart)

The EMANER Smart Security Light connects via 2.4GHz Wi-Fi to the Smart Life or Tuya Smart app.

Muat turun Aplikasi: Muat turun aplikasi "Smart Life" atau "Tuya Smart" daripada gedung aplikasi telefon pintar anda (iOS atau Android).
Daftar/Log Masuk: Buka aplikasi dan daftar untuk akaun baharu atau log masuk jika anda sudah memilikinya.
Tambah Peranti:
- Pastikan telefon anda disambungkan ke rangkaian Wi-Fi 2.4GHz.
- Dalam aplikasi, ketik ikon "+" di penjuru kanan sebelah atas untuk menambah peranti.
- Select "Lighting" or "Security & Sensor" and then "Light Source (Wi-Fi)" or "Floodlight (Wi-Fi)".
- Follow the in-app instructions to put the light into pairing mode. This usually involves turning the light off and on a few times until it blinks rapidly.
- Masukkan kata laluan rangkaian Wi-Fi anda apabila digesa.
- Wait for the app to discover and connect to the device. Once connected, you can rename the light.

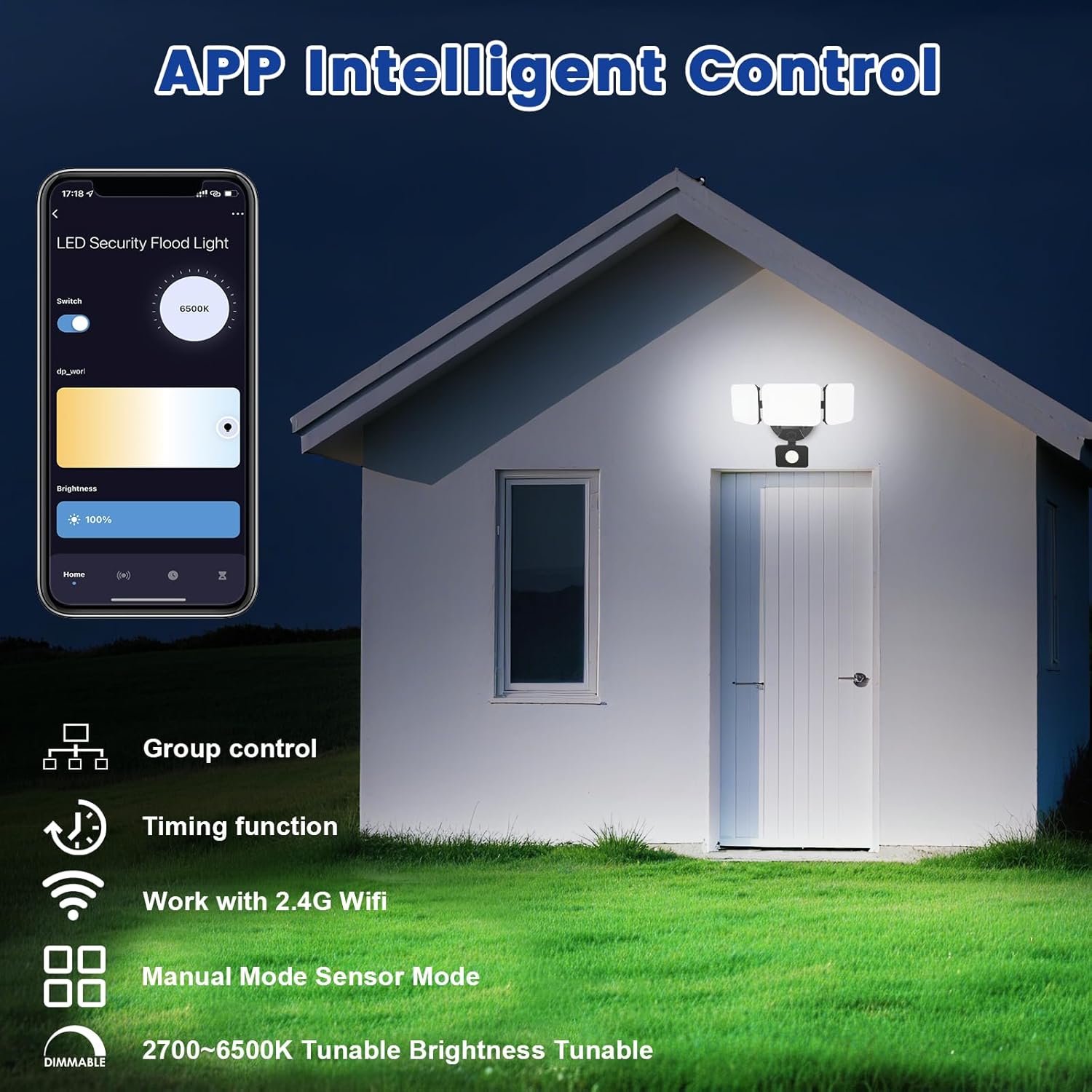

Smartphone screen showing the Smart Life app interface for controlling the LED Security Flood Light, with options for brightness, color temperature, and mode selection.

Image 5.1: App interface for intelligent control.

6. Arahan Operasi

6.1. Kawalan Apl

Once connected, use the Smart Life/Tuya Smart app to control your security light:

Pelarasan Kecerahan: Laraskan keamatan cahaya dari 1% hingga 100%.
Image 6.1: Stepless dimming from 1% to 100% brightness.
Pelarasan Suhu Warna: Change the light color from warm white (2700K) to daylight white (6500K).
Image 6.2: Tunable white from 2700K (Warm) to 6500K (Daylight).
Mod Pengendalian:
- Mod Manual: Functions as a regular light. You can set it to turn on/off at specific times and adjust brightness/color temperature.
- Mod Sensor: Activates the motion sensor. Customize sensor settings like sensitivity and light duration.
  Image 6.3: Sensor Mode operation, detecting motion and adjusting brightness.
Tetapan Penderia Gerakan: Adjust the detection range (up to 26ft) and the duration the light stays on after motion is detected (5 seconds to 60 minutes).
Image 6.4: Adjustable full light duration time.
Penjadualan: Set schedules for the light to turn on or off at specific times.
Image 6.5: Time scheduling and delay settings.
Kawalan Kumpulan: Group multiple EMANER smart lights together for simultaneous control.

6.2. Voice Control (Alexa / Google Assistant)

Integrate your EMANER Smart Security Light with Amazon Alexa or Google Assistant for convenient voice commands.

Pautkan Akaun: Dalam aplikasi Alexa atau Google Home, dayakan kemahiran/perkhidmatan "Smart Life" atau "Tuya Smart" dan pautkan akaun anda.
Cari Peranti: Ask Alexa or Google Assistant to "Discover devices."
Perintah Suara: Gunakan arahan seperti:
- "Alexa, turn on the security light."
- "Hey Google, set the security light to 50% brightness."
- "Alexa, change the security light to warm white."

A person using voice commands with an Amazon Echo device to control the EMANER Smart Security Light, which is shown illuminating a garage area.

Imej 6.6: Integrasi kawalan suara dengan Alexa dan Google Assistant.

7. Penyelenggaraan

Pembersihan: Periodically clean the light fixture with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
Pemeriksaan: Regularly check for any loose wiring or damage to the fixture.
Kemas kini Firmware: Keep the Smart Life/Tuya Smart app updated to ensure your device receives the latest firmware for optimal performance and security.

8. Penyelesaian masalah

Masalah	Kemungkinan Punca	Penyelesaian
Cahaya tidak menyala.	Tiada bekalan elektrik, pendawaian longgar, lekapan rosak.	Check circuit breaker. Ensure all wiring connections are secure. Contact support if issue persists.
Tidak dapat menyambung ke Wi-Fi.	Incorrect Wi-Fi band (not 2.4GHz), wrong password, light not in pairing mode, weak signal.	Ensure your router is broadcasting 2.4GHz Wi-Fi. Verify password. Put light into pairing mode (turn off/on several times). Move router closer or use a Wi-Fi extender.
Penderia gerakan tidak berfungsi atau terlalu sensitif.	Incorrect settings in app, obstruction, environmental factors.	Adjust sensitivity and detection range in the Smart Life/Tuya Smart app. Ensure sensor is not obstructed. Avoid aiming at heat sources or reflective surfaces.
Kawalan suara tidak bertindak balas.	App account not linked, device not discovered, incorrect commands.	Ensure Smart Life/Tuya Smart skill is enabled and linked in Alexa/Google Home app. Ask to "Discover devices." Use correct voice commands.

9. Waranti dan Sokongan

EMANER provides a Lifetime Warranty for this product, ensuring quality and customer satisfaction. For technical support, warranty claims, or any questions regarding your EMANER Smart Security Light, please contact EMANER customer service through the retailer's platform or visit the official EMANER webtapak untuk maklumat hubungan.

Sumber Dalam Talian:

For app-related issues, refer to the help section within the Smart Life or Tuya Smart application.
Lawati EMANER Store on Amazon untuk maklumat dan sokongan produk.
