Qulokar Q5302 Single DIN Multimedia Car Stereo Radio User Manual

Produk Selesaiview

The Qulokar Q5302 is a single DIN multimedia car stereo receiver designed to enhance your in-car audio experience. It features Bluetooth connectivity for hands-free calling and music streaming, USB playback, AUX input, and an AM/FM radio receiver. The unit also includes a wireless remote control for convenient operation.

Image: Qulokar Q5302 Single DIN Car Stereo Radio with its included wireless remote control, showcasing the main unit's front panel and the remote's buttons.

Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej sebelum meneruskan pemasangan.

Image: Diagram illustrating the contents of the Qulokar Q5302 package, including the car stereo, power cable, speaker cable, iron sheet, remote control, and user manual.

• 1 x Car Stereo (Qulokar Q5302)
• 1 x Kabel Kuasa
• 1 x Kabel Pembesar Suara
• 1 x Iron Sheet (Mounting Hardware)
• 1 x Kawalan Jauh Wayarles
• 1 x Manual Pengguna
• 2 x Keys for installation/removal

Pemasangan

Pemasangan yang betul adalah penting untuk prestasi optimum. Jika anda tidak pasti tentang sebarang langkah, rujuk pemasang profesional.

Image: Visual guide showing six steps for installing the Qulokar Q5302 car stereo into a vehicle's dashboard.

1. Penyediaan: Use the provided keys to pry open the left and right side locks of the existing car stereo slot.
2. Separate Unit and Frame: The main unit and the metal frame should be separated.
3. Insert Metal Frame: Insert the metal frame into the car radio mounting window in your vehicle's dashboard.
4. Sambungan Pendawaian: Connect the power cable and horn cable to the original car's wiring harness as defined. Then, plug it into the machine to test whether it works.
5. Masukkan Unit: After confirming that the machine is operational, insert the main unit into the metal frame.
6. Unit Selamat: Push in the main unit and let the machine snap into the metal frame, securing it in place.

Rajah Pendawaian: Refer to the wiring diagram provided in the physical user manual for detailed connections of the power and speaker cables. Ensure correct polarity and secure connections to prevent damage.

Operasi

Kawalan Asas

The front panel of the Qulokar Q5302 features a rotary volume knob, mode button, band button, and various playback controls. The LCD display shows real-time usage data and status.

Image: Close-up of the Qulokar Q5302's multi-color LCD display and rotary button, highlighting the 7 available backlight colors.

• Butang Kuasa / Mod: Press to turn the unit on/off. Short press to cycle through input modes (FM, Bluetooth, USB, AUX).
• Tombol Kelantangan: Rotate to adjust volume. Press and hold to access color settings for the physical buttons (C-Mode 1 for solid light, C-Mode 2 for chaser lights).
• Butang Jalur: In FM mode, short press to switch between FM bands. Long press to answer calls via Bluetooth.
• Kawalan Main Semula: Use the forward/backward buttons to navigate tracks or radio stations.
• Butang EQ: Adjust equalizer settings for customized sound.

Bluetooth Pairing & Hands-free Calling

The Qulokar Q5302 features Bluetooth 5.3 for fast pairing and stable connection.

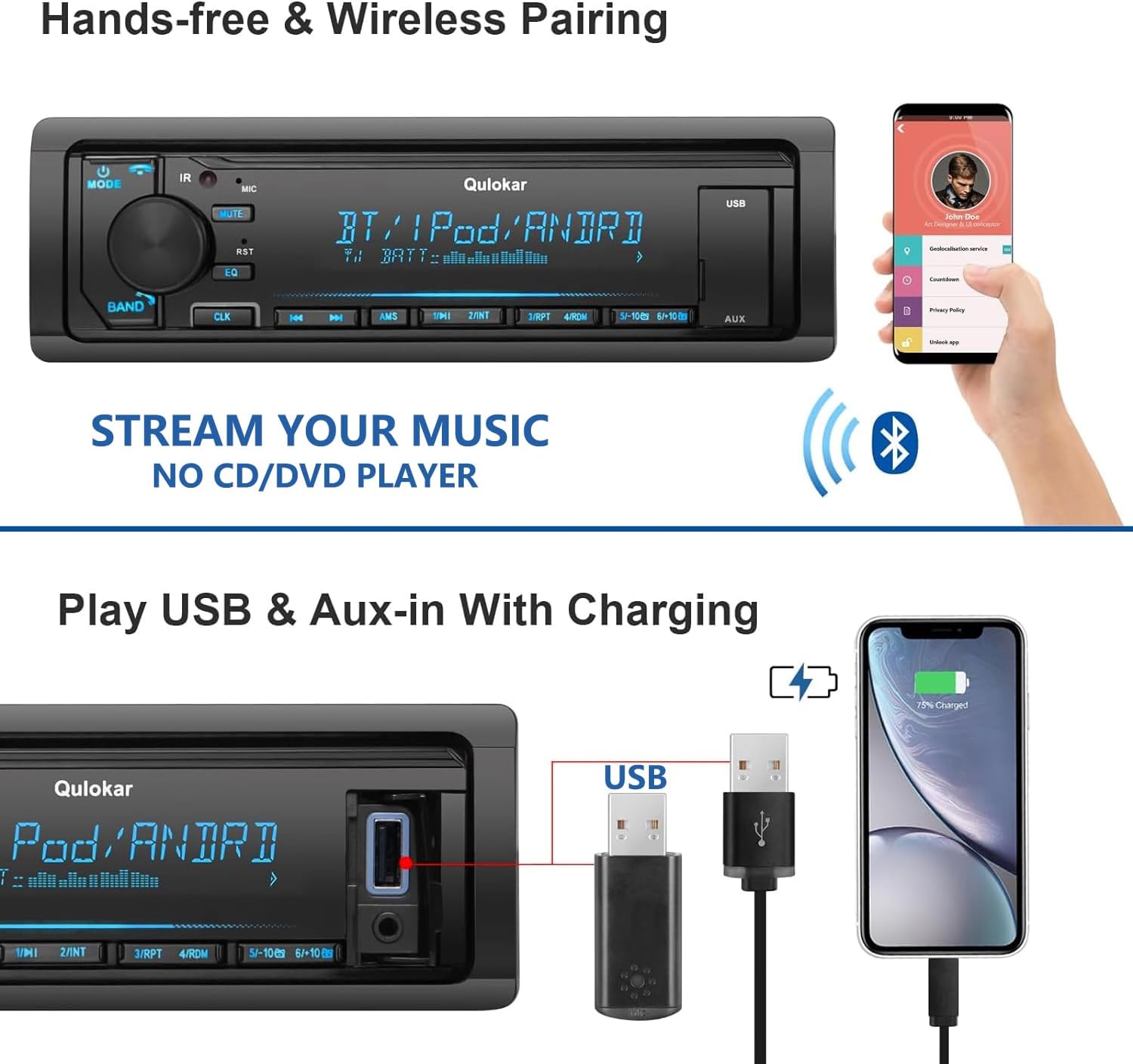

Image: Illustration demonstrating hands-free and wireless pairing capabilities of the Qulokar Q5302, showing a phone connected via Bluetooth to the car stereo.

1. Pastikan Bluetooth didayakan pada peranti mudah alih anda.
2. Select Bluetooth mode on the car stereo (usually by pressing the MODE button).
3. On your phone, search for available Bluetooth devices and select "Qulokar Q5302" (or similar name).
4. Once paired, you can stream music and make/receive calls hands-free.
5. The built-in microphone ensures clear sound quality during calls.

Radio FM

Enjoy a wide range of radio stations with the built-in FM tuner (Frequency: 87.5-107.9MHz).

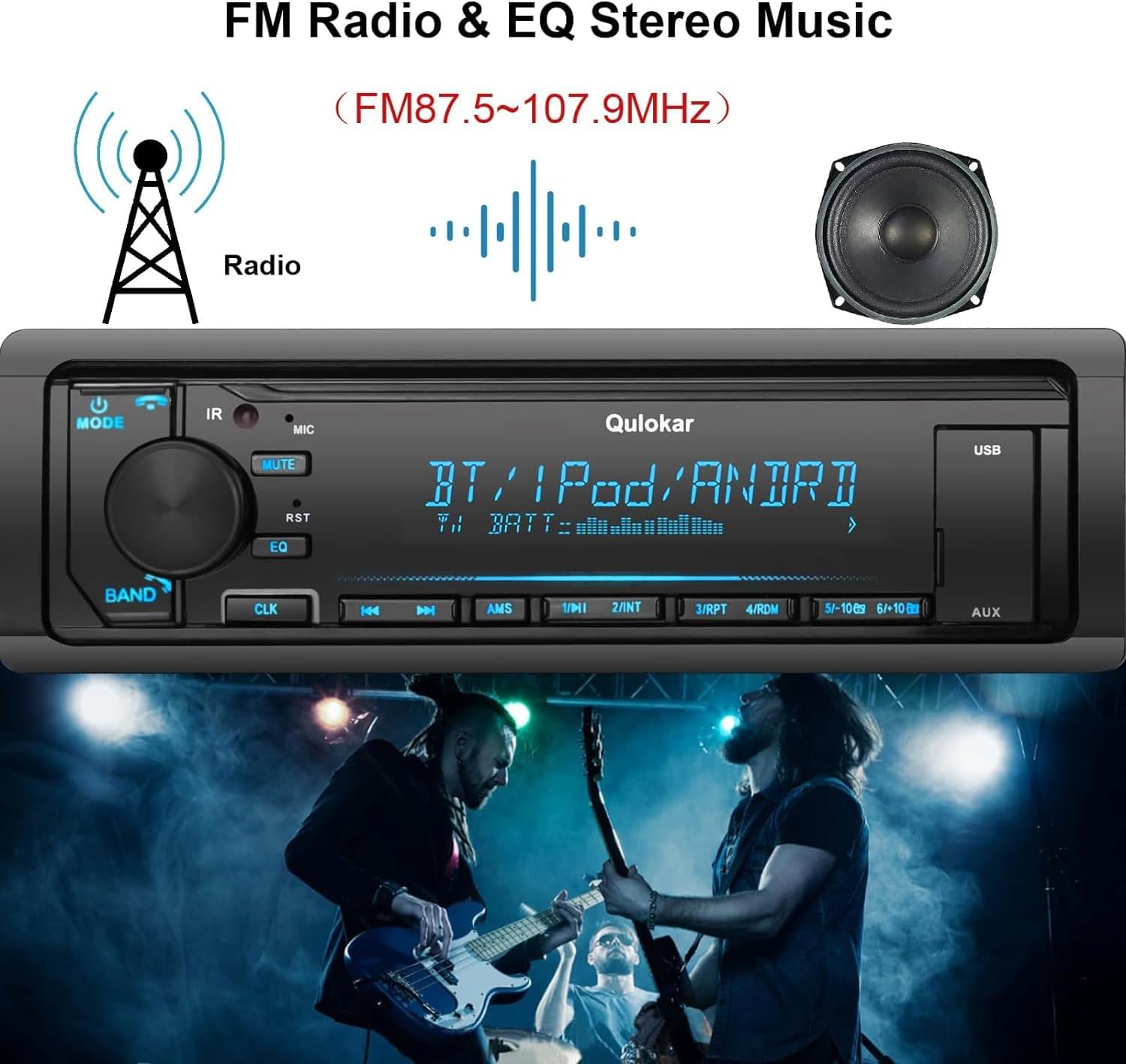

Image: Depiction of the Qulokar Q5302's FM radio functionality, showing radio waves and a speaker icon, with the stereo unit in a concert setting.

• Press the MODE button to select FM radio mode.
• Use the forward/backward buttons to tune to stations.
• The unit supports 18 preset radio stations and a station storage function.

USB Playback & AUX Input

Connect external devices for audio playback and charging.

Image: The Qulokar Q5302 car stereo unit overlaid on an image of people enjoying music in a car, emphasizing immersive stereo sound.

• Main balik USB: Masukkan pemacu USB ke dalam port USB untuk memainkan audio files. The unit supports MP3/WAV/WMA music formats.
• Input AUX: Connect an external audio device (e.g., MP3 player, smartphone) to the 3.5mm AUX input jack using an audio cable.
• Pengecasan Telefon: The USB port can also be used to charge your phone.

Menyelesaikan masalah

Isu biasa dan penyelesaiannya.

• Bluetooth cannot connect:

  Delete your phone's Bluetooth record for the device and re-match the connection. Ensure the stereo is in Bluetooth mode.
• Machine is stuck/unresponsive:

  Poke the RST (Reset) hole with a needle for more than three seconds. This function will restore your machine to factory settings. Please save any important data before performing a reset.

• Device always on:

  Ensure the red wire of the wiring harness is connected to your ACC (car keyhole) to ensure the machine turns off when your car is turned off.

• Cannot turn on the power:

  Check the wiring. The red wire needs to be connected to your ACC (car keyhole). The yellow wire should be connected to the positive pole of the battery, and the black wire to the negative pole of the battery. Each wire must be connected correctly for normal product use.
• No AM Radio:

  This model (Q5302) features an FM radio tuner only and does not support AM radio bands.

Spesifikasi

Waranti dan Sokongan

Qulokar is committed to customer satisfaction. The Qulokar Q5302 comes with a Waranti 24 bulan and lifetime support.

If you encounter any issues with your car stereo, or if it does not fit your car or function as expected, please contact Qulokar directly for assistance. They are available to provide after-sales service and are dedicated to resolving your problems. If a problem cannot be resolved, a replacement or full refund may be provided.

For support, please visit the official Qulokar Store on Amazon or refer to the contact information provided in your physical user manual.
