PROUS Ceramic Heater XD-2001H User Manual

1. Pengenalan

Terima kasih kerana membeliasing the PROUS Ceramic Heater Model XD-2001H. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new heater. Please read this manual thoroughly before use and retain it for future reference.

2. Arahan Keselamatan Penting

Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan, sentiasa patuhi langkah berjaga-jaga keselamatan asas semasa menggunakan perkakas ini.

• V-0 Flame Retardant Material: The entire body of this heater is constructed with V-0 grade flame-retardant material to prevent fire hazards.
• Perlindungan Terlalu Panas: Equipped with a built-in advanced overheat protection sensor. The heater will automatically shut down if it detects overheating.
• Tip-Over Auto-Off: An intelligent tip-over switch automatically turns off the heater if it is accidentally knocked over.
• Mati Automatik 24 Jam: For enhanced safety, the heater will automatically turn off after 24 hours of continuous operation without user input.
• Do not cover the heater or block air inlets/outlets.
• Keep flammable materials at least 3 feet (0.9 meters) away from the heater.
• Jangan gunakan dalam keadaan basah atau damp lokasi, seperti bilik mandi atau kawasan dobi.
• Sentiasa cabut plag pemanas apabila tidak digunakan atau sebelum dibersihkan.
• Pastikan kord kuasa tidak rosak atau diletakkan di bawah permaidani atau perabot.

Image: Illustration of the heater's safety features, including automatic shut-off when tipped over and the use of V-0 grade flame-retardant materials.

3. Produk Lebihview

The PROUS XD-2001H is a portable ceramic fan heater designed for efficient and safe heating. It features adjustable height, multiple heating modes, and convenient remote control operation.

Ciri-ciri Utama:

• Tinggi boleh laras: Unique 3-stage height adjustment (64cm, 75cm, 85cm) to direct warmth precisely where needed.
• Pemanasan Cepat: Powerful PTC ceramic heating element with U-shaped corrugated fins provides rapid heating within 2 seconds.
• Pelbagai Mod: Offers 4 modes: High (1250W), Low (910W), ECO, and Fan Only (3.5W).
• Termostat Pintar: ECO mode with a precise temperature sensor allows adjustment from 16°C to 32°C in 1°C increments.
• Fungsi Pemasa: 1 to 12-hour ON/OFF timer for scheduled operation.
• Operasi senyap: Beroperasi pada tahap hingar rendah 40dB, memastikan persekitaran yang damai.
• Kawalan Jauh: Full-function infrared remote control with a range of 3.5 meters.
• Kunci Kanak-kanak: Menghalang perubahan tidak sengaja pada tetapan.

Image: The PROUS Ceramic Heater XD-2001H and its accompanying remote control.

Imej: Selesaiview of the heater's dimensions (14cm width, 26cm base, 64-84.8cm height) and a summary of its key features.

4. Persediaan

1. Membongkar: Tanggalkan pemanas dari pembungkusannya dengan berhati-hati. Simpan pembungkusan untuk penyimpanan jika perlu.
2. penempatan: Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater to allow for proper airflow and prevent fire hazards.
3. Sambungan Kuasa: Pasangkan kord kuasa ke soket elektrik standard. Pastikan volum sokettage matches the heater's requirements (refer to specifications).
4. Pelarasan Ketinggian: The heater's height can be adjusted to 64cm, 75cm, or 85cm. Gently pull or push the main body along the stand to select the desired height. Ensure it clicks securely into place.

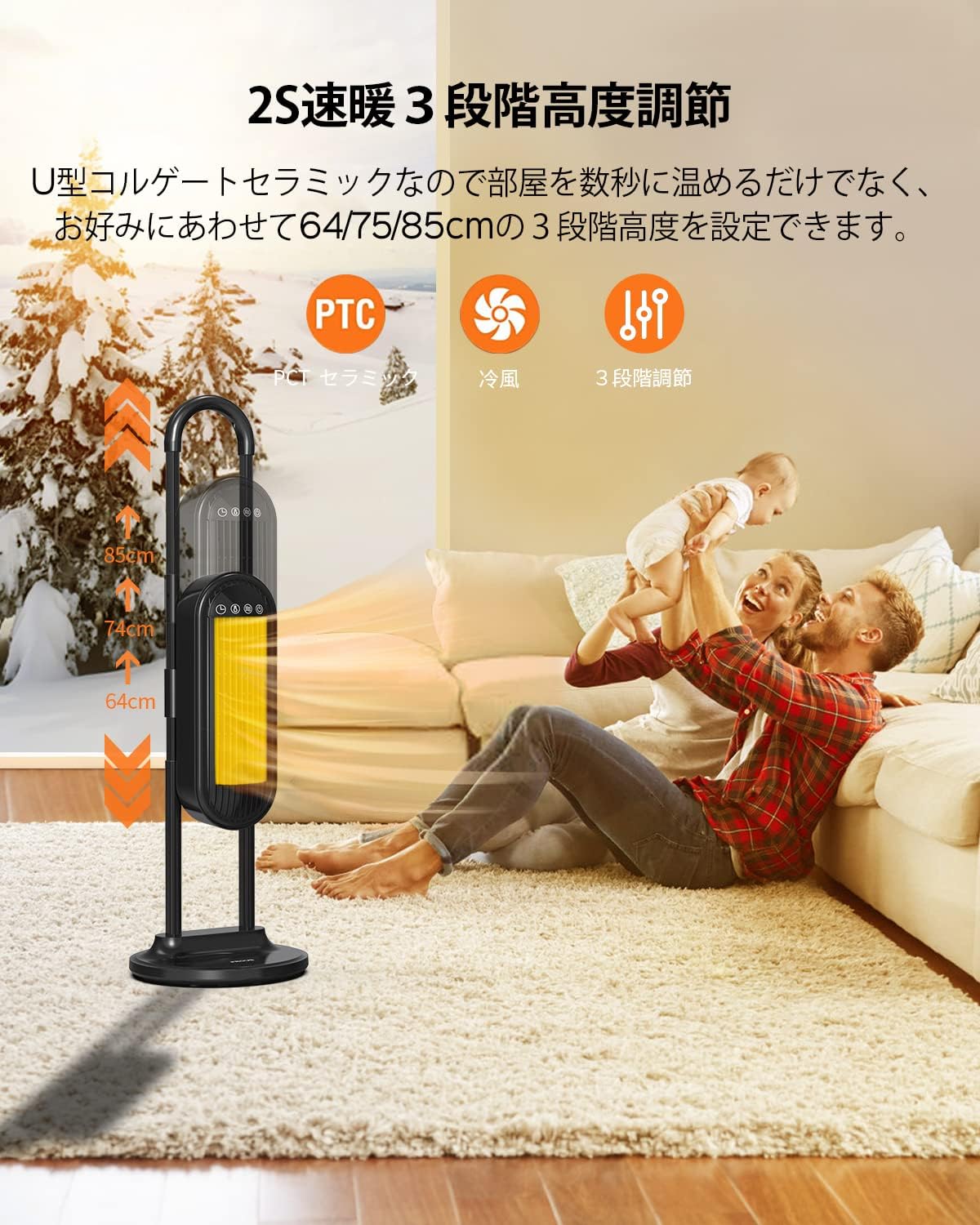

Image: The heater demonstrating its 3-stage height adjustment capability (64cm, 75cm, 85cm) for targeted heating.

5. Arahan Operasi

Hidupkan/Mati Kuasa:

• Press the Power button on the control panel or remote control to turn the heater ON or OFF.

Pemilihan Mod:

• Press the 'Mode' button to cycle through the available heating modes: High (1250W), Low (910W), ECO, and Fan Only (3.5W).

Temperature Adjustment (ECO Mode):

• In ECO mode, use the '+' and '-' buttons on the control panel or remote to set the desired temperature between 16°C and 32°C. The heater will automatically adjust its operation to maintain the set temperature.

Fungsi Pemasa:

• Press the 'Timer' button to set an automatic shut-off time from 1 to 12 hours. Each press increases the timer by one hour.
• The timer can also be used to schedule an automatic power-on. In standby mode, set the desired ON time (1-12 hours).

Kunci Kanak-kanak:

• Activate the child lock function via the remote control to prevent unintended operation.

Image: The heater operating in a bedroom, illustrating its quiet operation (40dB) and the 1-12 hour timer function.

6. Mod dan Tetapan

• High Heat Mode (1250W): Provides maximum heating power for rapid warming of larger spaces.
• Low Heat Mode (910W): Offers moderate heating for smaller rooms or maintaining warmth.
• Mod ECO: An energy-saving mode that uses a built-in temperature sensor to maintain a set temperature (16-32°C). The heater will cycle on and off to conserve energy while keeping the room comfortable.
• Fan Only Mode (3.5W): Circulates air without heat, suitable for use as a personal fan.

Image: The heater displaying its ECO mode, allowing precise temperature control between 16°C and 32°C.

Image: A diagram illustrating the stable temperature regulation of the PROUS ECO mode compared to other less consistent ECO modes.

7. Alat Kawalan Jauh

The included infrared remote control allows convenient operation of all heater functions from up to 3.5 meters away. Functions include:

• Kuasa HIDUP/MATI
• Mode Selection (High, Low, ECO, Fan Only)
• Temperature Adjustment (+/-)
• Tetapan Pemasa
• Pengaktifan Kunci Kanak-kanak
• Paparan ON / OFF
• Mute (Panel Buzzer)

Ensure the remote control has working batteries (Lithium battery included) and is pointed towards the heater's display panel for optimal response.

8. Penyelenggaraan

Pembersihan yang kerap dan penyimpanan yang betul akan memastikan jangka hayat dan operasi pemanas anda yang cekap.

1. Pembersihan:
   • Sebelum membersihkan, matikan pemanas dan cabut plag dari salur keluar kuasa.
   • Benarkan unit sejuk sepenuhnya.
   • Wipe the exterior of the heater with a clean, dry cloth to remove dust.
   • Remove the dust filter located on the back of the appliance. Clean the filter using a brush to remove accumulated dust.
2. Storan:
   • If the heater will not be used for an extended period, clean it thoroughly.
   • Place the heater in its original box or a plastic bag to prevent dust accumulation.
   • Store in a dry place, away from direct sunlight and excessive humidity.

9. Penyelesaian masalah

If you experience issues with your PROUS Ceramic Heater, please refer to the following common solutions:

• Pemanas tidak menyala:
  • Pastikan kord kuasa dipasang dengan selamat ke soket yang berfungsi.
  • Check if the main power switch (if any) is in the ON position.
  • Verify that the tip-over switch is not activated (heater is upright on a flat surface).
  • Periksa pemutus litar tersandung atau fius terputus.
• Tiada haba yang dikeluarkan:
  • Ensure a heating mode (High, Low, ECO) is selected, not just Fan Only mode.
  • In ECO mode, check the set temperature. If the room temperature is above the set temperature, the heater will not activate.
• Pemanas mati secara tiba-tiba:
  • The overheat protection may have been activated. Unplug the heater, allow it to cool for 30 minutes, and ensure air inlets/outlets are not blocked.
  • The tip-over protection may have been activated. Ensure the heater is on a stable, flat surface.
  • The 24-hour auto-off safety feature may have engaged. Simply turn the heater back on.
• Alat kawalan jauh tidak berfungsi:
  • Periksa dan gantikan bateri alat kawalan jauh jika perlu.
  • Pastikan tiada halangan antara alat kawalan jauh dan sensor pemanas.

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

10. Spesifikasi

11. Waranti dan Sokongan

PROUS provides a Waranti 12 bulan for products purchased from our store. If you encounter any issues during product use, or if you receive a product different from your order, or if there are initial defects or malfunctions, please contact us immediately.

We offer exchanges for the same product or a refund. When contacting us, please provide your product name and order number.

E-mel Sokongan Pelanggan: prousjp@gmail.com
