ANDELI MIG-270P PRO 220V Multi-Process Welder Instruction Manual

1. Pengenalan

This manual provides essential information for the safe and effective operation, setup, and maintenance of your ANDELI MIG-270P PRO 220V Multi-Process Welder. This versatile inverter welding machine supports MIG (CO2/MIX/FLUX), Lift TIG, Pulse MIG, and MMA welding functions. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.

2. Arahan Keselamatan

Sentiasa utamakan keselamatan semasa mengendalikan peralatan kimpalan. Kegagalan mematuhi arahan ini boleh mengakibatkan kecederaan serius atau kematian.

• Kejutan elektrik: Welding current can cause fatal electric shock. Ensure proper grounding, wear dry gloves, and do not touch live electrical parts.
• Asap dan Gas: Welding produces fumes and gases that can be hazardous to health. Work in a well-ventilated area or use a fume extractor.
• Sinar Arka: Sinar arka boleh membakar mata dan kulit. Sentiasa pakai topi keledar kimpalan dengan kanta pelindung yang sesuai dan pakaian pelindung.
• Kebakaran dan Letupan: Percikan api kimpalan dan logam panas boleh menyebabkan kebakaran. Jauhkan bahan mudah terbakar dari kawasan kimpalan. Sediakan alat pemadam api yang sedia ada.
• Bahagian Panas: Welded materials and equipment can remain hot for a long time. Use insulated gloves and allow parts to cool before handling.
• bunyi bising: Excessive noise can damage hearing. Wear ear protection if necessary.
• Perentak jantung: Magnetic fields from high currents can affect pacemakers. Consult your doctor before welding.

3. Ciri-ciri Produk

The ANDELI MIG-270P PRO is designed with advanced features for optimal welding performance and user convenience:

• Multi-Process Welding: Capable of MIG (CO2/MIX/FLUX), Lift TIG, Pulse MIG, and MMA welding, offering versatility for various applications.
• Paparan LCD Intuitif: Features an easy-to-access menu for precise welding results. Users can conveniently select welding mode, material type, welding wire, tungsten rods, electrodes, and workpiece thickness by rotating and pressing the control knobs. All parameters are clearly displayed.
• Kawalan Sinergik: Designed with intuitive synergic control, including wire feed speed adjustment, allowing for consistent and excellent welds. Suitable for beginners.
• Teknologi Inverter IGBT Lanjutan: Utilizes efficient and reliable IGBT inverter technology, providing stable output current and increased duty cycle for demanding welding tasks.
• Perlindungan Keselamatan: Includes automatic safety protection against overheating and overcurrent, enhancing operational safety and equipment longevity.
• Diperakui CE: Ensures compliance with European safety standards.

4. Produk Lebihview

Familiarize yourself with the main components and dimensions of your ANDELI MIG-270P PRO welder.

Rajah 4.1: Depan dan sisi view of the ANDELI MIG-270P PRO welder, showing overall dimensions (495mm length, 210mm width, 330mm height) and a weight of 12.1KG.

Rajah 4.2: Close-up of the welder's front panel, highlighting the LCD screen, left (L-KNOB) and right (R-KNOB) control knobs, and various connection ports for welding accessories.

5. Persediaan

Before operating the welder, ensure proper setup to guarantee safety and optimal performance.

5.1 Sambungan Kuasa

• Ensure the welder is connected to a 220V AC power supply within the specified voltage tolerance (AC 220V ± 15%).
• Gunakan salur keluar kuasa khusus dengan pembumian yang betul.
• Verify that the power cable is free from damage before plugging it in.

5.2 Gas Connection (for MIG welding with gas)

• Connect the gas hose from your shielding gas cylinder (CO2 or Argon/CO2 mix) to the gas inlet on the rear of the welder.
• Pastikan semua sambungan ketat untuk mengelakkan kebocoran gas.
• Adjust the gas flow rate using the regulator on the gas cylinder.

5.3 Welding Accessory Connection

• Obor MIG: Connect the MIG torch to the designated connector on the front panel. Ensure the wire feed mechanism is correctly loaded with the appropriate welding wire.
• Tanah Clamp: Sambungkan tanah clamp cable to the negative (-) terminal and securely attach the clamp ke bahan kerja, memastikan sentuhan elektrik yang baik.
• MMA Electrode Holder: For MMA welding, connect the electrode holder cable to the positive (+) terminal and the ground clamp ke terminal negatif (-).
• Angkat Obor TIG: For Lift TIG welding, connect the TIG torch to the negative (-) terminal and the ground clamp ke terminal positif (+).

6. Arahan Operasi

The ANDELI MIG-270P PRO features an intuitive LCD interface for easy mode selection and parameter adjustment.

6.1 Kuasa Hidup dan Pemilihan Mod

• Hidupkan suis kuasa utama yang terletak di bahagian belakang mesin.
• The LCD screen will illuminate, displaying the main menu.
• Rotate the R-KNOB (right knob) to navigate through the available welding modes (MIG, MMA, LIFT TIG). Press the R-KNOB to select a mode.

Rajah 6.1: Examples of the LCD screen interface for various welding modes, including DC MIG, Pulse MIG, Double Pulse MIG, Lift TIG, and MMA, demonstrating parameter display and adjustment options.

6.2 Pelarasan Parameter

• Once a welding mode is selected, the screen will display relevant parameters such as welding current (A), voltage (V), wire feed speed, material type, and thickness.
• Use the L-KNOB (left knob) and R-KNOB to adjust these parameters. Rotate to change values and press to confirm or move to the next setting.
• The synergic function simplifies setup by automatically recommending parameters based on material and wire type. Fine-tune as needed.

7. Mod Kimpalan

The MIG-270P PRO offers multiple welding processes to suit various applications and materials.

Rajah 7.1: Visual representation of the welder's multifunctional capabilities, showing different welding processes in action, such as Gasless MIG, Spool Gun, Single/Double Pulse MIG, MMA, and LIFT TIG.

7.1 MIG Welding (CO2/MIX/FLUX)

• Gas MIG (CO2/MIX): Requires shielding gas (CO2 or Argon/CO2 mix) for clean welds on steel, stainless steel, and aluminum.
• Flux-Cored MIG (Gasless): Uses flux-cored wire that produces its own shielding gas, suitable for outdoor welding or when gas cylinders are inconvenient.
• Pulse MIG: Offers enhanced control over heat input, ideal for welding thinner materials and achieving better bead appearance, especially with aluminum. Includes Single Pulse and Double Pulse options.

7.2 Angkat Kimpalan TIG

• Provides precise control for welding thin materials and achieving high-quality, clean welds.
• Requires a TIG torch, tungsten electrode, and shielding gas (Argon).
• The 'Lift' start feature minimizes tungsten contamination.

7.3 Kimpalan MMA (Stik).

• Suitable for welding thicker materials and in outdoor or windy conditions.
• Uses coated electrodes that provide their own shielding.
• The machine supports various electrode types (e.g., E6013, E7018).

Rajah 7.2: Visual examples of weld beads produced by different welding processes, including Single Pulse MIG, MMA, Double Pulse MIG, Lift TIG, CO2 MIG, Ar+CO2 Mixed MIG, and Flux Cored MIG, illustrating the quality and appearance of each.

8. Penyelenggaraan

Regular maintenance ensures the longevity and reliable performance of your welder.

• Harian: Inspect cables, connections, and the torch for damage. Clean the nozzle and contact tip of the MIG torch.
• Mingguan: Clean the wire feed rollers and guide tube. Check for proper wire tension.
• Bulanan/Suku Tahunan: Open the machine casing (only by qualified personnel) and use compressed air to blow out dust and debris from inside the welder, especially from cooling fins and circuit boards.
• Storan: Store the welder in a clean, dry environment, protected from dust and moisture.

9. Penyelesaian masalah

Rujuk bahagian ini untuk isu biasa dan kemungkinan penyelesaiannya.

• Tiada Kuasa: Check power cable connection, main power switch, and circuit breaker.
• Tiada Lengkungan: Pastikan tanah clamp is securely attached, electrode/wire is making contact, and welding parameters are set correctly. Check for damaged cables or torch components.
• Kualiti Kimpalan yang Buruk: Adjust welding current/voltage, wire feed speed, or gas flow rate. Ensure proper electrode/wire size and material cleanliness.
• Perlindungan Terlalu Panas Diaktifkan: The machine will automatically shut down if it overheats. Allow it to cool down in a well-ventilated area. Reduce duty cycle or welding current if this occurs frequently.
• Isu Pemberian Kawat: Check wire spool for tangles, ensure wire feed rollers are clean and tensioned correctly, and verify contact tip size matches wire diameter.

If problems persist, contact ANDELI customer support for assistance.

10. Spesifikasi

Detailed technical specifications for the ANDELI MIG-270P PRO welder.

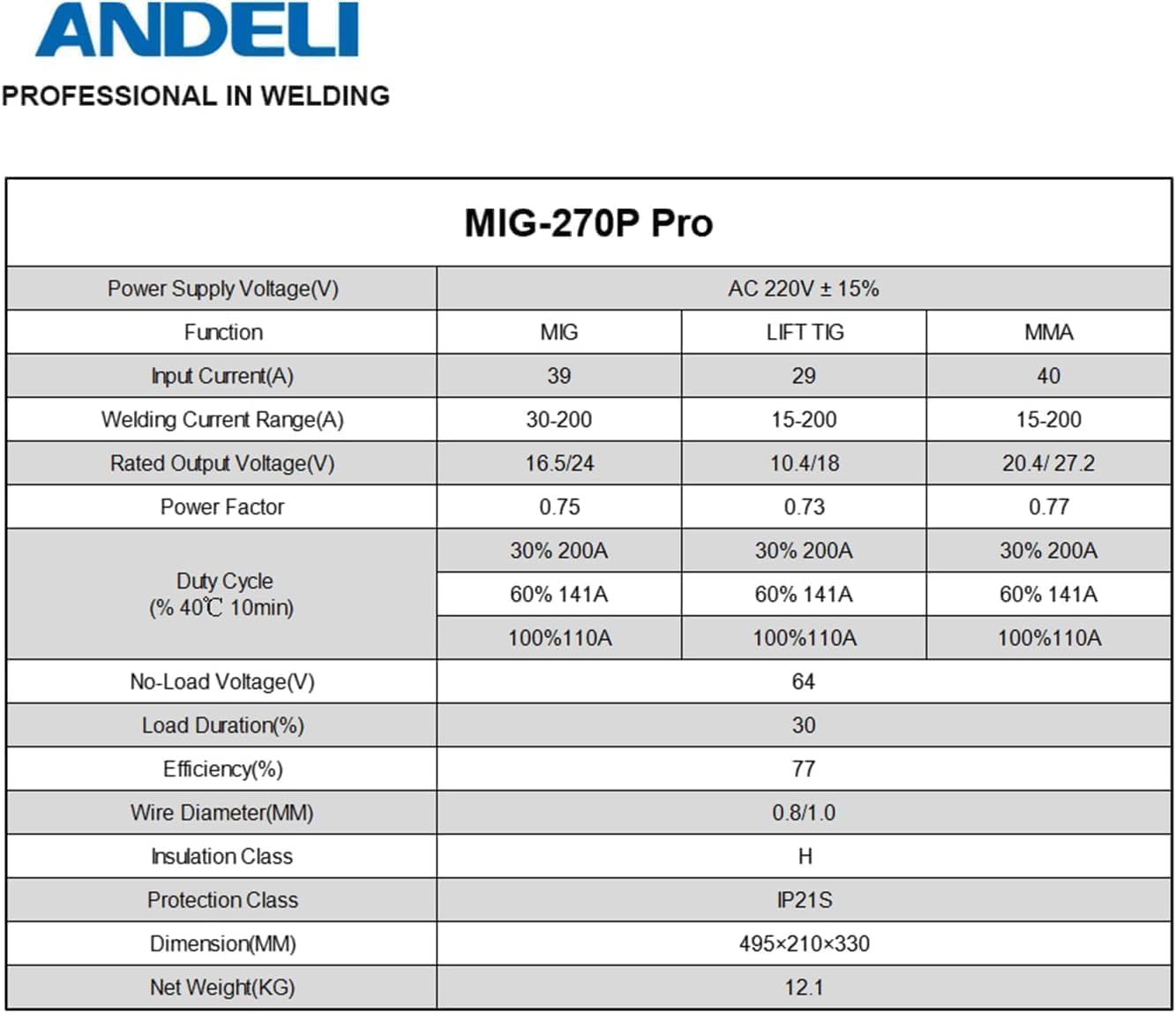

Rajah 10.1: Technical specifications table for the MIG-270P PRO, detailing power supply, functions, input current, welding current range, rated output voltage, power factor, duty cycle, no-load voltage, load duration, efficiency, wire diameter, insulation class, protection class, dimensions, and net weight.

11. Waranti dan Sokongan

ANDELI is committed to providing quality products and customer satisfaction.

• Waranti: The ANDELI MIG-270P PRO comes with a two-year warranty from the date of purchase. This warranty covers manufacturing defects and provides free spare parts.
• Pulangan dan Pertukaran: Returns and exchanges are available within 30 days of receiving the merchandise.
• Sokongan Pelanggan: For any issues encountered during operation or if you require technical guidance, please contact ANDELI customer service. Our efficient service team is ready to assist you.
