KETELES K800 Dual-Motor Electric Bicycle

pengenalan

This instruction manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your KETELES K800 Dual-Motor Electric Bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety. Retain this manual for future reference.

Figure 1: KETELES K800 Dual-Motor Electric Bicycle, black and white with fat tires.

Ciri-ciri Utama

• Powerful Dual-Motor System: Equipped with two 1000W brushless motors (2000W total) for robust power and acceleration, capable of reaching speeds up to 30 MPH.

Figure 2: Close-up of the powerful 2000W brushless motor system, highlighting the dual 1000W motors.
• High-Capacity Removable Lithium Battery: Features a 23AH removable lithium battery, providing extended range and multiple riding modes (electric, pedal-assisted, bicycle, cruise control).


Figure 3: Illustration of the 23AH removable battery, showing its internal structure and indicating various cycling modes and range capabilities.

• 26-inch Fat Tires: Durable 26-inch by 4.0-inch Chaoyang all-terrain fat tires designed for stability and traction across various surfaces, including mountain roads, flat roads, gravel, and snowfields.

Rajah 4: Paparan imejcasing the robust 26-inch Chaoyang fat tires, suitable for diverse terrains.
• Hydraulic Braking System: Equipped with front and rear hydraulic disc brakes for reliable and responsive stopping power.
• Penggantungan Lanjutan: Features a lockable aluminum suspension fork for improved comfort and control over varied terrain.


Figure 5: Comparison showing the hydraulic disc brake system and the lockable aluminum suspension fork.

• Paparan LCD Pintar: Provides real-time information including speed, battery status, speed grade, and odometer readings.

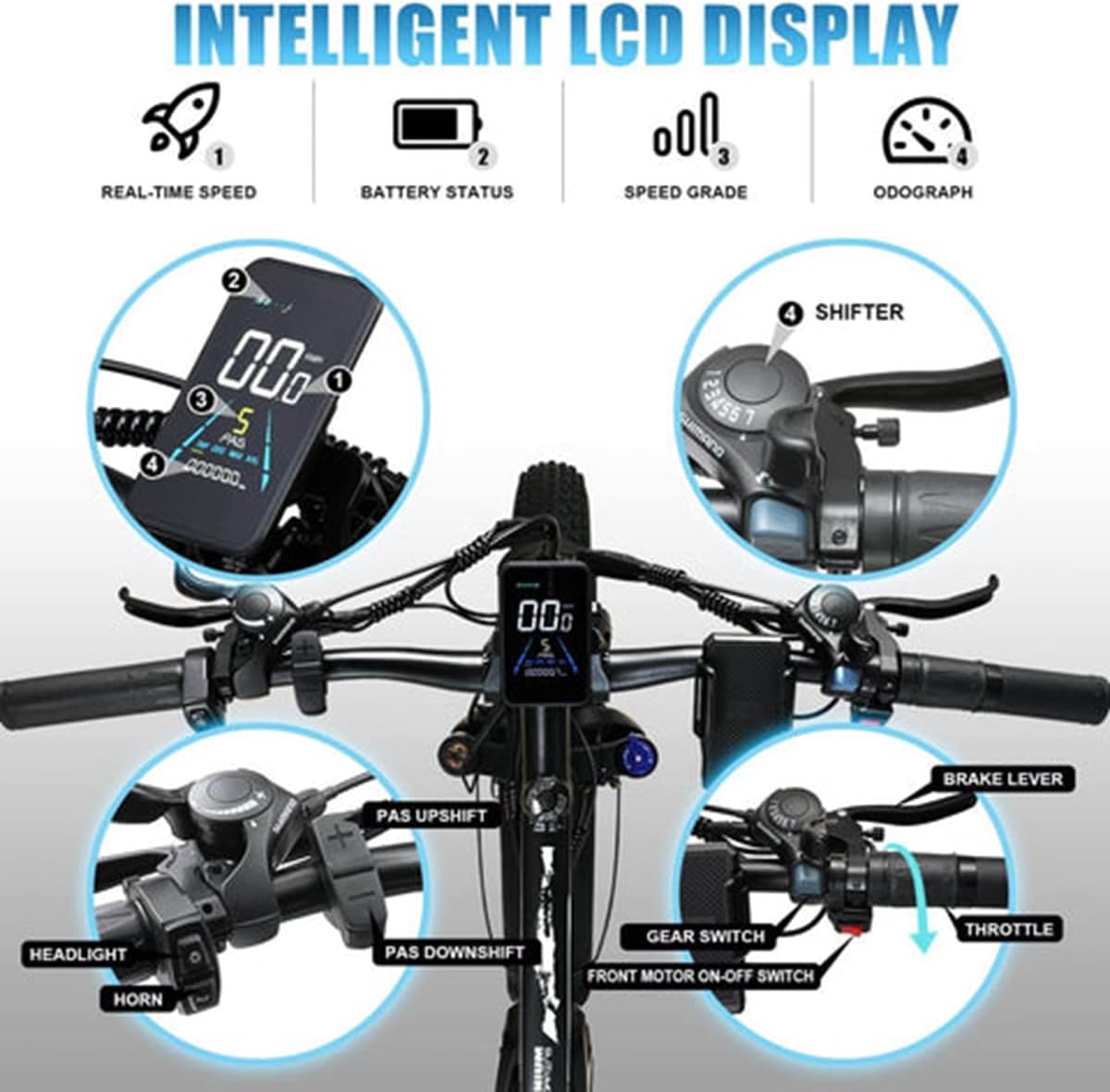

Gambar 6: Lebihview of the intelligent LCD display and handlebar controls, including shifter, brake lever, throttle, headlight, horn, and motor switches.
• Durable Aluminum Alloy Frame: Lightweight yet robust frame designed specifically for e-bikes, offering strength and impact resistance.
• Sistem Gear 21-Kelajuan Shimano: Ensures smooth gear shifting and efficient power transfer.

Persediaan dan Perhimpunan

The KETELES K800 electric bicycle is designed for minimal assembly. Most major components come pre-assembled. Follow these steps to complete the setup:

1. Membongkar: Carefully remove the bicycle and all components from the packaging. Inspect for any shipping damage.
2. Pemasangan Hendal: Attach the handlebar to the stem, ensuring it is centered and tightened securely. Adjust the angle for comfortable riding.
3. Pemasangan Pedal: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Ensure they are fully threaded and tightened.
4. Pemasangan Roda Depan: Secure the front wheel into the fork dropouts. Ensure the disc brake rotor is correctly aligned with the caliper. Tighten the quick-release skewer or axle nuts firmly.
5. Tiang Tempat Duduk dan Pelana: Insert the seat post into the frame's seat tube. Adjust the saddle height for comfortable pedaling with a slight bend in the knee at the bottom of the pedal stroke. Secure the quick-release clamp.
6. Pemasangan Bateri: Insert the removable lithium battery into its designated compartment on the frame. Ensure it clicks securely into place. Charge the battery fully before first use.
7. Semakan Pra-Tunggangan: Before your first ride, perform a thorough check of all bolts, nuts, and quick releases to ensure they are tight. Check tire pressure, brake function, and gear shifting.

Arahan Operasi

Familiarize yourself with the controls and functions of your KETELES K800 electric bicycle for a safe and enjoyable ride.

1. Menghidupkan/Mematikan:

   Press the "M" key on the intelligent LCD display for 2-5 seconds to turn the display light on/off. The display will show real-time speed, battery status, speed grade, and odometer.



   Figure 7: Instructions for powering on the e-bike and an overview of the LCD display showing speed, battery, and odometer.
2. Mod Menunggang:
   • Fully Electric Mode: Twist the throttle to engage the motor and ride without pedaling.
   • Pedal-Assisted Cycling Mode (PAS): Press the "+" button to increase the pedal assist level from "1" to "5". Level "5" provides the maximum power assist. The motor assists your pedaling effort.
   • Mod Basikal: Ride the bicycle like a traditional bike without any motor assistance.
   • Cruise Control Mode: (Refer to specific display instructions if available for activation).
3. Penukaran Gear: Use the Shimano 21-speed gear shifter on the handlebars to change gears according to terrain and desired speed. Shift smoothly to avoid chain drops or damage.
4. Brek: Use the hydraulic disc brake levers on the handlebars to slow down or stop. Apply both brakes simultaneously for optimal stopping power and control.
5. Headlight and Horn: Operate the headlight and horn using the dedicated buttons on the handlebars for visibility and safety.

Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your KETELES K800 electric bicycle.

• Penjagaan Bateri:
  • Cas bateri sepenuhnya selepas setiap perjalanan, terutamanya jika ia akan disimpan untuk tempoh yang lama.
  • Elakkan bateri habis sepenuhnya.
  • Simpan bateri di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan suhu yang melampau.
  • Charge time is approximately 8-10 hours.
• Tekanan Tayar: Regularly check and maintain the recommended tire pressure for optimal performance and safety. The fat tires require specific pressure ranges for different terrains.
• Sistem Brek: Inspect brake pads for wear and replace them as needed. Ensure brake levers are responsive and the hydraulic system is free of leaks.
• Rantai dan Drivetrain: Keep the chain clean and lubricated. Check for wear on the chain, gears, and derailleur.
• Bingkai dan Komponen: Periodically check all bolts, nuts, and quick releases for tightness. Clean the frame with a damp cloth and mild detergent. Avoid high-pressure washing directly on electrical components.
• Suspension Fork: Keep the suspension fork clean and check for smooth operation.

Menyelesaikan masalah

This section addresses common issues you might encounter with your KETELES K800 electric bicycle.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.

Spesifikasi

Figure 8: General Certificate of Conformity (GCC) and UL 2849 Test Report for the KETELES K800 electric bicycle, ensuring safety and quality standards.

Waranti dan Sokongan

The KETELES K800 electric bicycle comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, parts, or warranty claims, please contact the seller directly.

Penjual: KETELES US store

For additional protection, consider available protection plans:

• 2-Year Protection Plan (e.g., $99.99)
• Complete Protect (e.g., $16.99/month)

Note: Protection plan details and availability may vary. Please check with your retailer for current offerings.
