1. Arahan Keselamatan Penting
Please read all instructions carefully before using your T-fal Puregliss Steam Iron. Keep this manual for future reference.
- Sentiasa pasangkan seterika pada alur keluar yang dibumikan.
- Jangan biarkan seterika tanpa pengawasan semasa ia dihidupkan atau disambungkan ke bekalan kuasa.
- Jauhkan seterika dan kordnya daripada kanak-kanak.
- Never immerse the iron, cord, or plug in water or other liquids.
- Do not operate the iron with a damaged cord or plug, or if it has been dropped or damaged. Contact authorized service personnel.
- Use the iron only for its intended purpose: ironing clothes.
- Always unplug the iron before filling or emptying the water tank, and when not in use.
- The soleplate and steam can cause burns. Handle with care.
2. Produk Lebihview
Familiarize yourself with the components of your T-fal Puregliss Steam Iron for efficient use.
Imej 2.1: Berakhirview of the T-fal Puregliss Steam Iron FV8064X0, highlighting key features such as the Micro Calc Filter, steam boost button, spray control, steam control, spray nozzle, 100% active steam outlets, and the Durilium Autoclean soleplate.
- Penapis Micro Calc: Filters 100% of steam to prevent calc residue.
- Steam Boost (190g/min): Delivers a powerful burst of steam for stubborn wrinkles.
- Spray Control: Activates the spray function for moistening fabrics.
- Kawalan Stim: Melaraskan output stim berterusan.
- Durilium Autoclean Soleplate: Provides excellent glide and prevents fabric residue.
- Tangki Air (270ml): Features an XL opening for easy filling.
- Auto-Off System: Meningkatkan keselamatan dengan mematikan seterika secara automatik apabila dibiarkan tanpa pengawasan.
3. Persediaan dan Penggunaan Pertama
3.1 Sebelum Penggunaan Pertama
Before using the iron for the first time, remove any stickers or protective film from the soleplate. It is normal for some water condensation to be present in the tank due to factory testing to ensure optimal performance.
3.2 Mengisi Tangki Air
- Pastikan seterika dicabut dari salur keluar kuasa.
- Tetapkan kawalan stim ke kedudukan 'menyeterika kering' (tiada wap).
- Buka penutup pengisi tangki air.
- Fill the 270ml water tank with tap water up to the 'MAX' mark. The XL opening facilitates easy filling.
- Tutup penutup pengisi dengan selamat.
4. Arahan Operasi
4.1 Tetapan Suhu dan Wap
The T-fal Puregliss iron features five temperature levels and 1800W power for quick heating.
- Palamkan seterika ke dalam salur keluar kuasa yang sesuai.
- Adjust the temperature dial according to the fabric type. Refer to the fabric care labels on your garments.
- Allow the iron to heat up until the indicator light turns off, signaling the desired temperature has been reached.
- For steam ironing, select the appropriate steam setting using the steam control.

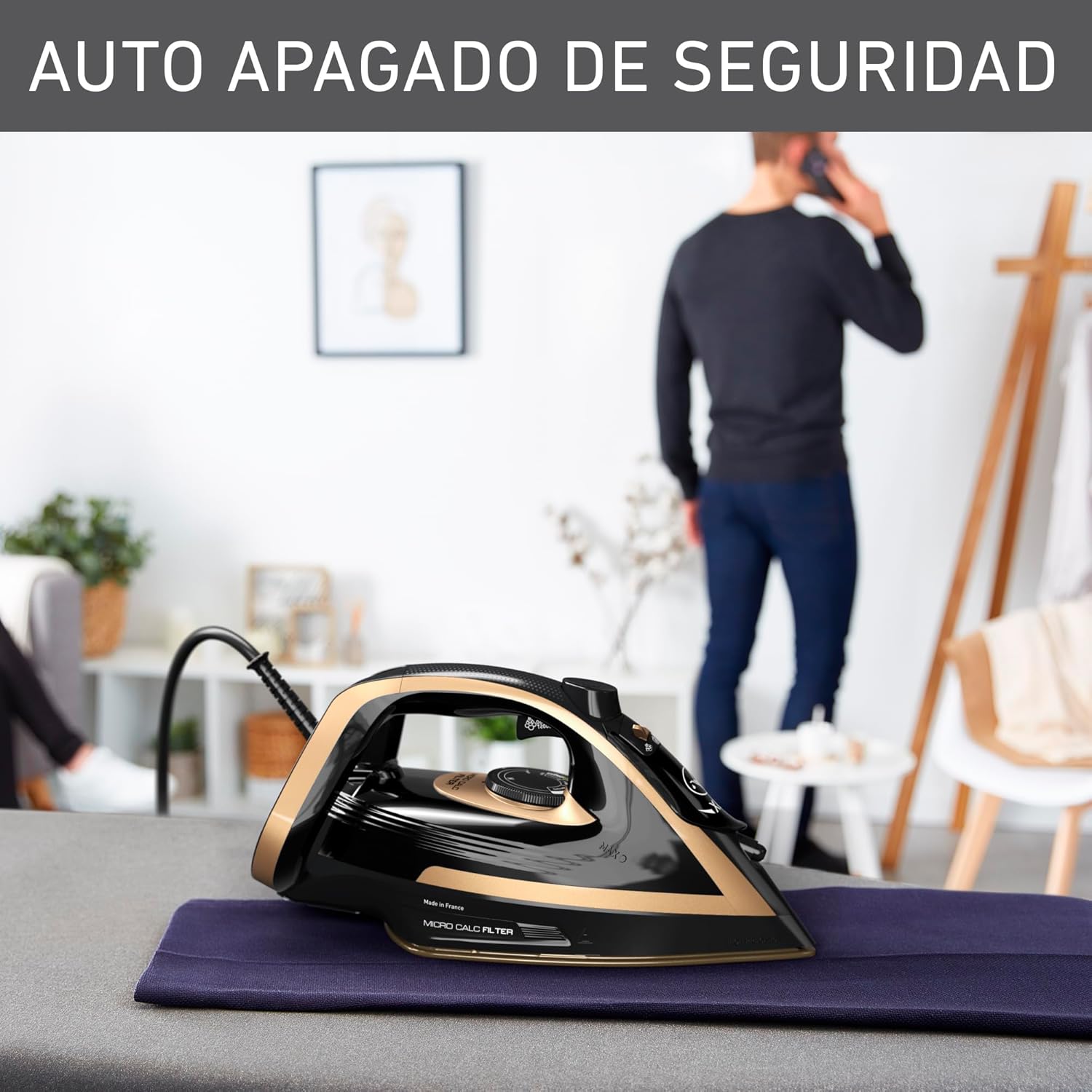

Imej 4.1: The T-fal Puregliss Steam Iron FV8064X0 in use on an ironing board, demonstrating its efficient operation and the auto-off safety feature.
4.2 Fungsi Stim Boost
For stubborn creases, use the steam boost function:
- Press the steam boost button (delivers 190 g/min).
- Wait a few seconds between each press to allow the steam chamber to refill.
4.3 Mengukus Menegak
The iron can be used for vertical steaming to refresh hanging garments or drapes.
- Gantung pakaian pada penyangkut.
- Tetapkan seterika pada suhu maksimum.
- Pegang seterika secara menegak beberapa sentimeter dari fabrik dan tekan butang rangsangan stim.
Imej 4.2: A user demonstrating the vertical steaming capability of the T-fal Puregliss Steam Iron FV8064X0 on hanging clothes.
4.4 Auto-Off Safety System
For enhanced safety, the iron is equipped with an auto-off system. If left motionless:
- Horizontally: The iron will turn off after 30 seconds.
- Vertically: The iron will turn off after 8 minutes.
Untuk memulakan semula seterika, hanya gerakkannya.
5. Penyelenggaraan dan Pembersihan
5.1 Micro Calc Filter Cleaning
The unique Micro Calc Filter ensures 100% filtered steam, preventing calc stains on your garments and soleplate. Regular cleaning is recommended.
Imej 5.1: A terperinci view of the T-fal Puregliss Micro Calc Filter, illustrating its function in filtering steam and preventing calc buildup.
Imej 5.2: The Durilium Autoclean soleplate, designed to prevent calc stains and ensure smooth ironing with filtered steam.
To clean the Micro Calc Filter:
- Cabut plag seterika dan biarkan ia sejuk sepenuhnya.
- Remove the Micro Calc Filter by following the instructions in the product diagram (usually by twisting or pulling).
- Bilas penapis di bawah air mengalir untuk mengeluarkan sebarang kalk terkumpul.
- Reinsert the filter securely.
5.2 Soleplate Cleaning
The Durilium Autoclean soleplate is designed to be highly resistant and prevent fabric residue. To maintain its glide:
- After each use, wipe the cooled soleplate with a damp kain.
- Untuk kesan degil, gunakan kayu pembersih tidak kasar yang direka khas untuk plat tapak besi.
- Jangan sekali-kali menggunakan pad yang melelas, serbuk penyental atau bahan kimia yang keras.

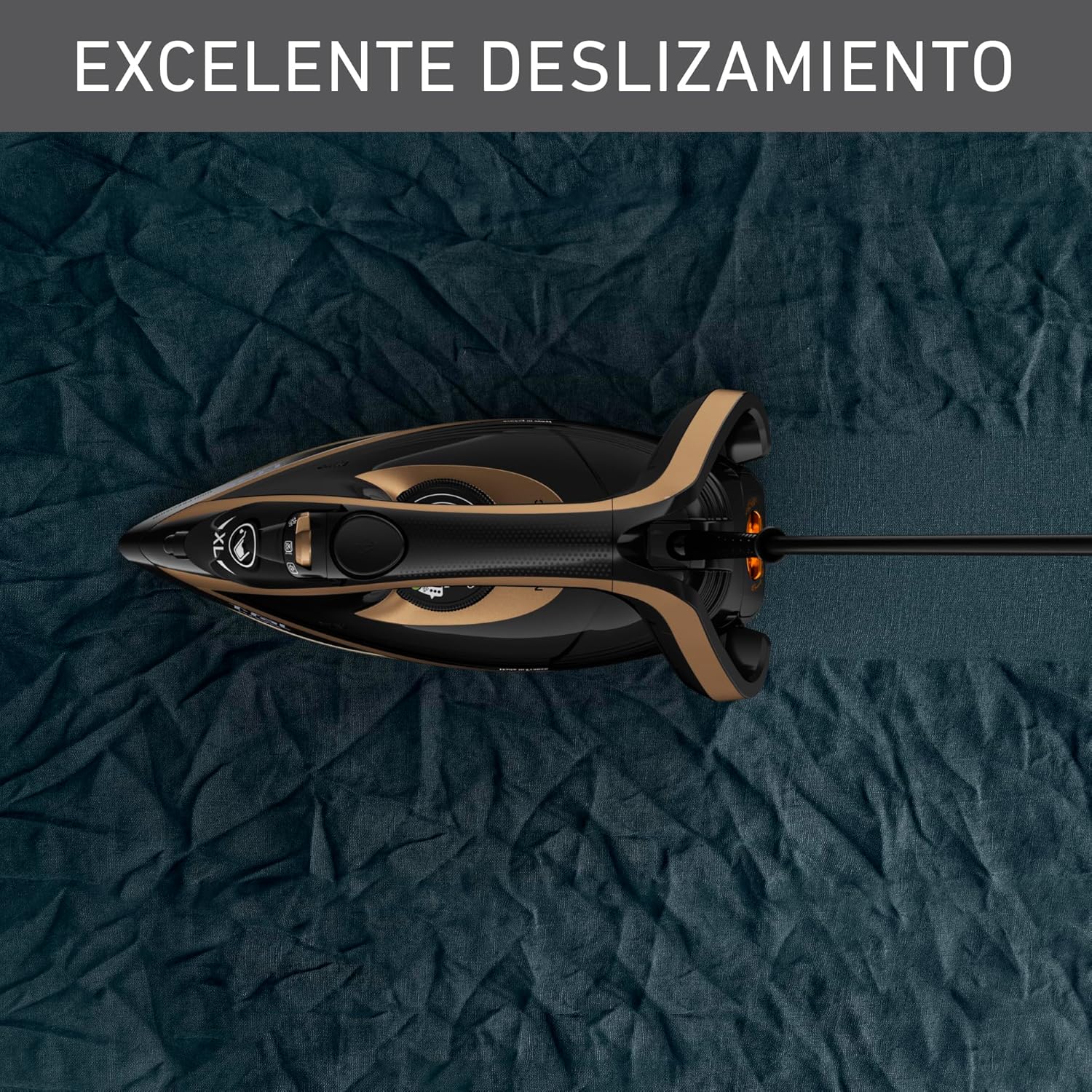

Imej 5.3: A atas-bawah view tunjuk casing the excellent gliding performance of the T-fal Puregliss Steam Iron FV8064X0's soleplate on fabric.
5.3 Penyimpanan
When storing the iron:
- Pastikan seterika dicabut dan sejuk sepenuhnya.
- Kosongkan baki air dari tangki.
- Simpan seterika dalam kedudukan tegak untuk melindungi tapak tapak kaki.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Water droplets or condensation in the tank. | Normal due to factory testing. | This is normal and does not indicate a defect. The iron has been tested to ensure perfect performance. |
| Besi tidak panas. | Tidak dipasang, kuasa outage, auto-off activated. | Check power connection. Move the iron to reactivate if auto-off is engaged. |
| Tiada wap atau wap yang tidak mencukupi. | Tangki air kosong, suhu terlalu rendah, kawalan wap ditetapkan untuk kering. | Fill water tank. Increase temperature. Adjust steam control. |
| Air bocor dari tapak tapak. | Temperature too low for steam, overfilled water tank. | Ensure iron is hot enough for steam. Do not overfill the water tank. |
| Calc stains on garments. | Micro Calc Filter needs cleaning. | Clean the Micro Calc Filter as described in Section 5.1. |
7. Spesifikasi
- model: FV8064X0
- Kuasa: 1800 Watt
- Tapak tapak: Durilium Autoclean
- Peningkatan Stim: 190 g/min
- Kapasiti Tangki Air: 270 ml
- Panjang kabel: Lebih kurang 2 meter
- Ciri Khas: Micro Calc Filter, Auto-Off System, Vertical Steam
- Dimensi Pakej: 34.2 x 18.3 x 14.8 cm
- Berat: 1.63 kg
- Komponen Termasuk: 1 Steam Iron, Instruction Manual
8. Video Produk Rasmi
Video 8.1: An official T-fal video demonstrating the key features and benefits of the T-fal Puregliss Steam Iron, including the Micro Calc Filter, powerful steam, and Durilium Airglide soleplate for efficient and stain-free ironing.
9. Waranti dan Sokongan
T-fal is committed to providing quality products and support. For any questions, service needs, or warranty information, please contact T-fal customer support.
Imej 9.1: T-fal customer service contact information, including phone numbers for support.
Customer Support Phone Numbers:
- 55 5283 9354
- 55 5283 9355
T-fal offers extended warranty options through partners like Assurant. Please refer to your purchase documentation for specific warranty terms and conditions.
