1. Pengenalan
Thank you for choosing the Niceday Magnetic Rowing Machine, Model 206S. This manual provides essential information for the safe and effective use of your new fitness equipment. The Niceday 206S is designed for home use, offering a quiet and smooth rowing experience with 16 levels of adjustable magnetic resistance. It features a sturdy aluminum alloy construction, a 12 lbs flywheel, and a 49-inch long rail, supporting users up to 350 lbs. The integrated LCD monitor tracks key workout data, and the machine is compatible with Bluetooth and the Kinomap app for an enhanced training experience. Its foldable design ensures space-efficient storage.

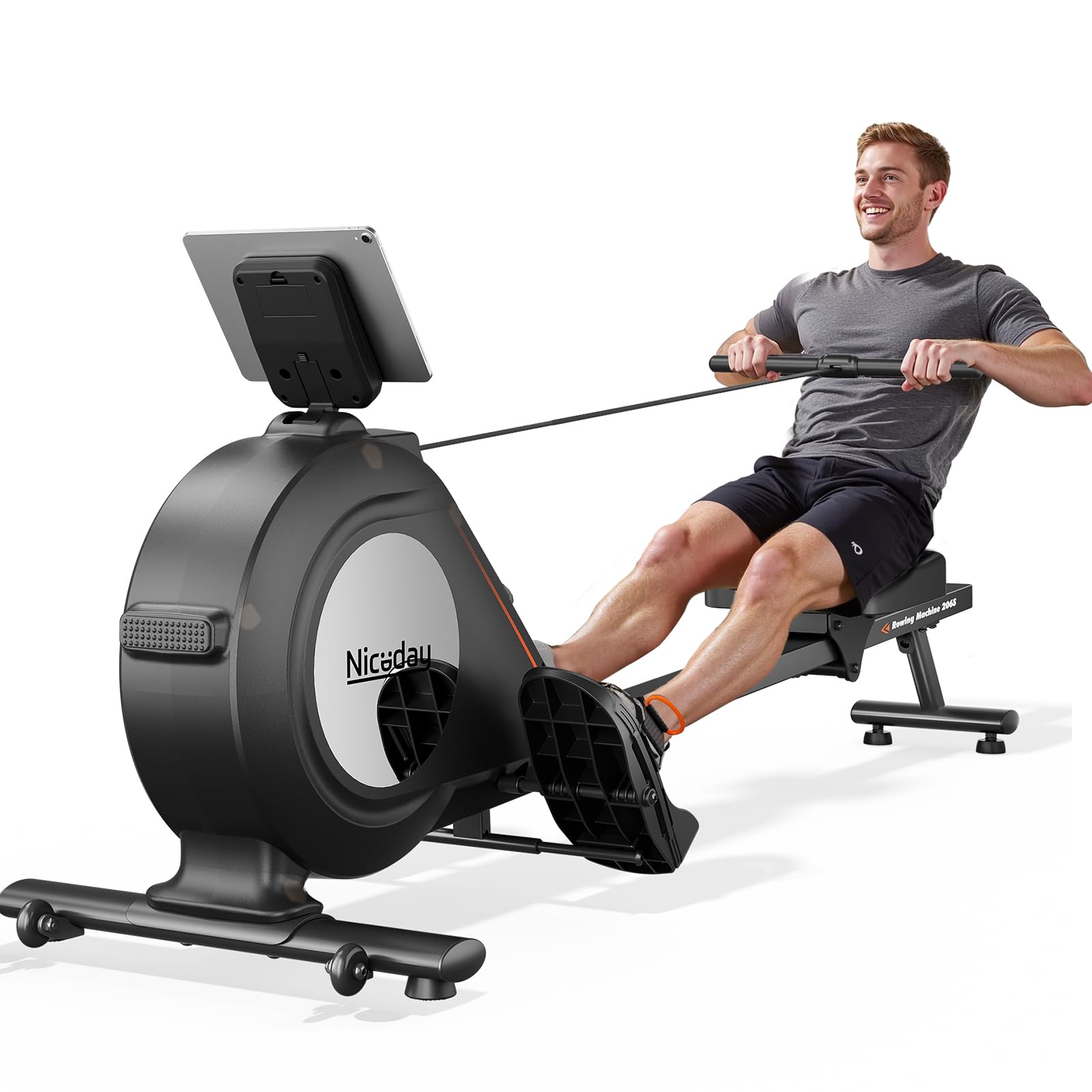

Image: The Niceday Magnetic Rowing Machine, showcasing its sleek design and compact footprint.
2. Maklumat Keselamatan Penting
Before operating the Niceday Magnetic Rowing Machine, please read and understand all instructions in this manual. Keep this manual for future reference. Failure to follow these instructions may result in injury or damage to the equipment.
- Rujuk doktor anda sebelum memulakan sebarang program senaman baharu.
- Pastikan semua bahagian dipasang dengan betul dan diketatkan sebelum setiap penggunaan.
- Letakkan mesin mendayung pada permukaan yang rata dan stabil dengan kelegaan yang mencukupi di sekelilingnya.
- Jauhkan kanak-kanak dan haiwan peliharaan dari mesin semasa operasi.
- Jangan melebihi kapasiti berat pengguna maksimum 350 lbs.
- Pakai kasut dan pakaian sukan yang sesuai.
- Berhenti bersenam serta-merta jika anda berasa pitam, pening, atau mengalami kesakitan.
- Lakukan penyelenggaraan berkala seperti yang diterangkan dalam manual ini untuk memastikan operasi yang selamat.
3. Kandungan Pakej
Buka pek semua komponen dengan berhati-hati dan sahkan bahawa anda telah menerima item berikut:
- Main Frame Assembly (90% pre-assembled)
- tempat duduk
- Penstabil Depan
- Penstabil Belakang
- Pedal Kaki (Kiri dan Kanan)
- Bar hendal
- LCD Monitor with Tablet Holder
- Kit Perkakasan (bolt, pencuci, nat, alatan)
- Manual Pengguna
If any parts are missing or damaged, please contact Niceday customer support immediately.
4. Persediaan dan Pemasangan
The Niceday Magnetic Rowing Machine arrives 90% pre-assembled, allowing for quick setup. Most users can complete the assembly within 20 minutes by following these instructions or the provided installation video.
4.1 Langkah Perhimpunan
- Unpack all components and lay them out on a clear, flat surface.
- Attach the front and rear stabilizers to the main frame using the provided hardware.
- Secure the seat onto the slide rail.
- Install the foot pedals onto the main frame.
- Mount the handlebar and connect the LCD monitor, ensuring all cables are properly secured.
- Double-check all bolts and connections to ensure they are tight and secure before first use.
4.2 Video Pemasangan
For a visual guide, please refer to the official Niceday installation video:
Video: Official Niceday Rowing Machine 206S Installation Guide. This video demonstrates the step-by-step assembly process for the rowing machine.
Image: Visual representation of the Niceday Rowing Machine's easy assembly and space-saving foldable design.
5. Arahan Operasi
This section guides you through the proper operation of your Niceday Magnetic Rowing Machine.
5.1 Proper Rowing Form
Achieving proper rowing form is crucial for an effective and safe workout. Follow these steps:
- Tangkapan: Sit with knees bent, shins vertical, and arms extended forward. Grip the handle firmly.
- Pemacu: Tolak dengan kaki anda, kemudian condongkan badan sedikit dari pinggul anda, dan akhirnya tarik pemegangnya ke arah perut anda.
- Penamat: Legs are extended, body is leaning back slightly, and the handle is at your abdomen.
- Pemulihan: Extend your arms forward, then pivot forward from your hips, and finally bend your knees to slide the seat back to the catch position.
Image: A user demonstrating proper rowing technique on the Niceday machine, illustrating an efficient total body workout.
5.2 Melaraskan Rintangan
The Niceday 206S offers 16 levels of adjustable magnetic resistance. To change the resistance, locate the resistance knob on the main frame. Turn the knob clockwise to increase resistance for a more challenging workout, or counter-clockwise to decrease resistance for an easier session. Adjust the resistance while off the machine or during a pause in your workout.
Image: Detail of the Niceday Magnetic Rowing Machine's flywheel and the 16-level resistance adjustment dial.
5.3 Menggunakan Monitor LCD
The integrated LCD monitor tracks your workout data, including time, count, speed, distance, calories burned, and total distance. The monitor automatically activates when you begin rowing. Use the 'MODE' button to cycle through different display metrics and the 'RESET' button to clear your current workout data.
Image: The Niceday Rowing Machine's LCD monitor displaying workout metrics, alongside a smartphone showing the compatible app.
5.4 App Connectivity (Kinomap)
Enhance your rowing experience by connecting your Niceday 206S to the Kinomap app via Bluetooth. Place your tablet or smartphone in the integrated holder. Follow the app's instructions to pair your device with the rowing machine for interactive workouts and virtual routes.
5.5 General Operation Video
Tonton video ini untuk tamatview of the Niceday Rowing Machine in use:
Video: Official Niceday Rowing Machine overview. This video provides a general demonstration of the Niceday Rowing Machine's features and operation.
6. Penyelenggaraan
Regular maintenance ensures the longevity and optimal performance of your Niceday Magnetic Rowing Machine.
6.1 Pembersihan
- Lap mesin dengan iklanamp kain selepas setiap penggunaan untuk mengeluarkan peluh dan habuk.
- Elakkan menggunakan pembersih atau pelarut yang kasar yang boleh merosakkan kemasan.
- Keep the slide rail clean and free of debris to ensure smooth seat movement.
6.2 Penyimpanan
The Niceday 206S features a foldable design for convenient storage. To fold:
- Ensure the machine is stable and not in use.
- Follow the instructions in the assembly video or manual to safely fold the rail upwards.
- Once folded, the machine occupies only 2.79 square feet. Use the built-in transport wheels to move it to a suitable storage location.
Image: The Niceday Rowing Machine in its compact, upright folded position, demonstrating its space-saving design.
7. Penyelesaian masalah
This section addresses common issues you might encounter with your rowing machine.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Monitor LCD tidak dipaparkan | Bateri mati atau tidak dipasang dengan betul. | Replace batteries (if applicable) or ensure they are inserted correctly. Check cable connections to the monitor. |
| Resistance feels inconsistent or too weak/strong | Resistance knob not set correctly; internal mechanism issue. | Adjust the resistance knob to your desired level. If the issue persists, contact customer support. |
| Bunyi berdecit atau berkisar semasa operasi | Loose parts; debris on slide rail; worn components. | Check all bolts and tighten if necessary. Clean the slide rail. If noise continues, contact customer support. |
| Seat does not slide smoothly | Debris on the slide rail; worn seat rollers. | Clean the slide rail thoroughly. Inspect seat rollers for damage. |
If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact Niceday customer support.
8. Spesifikasi
Key technical specifications for the Niceday Magnetic Rowing Machine Model 206S:
- Jenama: Hari yang baik
- Nama Model: Pro Rowing Machine (Model 206S)
- Mekanisme Rintangan: Magnet
- Tahap Rintangan Boleh Laras: 16
- Berat roda tenaga: 12 paun
- Maximum Tension: 66 LBS
- Saran Maksimum Berat: 350 paun
- Dimensi Produk (D x W x H): 71.65" x 19.61" x 23.62"
- Bahan Bingkai: Keluli Aloi, Aluminium
- paparan: LCD (Metrics: Calories Burned, Distance, Speed, Time, Count, Total Distance)
- Sumber Kuasa: Dikuasakan Bateri
- Ciri Khas: Foldable design, Tablet Holder, Bluetooth & App Compatible (Kinomap)
Image: The Niceday Magnetic Rowing Machine, emphasizing its robust construction and 400 lbs maximum capacity.
9. Waranti & Sokongan
Niceday is committed to providing high-quality products and customer satisfaction.
9.1 Maklumat Waranti
The Niceday Magnetic Rowing Machine Model 206S comes with a 3-year manufacturer's service dan a life-long warranty. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa. Sila simpan bukti pembelian anda untuk tuntutan waranti.
9.2 Sokongan Pelanggan
For any questions, assistance with assembly, troubleshooting, or warranty claims, please contact Niceday Fitness customer support. Refer to the contact information provided with your purchase or visit the official Niceday webtapak untuk butiran sokongan.
