pengenalan
Thank you for choosing the Lifetime Home Collapsible Foldable Heavy Duty Utility Wagon Cart. This manual provides essential information for the safe and efficient use, setup, operation, and maintenance of your new utility wagon. Please read these instructions thoroughly before assembly and use, and retain them for future reference.
Maklumat Keselamatan
Untuk memastikan operasi yang selamat dan mengelakkan kecederaan atau kerosakan, sila patuhi garis panduan keselamatan berikut:
- Kapasiti Berat: Do not exceed the maximum weight capacity of 220 lbs (100 kg). Overloading can cause damage to the wagon and potential injury.
- Melipat/Membuka: Keep hands and fingers clear of moving parts and pinch points during the folding and unfolding process.
- Penyeliaan: Do not allow children to play in or with the wagon unsupervised. This wagon is not a toy.
- Perhimpunan Selamat: Ensure all parts, especially the wheels and frame locks, are securely in place and locked before each use.
- Kesedaran Rupa Bumi: Exercise caution when pulling the wagon over uneven, soft, or sloped terrain. The wagon does not have brakes, so avoid leaving it on inclines unattended.
- Mengendalikan Pelarasan: Always ensure the handle is securely locked in your desired position before pulling.
- Penyelenggaraan: Periksa gerabak secara berkala untuk sebarang tanda haus, kerosakan atau komponen yang longgar. Jangan gunakan jika rosak.
Setup: Unfolding Your Wagon
Your Lifetime Home Utility Wagon comes pre-assembled, requiring only unfolding and minor adjustments before its first use.
- Bongkar: Carefully remove the wagon from its packaging. It will be in a folded, compact state.
- Terbuka: Place the folded wagon on a flat, stable surface. Gently pull the sides of the wagon outwards from the center. The frame will begin to expand.
- Pangkalan Selamat: Once the frame is partially open, push down firmly on the center of the wagon's base until it lies flat and the frame is fully extended and locked into place.
- Mengendalikan Pelarasan: Extend the adjustable handle to your preferred height. Ensure it clicks into a locked position.
The wagon is now ready for use. The wheels are pre-attached and designed for all-terrain movement.
Video: This video demonstrates the unfolding process and highlights key features of the Lifetime Home Collapsible Folding Wagon, including wheel attachment and general use.
Arahan Operasi
Loading the Wagon
- Distribute weight evenly within the wagon to maintain stability.
- Place heavier items at the bottom and lighter items on top.
- Do not allow items to protrude excessively, which could obstruct movement or cause imbalance.
Melaraskan Pemegang
- The handle can be adjusted in length and angle (between 90 and 200 degrees) to suit your height and pulling preference.
- Press the release button or lever on the handle mechanism, adjust to the desired position, and ensure it locks securely before use.

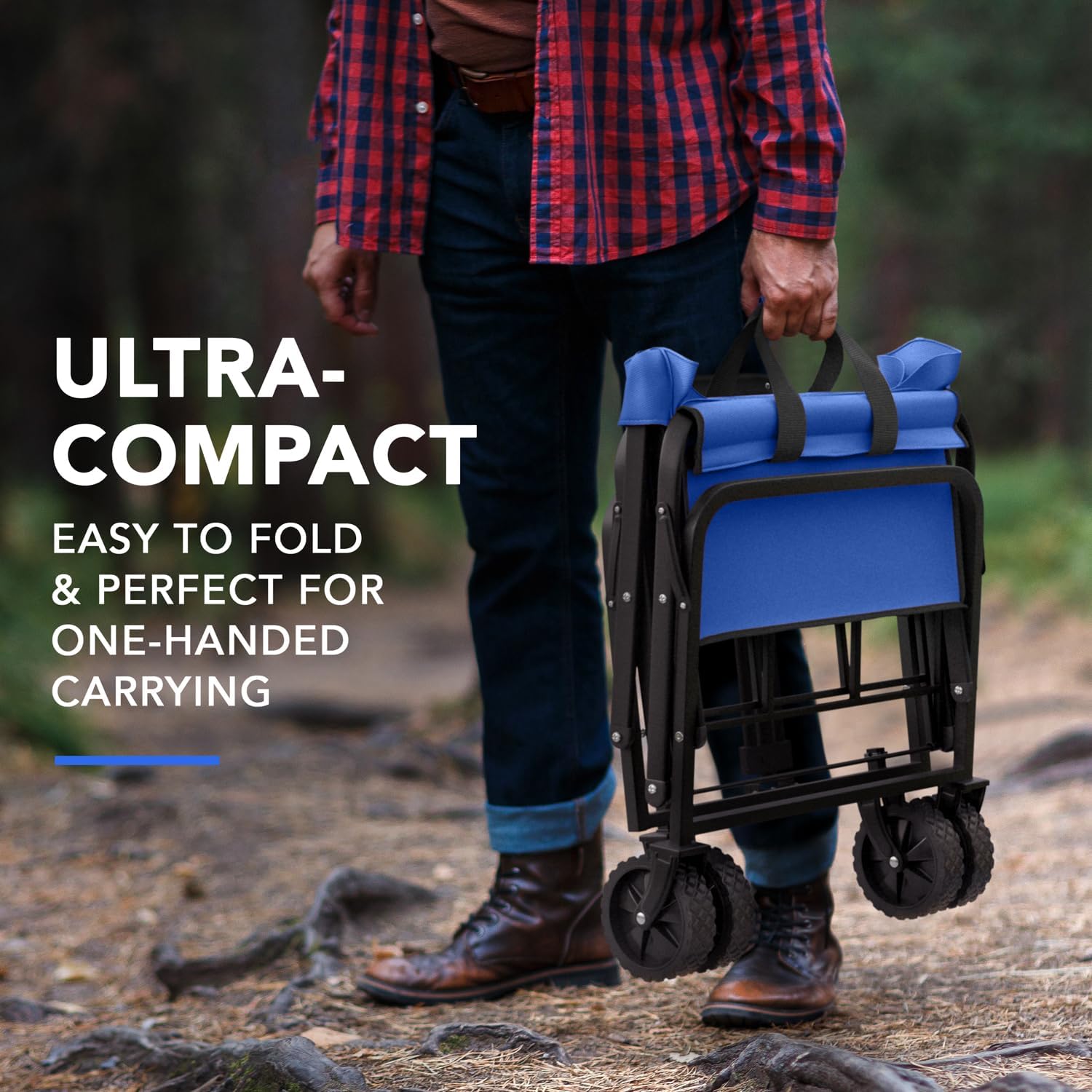

Lipat untuk Penyimpanan
To fold the wagon back into its compact state:
- Empty the wagon completely.
- Locate the pull tab or strap in the center of the wagon's base.
- Pull upwards on this tab/strap. The sides of the wagon will begin to collapse inwards.
- Continue pulling until the wagon is fully folded. Secure any straps or clips if present to keep it compact.
Penyelenggaraan
Pembersihan
- Fabrik: The tear-resistant and waterproof fabric can be cleaned with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before folding and storing.
- Bingkai: Lap bingkai keluli dengan iklanamp kain untuk membuang kotoran dan serpihan. Keringkan dengan teliti untuk mengelakkan karat.
- Roda: Periodically clean the wheels to remove dirt, sand, or other obstructions that may affect their smooth operation.
Penyimpanan
- Store the wagon in its folded, compact state in a dry, cool place away from direct sunlight and extreme temperatures.
- Ensure the wagon is clean and dry before storage to prevent mold or mildew.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Wagon does not unfold/fold smoothly. | Obstruction in the frame mechanism; base not pushed down/pulled up correctly. | Check for any debris or items obstructing the frame. Ensure the base is fully pushed down to lock or pulled up to collapse. |
| Wheels are not rolling freely. | Debris caught in wheels; axle needs lubrication. | Clean wheels and axles thoroughly. Apply a small amount of silicone-based lubricant if necessary. |
| Wagon feels unstable or tips easily. | Overloaded; weight unevenly distributed; used on unsuitable terrain. | Reduce load to within 220 lbs capacity. Redistribute items for even weight. Use on stable, level ground. |
| Handle does not lock in place. | Locking mechanism obstructed or damaged. | Check for debris in the locking mechanism. Ensure the handle is fully extended or retracted to engage the lock. If damaged, contact customer support. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 954 |
| Jenama | SEUMUR HIDUP |
| warna | Biru |
| Kapasiti Berat | 220 paun (100 kg) |
| Kapasiti Storan | 140 Liter |
| Berat Produk | 10.98 Kilogram (lebih kurang 24.2 paun) |
| Unfolded Body Dimensions (approx.) | 30" Long x 19" Wide x 18" Tall |
| Dimensi Dilipat (anggaran) | 3.5" Wide x 24.4" High x 19" Deep |
| Julat Pelarasan Pemegang | 22" to 31.5" (length), 90-200 degrees (angle) |
| Bahan Bingkai | Keluli Aloi |
| Jenis Roda | All-terrain, 5" wide, 360° swivel front wheels |
| Perhimpunan yang Diperlukan | No (comes pre-assembled, only unfolding required) |
Waranti dan Sokongan
Lifetime Home is committed to providing high-quality products. For any questions, concerns, or issues regarding your utility wagon, please contact Lifetime Home customer support. Refer to your purchase documentation for specific warranty details and contact information.
