Sokply RC-100 Sensor Remote Programmer User Manual

Model: RC-100

pengenalan

The Sokply RC-100 Sensor Remote Programmer is a handheld wireless IR configuration tool designed for remote adjustment of IR-enabled fixture integrated sensors, specifically the ANT-5-4 Sensor used with Sokply Motion Sensor High Bay Shop Lights and UFO Motion Sensor High Bays. This tool allows users to modify sensor parameters without requiring ladders or additional tools, offering convenience and efficiency. It can store up to four sensor parameter modes, streamlining the configuration process for multiple sensors across various areas or sites.

The RC-100 can send sensor settings from a mounting height of up to 50 feet. It supports displaying previously established sensor parameters, copying parameters, and sending new parameters or storing parameter profiles, making it ideal for projects requiring consistent settings across numerous installations.

Produk Selesaiview

Sokply RC-100 Sensor Remote Programmer

Rajah 1: Depan view of the Sokply RC-100 Sensor Remote Programmer, showing its buttons and display area.

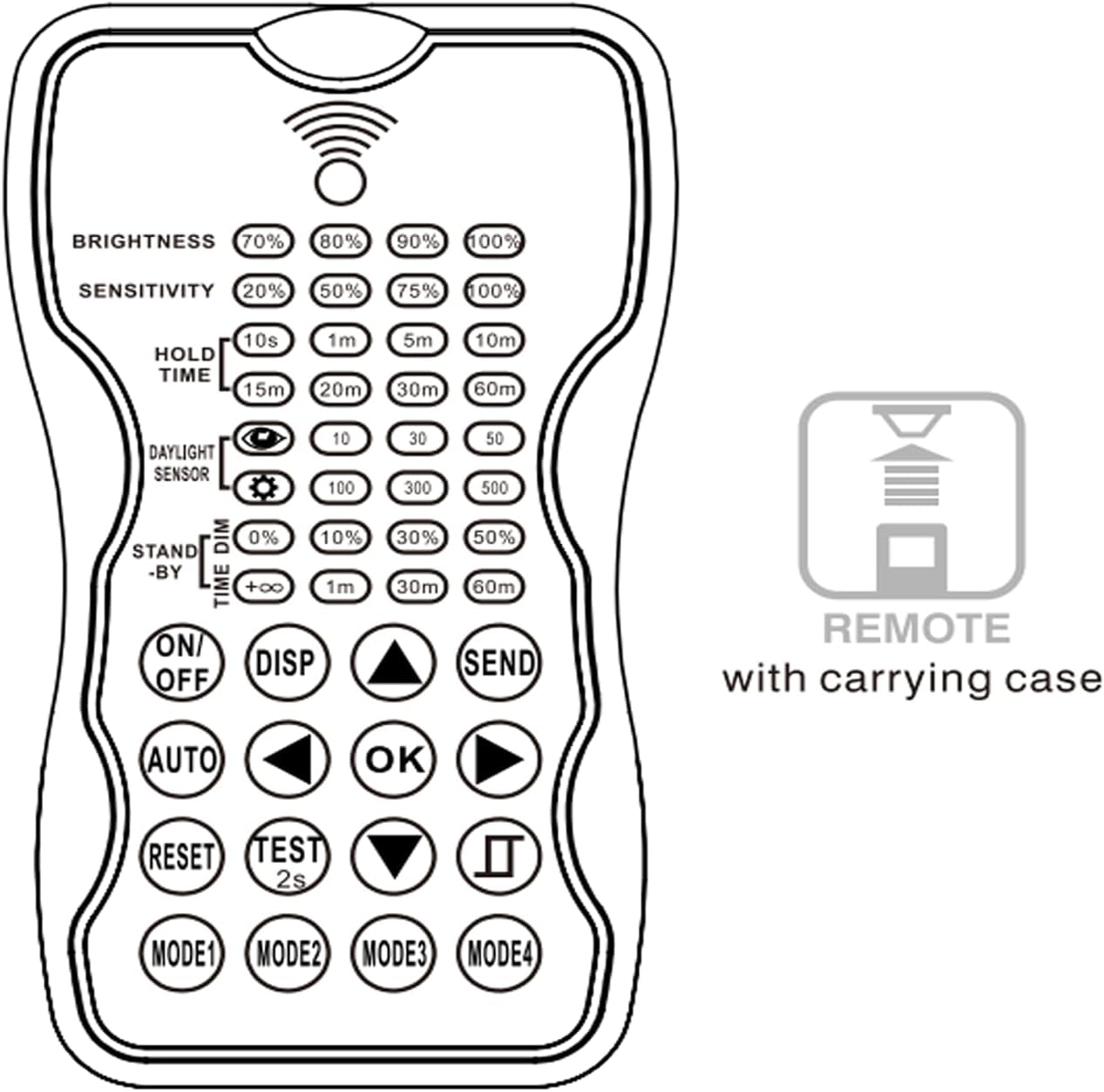

Sokply RC-100 Sensor Remote Programmer diagram with carrying case

Figure 2: Diagram of the RC-100 remote control, illustrating its layout and indicating it comes with a carrying case.

Persediaan

Pemasangan Bateri

The RC-100 Sensor Remote Programmer requires 2 x bateri AAA 1.5V for operation. Alkaline batteries are preferred for optimal performance and longevity.

  1. Locate the battery compartment on the back of the RC-100 remote.
  2. Geser buka penutup petak bateri.
  3. Masukkan dua bateri AAA, pastikan terminal positif (+) dan negatif (-) sejajar dengan tanda di dalam petak.
  4. Tutup penutup petak bateri dengan selamat.

Penting: Batteries are not included with the product and must be purchased separately.

Arahan Operasi

The RC-100 remote allows for precise configuration of compatible sensors. Ensure the remote is pointed directly at the sensor you wish to configure, within the effective upload range of up to 50 feet (15 meters).

Key Functions and Buttons

Sokply RC-100 Sensor Remote Programmer with labeled buttons

Rajah 3: Terperinci view of the RC-100 remote control buttons for operational reference.

  • KECERAHAN: Adjusts the light output level. Options typically include 70%, 80%, 90%, 100%.
  • KEpekaan: Sets the motion detection sensitivity. Common settings are 20%, 50%, 75%, 100%.
  • MASA TAHAN: Determines how long the light stays on at full brightness after motion is detected. Options include 10s, 1m, 5m, 10m, 15m, 20m, 30m, 60m.
  • SENSOR DAYLIGHT: Configures the ambient light threshold for operation. Settings like 10, 30, 50, 100, 300, 500 (lux or similar unit) dictate when the sensor activates based on natural light.
  • STAND-BY TIME DIM: Sets the dimming level for standby mode. Options include 0%, 10%, 30%, 50%.
  • MASA TETAP: Defines how long the light remains in standby (dimmed) mode after the hold time expires and no motion is detected. Options include +∞ (infinite), 1m, 30m, 60m.
  • HIDUP/MATI: Toggles the sensor's controlled light on or off.
  • DISP (Paparan): Used to display the current settings of the connected sensor.
  • HANTAR: Transmits the selected parameters from the remote to the sensor.
  • AUTO: Activates automatic operation mode for the sensor.
  • OK: Confirms a selection or setting.
  • TETAP SEMULA: Resets the sensor to its factory default settings.
  • TEST (2s): Initiates a 2-second test mode for the sensor.
  • MODE1, MODE2, MODE3, MODE4: Allows saving and recalling up to four custom parameter profiles for quick configuration of multiple sensors.
  • Anak Panah Berarah (Atas, Bawah, Kiri, Kanan): Digunakan untuk menavigasi menu dan melaraskan nilai parameter.

Configuring Sensor Parameters

  1. Point the RC-100 remote directly at the sensor on the light fixture.
  2. Tekan ke HILANGKAN butang ke view the current settings of the sensor.
  3. Use the directional arrows to navigate to the parameter you wish to change (e.g., BRIGHTNESS, SENSITIVITY, HOLD TIME).
  4. Select the desired value for the parameter using the arrows and press OK untuk mengesahkan.
  5. Once all desired changes are made, press the HANTAR button to transmit the new settings to the sensor.
  6. To save a set of configurations for future use, adjust all parameters as desired, then press and hold one of the MODE buttons (MODE1-MODE4) until confirmation is received (e.g., a flash from the sensor or a confirmation on the remote if it has a display).
  7. To recall a saved mode, simply press the corresponding MODE button (MODE1-MODE4).

Permohonan Cthamples

RC-100 remote controlling Sokply Motion Sensor High Bay Shop Lights

Figure 4: The RC-100 remote being used to configure Sokply Motion Sensor High Bay Shop Lights.

RC-100 remote controlling Sokply UFO Motion Sensor High Bay Lights

Figure 5: The RC-100 remote being used to configure Sokply UFO Motion Sensor High Bay Lights.

The RC-100 is specifically designed for use with Sokply Motion Sensor High Bay Shop Lights (e.g., ASIN: B0BPMFPSTK) and Sokply UFO Motion Sensor High Bays (e.g., ASIN: B0BVR39HHN). It allows for centralized control and customization of lighting behavior in large industrial or commercial spaces.

Penyelenggaraan

Penjagaan Bateri

To ensure optimal performance and extend the lifespan of your RC-100 remote, follow these battery care guidelines:

  • Keluarkan bateri: If the remote will not be used for an extended period (e.g., more than 30 days), remove the batteries from the compartment to prevent leakage and potential damage to the device.
  • Gantikan bateri: Replace batteries when the remote's performance degrades or if the indicator light (if present) suggests low power.
  • Buang dengan betul: Dispose of used batteries according to local regulations. Do not dispose of batteries in general household waste.

Pembersihan

Clean the remote control with a soft, dry cloth. Do not use abrasive cleaners, solvents, or strong chemicals, as these may damage the surface or internal components.

Menyelesaikan masalah

MasalahKemungkinan PuncaPenyelesaian
Jauh tidak bertindak balas.
  • Bateri mati atau lemah.
  • Pemasangan bateri yang salah.
  • Remote out of range or not pointed at sensor.
  • Replace batteries with new AAA alkaline batteries.
  • Periksa kekutuban bateri (+/-).
  • Ensure remote is within 50 ft (15m) and aimed directly at the sensor.
Sensor not receiving commands.
  • Obstruction between remote and sensor.
  • Sensor not powered on or faulty.
  • Incorrect sensor type (not ANT-5-4).
  • Keluarkan sebarang halangan.
  • Verify the sensor is powered and functioning.
  • Confirm the sensor is a compatible ANT-5-4 model.
Settings not saving after sending.
  • "SEND" button not pressed or not pressed firmly.
  • Interference during transmission.
  • Ensure the "SEND" button is pressed firmly after selecting parameters.
  • Try again, ensuring no other IR devices are active nearby.

Spesifikasi

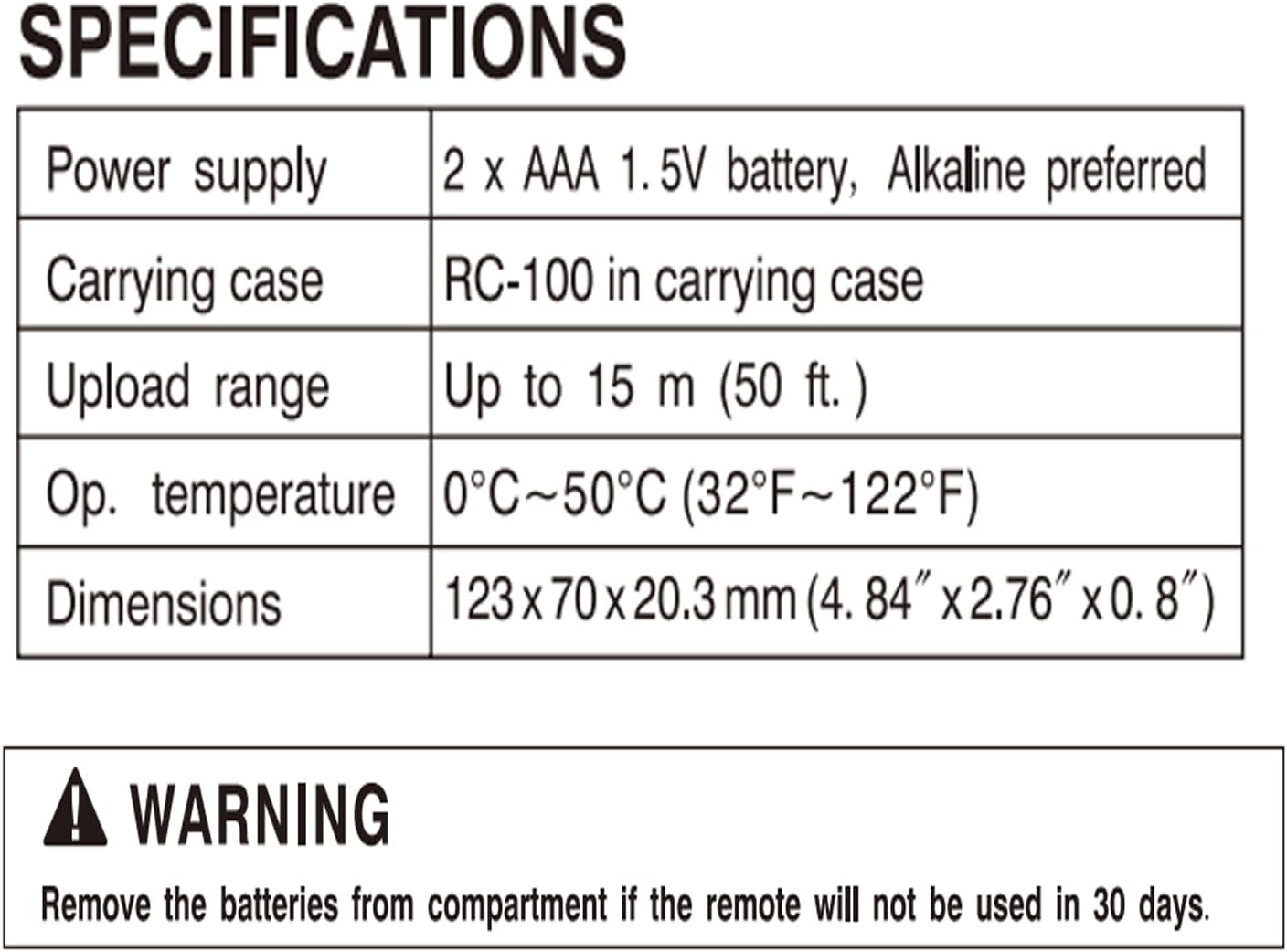

Sokply RC-100 Sensor Remote Programmer specifications table

Figure 6: Official specifications table for the RC-100 Sensor Remote Programmer.

CiriPerincian
Nombor ModelRC-100
Nombor BahagianSRC-100 V2.6
Bekalan Kuasa2 x AAA 1.5V battery (Alkaline preferred)
Julat Muat NaikSehingga 15 m (50 kaki)
Suhu Operasi0°C ~ 50°C (32°F ~ 122°F)
Dimensi Produk123 x 70 x 20.3 mm (4.84" x 2.76" x 0.8")
bahanTembaga
Peranti SerasiANT-5-4 Sensor, Sokply Motion Sensor High Bay Shop Light, Sokply UFO Motion Sensor High Bay

AMARAN: Remove the batteries from the compartment if the remote will not be used in 30 days or more to prevent battery leakage and damage.

Sokongan dan Maklumat Lanjut

For additional support, detailed diagrams, or specific inquiries, please refer to the official user manual PDF or contact Sokply customer support.
