LcFun USB Rechargeable Electric Arc Lighter with LED Battery Display and Flashlight (Model SEW-076)

Manual Arahan

1. Pengenalan

This manual provides essential information for the safe and effective use of your LcFun USB Rechargeable Electric Arc Lighter. This device features a windproof plasma ignition, an LED battery display, a 3-mode flashlight, and an IP56 waterproof design, making it suitable for various outdoor and indoor applications.

Video 1: Selesaiview of the LcFun Electric Arc Lighter's features and various applications, including camping and candle lighting.

2. Maklumat Keselamatan

  • Amaran: Do not use this lighter with metal products.
  • Jauhkan daripada kanak-kanak.
  • Do not touch the arc directly as it can cause burns.
  • Jangan dedahkan kepada suhu melebihi 50°C (122°F).
  • Do not puncture or incinerate the lighter.
  • Ensure the lid is securely locked before exposing the lighter to water.

3. Kandungan Pakej

  • 1 x LcFun USB Rechargeable Electric Arc Lighter
  • 1 x Kabel Pengecas USB (Jenis-C)
  • 1 x Lanyard with Whistle
  • 1 x Manual Pengguna

4. Persediaan

4.1 Caj Permulaan

Before first use, fully charge the lighter. The device contains a rechargeable lithium-ion battery. Charging takes approximately 1.5 hours.

  1. Buka penutup pemetik api.
  2. Connect the provided Type-C USB charging cable to the charging port on the lighter.
  3. Connect the other end of the USB cable to a power source (e.g., wall charger, laptop, power bank).
  4. The LED battery indicator lights will illuminate to show charging progress. All four lights indicate a full charge.

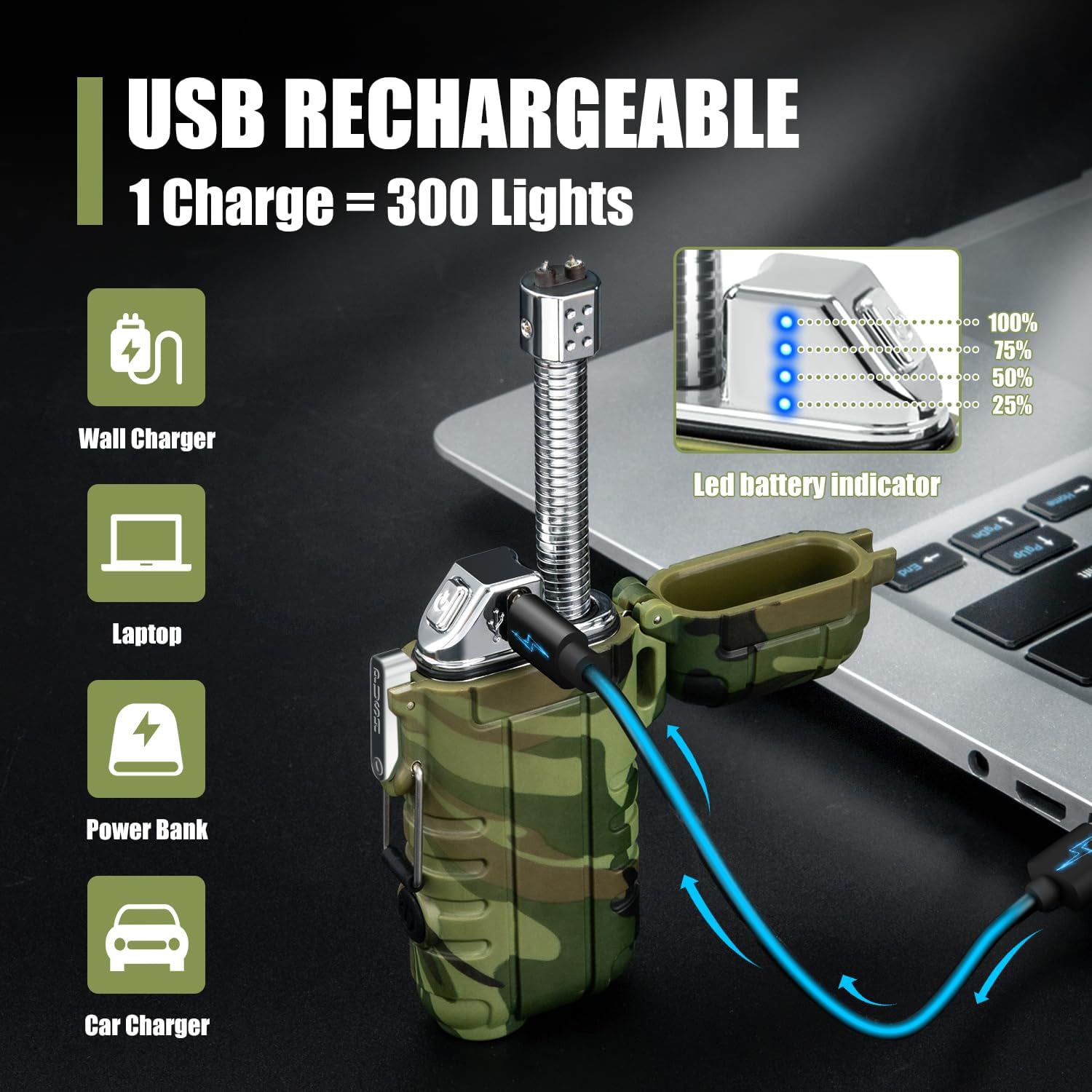

LcFun Electric Arc Lighter connected to a USB charger, showing LED battery indicator lights.

Figure 1: Lighter charging via USB-C with LED battery indicator.

Diagram showing the components of the LcFun lighter including arc flame, hose, battery indicator, Type-C charging port, lid, flashlight switch, and IP56 case.

Rajah 2: Terperinci view of lighter components and charging port.

5. Arahan Operasi

5.1 Using the Arc Lighter

  1. Open the protective lid of the lighter.
  2. Extend the flexible neck to the desired length and angle. The 360° flexible neck allows for ignition at a safe distance.
  3. Press and hold the ignition button to activate the electric arc. The arc will automatically power off after 7 seconds for safety.
  4. Release the button to turn off the arc.
  5. Close the protective lid after use.
LcFun Electric Arc Lighter with its 360-degree flexible neck extended, showing the plasma arc igniting a candle wick.

Figure 3: Using the 360° flexible arc lighter to ignite a candle.

Close-up of the LcFun lighter's flexible hose and LED battery indicator.

Figure 4: The 360° flexible and stretchable hose feature.

5.2 Menggunakan Lampu Suluh

The lighter is equipped with a flashlight featuring three modes: Low, High, and Strobe.

  1. Locate the flashlight switch on the side of the lighter.
  2. Press the switch once for Low mode.
  3. Press again for High mode.
  4. Press a third time for Strobe mode.
  5. Tekan kali keempat untuk mematikan lampu suluh.
LcFun Electric Arc Lighter showing its 3-mode flashlight function (High, Low, Strobe).

Figure 5: The 3-mode flashlight in operation.

Illustration of the three flashlight modes: Low, High, and Strobe.

Figure 6: Visual representation of the three flashlight modes.

5.3 Waterproof and Windproof Features

The LcFun Electric Arc Lighter is designed with an IP56 waterproof and windproof construction, ensuring reliable operation in harsh weather conditions.

  • The robust casing protects against water splashes and dust.
  • The electric arc is unaffected by wind, providing consistent ignition.
  • Penting: For full waterproof protection, ensure the buckle is securely locked before exposing the lighter to water.
LcFun Electric Arc Lighter submerged in water, demonstrating its waterproof capability.

Figure 7: Lighter demonstrating its waterproof, windproof, and dustproof features.

LcFun Electric Arc Lighters in various colors submerged in flowing water, highlighting the 'Outdoor Waterproof' feature with a note about locking the buckle.

Figure 8: Outdoor waterproof feature with important note on buckle lock.

Video 2: Demonstration of the lighter's waterproof and windproof capabilities, along with its flashlight function.

6. Penyelenggaraan

  • Pembersihan: Use a soft, dry cloth to clean the exterior of the lighter. Do not use abrasive cleaners or solvents.
  • Port Pengecasan: Keep the Type-C charging port free from dust and debris to ensure proper connection.
  • Storan: Simpan pemetik api di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
  • Penjagaan Bateri: To prolong battery life, avoid fully discharging the battery frequently. Recharge when the LED indicator shows low power.

7. Penyelesaian masalah

MasalahKemungkinan PuncaPenyelesaian
Lighter does not produce an arc.Bateri lemah atau tiada cas.Recharge the lighter fully using the provided USB-C cable.
Lampu suluh tidak menyala.Bateri lemah atau tiada cas.Recharge the lighter fully.
Lighter not charging.Loose cable connection or faulty cable/adapter.Ensure the USB-C cable is securely connected. Try a different USB port or charging adapter.
Arc is weak or inconsistent.Bateri lemah.Recharge the lighter.

8. Spesifikasi

  • Jenama: LcFun
  • Nombor Model: SEW-076
  • warna: Camo With Flashlight
  • Bahan: Acrylonitrile Butadiene Styrene, Zinc
  • Berat Barang: 69 Gram (2.43 auns)
  • Jenis bahan api: Elektrik
  • Dimensi Produk: 3.3" L x 1.81" W x 0.63" Th
  • Masa Pengecasan: Lebih kurang 1.5 jam
  • Ignitions per Charge: Sehingga 300
  • Penilaian Kalis Air: IP56

9. Waranti dan Sokongan

Your LcFun Electric Arc Lighter comes with a Waranti 90 hari tanpa kerumitan. If you encounter any issues or require assistance, please do not hesitate to contact LcFun customer support. Refer to the contact information provided in your package or on the official LcFun webtapak untuk butiran sokongan.
