Microseven M7B4K-PSAA 4K (8MP) IP PoE Security Camera User Manual

1. Pengenalan dan Lebihview

The Microseven M7B4K-PSAA is a professional 4K (8MP) IP Power over Ethernet (PoE) security camera designed for robust surveillance. This camera features a Sony CMOS Sensor, a 2.8mm lens providing a 150° wide-angle view, and digital zoom capabilities. It is equipped with 18 IR LEDs for up to 100ft clear night vision and an automatic IR filter for true day/night video. The camera boasts an IP66 weatherproof rating and a durable all-metal casing, suitable for outdoor use.

Key functionalities include two-way audio with an amplified microphone and high-power speaker, intelligent human/vehicle motion detection with real-time alerts, and flexible recording options to a microSD card (up to 256GB, not included), Microseven Cloud, Microseven NVR, or an FTP server. The M7B4K-PSAA is open-source compatible, supporting RTSP, RTMP, Blue Iris, and other third-party software, and integrates with Alexa for voice control.

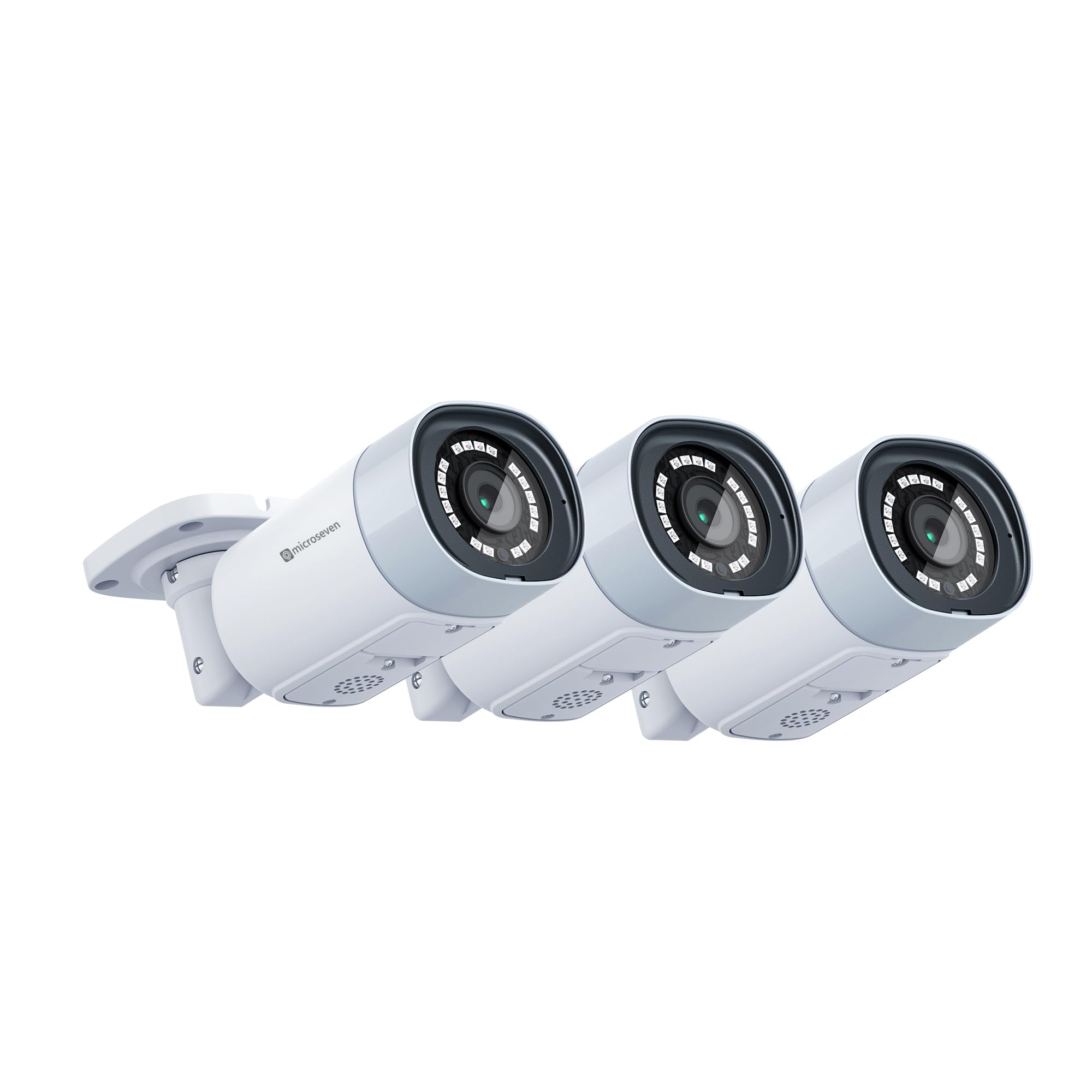

Image 1.1: Three Microseven M7B4K-PSAA 4K IP PoE security cameras. These cameras offer 8MP resolution and wide-angle viewing.

Image 1.2: Resolution comparison illustrating the superior detail of 8MP compared to 5MP and 2MP.

2. Persediaan

2.1 Menyahkotak dan Komponen

Sebelum pemasangan, sahkan bahawa semua komponen ada:

• Microseven M7B4K-PSAA Camera(s)
• Skru dan Penambat Pemasangan
• Penyambung Kalis Air untuk Kabel Ethernet
• Panduan Mula Pantas (manual ini)

2.2 Pemasangan Fizikal

1. Pilih Lokasi: Pilih lokasi luar yang sesuai yang menyediakan keperluan viewing angle and is within range of your network infrastructure. Ensure the camera is mounted securely.
2. Lekapkan Kamera: Use the provided mounting screws and anchors to securely attach the camera to a wall or ceiling. The universal ball mount allows for flexible positioning.
3. Sambungkan Kuasa dan Rangkaian:
   • PoE (Disyorkan): Connect an Ethernet cable from a PoE switch or PoE injector to the camera's Ethernet port. This provides both power and data.
   • Standard Power: If not using PoE, connect a 12V DC power adapter (not included) to the camera's power input and an Ethernet cable to your network router/switch.
   • Wi-Fi: For wireless connectivity, ensure the camera is powered on and within range of your 2.4/5 GHz Wi-Fi network. Configuration will be done via the Microseven App or CMS.
4. Sambungan Selamat: Use the waterproof connector for the Ethernet cable to protect against environmental elements.

2.3 Tatarajah Awal

After physical installation and power connection, configure the camera using the Microseven software:

1. Muat turun Perisian: Download the Microseven CMS (Camera Management System) for Windows or macOS, or the Microseven App for iOS or Android from the official Microseven website or app stores.
2. Kamera Temui: Launch the software/app. The application should automatically discover cameras on your local network. If not, use the 'Add Camera' function and manually enter the camera's IP address (if known) or scan the network.
3. Tetapkan kata laluan: For security, change the default password immediately upon first access.
4. Network Settings (for Wi-Fi): If using Wi-Fi, navigate to the camera's network settings within the app/CMS and connect to your desired 2.4/5 GHz Wi-Fi network.

Image 2.1: Microseven Camera Management System (CMS) interface for managing multiple camera feeds.

Image 2.2: Software platform compatibility for Microseven cameras, including desktop and mobile applications.

3. Mengendalikan Kamera

3.1 Langsung View dan Main semula

Akses suapan video langsung dan rakaman makanantage through the Microseven App or CMS software. You can view multiple cameras simultaneously and navigate through recorded events.

3.2 Pilihan Rakaman

The M7B4K-PSAA offers flexible recording configurations:

• Rakaman Berterusan: Rekod 24/7.
• Rakaman Berjadual: Records during specified time intervals.
• Rakaman Diaktifkan Pergerakan: Merakam hanya apabila gerakan dikesan.

Recordings can be saved to a microSD card (up to 256GB, not included), Microseven Cloud, Microseven NVR, or an FTP server. Configure these options within the camera settings in the app or CMS.

3.3 Pengesanan Gerakan dan Makluman

The camera features intelligent human/vehicle motion detection to reduce false alarms. Configure detection zones and sensitivity:

1. Jenis Pengesanan: Choose between human-only detection or regular motion detection.
2. Makluman: Set up real-time alerts via email (with images), app push notifications (with video clips), or FTP uploads (video clips and images).
3. Smart Alert Zone: Tentukan kawasan tertentu dalam kamera view for motion detection to minimize irrelevant alerts.

Image 3.1: Motion alert notifications with video clips displayed on a mobile device and desktop.

Image 3.2: Visual representation of human motion detection, highlighting a detected person.

3.4 Audio Dua Hala

Gunakan terbina dalam amplified microphone and high-power speaker for two-way communication. Access this feature through the Microseven App or CMS to listen and talk back.

3.5 Night Vision Control

The camera automatically switches to night vision in low-light conditions. You can manually enable or disable the IR LEDs and modify other camera properties remotely using the Microseven software.

3.6 Rakaman Selang Masa

Configure the camera to capture time-lapse videos, allowing you to condense long periods into short, viewable clips. This feature is accessible through the camera's settings in the Microseven software.

4. Penyelenggaraan

Regular maintenance ensures optimal performance and longevity of your Microseven camera:

• Bersihkan Lensa: Bersihkan kanta kamera secara berkala dengan kain lembutamp kain untuk menghilangkan habuk, kotoran atau tompok air yang mungkin menutupi view. Elakkan pembersih yang kasar.
• Semak Sambungan: Ensure all cable connections (Ethernet, power) are secure and free from damage. Verify the waterproof connector is properly sealed.
• Kemas kini Firmware: Check the Microseven website or app for available firmware updates. Keeping the firmware updated ensures access to the latest features and security enhancements.
• Pengurusan Kad SD: If using a microSD card for storage, periodically check its status and ensure it has sufficient space. Format the card if necessary (this will erase all data).
• Kemas Kini Perisian: Keep the Microseven CMS and mobile apps updated to their latest versions for compatibility and performance improvements.

5. Penyelesaian masalah

If you encounter issues with your Microseven M7B4K-PSAA camera, refer to the following common troubleshooting steps:

5.1 No Power/No Indicator Lights

• Semak Sumber Kuasa: Ensure the PoE switch/injector or power adapter is functioning correctly and providing power.
• Sambungan Kabel: Verify the Ethernet cable is securely connected to both the camera and the PoE source/router.
• Test with Different Port/Cable: If possible, try connecting to a different PoE port or using a different Ethernet cable.

5.2 Tiada Suapan Video

• Kesambungan Rangkaian: Ensure the camera is properly connected to your network (wired or Wi-Fi). Check your router/switch status.
• Software/App Status: Verify that the Microseven App or CMS is running and the camera is added correctly. Try refreshing the device list.
• Konflik Alamat IP: Ensure the camera has a unique IP address on your network. Check your router's DHCP client list.
• Tetapan Firewall: If accessing remotely, ensure your network firewall is not blocking the camera's ports.
• But semula Kamera: Power cycle the camera by disconnecting and reconnecting its power source.

5.3 Penggera Palsu Pengesanan Gerakan

• Laraskan Kepekaan: Lower the motion detection sensitivity in the camera settings.
• Konfigurasikan Zon Pengesanan: Exclude areas with frequent irrelevant motion (e.g., trees swaying, busy roads) using the smart alert zone feature.
• Human-Only Detection: Enable human-only detection if available in your firmware version to filter out non-human movements.

5.4 Isu Audio Dua Hala

• Tahap Kelantangan: Semak tetapan kelantangan pada peranti anda viewing device and within the Microseven App/CMS.
• Microphone/Speaker Obstruction: Ensure the camera's microphone and speaker are not blocked.
• Jalur Lebar Rangkaian: Poor network connection can affect audio quality. Ensure stable bandwidth.

For further assistance, refer to the Microseven support webtapak atau hubungi perkhidmatan pelanggan.

6. Spesifikasi

7. Waranti dan Sokongan

Microseven provides free software (CMS for Windows/macOS) and free mobile applications (iOS/Android) to manage and operate your camera. For detailed warranty information, technical support, and frequently asked questions, please visit the official Microseven webtapak. Simpan resit pembelian anda untuk tuntutan waranti.

Microseven cameras are designed for broad compatibility, working with various third-party software and systems such as Blue Iris, Milestone, Synology, QNAP, and ONVIF-compliant devices.

Image 7.1: Compatibility with various NVRs, software, and smart home platforms.
