Manual Pengguna Basikal Elektrik Bezior X Plus

1. Pengenalan

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Bezior X Plus Electric Bike. Please read this manual thoroughly before your first ride and keep it for future reference. Understanding the features and functions of your e-bike will ensure a safe and enjoyable riding experience.

Figure 1: Bezior X Plus Electric Bike, showcasing its foldable design and fat tires.

2. Amaran Keselamatan

Keselamatan anda adalah yang utama. Sentiasa patuhi garis panduan keselamatan berikut:

• Penggunaan topi keledar: Always wear a certified helmet when riding your electric bike.
• Semakan Pra-Tunggangan: Before each ride, inspect the brakes, tires (pressure and condition), battery charge, and ensure all quick releases and fasteners are secure.
• Undang-undang Lalu Lintas: Obey all local traffic laws and regulations. Use appropriate hand signals.
• Keterlihatan: Ride defensively and make yourself visible to motorists and pedestrians. Use the integrated LED headlamp for night riding.
• Keadaan Cuaca: Exercise caution when riding in wet conditions. The H875 power-off hydraulic disc brakes shorten braking distance, but wet roads still require increased stopping distance.
• Had Berat: Do not exceed the maximum weight capacity of the bike (refer to specifications).
• Alcohol/Drugs: Never operate the e-bike under the influence of alcohol or drugs.
• Kanak-kanak: This electric bike is designed for adults. Keep children away from the bike during operation and charging.

3. Komponen Utama

Familiarize yourself with the main parts of your Bezior X Plus Electric Bike:

3.1. 1500W Brushless Motor

The e-bike is equipped with a powerful 1500W high-speed brushless motor, providing robust acceleration and efficient power delivery for various terrains. It offers a maximum speed of up to 25 MPH (throttle) or 30 MPH (pedal assist).

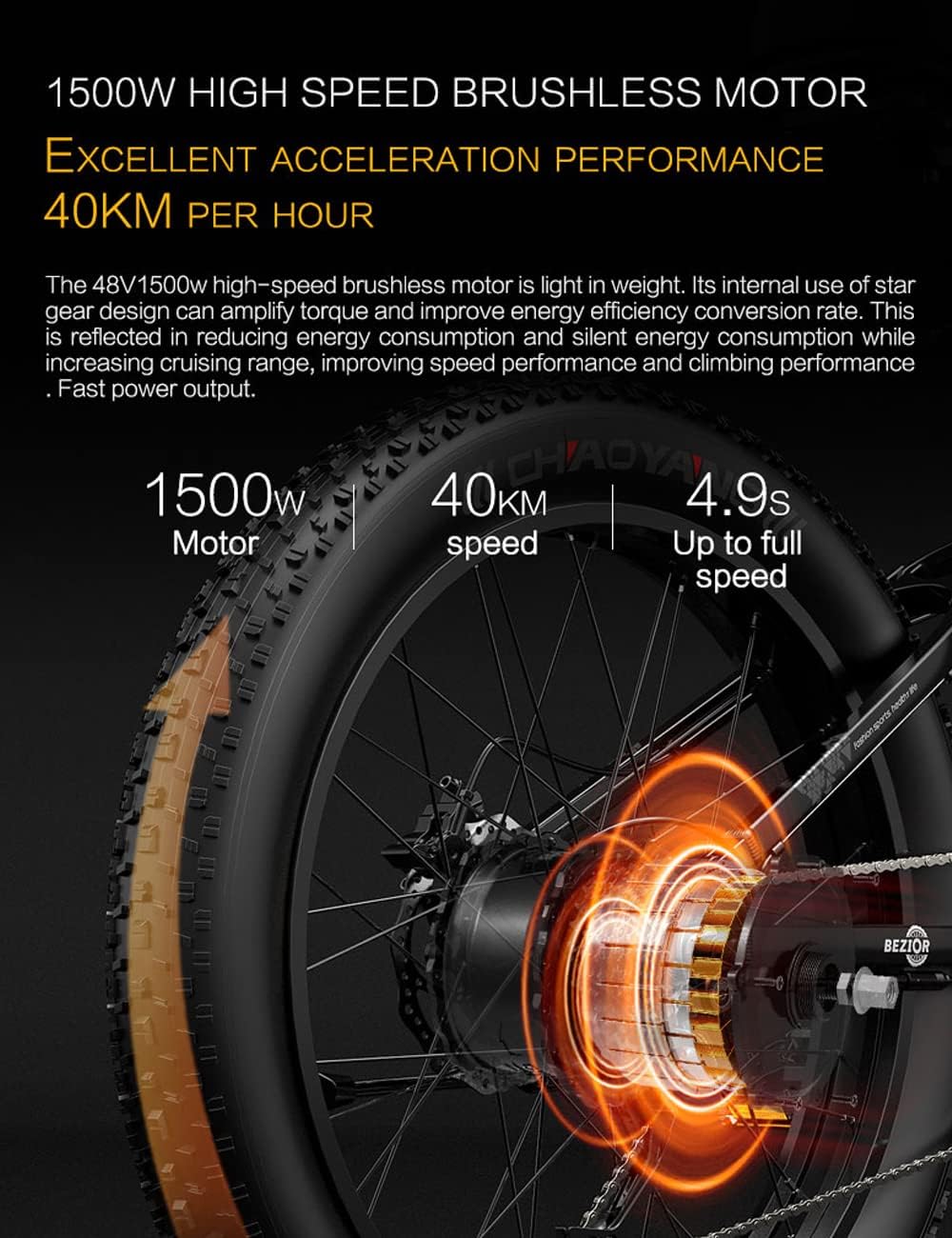

Rajah 2: Jarak dekat view of the 1500W brushless rear-geared motor, integrated into the rear wheel hub.

3.2. 26" x 4.0" Fat Tires & Suspension

The 26-inch by 4.0-inch wide puncture-resistant fat tires provide excellent grip and stability across diverse surfaces, including snow, sand, and rugged mountain roads. The dual suspension system, featuring a front fork and rear oil spring shock absorber, enhances comfort and control over rough terrain.

Figure 3: Detail of the 26-inch fat tire and the large double shoulder oil spring suspension fork.

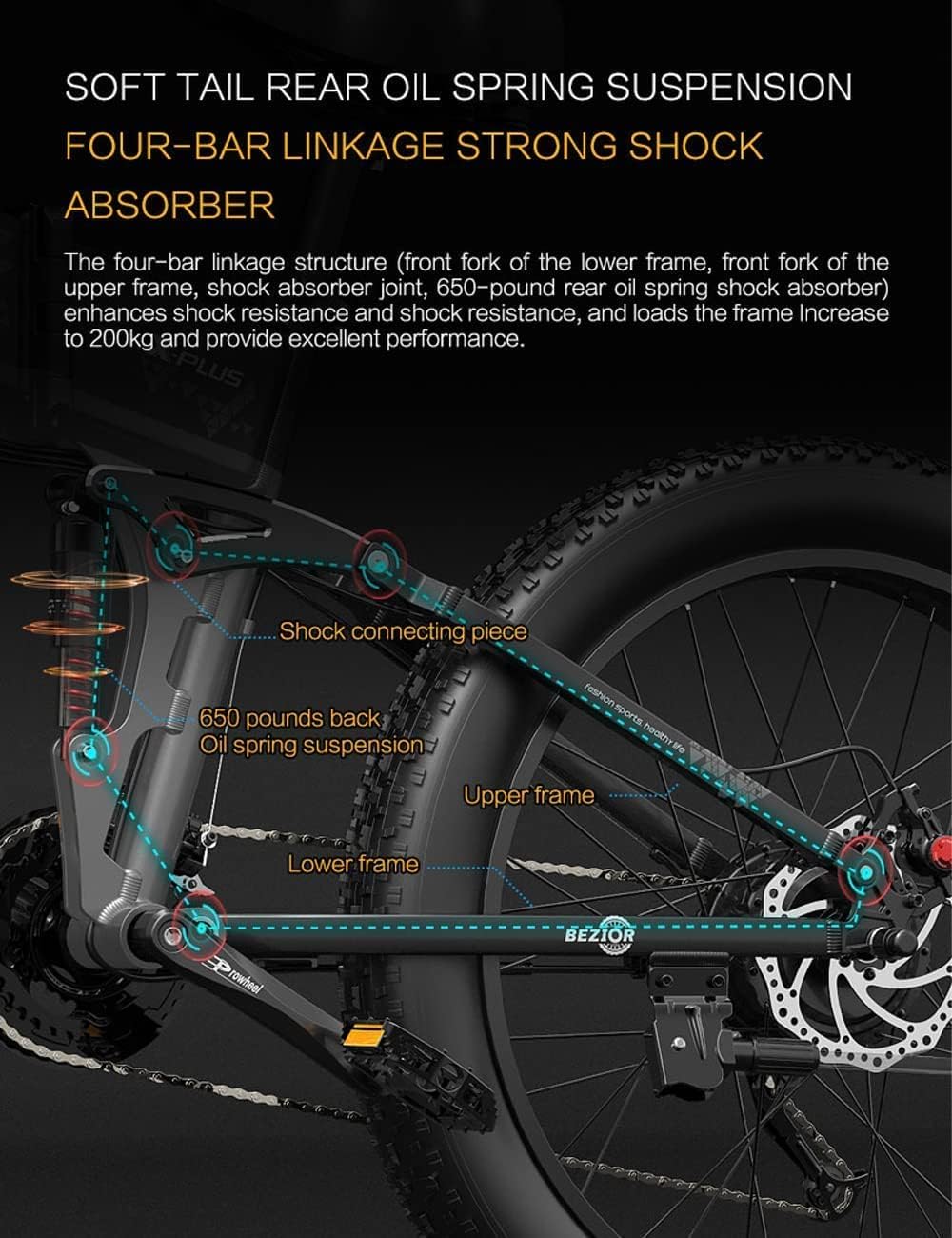

Figure 4: Illustration of the soft tail rear oil spring suspension system, designed for strong shock absorption.

3.3. Removable Lithium Battery

A 48V 17.5Ah removable IP54 waterproof Lithium-Ion battery powers the e-bike. It is integrated within the frame for protection and can be easily removed for convenient charging at home or office. A full charge takes approximately 5 hours.

Rajah 5: View of the 48V 17.5Ah lithium battery, hidden within the bike's frame.

3.4. Aluminum Alloy Frame

The bike features a robust aluminum alloy 6061 frame, treated for higher strength, corrosion resistance, and rust resistance. Its stable triangular design ensures durability and resistance to deformation.

Figure 6: Detail of the aluminum alloy frame, highlighting its rugged design and electrostatic paint finish.

3.5. S900 Smart LCD Meter

The multi-functional S900 LCD display provides real-time information including speed, battery level, pedal assist level, mileage, and other riding statistics. It is IP64 waterproof and dustproof.

Figure 7: The S900 Smart LCD Meter, showing various riding data and settings.

3.6. H875 Power-Off Hydraulic Disc Brake & Shimano 27-Speed Gear System

The e-bike is equipped with H875 power-off hydraulic disc brakes for reliable stopping power, even in wet conditions. The Shimano 27-speed transmission system allows for precise and sensitive gear changes, adapting to different riding conditions and terrains.

4. Persediaan dan Pemasangan

Your Bezior X Plus Electric Bike requires some assembly upon arrival. Please follow these general steps:

1. Membuka kotak: Carefully remove all components from the packaging. Retain packaging for potential future transport or returns.
2. Pemasangan Hendal: Pasangkan hendal pada batang, pastikan ia berada di tengah dan diketatkan dengan selamat.
3. Pemasangan Pedal: Identify the left (L) and right (R) pedals. Thread them into the crank arms. Note that the left pedal has a reverse thread. Tighten firmly.
4. Inflasi Tayar: Inflate the 26" x 4.0" fat tires to the recommended pressure (check sidewall for PSI range).
5. Pemasangan & Pengecasan Bateri: Insert the removable battery into its compartment within the frame. Ensure it clicks securely into place. Fully charge the battery before the first use (approximately 5 hours).
6. Pemeriksaan Brek dan Gear: Test the brakes and gear shifting mechanism to ensure proper function. Adjust if necessary.

For detailed assembly instructions, refer to the included assembly guide or contact customer support.

5. Mengendalikan Basikal Elektrik Anda

5.1. Menghidupkan/Mematikan

To power on the e-bike, press and hold the power button on the S900 LCD display. To power off, press and hold the power button again.

5.2. Mod Menunggang

Your Bezior X Plus offers three distinct riding modes:

• Mod Elektrik Tulen: The bike is propelled solely by the motor using the throttle. Range: 30–38+ miles.
• Mod Bantuan Pedal (PAS): The motor provides assistance as you pedal. You can adjust the assist level (5 levels) via the LCD display. Range: 80+ miles.
• Mod Basikal Biasa: The electric system is off, and the bike operates like a traditional bicycle, propelled solely by pedaling.

Figure 8: Visual representation of the three riding modes: E-Bike, Assisted Bike, and Normal Bike.

Figure 9: Illustration of the 5-level power assist mode, adjustable via the instrument panel.

5.3. Unlocking Speed (P-Settings)

The S900 LCD display allows for adjustment of certain parameters, including speed settings. For optimal performance, it may be necessary to adjust P-settings. The following video demonstrates how to access and modify these settings, specifically P-07 for speedometer calibration and P-08 for speed limit adjustment.

Nota: Adjusting speed settings may affect compliance with local regulations. Always be aware of and adhere to local laws regarding electric bicycle speed limits.

5.4. Gear Shifting and Braking

Utilize the Shimano 27-speed gear system to match your pedaling effort to the terrain. Shift gears smoothly to maintain an efficient cadence. The H875 hydraulic disc brakes provide strong and responsive stopping power. Apply both brakes simultaneously for balanced and effective braking.

6. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your e-bike:

• Penjagaan Bateri:
  • Cas bateri secara berkala, walaupun tidak digunakan, untuk mengekalkan kesihatannya.
  • Elakkan bateri habis sepenuhnya.
  • Simpan bateri di tempat yang sejuk dan kering.
• Tekanan Tayar: Periksa tekanan tayar sebelum setiap tunggangan dan masukkan angin ke PSI yang disyorkan.
• Brek: Periksa pad brek secara berkala untuk kehausan dan pastikan tuil brek responsif. Laraskan atau gantikan mengikut keperluan.
• rantai: Pastikan rantai bersih dan dilincirkan untuk mengelakkan karat dan memastikan penukaran gear yang lancar.
• Pembersihan: Bersihkan basikal dengan damp kain. Elakkan mencuci tekanan tinggi terus pada komponen elektrik.
• Pengikat: Periodically check and tighten all bolts and fasteners, especially on critical components like handlebars, wheels, and frame hinges.

7. Penyelesaian masalah

Berikut ialah beberapa isu biasa dan potensi penyelesaiannya:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Bezior customer support.

8. Spesifikasi Produk

Detailed technical specifications for the Bezior X Plus Electric Bike:

Figure 10: Dimensions of the Bezior X Plus Electric Bike in both unfolded and folded states.

9. Waranti dan Sokongan

Your Bezior X Plus Electric Bike comes with a Waranti 3 TahunWaranti ini meliputi kecacatan pembuatan dan memastikan kualiti produk anda.

For any questions, technical assistance, or warranty claims, please contact Bezior Customer Support. Refer to your purchase documentation for specific contact details or visit the official Bezior webtapak.

It is recommended to keep your proof of purchase for warranty purposes.
