Qsee 5MP Security Camera System User Manual

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Qsee 5MP Security Camera System. This system is designed to provide comprehensive surveillance with advanced features such as 5MP HD resolution, color night vision, and intelligent human and vehicle detection.

The Qsee security camera system includes an 8-channel 5MP DVR and 5MP cameras with a 90-degree viewing angle. The cameras feature a metal IP67 weatherproof housing and 3500K warm light LEDs for clear, colorful night vision up to 110 feet. The system supports 24/7 continuous recording and remote access via the Qsee app.

2. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• DVR x 1
• Kamera x 4
• 60ft BNC cables x 4
• Penyesuai kuasa x 2
• 6.5ft HDMI cable x 1
• USB mouse x 1
• Power splitter x 1
• 3.3ft network cable x 1
• Surveillance card x 4
• Pelekat kedudukan x 4
• Skru x 4
• Manual pengguna x 1

3. Persediaan

3.1 Sambungan Sistem

Follow these steps to connect your security camera system:

1. Connect the cameras to the DVR using the provided BNC cables.
2. Sambungkan DVR ke monitor menggunakan kabel HDMI atau VGA.
3. Connect the DVR to a power source using the power adapter.
4. Connect the DVR to your network router using the Ethernet cable for remote access features.
5. Connect the USB mouse to the DVR for local control.

Figure 3.1: System Connection Diagram. This image illustrates how to connect the security cameras to the DVR, and the DVR to a monitor, power, and network for initial setup.

3.2 Pemasangan dan Konfigurasi Apl

To access your security system remotely, download and configure the Qsee Smart Home App:

1. Download the 'Qsee - Smart Home' app from the App Store (iOS) or Google Play Store (Android).
2. Daftar akaun dan log masuk.
3. Add your security system to the app by following the on-screen instructions, typically involving scanning a QR code on the DVR or manually entering device details.
4. Setelah ditambah, anda boleh view live feeds and manage settings from your smartphone or computer.

Figure 3.2: Remote Access Interface. This image displays the Qsee app on a smartphone and multiple camera feeds on a computer monitor, demonstrating remote viewkeupayaan.

4. Arahan Operasi

4.1 Langsung View dan Rakaman

Selepas persediaan berjaya, anda boleh view suapan kamera langsung dan mengurus rakaman.

• Rakaman Berterusan 24/7: The system is configured for continuous recording. Ensure a hard drive is installed and functioning for storage.
• Pemampatan Video H.265: The system utilizes H.265 compression to optimize storage space and provide smoother video streaming.

Figure 4.1: 24/7 Recording and Playback. This image illustrates the timeline interface for reviewing rakamantage, highlighting continuous recording and easy playback features.

4.2 Advanced Detection Features

The Qsee system incorporates intelligent detection capabilities:

• Pengesanan Manusia & Kenderaan: The system can differentiate between people and vehicles, reducing false alarms from animals or environmental factors.
• Customized Motion Area: You can define specific motion detection zones to focus surveillance on critical areas and minimize unwanted alerts.

Figure 4.2: Human and Vehicle Detection. This image demonstrates the system's ability to accurately identify and distinguish between human and vehicle movement, reducing false alarms.

Figure 4.3: Customized Motion Area. This image illustrates how users can define specific regions within the camera's view for motion detection, enhancing alert accuracy.

4.3 Penglihatan Malam dan Audio

• Penglihatan Malam Warna: The cameras provide 110ft color night vision for enhanced clarity in low-light conditions.
• Audio Sehala: The cameras support one-way audio, allowing you to hear sounds from the camera's location.

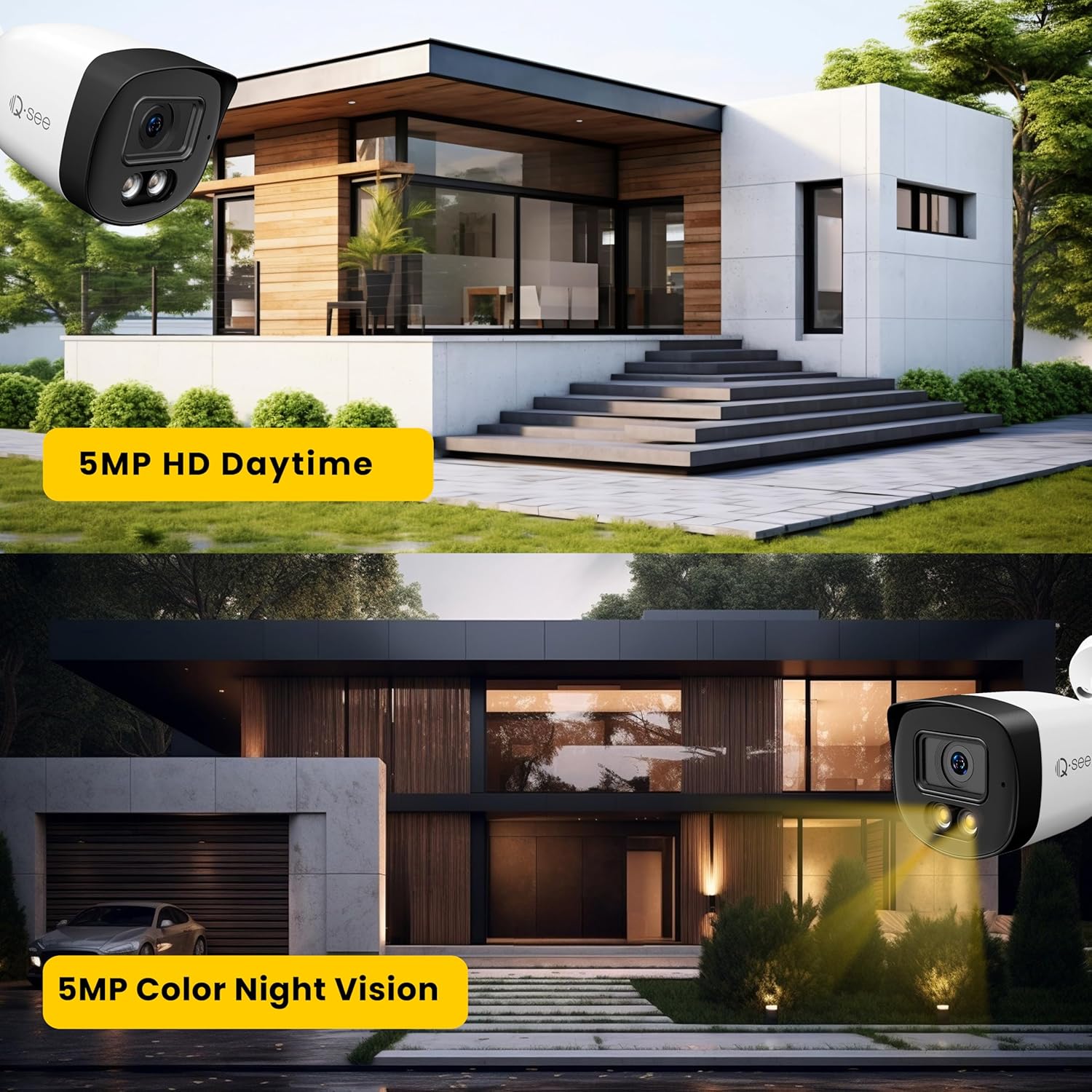

Figure 4.4: 5MP HD Daytime and Color Night Vision. This image compares the clear daytime 5MP HD footage with the vibrant 5MP color night vision provided by the cameras.

Figure 4.5: One-way Audio Feature. This image depicts a scenario where the camera's one-way audio allows monitoring of sounds from the surveillance area.

4.4 Privacy and Alerts

• Masking Privasi: You can conceal specific regions within the camera's view using privacy masks to protect sensitive areas.
• Pemberitahuan Makluman: Configure the Qsee app to receive email, push, or buzzer alerts for motion events.

Figure 4.6: Privacy Masking. This image demonstrates the use of privacy masks to obscure specific areas within the camera's field of view, ensuring privacy.

Figure 4.7: Alert Notifications. This image illustrates the various notification methods (app push, email, buzzer) available to keep users informed of motion events.

5. Penyelenggaraan

To ensure optimal performance and longevity of your Qsee Security Camera System, follow these maintenance guidelines:

• Pembersihan tetap: Bersihkan kanta kamera secara berkala dengan lembut, damp kain untuk menanggalkan habuk, kotoran atau bintik air yang boleh menghalang view. Elakkan pembersih yang kasar.
• Pemeriksaan Kabel: Regularly check all cables (BNC, power, network) for any signs of wear, damage, or loose connections. Secure or replace damaged cables promptly.
• DVR Environment: Ensure the DVR is placed in a well-ventilated area, free from excessive dust, moisture, and extreme temperatures.
• Kemas kini Firmware: Check the Qsee website or app for available firmware updates for your DVR and cameras. Keeping firmware updated can improve performance and security.
• Pengurusan Cakera Keras: Monitor the hard drive's storage capacity. The system supports up to 10TB capacity per disk. Consider adding an extra HDD if more storage is needed.

5.1 Rintangan Cuaca

The cameras are designed with IP67 weatherproof housing, making them suitable for outdoor use in various weather conditions.

Figure 5.1: IP67 All-Weather Proof Camera. This image highlights the camera's robust IP67 weatherproof design, ensuring durability in various environmental conditions.

Figure 5.2: Weatherproof Specifications. This image details the working temperature and humidity ranges for the IP67 weatherproof cameras.

6. Penyelesaian masalah

If you encounter issues with your Qsee Security Camera System, refer to the following common problems and solutions:

• No Video Display on Monitor:
      - Check all video cable connections (BNC, HDMI/VGA) between cameras, DVR, and monitor.
      - Ensure the DVR and monitor are powered on.
• Cameras Not Recording or Playback Issues:
      - Verify that a hard drive is properly installed and detected by the DVR. Refer to the DVR's system settings to check HDD status.
      - Ensure recording schedules are correctly configured.
      - Check hard drive health in DVR settings; replace if faulty.
• Akses Jauh Tidak Berfungsi:
      - Ensure the DVR is connected to the internet via the Ethernet cable.
      - Check your network connection and router settings.
      - Verify that the Qsee app is updated to the latest version and your device is connected to the internet.
      - Confirm correct device addition in the Qsee app.

Figure 6.1: Internet Connection Status. This image visually represents the importance of a stable internet connection for remote access features of the DVR.

• Makluman Gerakan Palsu:
      - Adjust the motion detection sensitivity settings in the DVR or app.
      - Utilize the customized motion area feature to exclude irrelevant zones (e.g., public roads, swaying trees).
      - Ensure Human & Vehicle Detection is enabled to filter out non-human/vehicle movements.
• Kualiti Penglihatan Malam yang Buruk:
      - Clean the camera lens to remove any obstructions.
      - Pastikan tiada sumber cahaya yang kuat menghadap kamera secara langsung pada waktu malam, yang boleh menyebabkan silau.

7. Spesifikasi

8. Waranti dan Sokongan

8.1 Waranti Produk

Qsee provides a Waranti 2 tahun for product-related issues. In the event of a covered issue, Qsee aims to provide a seamless experience by offering a replacement product.

8.2 Lifetime Product Support

Qsee is committed to providing lifetime product support to all valued customers. If you require assistance with installation, operation, or troubleshooting, please contact Qsee customer support.

Maklumat Hubungan 8.3

For support, please visit the official Qsee website or refer to the contact information provided in your product packaging. You can also find FAQs and troubleshooting guides on the Qsee brand store page: QSEE Store.
