Manual Pengguna Ketuhar Penggoreng Udara LLIVEKIT 26L

1. Arahan Keselamatan Penting

Please read all instructions carefully before using the LLIVEKIT 26L Air Fryer Oven. Retain this manual for future reference.

• Always place the appliance on a stable, heat-resistant surface, away from walls or other appliances to allow proper air circulation.
• Do not immerse the cord, plug, or the appliance body in water or other liquid.
• Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage sebelum menyambung.
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
• Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Jangan gunakan aksesori yang tidak disyorkan oleh pengilang perkakas, kerana ini boleh menyebabkan kecederaan.
• Jangan biarkan kord itu tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
• Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
• Berhati-hati yang melampau mesti digunakan apabila menggerakkan perkakas yang mengandungi minyak panas atau cecair panas lain.
• Jangan gunakan perkakas untuk apa-apa selain daripada penggunaan yang dimaksudkan.
• Sentiasa pastikan dulang serbuk roti dimasukkan dengan betul sebelum beroperasi.
• The exterior surfaces of the appliance may become hot during use. Use oven mitts when handling hot parts.

2. Produk Lebihview

The LLIVEKIT 26L Air Fryer Oven is a versatile kitchen appliance designed for healthy and efficient cooking. It combines the functions of an air fryer, oven, dehydrator, and electric oven, offering 14 pre-programmed functions.

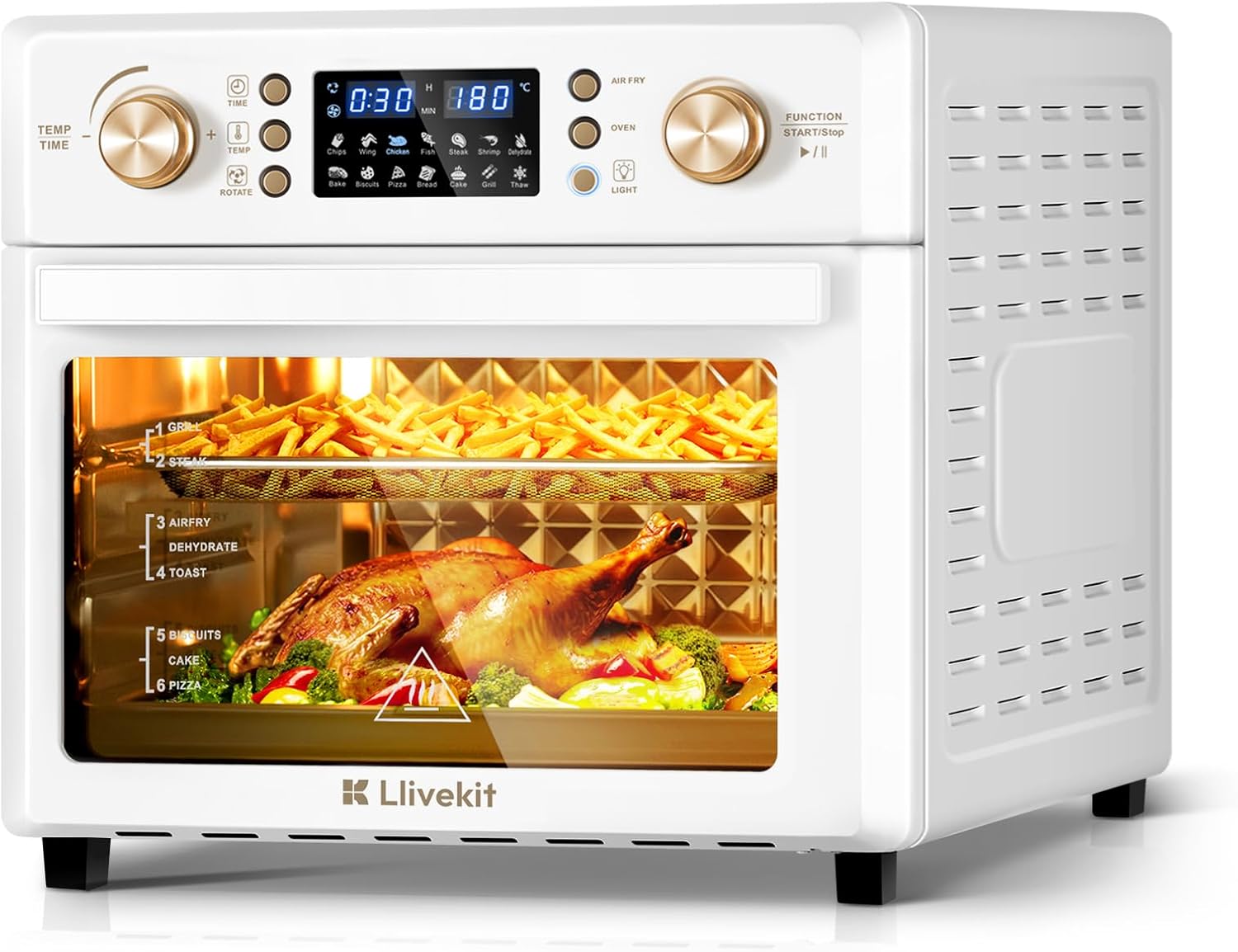

Figure 2.1: LLIVEKIT 26L Air Fryer Oven in Cream White, showcasing its compact design and large viewtetingkap masuk.

2.1 Ciri-ciri Utama

• Fungsi All-in-One: Fryer, oven, dehydrator, and electric oven.
• 14 Fungsi Pra-program: For various dishes like chips, chicken wings, roast chicken, fish, steak, shrimps, dried fruit, desserts, biscuits, pizzas, bread, cakes, and kebabs.
• Kapasiti 26L: Spacious interior with 3 levels, suitable for large families (8-10 people). Can accommodate a 2.5kg roast chicken or a 12-inch pizza.
• Peredaran Udara Panas 360°: Ensures even and quick cooking with crispy results.
• Visible Cooking Process: Integrated LED lighting and transparent, high-temperature resistant glass door.
• Kawalan Boleh Laras: Timer (0-90 minutes) and temperature (60-230°C).
• Bahan Tahan Lama: Interior made from high-quality, safe materials. Easy to clean.
• Aksesori Selamat Pencuci Pinggan: All included accessories are safe for dishwasher cleaning.

3. Persediaan dan Penggunaan Pertama

3.1 Membuka Kotak dan Pemeriksaan Awal

Carefully remove the air fryer oven and all accessories from the packaging. Inspect the appliance for any signs of damage during transit. If any damage is found, do not operate the appliance and contact customer support.

3.2 Penempatan

• Place the air fryer oven on a flat, stable, and heat-resistant surface.
• Ensure there is at least 10-15 cm (4-6 inches) of clear space on all sides of the appliance to allow for proper air circulation and heat dissipation.
• Jangan letakkan perkakas terus di bawah kabinet atau berhampiran bahan mudah terbakar.

3.3 Pembersihan Sebelum Penggunaan Pertama

Before using the appliance for the first time, it is essential to clean all parts that will come into contact with food.

1. Remove all accessories: non-stick baking tray, wire rack, mesh tray, crumb tray, tray handle, rotisserie spit, and rotisserie handle.
2. Wash all removable accessories in warm, soapy water or place them in a dishwasher. Rinse thoroughly and dry completely.
3. Lap bahagian dalam dan luar ketuhar dengan iklanamp cloth and mild detergent. Ensure no water enters the control panel area. Dry thoroughly.
4. Masukkan dulang serbuk roti di bahagian bawah ketuhar.

3.4 Initial Burn-Off (Recommended)

It is recommended to run the oven empty for about 15-20 minutes on a high temperature setting (e.g., 200°C) before first use. This helps to burn off any manufacturing residues and eliminate initial odors. Ensure the area is well-ventilated during this process.

4. Arahan Operasi

4.1 Panel Kawalan Selesaiview

The control panel features intuitive dials and an LED display for easy operation.

Rajah 4.1: Terperinci view of the control panel and key operational features.

• Time/Temperature Dial: Used to adjust cooking time and temperature.
• Paparan led: Shows current time, temperature, and selected program.
• Function/Start/Stop Button: Selects cooking functions and starts/stops the cooking process.
• Butang Cahaya: Activates the interior LED light to monitor cooking progress.
• Butang Putar: Mengaktifkan fungsi rotisserie.

4.2 Operasi Asas

1. Pasangkan: Connect the power cord to a grounded electrical outlet. The display will illuminate.
2. Pilih Fungsi: Turn the Function dial to choose one of the 14 pre-programmed settings or select a manual mode.
3. Laraskan Masa/Suhu: Use the Time/Temperature dial to set your desired cooking time (0-90 minutes) and temperature (60-230°C).
4. Mula Memasak: Press the Start/Stop button to begin the cooking process.
5. Pantau Kemajuan: Use the Light button to illuminate the interior and check food without opening the door.
6. Tamat Memasak: The oven will beep when cooking is complete. Press the Start/Stop button to manually stop cooking at any time.

4.3 14 Pre-programmed Functions

The LLIVEKIT Air Fryer Oven offers 14 versatile functions to simplify your cooking.

Figure 4.2: Visual representation of the 14 pre-programmed functions.

• kerepek
• Sayap Ayam
• Chicken (Roast)
• ikan
• Steak
• udang
• Dehydrate (for dried fruit)
• biskut
• Pizza
• roti
• kek
• Kebab
• panggang
• hangat

For optimal results, refer to the included recipe book or experiment with cooking times and temperatures based on food type and quantity.

4.4 Menggunakan Aksesori

The LLIVEKIT Air Fryer Oven comes with 7 useful accessories to enhance your cooking experience.

Gambar 4.3: Lebihview of the 7 included accessories.

• Non-stick Baking Tray: Ideal for baking cakes, biscuits, pizzas, or collecting drippings when roasting.
• Rak wayar: Used for toasting bread, baking, or placing items that require air circulation from all sides, such as chicken wings.
• Dulang Mesh: Perfect for air frying items like potato chips, vegetables, or smaller items that benefit from maximum air exposure.
• Dulang Kerak: Always place this at the very bottom of the oven to catch crumbs and drippings, making cleanup easier.
• Pemegang Dulang: Use this tool to safely insert and remove hot trays and racks from the oven.
• Rotisserie Spit: For roasting whole chickens or other large cuts of meat. Insert the spit through the center of the food and secure with forks. Place into the rotisserie slots inside the oven and activate the 'Rotate' function.
• Pemegang Rotisserie: Use this handle to safely remove the hot rotisserie spit from the oven after cooking.

The oven features 3 levels for placing racks and trays, allowing for multi-level cooking. Refer to the markings inside the oven for recommended positions.

Gambar 4.4: Cthamples of food quantities that can be cooked in the 26L capacity oven.

5. Pembersihan dan Penyelenggaraan

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your LLIVEKIT Air Fryer Oven.

5.1 Pembersihan Harian

1. Cabut dan Sejukkan: Sentiasa cabut plag perkakas dari salur keluar kuasa dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
2. Dalaman Bersih: Lap dinding dalaman dengan iklanamp cloth and mild, non-abrasive detergent. For stubborn stains, a paste of baking soda and water can be used, then wiped clean.
3. Luaran Bersih: Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih yang melelas atau pad penyental.
4. Dulang Serbuk Bersih: Remove the crumb tray and discard any food debris. Wash it in warm, soapy water or place it in the dishwasher.

5.2 Pembersihan Aksesori

All included accessories (non-stick baking tray, wire rack, mesh tray, crumb tray, tray handle, rotisserie spit, rotisserie handle) are dishwasher safe for convenient cleaning.

• Untuk mencuci tangan, gunakan air suam bersabun dan span yang tidak kasar.
• Ensure all accessories are thoroughly dry before storing or reinserting into the oven.

5.3 Penyimpanan

When not in use, ensure the appliance is clean and dry. Store it in a cool, dry place, away from direct sunlight and moisture. Do not place heavy objects on top of the oven.

6. Penyelesaian masalah

If you encounter any issues with your LLIVEKIT Air Fryer Oven, please refer to the following common problems and solutions before contacting customer support.

7. Spesifikasi

Detailed technical specifications for the LLIVEKIT 26L Air Fryer Oven.

• Jenama: LIVEKIT
• model: 26L Cream White
• kapasiti: 26 liter
• Kuasa / Wattage: 1700 watt
• Voltage: 220 Volt
• Dimensi Produk: 40 x 42 x 38.2 sm (P x L x T)
• Berat Barang: 8.6 kg
• Bahan: Stainless Steel, Glass, Plastic, Aluminium
• Julat Suhu: 60-230°C
• Julat Pemasa: 0-90 minit
• Ciri Khas: 14 Pre-programmed functions, 360° Hot Air Circulation, Integrated LED lighting, Dishwasher safe accessories.

8. Waranti dan Sokongan

For warranty information, product support, or service inquiries, please contact the seller or manufacturer directly. Keep your proof of purchase for any warranty claims.

Penjual: Llivekit

Polisi Pemulangan: 30-day refund/replacement (as per Amazon policy at time of product data retrieval).

For further assistance, you may visit the official LLIVEKIT store on Amazon: LLIVEKIT Store
