PARKSIDE PRTA 20-Li Cordless Grass Trimmer User Manual

1. Maklumat Keselamatan Penting

Before operating the PARKSIDE PRTA 20-Li Cordless Grass Trimmer, please read and understand all safety warnings and instructions provided in this manual. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

AMARAN:

• Always wear appropriate personal protective equipment (PPE) including eye protection, hearing protection, long pants, and sturdy footwear when operating the trimmer.
• Be aware of flying debris. Keep bystanders, children, and pets at a safe distance (at least 15 meters / 50 feet) from the operating area.
• Inspect the work area for objects such as rocks, broken glass, wires, or other debris that could be thrown or become entangled in the cutting line. Remove any such objects before starting.
• Do not operate the trimmer in wet conditions or in the rain.
• Ensure the battery is fully charged and properly inserted before use. Remove the battery pack when not in use, before cleaning, or when performing maintenance.
• Never modify the trimmer or use attachments not recommended by the manufacturer.
• Always hold the trimmer firmly with both hands during operation.

2. Produk Lebihview

The PARKSIDE PRTA 20-Li is a cordless grass trimmer designed for cutting grass and light weeds in gardens and around obstacles. It features a rotating trimmer head, automatic line readjustment, and a telescopic guide for user comfort.

Gambar 2.1: Lebihview of the PARKSIDE PRTA 20-Li Cordless Grass Trimmer, including the main unit, a 2 Ah battery, and the battery charger.

Ciri-ciri Utama:

• Operasi tanpa wayar: Powered by a 20V Li-Ion battery (compatible with X20V Team series).
• Rotating Trimmer Head: Adjustable to 0°, 90°, and 180° for versatile trimming, including edge cutting.
• Automatic Line Readjustment: Dual-line system for continuous cutting.
• Telescopic Guide: Adjustable length (approx. 23 cm) to suit user height.
• Sudut Pemotongan Boleh Laras: 7-position adjustable cutting angle.
• Pengawal Pelindung: Includes a line blade and a foldable plant protection bracket.
• Reka bentuk ergonomik: Non-slip soft grip handle with safety switch and adjustable second handle with integrated spool holder.
• Easy Spool Change: Tool-free spool replacement.

3. Pemasangan dan Persediaan

3.1 Membongkar

Carefully remove all components from the packaging. Ensure all parts listed in the package contents are present and undamaged. Keep packaging materials for future storage or disposal.

3.2 Memasang Pengawal Pelindung

Align the protective guard with the trimmer head and secure it according to the instructions. This guard is essential for user safety and to prevent debris from being thrown.

Rajah 3.1: Bahagian bawah view of the trimmer head, showing the protective guard and the dual cutting line system. Ensure the guard is securely attached before operation.

3.3 Installing the Spool

The trimmer comes with two line spools: one pre-assembled and one spare. To install or replace a spool, ensure the battery is removed. Follow the tool-free spool change mechanism.

Rajah 3.2: Jarak dekat view of the trimmer head, illustrating the spool housing and the points where the cutting line exits. Spool replacement is designed to be tool-free.

Figure 3.3: Two replacement spools, one pre-assembled and one spare, included with the PARKSIDE PRTA 20-Li trimmer. These spools are designed for easy, tool-free installation.

3.4 Adjusting the Handles and Telescopic Guide

Adjust the telescopic guide to a comfortable height for your body. The length can be adjusted by approximately 23 cm. The second handle can also be adjusted for optimal balance and control during operation.

Figure 3.4: The adjustable second handle, which can be positioned along the trimmer shaft to provide better balance and control for the user.

3.5 Mengecas Bateri

Before first use, fully charge the 20V Li-Ion battery using the provided charger. Connect the charger to a power outlet and insert the battery. The charger's indicator lights will show the charging status. Do not overcharge the battery.

Figure 3.5: The 20V Li-Ion battery and its dedicated charger. Ensure the battery is fully charged before operating the trimmer.

3.6 Memasukkan Bateri

Once charged, slide the battery pack into the battery compartment on the trimmer until it clicks securely into place. Ensure it is firmly seated before operation.

4. Arahan Operasi

4.1 Memulakan dan Menghentikan Trimmer

1. Ensure all safety precautions are observed and PPE is worn.
2. Pegang perapi dengan kuat dengan kedua-dua tangan.
3. To start, press the safety switch and then squeeze the trigger switch.
4. Untuk berhenti, lepaskan suis pencetus.

4.2 Teknik Menggunting

For best results, use a sweeping motion, moving the trimmer from side to side. Avoid hitting hard surfaces or obstacles to prevent damage to the cutting line and the trimmer.

Figure 4.1: The grass trimmer in operation, demonstrating its use for cutting grass in a garden area. Maintain a steady, sweeping motion for effective trimming.

4.3 Edge Cutting Function

The trimmer head can be rotated to 90° or 180° for precise edge cutting along pathways or flowerbeds. Utilize the spacer roller for consistent results.

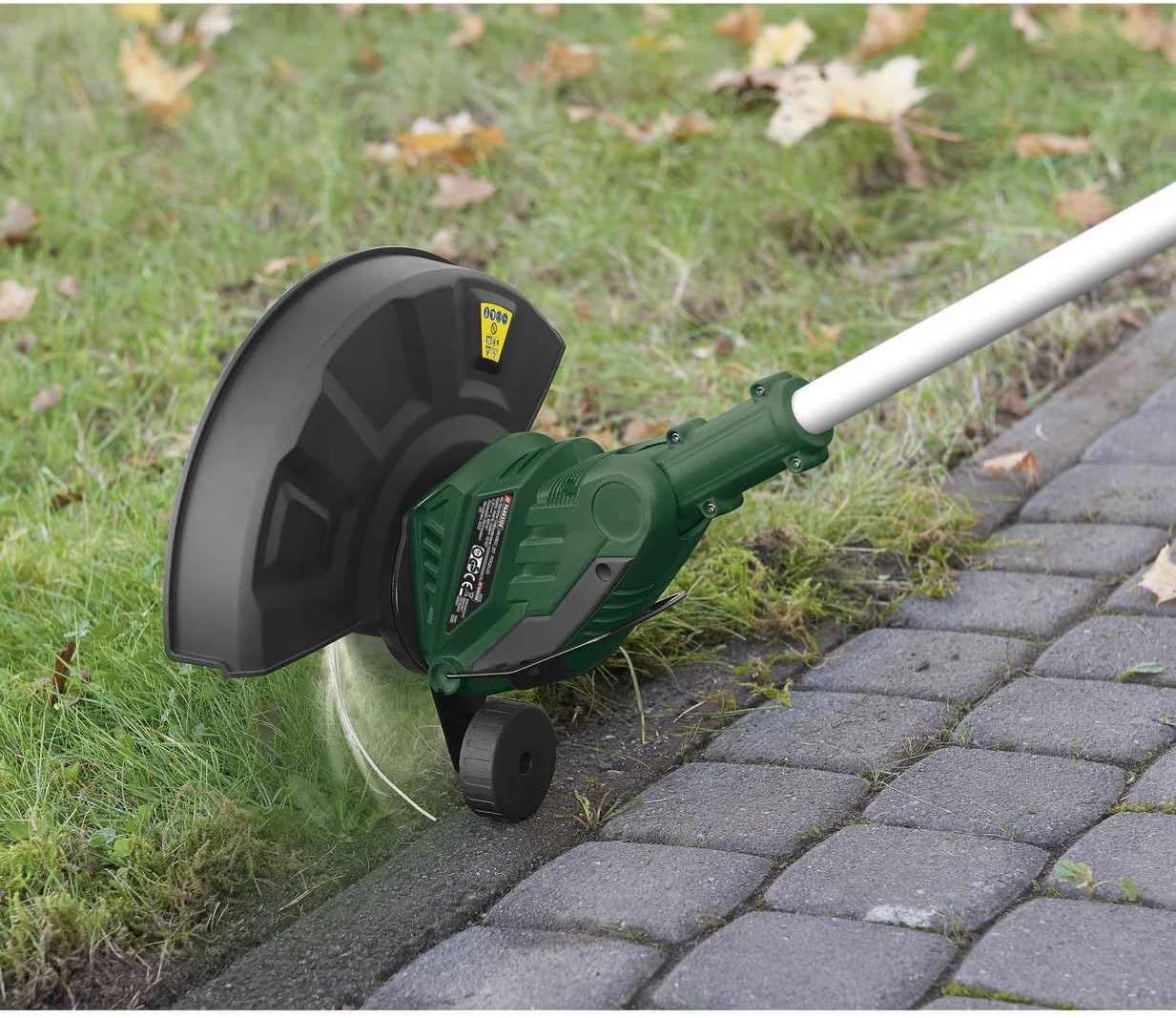

Figure 4.2: The trimmer being used for edge cutting along a paved path, showcasing its ability to rotate the head for precise trimming. The spacer roller helps maintain an even cut.

4.4 Plant Protection Bracket

The foldable plant protection bracket helps prevent damage to delicate plants, trees, and garden features while trimming close to them.

Figure 4.3: A close-up of the trimmer head, highlighting the foldable plant protection bracket. This feature helps protect delicate plants from accidental cutting.

5. Penyelenggaraan dan Penjagaan

5.1 Pembersihan

After each use, remove the battery and clean the trimmer. Use a damp cloth to wipe down the exterior. Remove any grass clippings or debris from the protective guard and trimmer head. Do not use harsh chemicals or abrasive cleaners.

5.2 Replacing the Cutting Line Spool

When the cutting line becomes too short or breaks, replace the spool. The PRTA 20-Li features a tool-free spool change mechanism. Refer to section 3.3 for detailed instructions.

5.3 Penjagaan Bateri

• Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Do not store the battery in a discharged state for extended periods. Charge it periodically if not in use.
• Only use the charger supplied with the product or a compatible PARKSIDE X20V Team charger.

5.4 Penyimpanan

Store the trimmer in a dry, secure location, out of reach of children. Remove the battery before storing for extended periods.

6. Penyelesaian masalah

7. Spesifikasi Teknikal

Figure 7.1: The PARKSIDE X20V Team system, illustrating the compatibility of the battery with various tools in the series. The PRTA 20-Li uses this battery system.

8. Waranti dan Sokongan

This product is manufactured by Parkside. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Parkside website. Spare parts availability in the EU is guaranteed for 3 years.

For technical assistance or inquiries regarding your PARKSIDE PRTA 20-Li Cordless Grass Trimmer, please contact your retailer or the manufacturer's customer service department.
