Wellshave RSCF-8317
Manual Pengguna Pencukur Pelbagai Fungsi Wellshave 4-dalam-1
Model: RSCF-8317
1. Produk Lebihview
The Wellshave 4-in-1 Multifunctional Shaver (Model RSCF-8317) is designed for comprehensive men's grooming. It features a rotary shaver head, a nose trimmer, a side trimmer, and a hair trimmer, offering versatility for various shaving and trimming needs. This device supports both wet and dry shaving and is IPX6 waterproof for easy cleaning.
Image: The Wellshave 4-in-1 Multifunctional Shaver, showcasing the main unit and its four interchangeable heads: rotary shaver, nose trimmer, side trimmer, and hair trimmer.

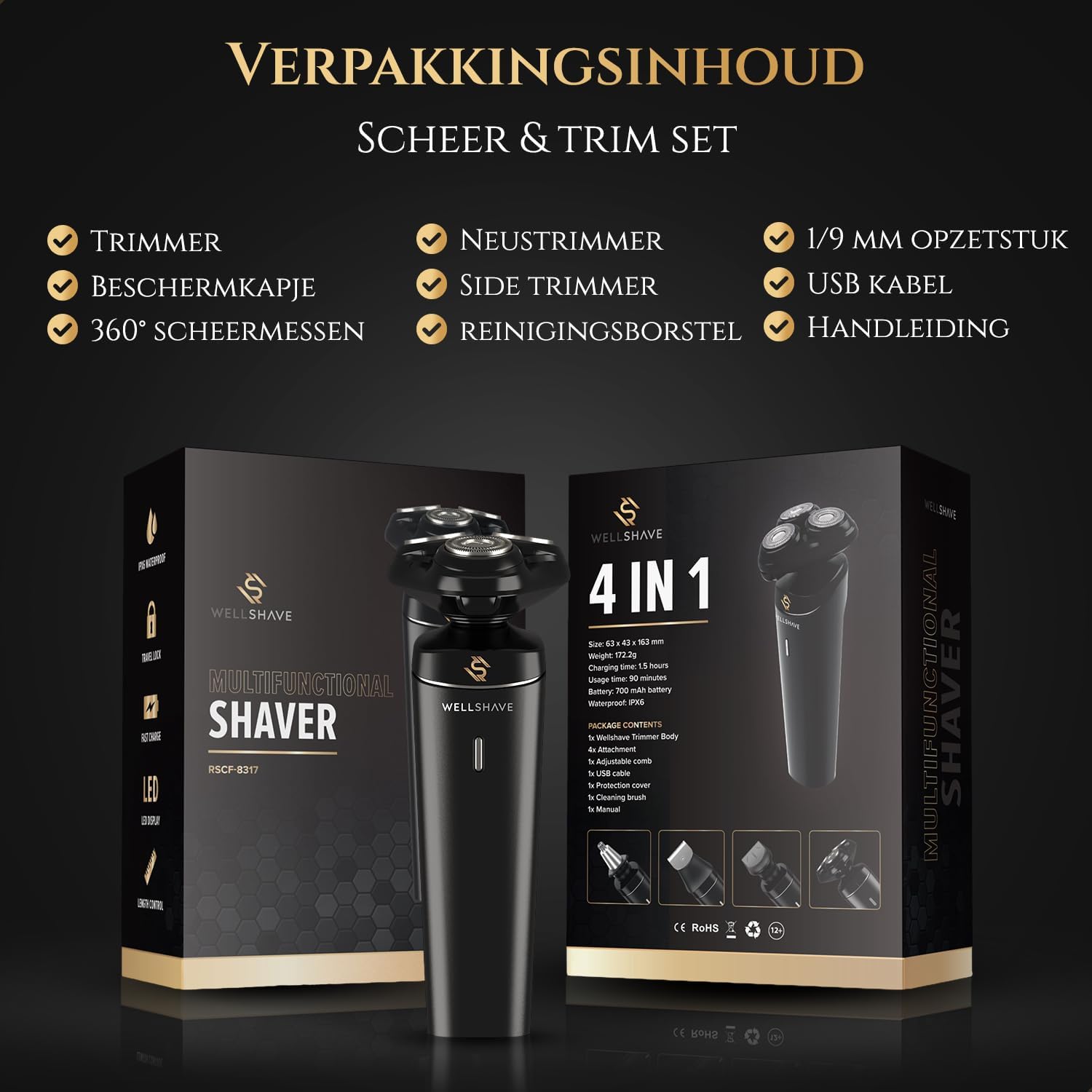

Image: Contents of the Wellshave 4-in-1 Shaver package, including the main shaver body, rotary shaver head, nose trimmer, side trimmer, hair trimmer, adjustable comb (1-9mm), USB charging cable, cleaning brush, and user manual.
2. Persediaan dan Pengecasan
2.1 Caj Permulaan
Before first use, fully charge the shaver. Connect the provided USB charging cable to the shaver's charging port and plug the other end into a compatible USB power source (e.g., power bank, adapter, PC/laptop USB port). The LED indicator will show charging status.
Image: The Wellshave shaver connected via its USB cable to a laptop for charging, illustrating the various compatible charging methods like power banks and wall adapters.
- Masa Pengecasan: Kira-kira 90 minit untuk pengecasan penuh.
- Operating Time: Up to 90 minutes of continuous use on a full charge.
- Battery Capacity: 700mAh Lithium Battery.
2.2 Memasang dan Menanggalkan Kepala
To change heads, gently twist the currently attached head counter-clockwise and pull it off. Align the desired head with the shaver body and twist clockwise until it clicks securely into place.
3. Arahan Operasi
3.1 Hidupkan/Mati Kuasa
Tekan butang kuasa yang terletak di hadapan pencukur untuk menghidupkan atau mematikannya.
3.2 Menggunakan Lampiran Berbeza
The Wellshave shaver comes with four versatile attachments:
- Rotary Shaver Head: Ideal for a close shave on the face and head. Can be used for both wet and dry shaving.
- Pemangkas Hidung: Designed for safely trimming nose and ear hair.
- Side Trimmer: For precise trimming of sideburns and detailing beard lines.
- Pemangkas Rambut: For general hair trimming and shaping. Use with the adjustable comb for desired length.
Image: A visual guide demonstrating the use of each interchangeable head: nose trimmer, 360° rotary shaver, side trimmer, and hair trimmer.
3.3 Pencukuran Basah dan Kering
The shaver is IPX6 waterproof, allowing for comfortable wet shaving with foam or gel, or convenient dry shaving. Always ensure the charging port cover is securely closed when using in wet conditions.
Image: The Wellshave shaver being used in a wet environment, highlighting its IPX6 waterproof rating and suitability for both wet and dry shaving, as well as its SkinSafe Technology.
3.4 Adjustable Length (Hair Trimmer)
When using the hair trimmer attachment, you can adjust the cutting length from 1mm to 9mm using the provided adjustable comb. Slide the comb to your desired setting before trimming.
Image: A close-up of the hair trimmer attachment showing the adjustable comb with length settings ranging from 1mm to 9mm.
3.5 Penunjuk LED
The shaver features an LED indicator light. It typically illuminates during operation and charging. It may flash red when the battery is low, indicating it needs to be recharged.
Imej: A terperinci view of the shaver's body, highlighting the LED indicator light and the anti-slip grip design for comfortable handling.
4. Penyelenggaraan dan Pembersihan
Pembersihan tetap memastikan prestasi optimum dan memanjangkan jangka hayat pencukur anda.
- Selepas Setiap Penggunaan: Turn off the shaver and detach the head. Rinse the shaver head and the main body under running water to remove hair clippings and debris. Use the provided cleaning brush for stubborn particles.
- Pembersihan Dalam: Periodically, for the rotary shaver head, you may open the individual shaver foils and rinse thoroughly.
- Pengeringan: Shake off excess water and allow all parts to air dry completely before reattaching the head or storing the shaver.
- Storan: Simpan pencukur di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
5. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Pencukur tidak dihidupkan. | Bateri habis. | Cas pencukur sepenuhnya. |
| Poor shaving/trimming performance. | Bilah kusam atau tersumbat dengan rambut. | Clean the shaver head thoroughly. Consider replacing the head if performance does not improve (contact customer support for availability). |
| Pencukur mengeluarkan bunyi yang luar biasa. | Hair caught in mechanism or head not properly attached. | Clean the shaver and ensure the head is securely attached. |
| Penunjuk LED berkelip merah. | Bateri lemah. | Isi semula pencukur. |
6. Spesifikasi
- Jenama: Wellshave
- Nombor Model: RSCF-8317
- Dimensi (L x W x H): 20.8 x 15.3 x 7.6 cm
- Berat: 300 gram
- Sumber Kuasa: Dikuasakan bateri
- Jenis Bateri: Bateri Litium 700mAh
- Kelajuan Motor: 7500 RPM
- Masa Pengecasan: lebih kurang 90 minit
- Masa Operasi: lebih kurang 90 minit
- Penilaian Kalis Air: IPX6 (sesuai untuk kegunaan basah dan kering)
- Penggunaan yang Disyorkan: Face, Head, Nose, Ear
- Komponen yang Disertakan: Shaver body, Rotary shaver head, Nose trimmer, Side trimmer, Hair trimmer, Adjustable comb (1-9mm), USB charging cable, Cleaning brush, User manual.
- warna: Hitam
Image: Key features of the Wellshave shaver, including 7500 RPM motor, 90 minutes battery life, IPX6 waterproof rating, adjustable length, and 4 attachments.
7. Waranti dan Sokongan
For warranty information, technical support, or inquiries regarding replacement parts, please contact Wellshave customer service through the retailer where the product was purchased or visit the official Wellshave webtapak. Sila simpan bukti pembelian anda untuk sebarang tuntutan waranti.
