KAKA INDUSTRIAL BS-2114T Metal Band Saw User Manual

1. Pengenalan

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your KAKA INDUSTRIAL BS-2114T Metal Band Saw. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage. This industrial-grade band saw is designed for precise cutting of various metal materials, featuring a swivel head miter for angled cuts and a robust gear-driven system.

Maklumat Keselamatan

Always prioritize safety. Wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and gloves. Ensure the work area is clear and well-lit. Disconnect power before performing any maintenance or adjustments.

2. Persediaan

Membongkar dan Meletakkan

The KAKA INDUSTRIAL BS-2114T is a heavy machine, weighing approximately 1566 pounds. Use appropriate lifting equipment and methods for unpacking and placement. Ensure the machine is placed on a stable, level surface capable of supporting its weight and operational forces. The stand is included and should be securely assembled.

Sambungan Kuasa

This machine requires a 220V-60Hz-3PH power supply. Ensure your electrical system meets these requirements and that the connection is made by a qualified electrician. Improper power connection can lead to machine damage or electrical shock.

Pemeriksaan Awal

• Sahkan semua komponen ada dan tidak rosak.
• Check for proper blade tension. The machine features mechanical blade tensioning.
• Ensure the quick-lock vise operates smoothly.
• Inspect the coolant system reservoir and lines for any leaks or blockages.

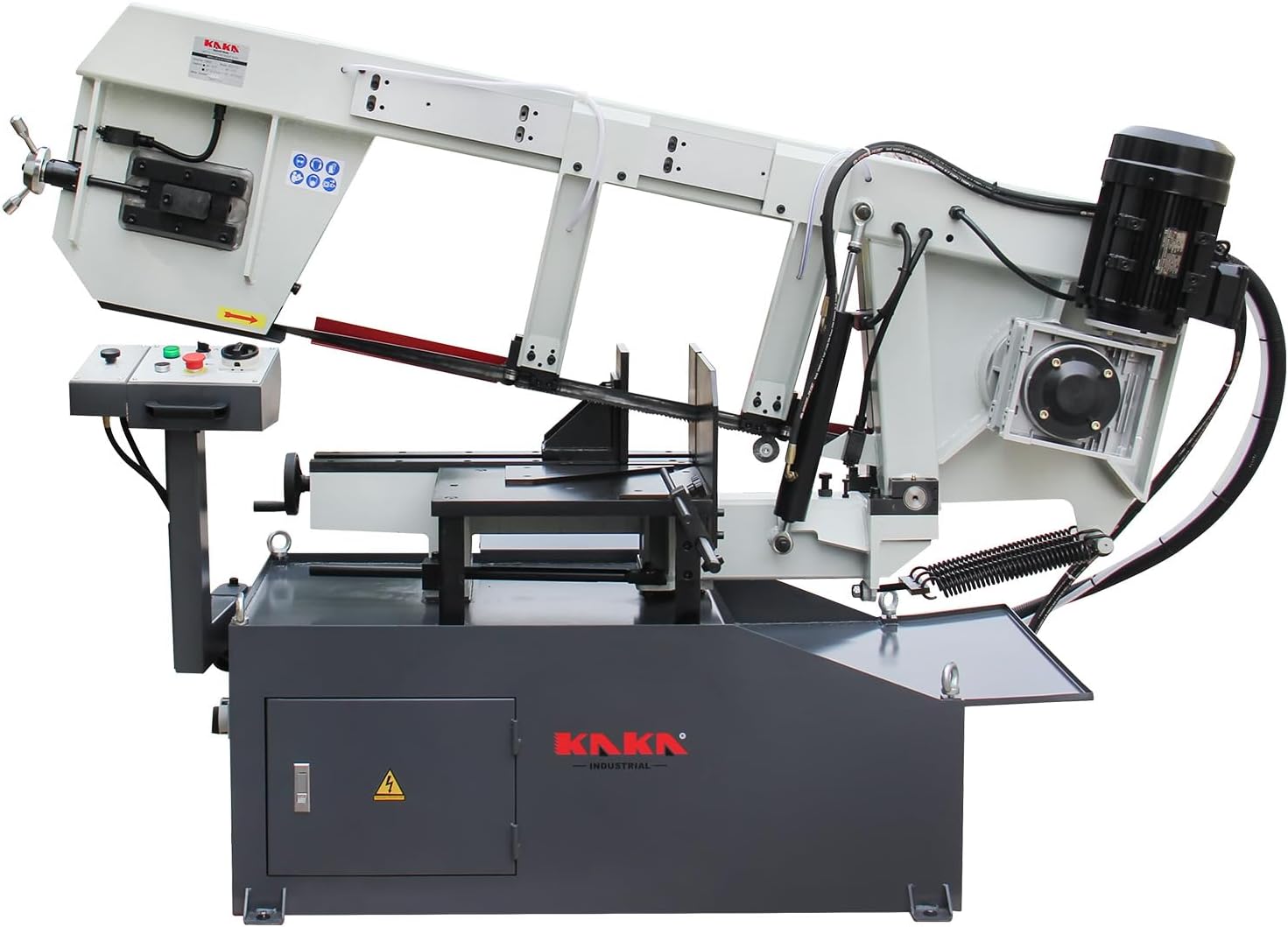

Gambar 2.1: Lebihview of the KAKA INDUSTRIAL BS-2114T Metal Band Saw. This image displays the complete machine from a front-side perspective, highlighting its robust construction and key components like the saw frame, control panel, and base.

3. Arahan Operasi

Panel Kawalan Terlaluview

Familiarize yourself with the control panel before operation. It includes power indicators, start/stop buttons, an emergency stop, and controls for saw speed and coolant flow.

Figure 3.1: Close-up of the control panel. This image shows the various buttons and dials for operating the band saw, including power, start, emergency stop, and saw speed selection.

Bahan Clamping

Use the quick-lock vise to securely clamp the workpiece. Proper clamping is crucial for accurate cuts and operator safety. Ensure the material is stable and cannot shift during cutting.

Figure 3.2: Detail of the cutting area and quick-lock vise. This image illustrates how material is secured for cutting, showing the blade path and the robust clampmekanisme ing.

Setting Cutting Angle (Miter)

The swivel head allows for miter cuts up to 60 degrees. Use the degree indicator to set the desired angle precisely. Loosen the locking mechanism, adjust the head to the required angle, and then re-secure the lock.

Figure 3.3: Miter angle indicator. This image highlights the scale used to set precise cutting angles for the swivel head, ranging up to 60 degrees.

Blade Speed Selection

The machine offers two blade speeds: 57 MPM (Meters Per Minute) and 84 MPM. Select the appropriate speed based on the material type and thickness being cut. Refer to a material cutting chart for optimal speed recommendations.

Prosedur Pemotongan

1. Secure the workpiece in the vise.
2. Tetapkan sudut pemotongan yang dikehendaki.
3. Select the appropriate blade speed.
4. Libatkan sistem penyejuk.
5. Mulakan gergaji.
6. Lower the saw frame using the hydraulic down feed control. The hydraulic system ensures adjustable cutting speed and a smooth descent.
7. The machine features an automatic shutoff once the cut is complete.

Figure 3.4: Close-up of the hydraulic down feed cylinder. This component controls the rate at which the saw blade descends into the material, allowing for precise and controlled cutting.

4. Penyelenggaraan

Regular maintenance is crucial for the longevity and optimal performance of your band saw.

Penyelenggaraan Bilah

• Blade Tension: Periodically check and adjust the mechanical blade tension to ensure proper cutting and prevent blade breakage.
• Penggantian Bilah: Replace dull or damaged blades promptly. The quick-lock vise design facilitates easier blade changes.

Figure 4.1: Detail of the blade wheel and blade path. This image shows the mechanism that drives the band saw blade, emphasizing the importance of proper blade alignment and tension.

Sistem Penyejuk

The built-in coolant system helps prolong blade life and improve cut quality. Regularly check the coolant level and replenish as needed. Clean the coolant reservoir and filter to prevent blockages and maintain system efficiency.

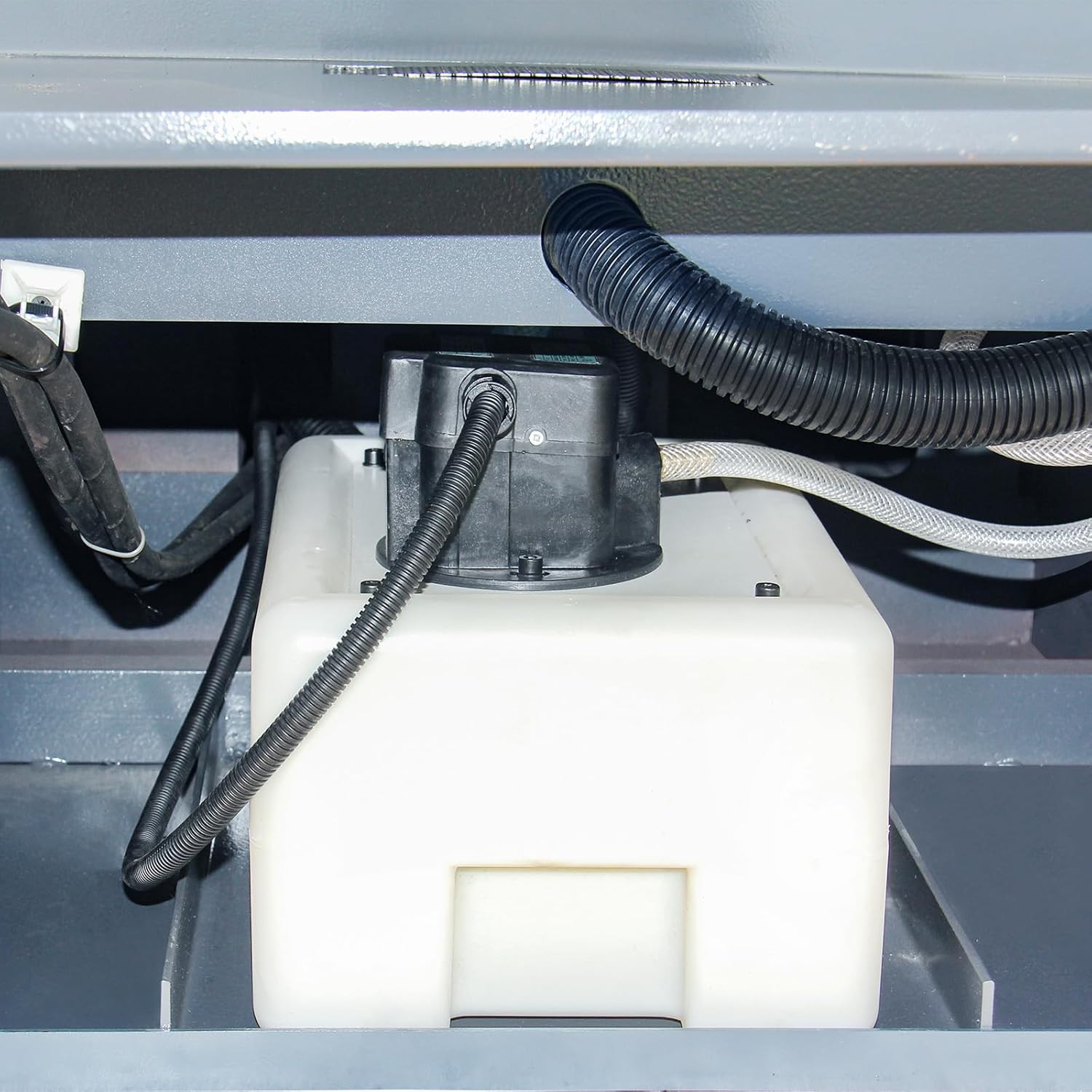

Rajah 4.2: View of the coolant reservoir. This component stores the cutting fluid used to cool the blade and workpiece during operation, contributing to extended blade life.

Pembersihan Am

Keep the machine clean from metal chips and debris. Regularly wipe down surfaces and ensure all moving parts are free from obstructions. Lubricate moving parts as recommended by the manufacturer.

5. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi semasa operasi.

6. Spesifikasi

Detailed technical specifications for the KAKA INDUSTRIAL BS-2114T Metal Band Saw.

Figure 6.1: Overall dimensions of the band saw. This diagram provides key measurements (length, width, height) of the machine for planning installation space.

7. Waranti dan Sokongan

Maklumat Waranti

The KAKA INDUSTRIAL BS-2114T Metal Band Saw comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact KAKA INDUSTRIAL LLC directly.

Sokongan Pelanggan

For technical assistance, parts, or service inquiries, please contact KAKA INDUSTRIAL LLC. You can visit their official store on Amazon for more information: KAKA INDUSTRIAL Store.
